8-50 — AIR CONDITIONING SYSTEM; FRONT (#58506) — 69 parça

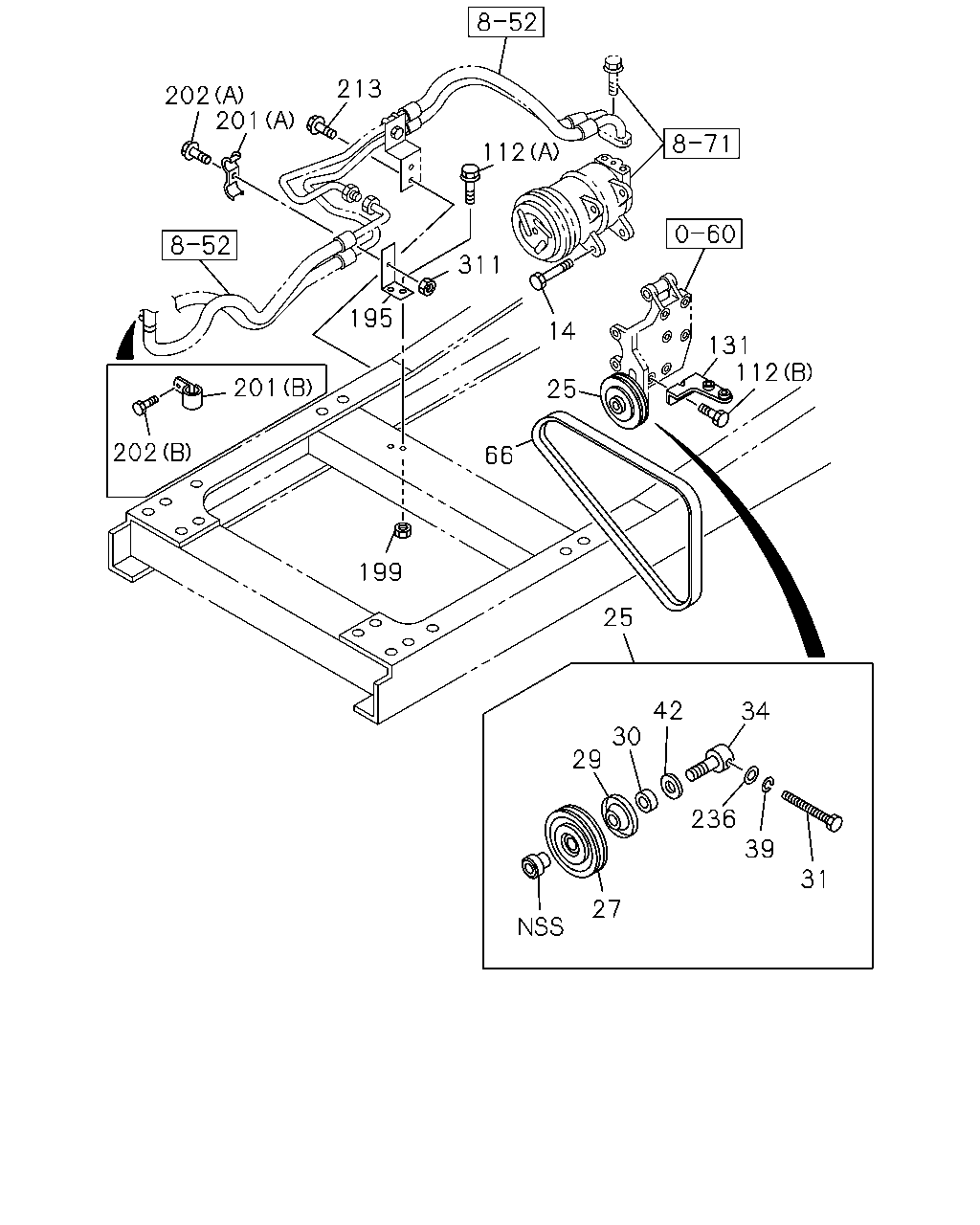

çizim 172825
213 202 201 112 311 195 14 131 112 201 25 202 66 199 25 42 34 30 29 236 39 31 27
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 02 1 0209-0210 ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 02 1 0211-0512 ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28051-045-0 02 1 0601- ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 02 1 0209-0210 ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 02 1 0211-0512 ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 0209-0210 ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 0211- ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 0209-0210 ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 0211- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 0209-0210 ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 0211- ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 0209-0210 ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 0211- ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 0209-0210 ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 0211- ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 0209-0210 ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 0211- ●
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 0209-0210 ● ●
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 0211- ●
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 0209-0210 ● ●
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 0211- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 0209-0210 ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 0211-1402 ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1077 		8-98253-452-0 01 1 1403- ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28680-825-0 02 1 0201-0210 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0209-0210 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603 ● ●
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 0209-0210 ● ●
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 0211- ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-896-0 01 1 0201-0210 ● ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-896-0 01 1 0211-1004 ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98151-192-0 01 1 1005- ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-896-0 01 1 9510-9603 ● ●
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0201-0210 ● ●
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9510-9603 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0201-0210 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0211- ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		9-09525-836-0 01 1 0201-0210 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0606 ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9510-9603 ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0210 ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0201-0210 ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9603 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28680-825-0 02 1 0201-0210 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 01 1 0201-0210 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 01 1 0211-0306 ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 0307-0512 ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28051-045-0 01 1 0601- ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603 ● ●
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 0209-0210 ● ●
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 0211- ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0201-0210 ● ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9603 ● ●
