8-45 — HEATER PIPING (#58505) — 88 parça

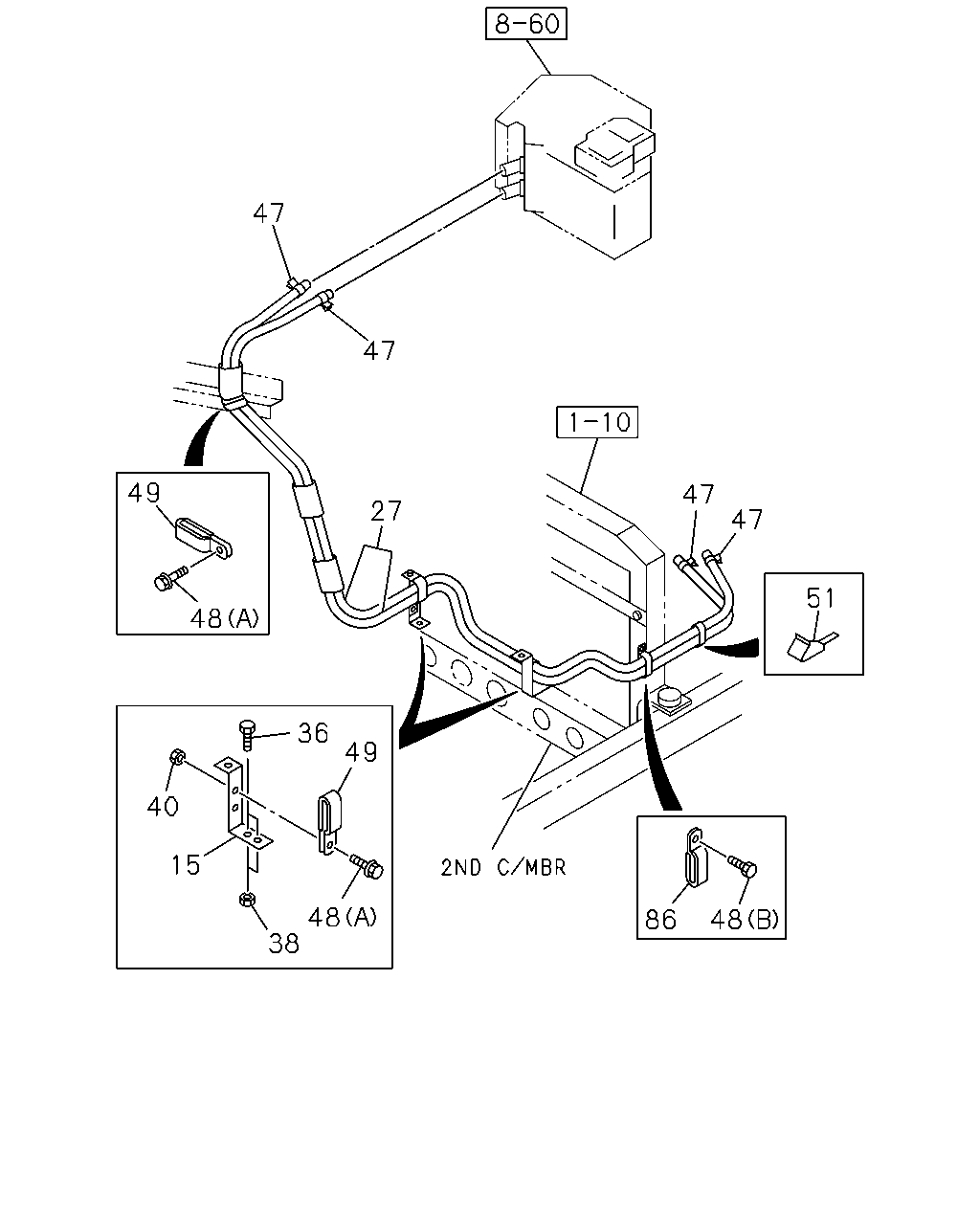

çizim 172831
47 47 49 47 27 47 51 48 36 49 40 15 48 38 48 86
BalonParca AdiParca NoAdetTipApplied Date A B
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-927-1 01 1 9510-9603 ● ●
15 BRACKET; WATER HOSE 1-83571-927-1 01 1 9510-9603 ● ●
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41) 		1-83571-927-1 01 1 9604-9607 ● ●
15 BRACKET; WATER HOSE 1-83571-927-1 01 1 9604-9607 ● ●
15 BRACKET; WATER HOSE 1-83571-927-1 02 1 9608-0210 ● ●
15 BRACKET; WATER HOSE 1-83571-927-1 02 1 0211- ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-630-0 01 1 9510-9603 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) 		1-83565-630-2 01 1 9604-0112 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-630-2 01 1 0201-0210 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-630-2 01 1 0211- ●
36 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603 ● ●
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ●
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9607 ● ●
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9607 ● ●
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X25 FLANGE 		0-28680-825-0 02 1 9608-9608 ● ●
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 9608-9801 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9802-0210 ● ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ●
36 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
38 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9510-9603 ● ●
38 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9603 ● ●
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 02 1 9604-9606 ● ●
38 NUT; BRKT
M8 		9-09110-408-0 02 1 9604-9606 ● ●
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9607-9607 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9607 ● ●
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9608-9608 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9608-0210 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9603 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 01 1 9604-9606 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 01 1 9607-9607 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9510-9603 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 02 1 9604-9606 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9607-0112 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0201-0210 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 9510-9603 ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 04 1 9604-0112 ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 0201-0210 ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 0211-0611 ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-97359-141-0 04 1 0612- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9607 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9510-9603 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9604-0112 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0201-0210 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0211- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9802 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9803-9901 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9802 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9803-9901 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0112 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0112 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0210 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0210 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 9510-9603 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 9510-9603 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9604-9607 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9604-9607 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 01 1 9608-9901 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9902-0112 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9902-0112 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0201-0210 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0201-0210 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0211- ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0211- ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9608-9901 ● ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 9510-9603 ● ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170 		1-83574-139-0 01 1 9604-0112 ● ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0201-0210 ● ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0211-1205 ●
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		8-98166-021-0 01 1 1206- ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 9510-9603 ● ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 		1-83571-049-1 01 1 9604-0112 ● ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 0201-0210 ● ●
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 0211- ●
