8-28 — CHASSIS ELECTRICAL (#58503) — 129 parça

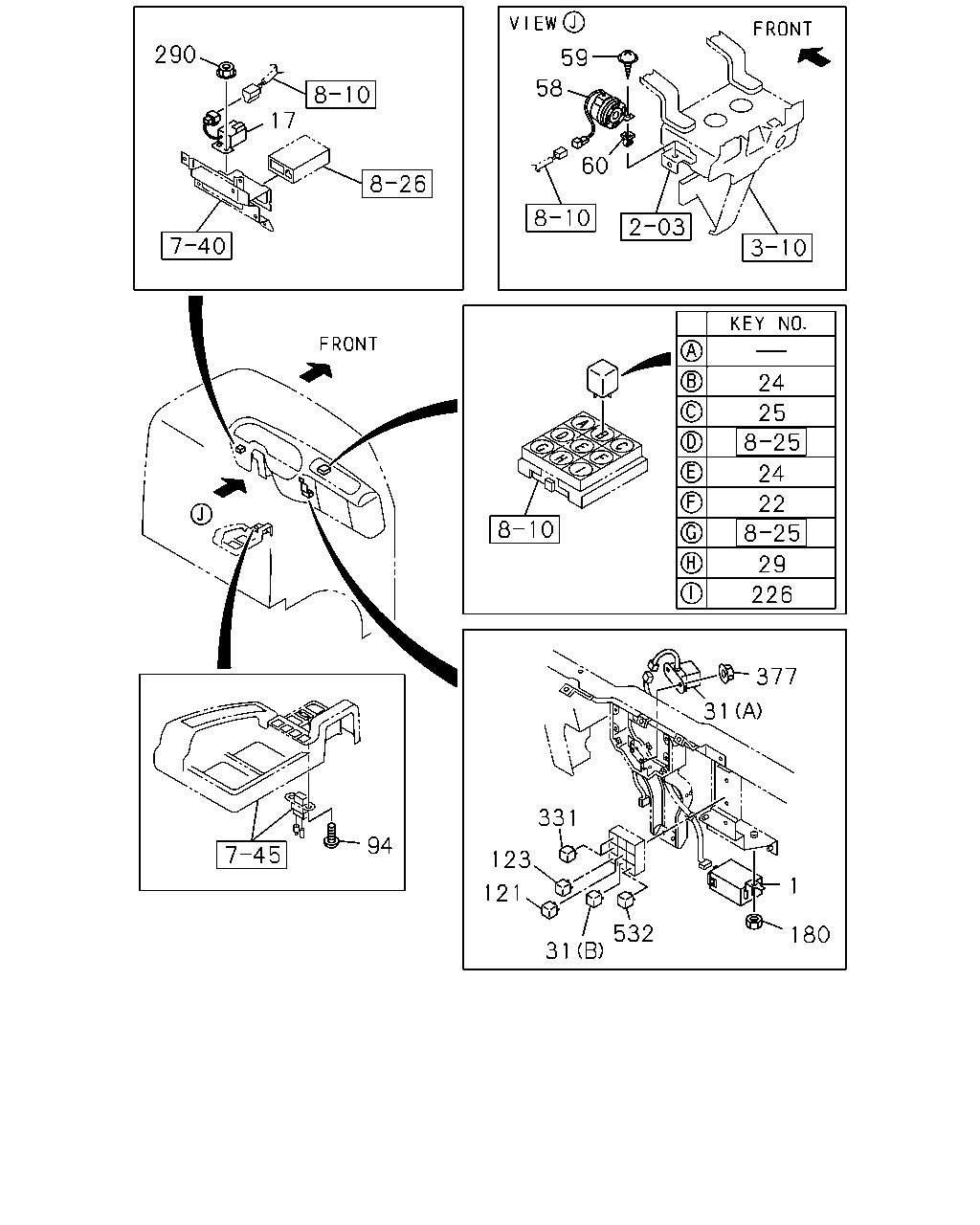

290 59 58 17 60 24 25 24 22 29 226 377 31 331 94 123 1 121 532 31 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-1	01	1	9510-0210	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0211-		●
17	TIMER; SEAT BELT	1-82550-183-1	01	1	9510-0210	●	●
17	TIMER; SEAT BELT	1-82550-183-1	01	1	0211-		●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9510-0111	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-0210	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0211-		●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	0007-0210	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	0211-		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9510-0004	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0004	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9510-0004	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0210	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0211-0612		●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-		●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-0210	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0211-0604		●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-		●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9510-0210	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0211-		●
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9510-9810	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0210	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0211-0604		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-		●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-0	01	1	9510-9603	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9604-0111	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0112	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0201-0210	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9510-0210	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0211-0602		●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-		●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●
290	NUT M6 FLANGE	0-91150-106-0	02	1	9510-0210	●	●
290	NUT M6 FLANGE	0-91150-106-0	02	1	0211-0602		●
290	NUT M6 FLANGE	0-91180-106-0	02	1	0603-		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0201-0210	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0211-		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-0	02	1	9510-9603	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9510-0210	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	0211-0602		●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-		●
532	RELAY; SEAT BELT WARNING 24V 12.5A MITUBA	8-97062-815-1	01	1	9510-0111	●	●
532	RELAY; SEAT BELT WARNING 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0210	●	●
532	RELAY; SEAT BELT WARNING 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-		●

49 46 46 44 49 45 33 261 34 41 34 35 34 36 39 283

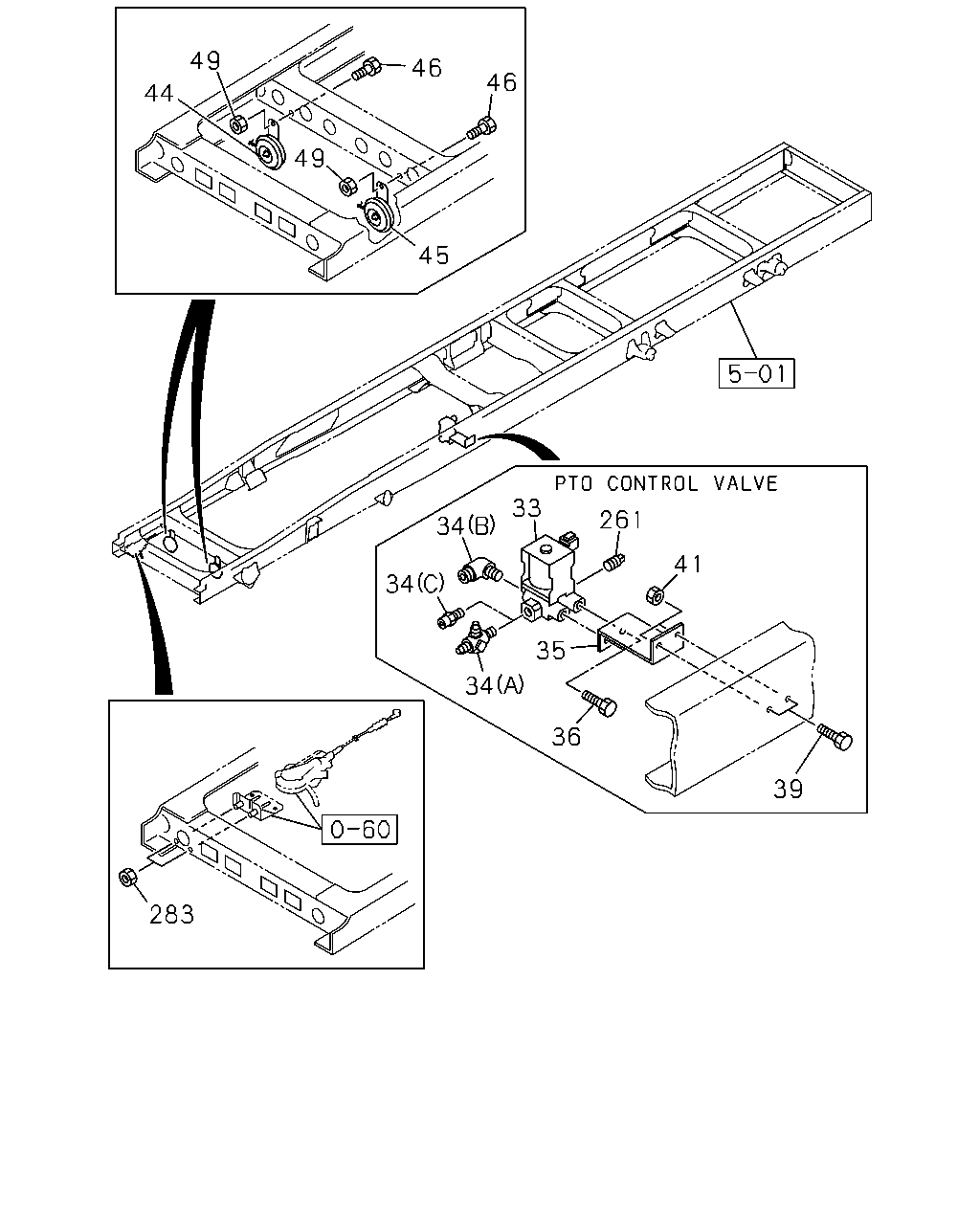

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-4	01	1	9510-0106	●	●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	0107-0210	●
33	VALVE; MAG,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-82563-600-5	01	1	0107-0210		●
33	VALVE; MAG,PTO CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6>	1-82563-600-5	01	1	0107-0210		●
33	VALVE; MAG,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-82563-600-5	01	1	0211-		●
33	VALVE; MAG,PTO CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6>	1-82563-600-5	01	1	0211-		●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9510-9802	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9803-9804	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9805-0106	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-0210	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-0210		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0211-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9510-9802	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9803-0106	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0210	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0210		●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0210		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0211-		●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0211-		●
35	BRACKET; MAG VLV,PTO CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6>	1-47477-957-0	01	1	0107-0412		●
35	BRACKET; MAG VLV,PTO CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6>	1-47477-967-0	01	1	0501-		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-462-0	01	1	9510-9704	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-1	01	1	9705-0106	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-1	01	1	0107-0210	●
35	BRACKET; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-47477-953-1	01	1	0107-0210		●
35	BRACKET; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6>	1-47477-953-1	01	1	0211-		●
36	BOLT; MAG VLV,PTO CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	0107-0512		●
36	BOLT; MAG VLV,PTO CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9510-9810	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	9811-0106	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0107-0210	●
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0107-0210		●
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●
36	BOLT; MAG VLV,PTO CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	9607-0210	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28680-830-0	02	1	0211-0512		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9510-9606	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-		●
44	HORN; HIGH NOTE	1-83410-061-1	01	1	9510-0210	●	●
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0211-		●
45	HORN; LOW NOTE	1-83410-062-1	01	1	9510-0210	●	●
45	HORN; LOW NOTE	1-83410-062-1	01	1	0211-		●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-0210	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9510-9606	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0603-		●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9510-0106	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0107-0210	●
261	PLUG; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0107-0210		●
261	PLUG; MAG VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0107-0210		●
261	PLUG; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0211-		●
261	PLUG; MAG VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	0211-		●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0602-0602		●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9510-9606	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
