◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#58502) — 28 parça

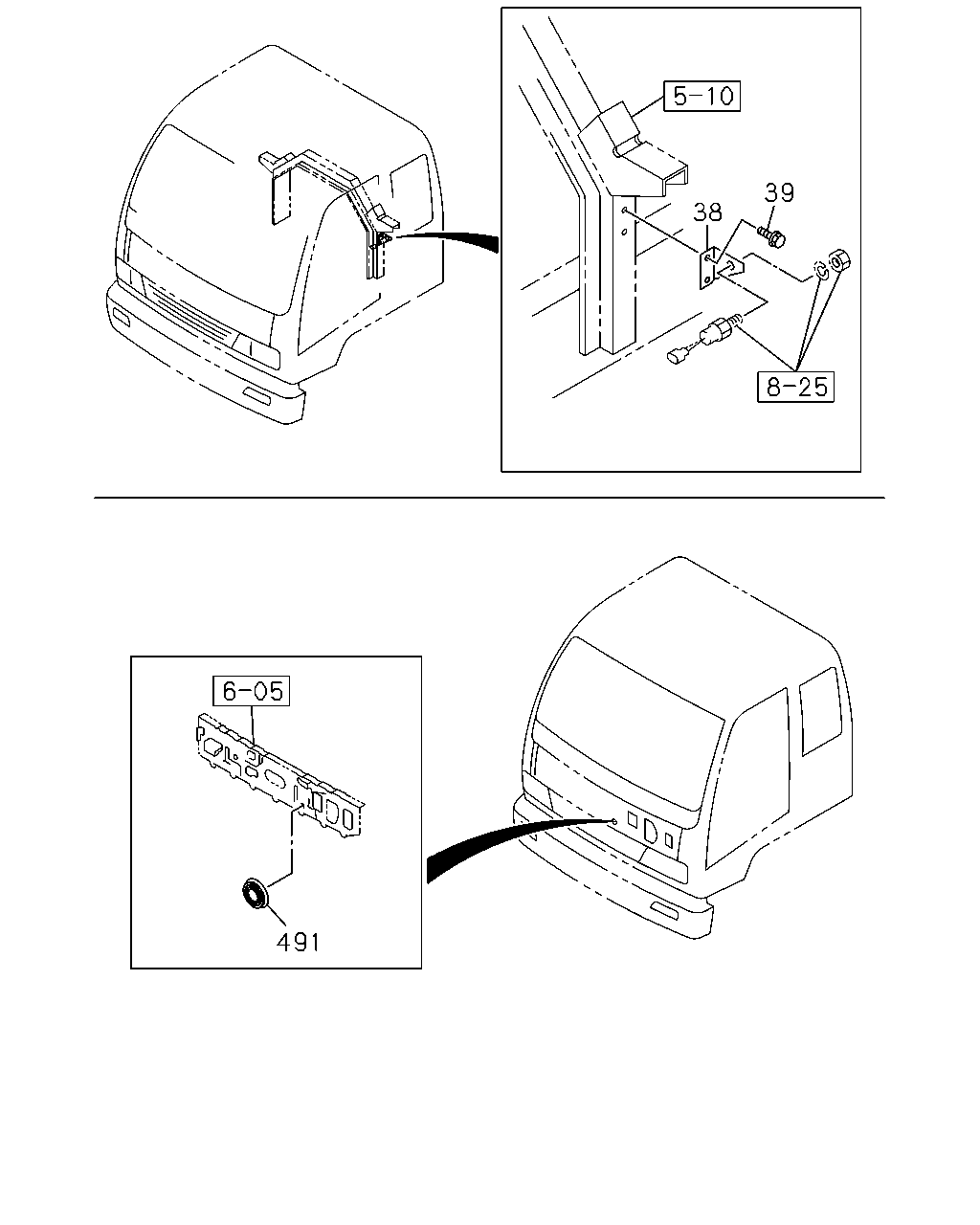

çizim 172800
39 38 491
BalonParca AdiParca NoAdetTipApplied Date A B
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9510-0210 ● ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 0211-0211 ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212- ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0210 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0211 ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9510-0210 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0211- ●

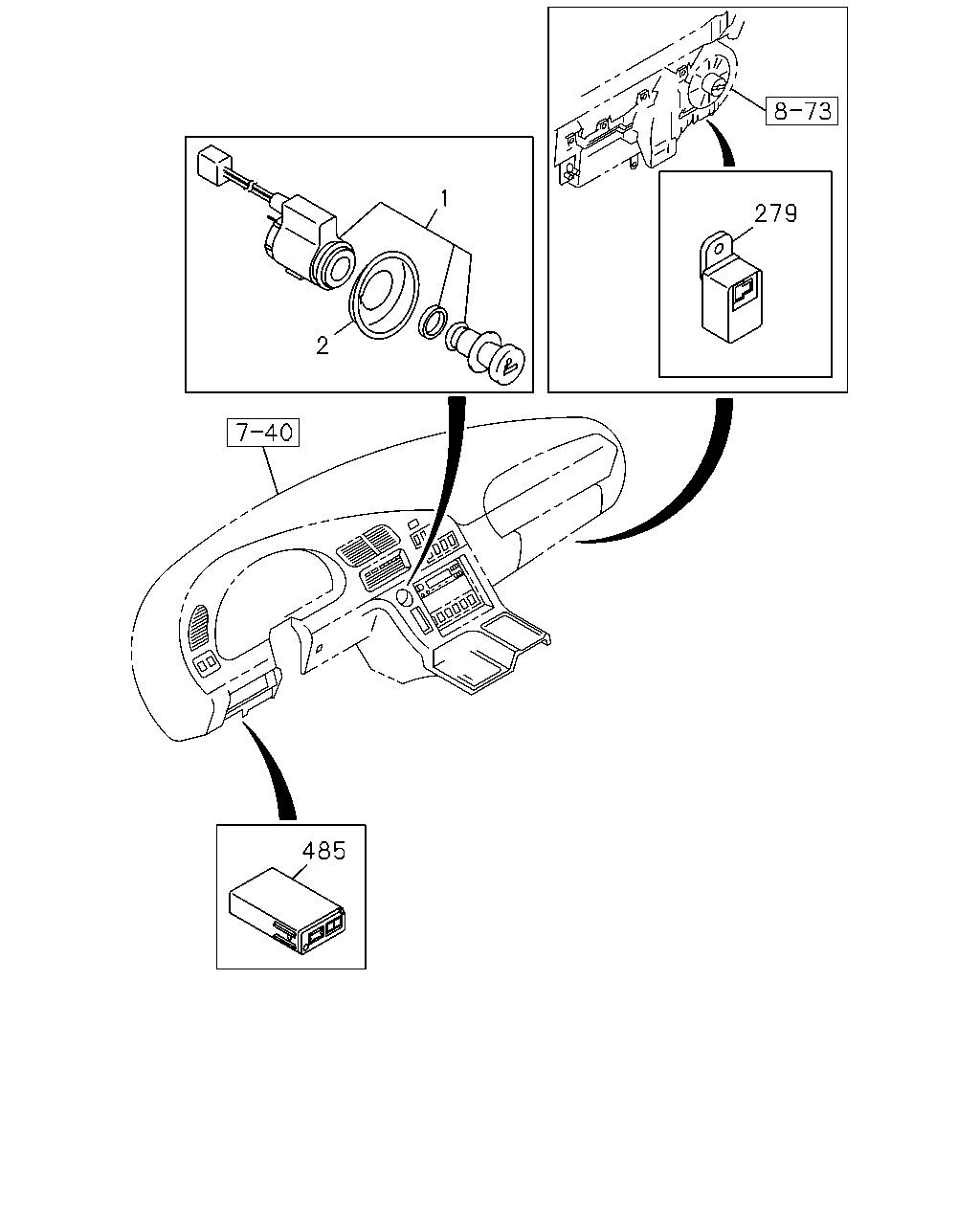

çizim 172802
1 279 2 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9510-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-0210 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0211- ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9510-0210 ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0211- ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 9510-0210 ● ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 0211- ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9510-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0210 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0211-0402 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ●

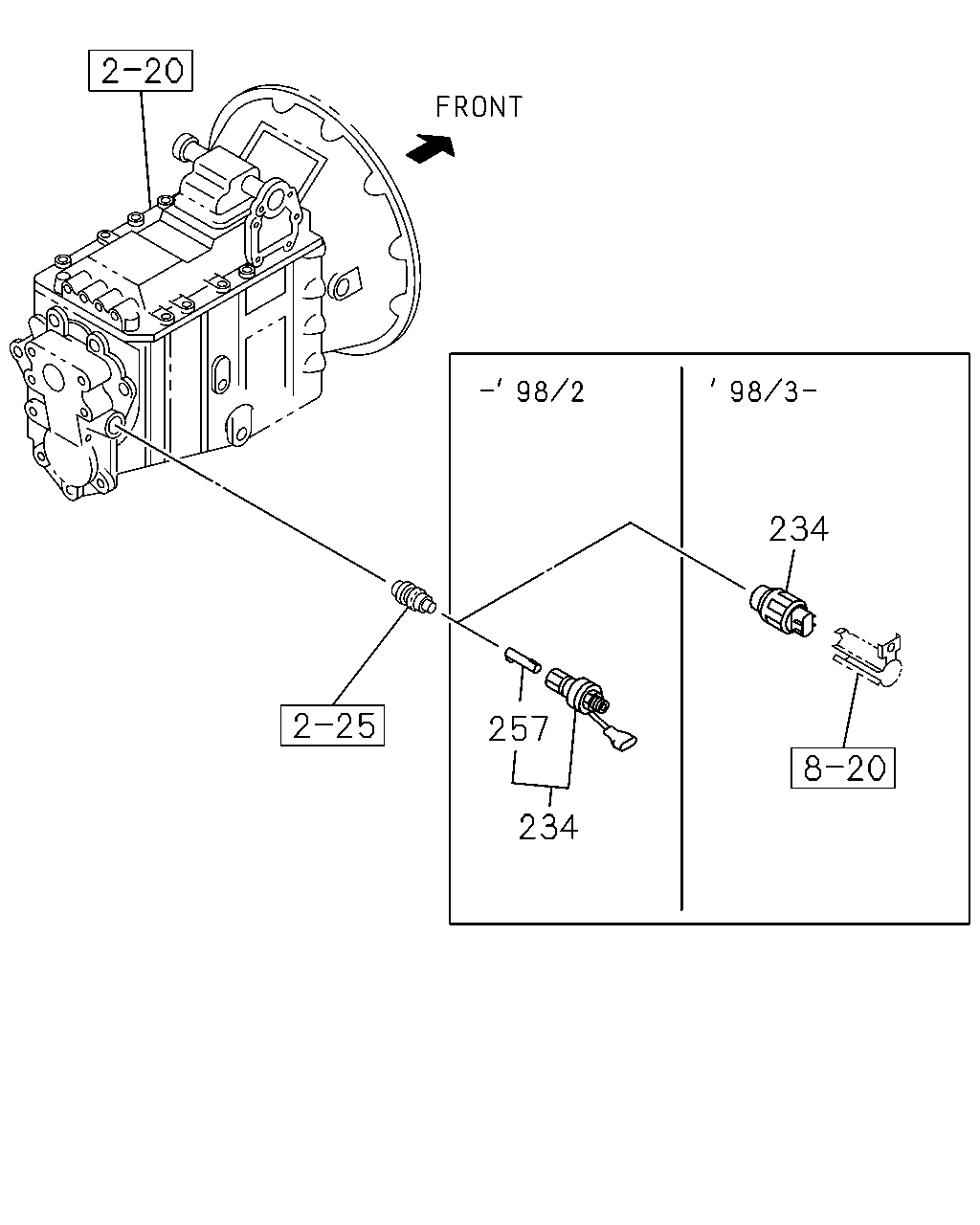

çizim 172811
234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9510-9802 ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9803-0202 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-0210 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0211- ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9510-9802 ● ●
