8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#58501) — 56 parça

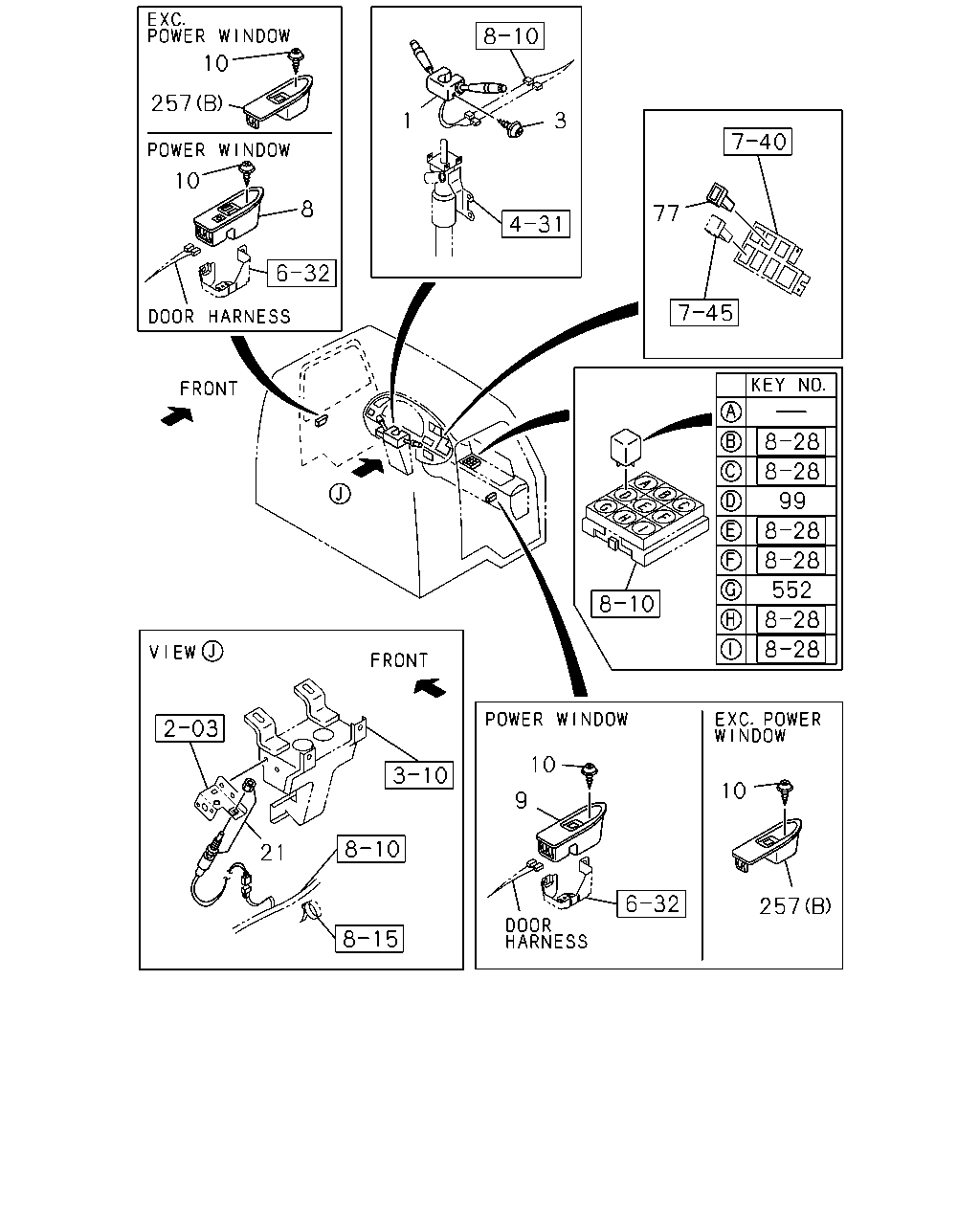

çizim 172819
10 257 3 1 10 8 77 99 552 10 10 9 21 257
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-3 01 1 9510-9603 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-3 01 1 9510-9603 ● ●
1 SWITCH; COMB 1-82360-371-4 01 1 9604-0004 ● ●
1 SWITCH; COMB 1-82360-405-4 01 1 0005-0103 ● ●
1 SWITCH; COMB 1-82360-647-0 01 1 0104-0210 ● ●
1 SWITCH; COMB 1-82360-647-0 01 1 0211-0305 ●
1 SWITCH; COMB 1-82360-642-0 01 1 0306-0312 ●
1 SWITCH; COMB 1-82360-731-0 01 1 0401- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9510-0210 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0211-0604 ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-142-1 01 1 9510-9603 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-143-0 01 1 9510-9603 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9510-0210 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ●
21 SWITCH; CLU 1-82380-114-1 01 1 9510-9802 ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 9803-0210 ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0211- ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9510-0210 ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0211- ●
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0210 ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0305 ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9510-9603 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-0210 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-9603 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9604-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-9603 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9604-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9510-0111 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0210 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211- ●

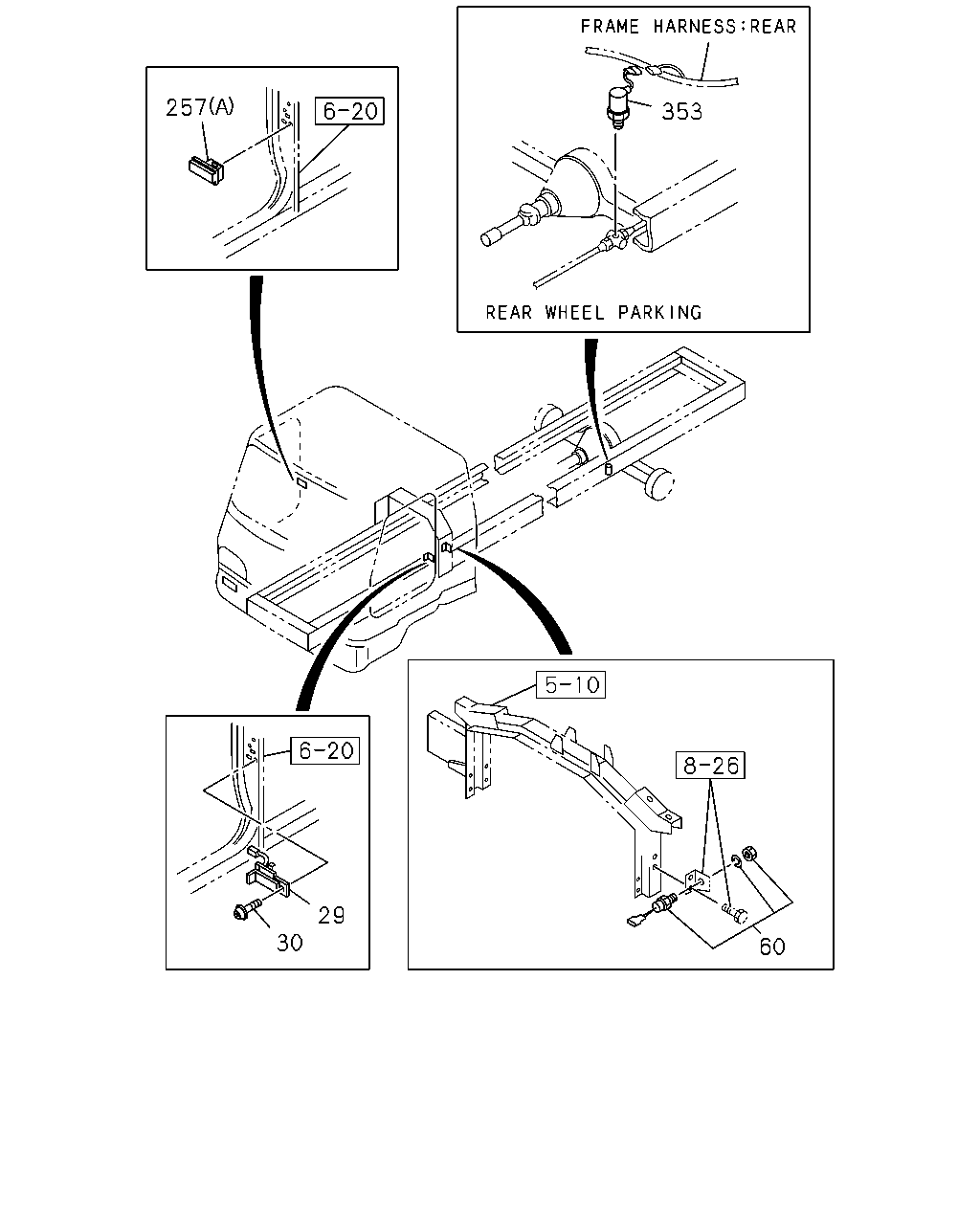

çizim 172842
257 353 29 30 60
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 9510-0210 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0211- ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9510-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-0210 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0211- ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9510-0210 ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0211-0211 ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9510-0210 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9510-9603 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9604-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0211- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9510-9603 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9604-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0211- ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9510-0206 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0207-0210 ●
353 SWITCH ASM; PARKING BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0207-0210 ●
353 SWITCH ASM; PARKING BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-1 01 1 0211- ●
