◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#58498) — 500 parça

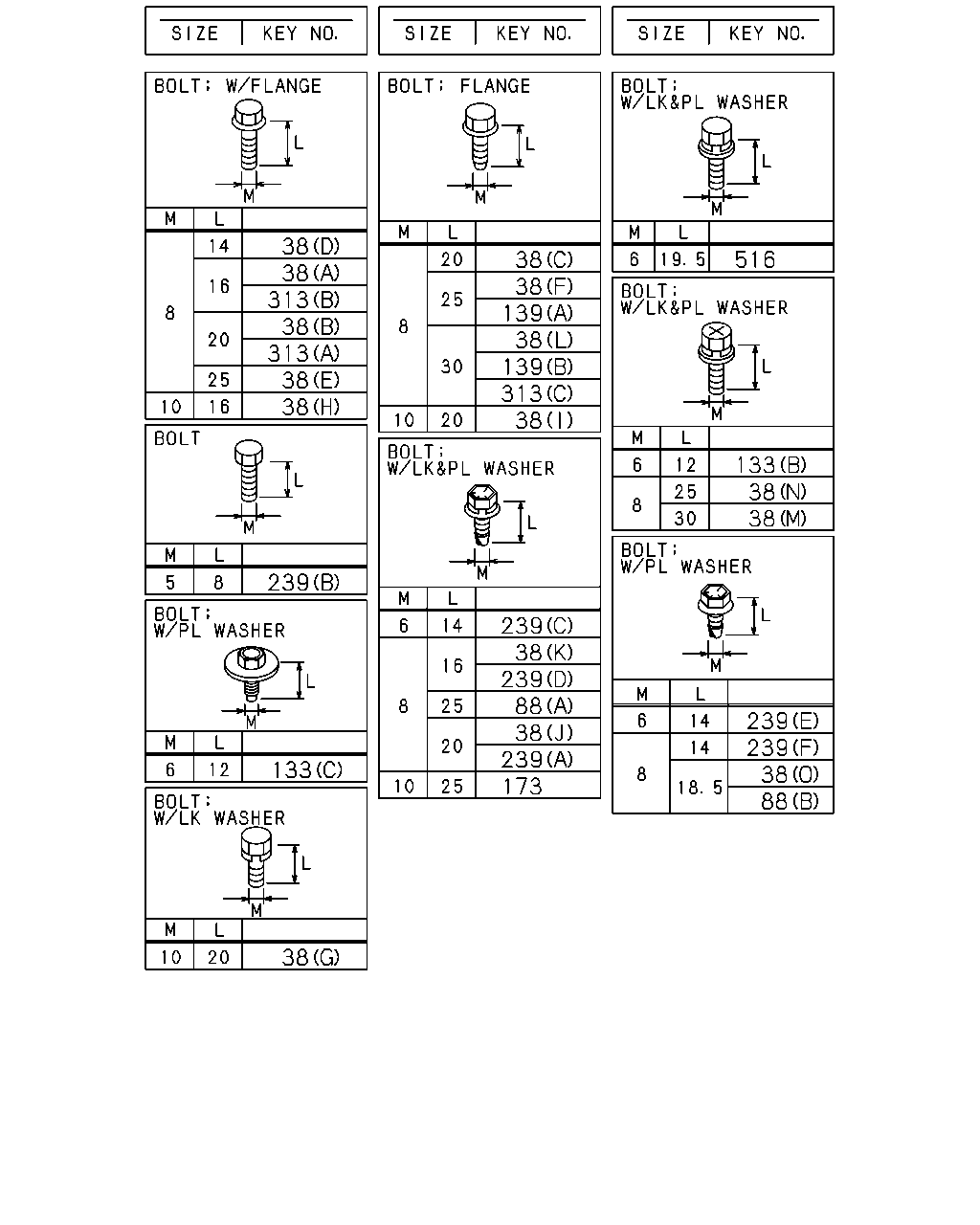

çizim 172757
38 38 313 38 313 38 38 38 38 139 38 139 313 38 516 133 38 38 239 239 38 239 88 38 239 173 239 239 38 88 133 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9810-0210 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (D) M8X14 FLANGE 		0-28080-814-0 04 1 9510-9606 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9607-0210 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (G) M10X20 W/LK WASHER 		0-50051-020-0 01 1 9510-9606 ● ●
38 BOLT; CLIP,HARNESS
(H) M10X16 FLANGE 		0-28181-016-0 01 1 9607-9802 ● ●
38 BOLT; CLIP,HARNESS
(I) M10X20 FLANGE 		0-28781-020-0 01 1 9803-0210 ● ●
38 BOLT; CLIP,HARNESS
(I) M10X20 FLANGE 		0-28781-020-0 01 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(I) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0210 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0210 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(N) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9607-9702 ● ●
38 BOLT; CLIP,HARNESS
(M) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0210 ● ●
38 BOLT; CLIP,HARNESS
(M) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(M) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(J) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907 ● ●
38 BOLT; CLIP,HARNESS
(K) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0210 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-1201 ●
38 BOLT; CLIP,HARNESS
(O) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
38 BOLT; CLIP,HARNESS
(L) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0210 ● ●
38 BOLT; CLIP,HARNESS
(L) M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9510-9603 ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9510-9603 ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9604-0210 ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-1007 ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0211- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0210 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9510-0210 ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0211- ●
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 9510-0210 ● ●
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 0211- ●
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9510-9510 ● ●
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9510-9510 ● ●
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9510-0210 ● ●
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0211-1007 ●
239 BOLT; GRAND
(E) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ●
239 BOLT; GRAND
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0210 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0211-1201 ●
239 BOLT; GRAND
(F) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
313 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X30 FLANGE 		0-28680-830-0 04 1 0107-0512 ●
313 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8X16 FLANGE 		0-28080-816-0 01 1 9607-0210 ● ●
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0210 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ●
çizim 172758
119 210 423 520 184 133 209 524 219 294 219 294
BalonParca AdiParca NoAdetTipApplied Date A B
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9510-9603 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0211- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9908-0210 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0211- ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9510-0210 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0211-0603 ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9908-0210 ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0211- ●
219 NUT
(A) M8 		9-09110-408-0 02 1 9510-9606 ● ●
219 NUT
(A) M8 		9-09110-408-0 02 1 9607-9609 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9610-0210 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
219 NUT
(A) M8 		9-09110-408-0 04 1 9510-9606 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9610-0210 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
294 NUT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE 		0-91150-108-0 04 1 0107-0602 ●
294 NUT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
294 NUT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) M8 		9-09110-408-0 01 1 9510-9606 ● ●
294 NUT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE 		0-91150-108-0 01 1 9607-0210 ● ●
294 NUT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
294 NUT
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1006 ●
294 NUT
(A) M8 		9-09110-408-0 02 1 9510-9606 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0210 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9908-0210 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0211- ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9510-0210 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ●

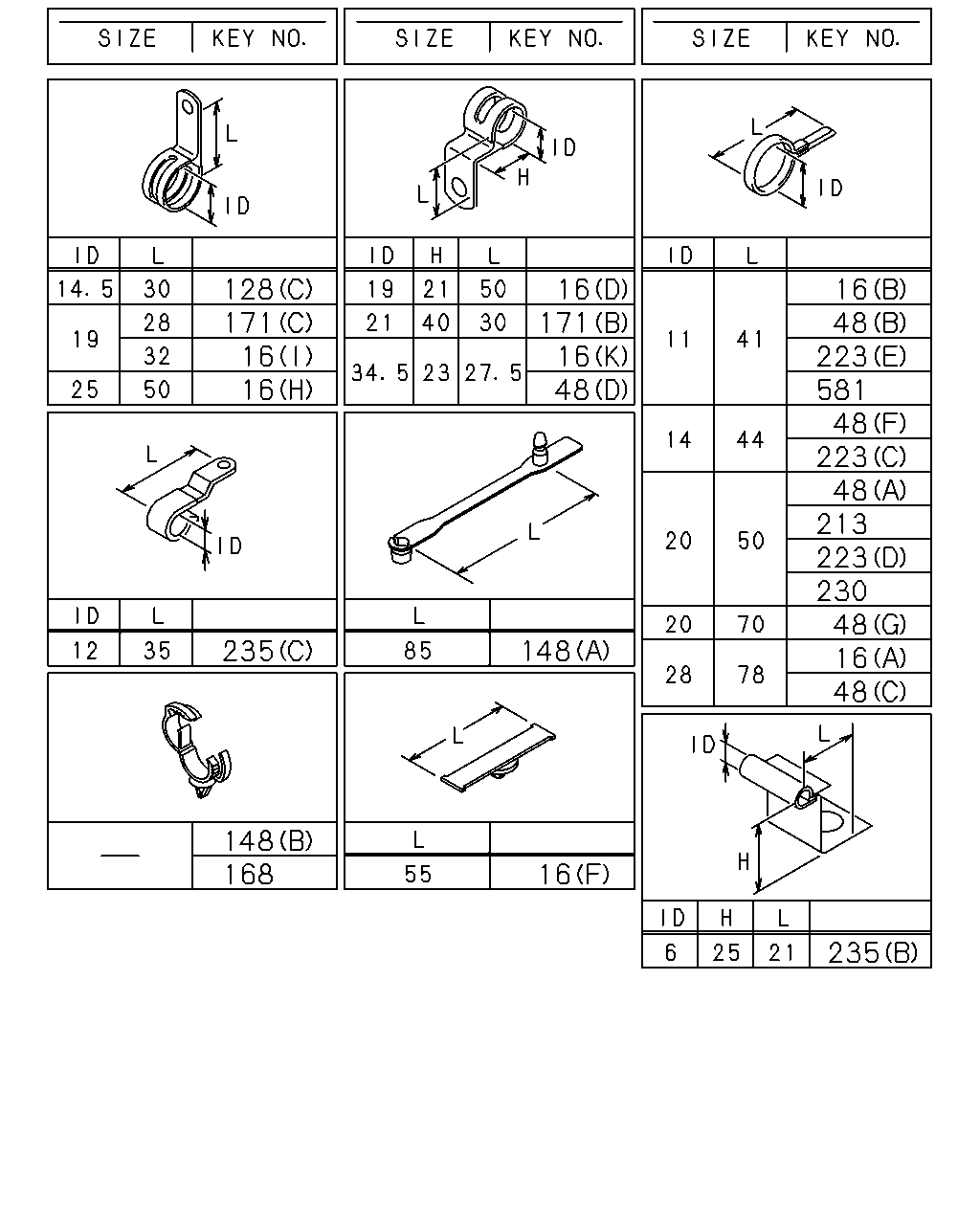

çizim 172773
128 171 16 16 16 171 16 48 16 48 223 581 48 223 48 213 223 230 48 16 48 235 148 148 168 16 235
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9510-9603 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9510-9603 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0211- ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0211- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-0210 ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0211- ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0211- ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 0211- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0211- ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0210 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0211- ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0211-0606 ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 13 1 1101- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41 		1-09700-403-0 01 1 0107- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 17 1 9910-0611 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 15 1 0612- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 9510-0210 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0211- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9510-0004 ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 11 1 9510- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=50 		9-09917-430-0 13 1 9510-1012 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 14 1 1101- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=50 		9-09917-430-0 14 1 9510-0611 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 17 1 0612- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 17 1 0612- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9510 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9510 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0211-0504 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0211-0504 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0505- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9510-9510 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 9512-0210 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 9512-0210 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9510-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0210 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0211- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9510-0210 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0211-0606 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9510-0210 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0211- ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9510-0210 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0211- ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9510-0210 ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0211- ●
171 CLIP; STARTER HARNESS
(E) L=300 		1-09707-001-1 01 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(E) L=300 		1-09707-001-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 9510-0210 ● ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 9510-0210 ● ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9510-9608 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9510-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-9609 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0211- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 9510-9809 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9810-0210 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0211-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9510-0210 ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0211- ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-0106 ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41 		1-09700-403-0 01 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-0204 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0205-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6 		1-09709-178-0 01 1 0205-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6 		1-09709-178-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-0210 ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-0106 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44 		9-09917-427-0 02 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44 		9-09917-427-0 02 1 0211- ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-0106 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50 		9-09917-430-0 04 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50 		9-09917-430-0 04 1 0211- ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9510-0210 ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0211- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9510-9802 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 9803-0210 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0211- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9510-9802 ● ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41 		1-09700-403-0 03 1 0107- ●
çizim 172775
128 48 128 116 421 171 223 229 470 121 217 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9510-9603 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9510-9603 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0211- ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0211- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-0210 ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0211- ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0211- ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 0211- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0211- ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0210 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0211- ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0211-0606 ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 13 1 1101- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41 		1-09700-403-0 01 1 0107- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 17 1 9910-0611 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 15 1 0612- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 9510-0210 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0211- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9510-0004 ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 11 1 9510- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=50 		9-09917-430-0 13 1 9510-1012 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 14 1 1101- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=50 		9-09917-430-0 14 1 9510-0611 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50 		9-09917-430-0 17 1 0612- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 17 1 0612- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9510 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9510 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-0210 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0211-0504 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0211-0504 ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0505- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9510-9510 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 9512-0210 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 9512-0210 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9510-0210 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-1 02 1 9510-9603 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-1 05 1 9510-9603 ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-1 05 1 9510-9603 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9604-0009 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-0210 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0211-1409 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> OD=7 H=1.2 		8-94364-750-0 02 1 9510-9603 ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 9604-0210 ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0211- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9510-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0210 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0211- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9510-0210 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0211-0606 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(E) L=300 		1-09707-001-1 01 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(E) L=300 		1-09707-001-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 9510-0210 ● ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 9510-0210 ● ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9510-9608 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9510-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-9609 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0211- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 9510-9809 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9810-0210 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0211-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-0210 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0211- ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-0106 ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41 		1-09700-403-0 01 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-0204 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0205-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6 		1-09709-178-0 01 1 0205-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6 		1-09709-178-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-0210 ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-0106 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44 		9-09917-427-0 02 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44 		9-09917-427-0 02 1 0211- ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-0106 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50 		9-09917-430-0 04 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50 		9-09917-430-0 04 1 0211- ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9510-0210 ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0211- ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9510-9708 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9709-0101 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0210 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0211-0406 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9510-0210 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0211- ●

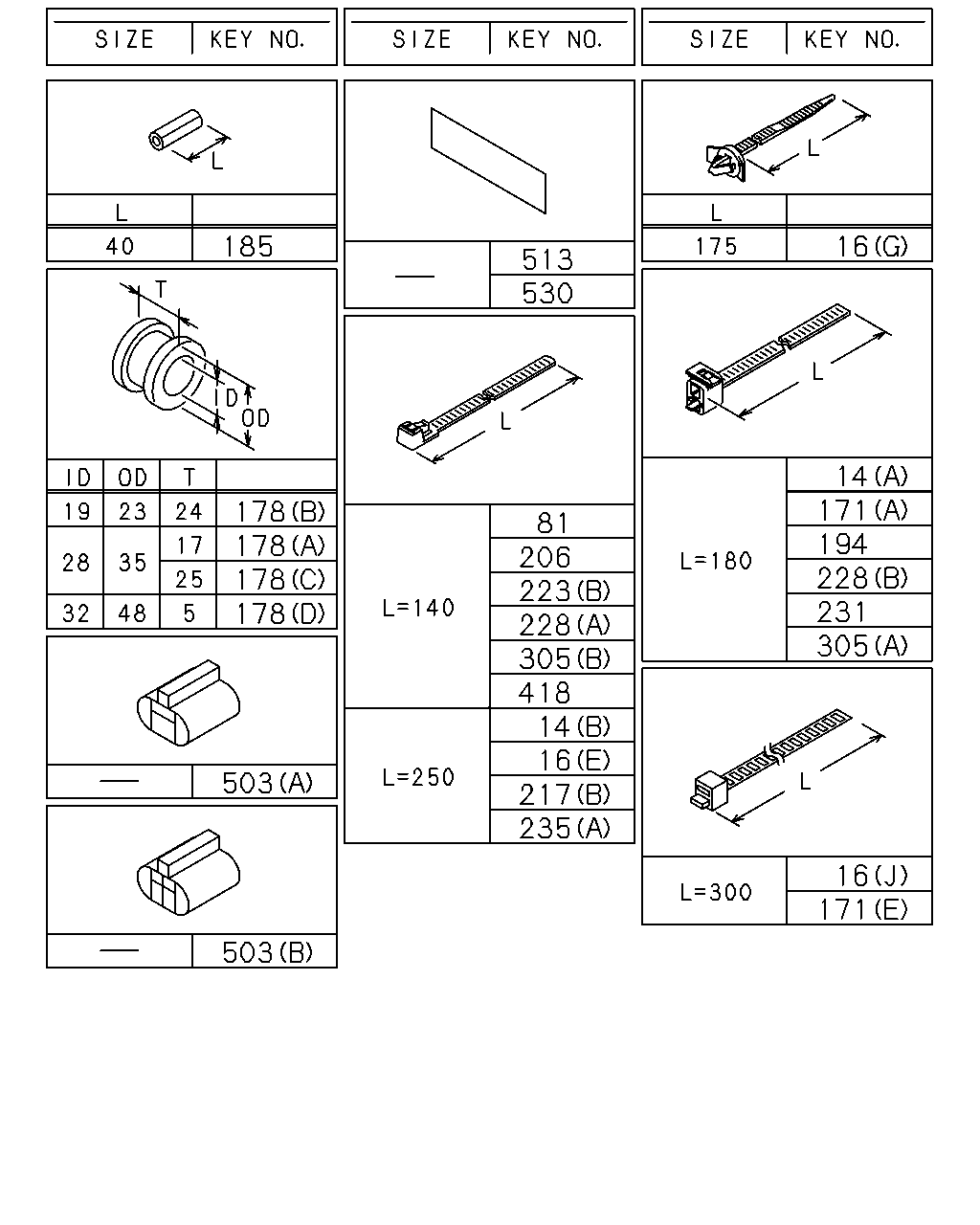

çizim 172786
185 16 513 530 14 171 194 228 231 305 178 178 178 178 81 206 223 228 305 418 14 16 217 235 503 16 171 503
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0002-0210 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0211-1205 ●
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206- ●
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 9510-0210 ● ●
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 0211- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9510-9603 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9510-9603 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0211- ●
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0211- ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-0210 ● ●
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0211- ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0211- ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 0211- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0211- ●
16 CLIP; HARNESS
(C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0210 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0211- ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 9510-0210 ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0211-0606 ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9510-0210 ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0211- ●
171 CLIP; STARTER HARNESS
(E) L=300 		1-09707-001-1 01 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(E) L=300 		1-09707-001-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 9510-0210 ● ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 9510-0210 ● ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0211- ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9510-9608 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9510-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-9609 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0211- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 9510-9809 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9810-0210 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0211-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ●
178 GROMMET; HARNESS
HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9910-0004 ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9910-0004 ●
178 GROMMET; HARNESS
WHEEL BASE 5500MM(55W) (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9910-0004 ●
178 GROMMET; HARNESS
WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0005- ●
178 GROMMET; HARNESS
WHEEL BASE 5500MM(55W) (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0005- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9510-9909 ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (A) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9510-9909 ●
178 GROMMET; HARNESS
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9910-0004 ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9910-0004 ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9910-0004 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0005-0210 ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0005-0210 ●
178 GROMMET; HARNESS
WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0005-0210 ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0211- ●
178 GROMMET; HARNESS
WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0211- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9510-0210 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0211- ●
178 GROMMET; HARNESS
LOW ROOF<6XQ> (D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9510-9603 ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9604-0210 ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0211- ●
185 SLEEVE; RUBBER
MLD7 M/T<X9Z> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9510-0210 ● ●
185 SLEEVE; RUBBER
MLD7 M/T<X9Z> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0211- ●
194 CLIP; BAND
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=180 		1-09707-162-1 02 1 0107- ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9510-0210 ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0211- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-0 02 1 9510-9510 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9510-0210 ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0211- ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-0210 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0211- ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-0106 ● ●
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41 		1-09700-403-0 01 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-0204 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0205-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6 		1-09709-178-0 01 1 0205-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6 		1-09709-178-0 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-0210 ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 0211- ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-0106 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44 		9-09917-427-0 02 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44 		9-09917-427-0 02 1 0211- ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-0106 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50 		9-09917-430-0 04 1 0107-0210 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50 		9-09917-430-0 04 1 0211- ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0201-0210 ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0211-0405 ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9510-0112 ● ●
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0201-0210 ● ●
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0211-0405 ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0406- ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9510-0210 ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0211- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9510-9802 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 9803-0210 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0211- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9510-9802 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9510-0210 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0211- ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9510-0210 ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0211- ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212- ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9510-9608 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9609-0106 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9609-0106 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0107-0109 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0107-0109 ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0107-0109 ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0110-0112 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0110-0112 ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0201-0210 ● ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0201-0210 ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0211- ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0211- ●
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9709-9903 ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9904-0101 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-0210 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0211- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407- ●
çizim 172787
312 312 154 335 53 59
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=95 		1-82699-085-0 04 1 0107- ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9510-9601 ● ●
59 BRACKET; FRAME HARNESS
L=145 		1-47475-655-0 01 1 9602-9605 ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9606-0210 ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0211- ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9510-0210 ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0211-0212 ●
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) 		1-82699-588-0 01 1 9510-0210 ● ●
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) 		1-82699-588-0 01 1 0211-0302 ●
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) 		1-47478-981-0 01 1 0303- ●
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9510-9910 ● ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 9911-0210 ● ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
