Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#58497) — 290 parça

467 276 277 265 266 262 6 264 267 467 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82675-031-0	01	1	0107-0401	●
6	HARNESS; FRAME WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82677-479-0	01	1	0402-	●
6	HARNESS; FRAME HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-021-2	01	1	9510-9603	●	●
6	HARNESS; FRAME HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-022-2	01	1	9510-9802	●	●
6	HARNESS; FRAME	1-82639-022-2	01	1	9803-0004	●	●
6	HARNESS; FRAME	1-82673-003-2	01	1	0005-0106	●	●
6	HARNESS; FRAME	1-82673-003-2	01	1	0107-0210		●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-003-2	01	1	0107-0210	●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-003-2	01	1	0211-0401	●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82677-476-0	01	1	0402-	●
201	HARNESS; AIR TANK EXC. DUAL AIR GAUGE<UG2>	1-82670-503-2	01	1	9803-0106	●	●
201	HARNESS; AIR TANK EXC. DUAL AIR GAUGE<UG2>	1-82670-503-2	01	1	0107-0210		●
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2>	1-82670-503-2	01	1	0107-0210	●
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2>	1-82670-503-2	01	1	0211-	●
201	HARNESS; AIR TANK	1-82638-999-1	01	1	9510-9802	●	●
201	HARNESS; AIR TANK DUAL AIR GAUGE<UG2>	1-82670-504-2	01	1	9803-0106	●	●
201	HARNESS; AIR TANK DUAL AIR GAUGE<UG2>	1-82670-504-2	01	1	0107-0210		●
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-82670-504-2	01	1	0107-0210	●
201	HARNESS; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2>	1-82670-504-2	01	1	0211-	●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	9510-0210	●	●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0211-	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-0210	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0211-	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	9510-0210	●	●
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0211-	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	9510-0210	●	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0211-	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	9510-0210	●	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0211-	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	9510-0210	●	●
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	0211-	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9510-0210	●	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0211-0512	●
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0201-0210	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0211-	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603	●	●
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-3	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0211-	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-3	01	1	9510-9603	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0211-	●

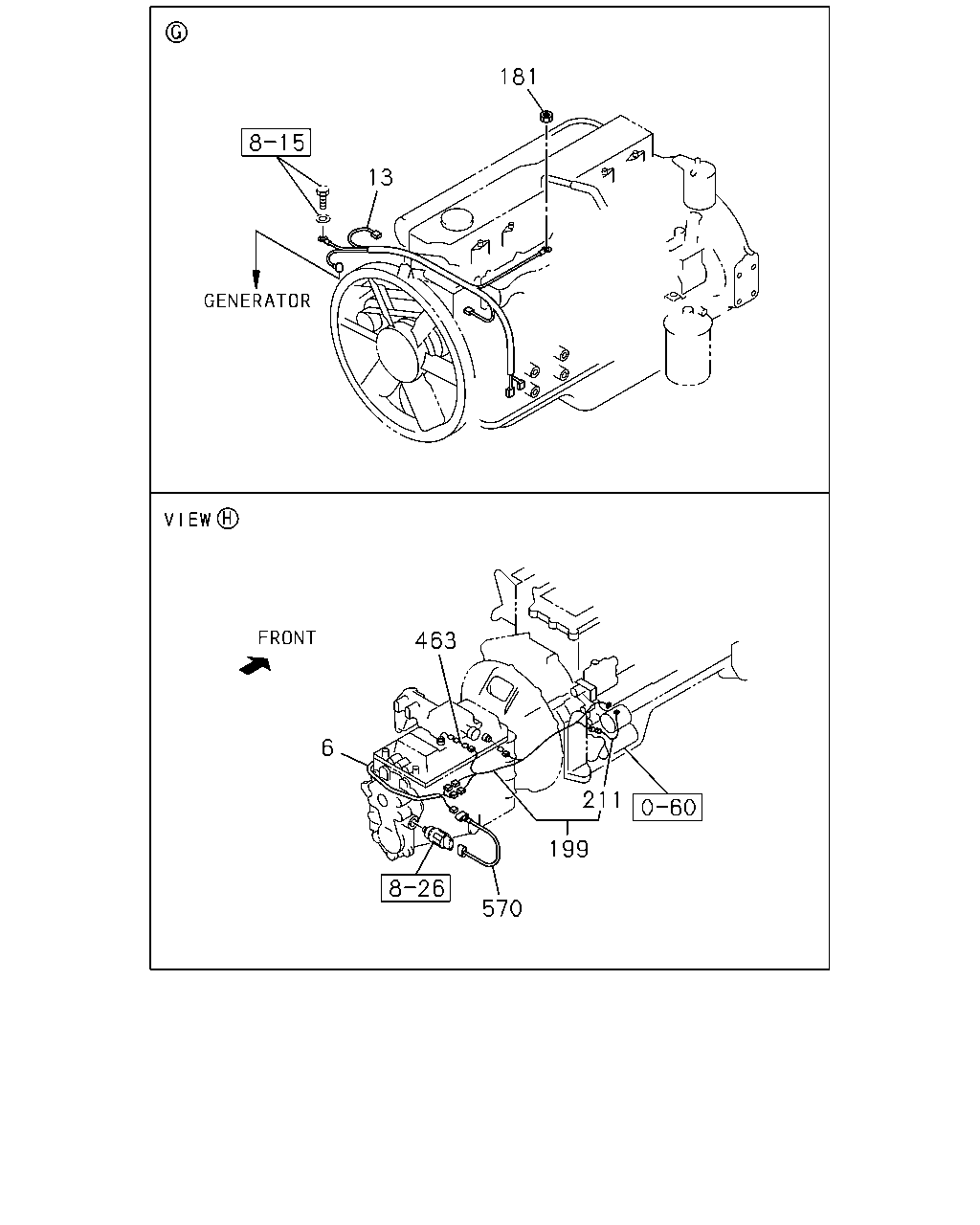

181 13 463 6 211 199 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82675-031-0	01	1	0107-0401	●
6	HARNESS; FRAME WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82677-479-0	01	1	0402-	●
6	HARNESS; FRAME HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-021-2	01	1	9510-9603	●	●
6	HARNESS; FRAME HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-022-2	01	1	9510-9802	●	●
6	HARNESS; FRAME	1-82639-022-2	01	1	9803-0004	●	●
6	HARNESS; FRAME	1-82673-003-2	01	1	0005-0106	●	●
6	HARNESS; FRAME	1-82673-003-2	01	1	0107-0210		●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-003-2	01	1	0107-0210	●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-003-2	01	1	0211-0401	●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82677-476-0	01	1	0402-	●
13	HARNESS; ENG	1-82640-714-0	01	1	9510-0210	●	●
13	HARNESS; ENG	1-82640-714-0	01	1	0211-	●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	9510-0210	●	●
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	0211-	●
199	HARNESS; STARTER	1-82640-668-2	01	1	9510-9712	●	●
199	HARNESS; STARTER MLD6 M/T<X9Y>,MLD7 M/T<X9Z>	1-82640-668-2	01	1	9801-9802	●	●
199	HARNESS; STARTER	1-82640-668-5	01	1	9803-0210	●	●
199	HARNESS; STARTER	1-82640-668-5	01	1	0211-	●
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-0	01	1	9510-9712	●	●
211	WIRE; FUSIBLE LINK,STARTER MLD6 M/T<X9Y>,MLD7 M/T<X9Z> WHITE	1-82659-124-0	01	1	9801-9802	●	●
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-1	01	1	9803-0210	●	●
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-1	01	1	0211-	●
463	HARNESS; SW,BACK UP MLD7 M/T<X9Z>	1-82639-608-1	01	1	9601-0210	●	●
463	HARNESS; SW,BACK UP MLD7 M/T<X9Z>	1-82639-608-1	01	1	0211-	●
570	HARNESS; SPEED SENSOR	1-82670-012-0	01	1	9803-0210	●	●
570	HARNESS; SPEED SENSOR	1-82670-012-0	01	1	0211-0401	●

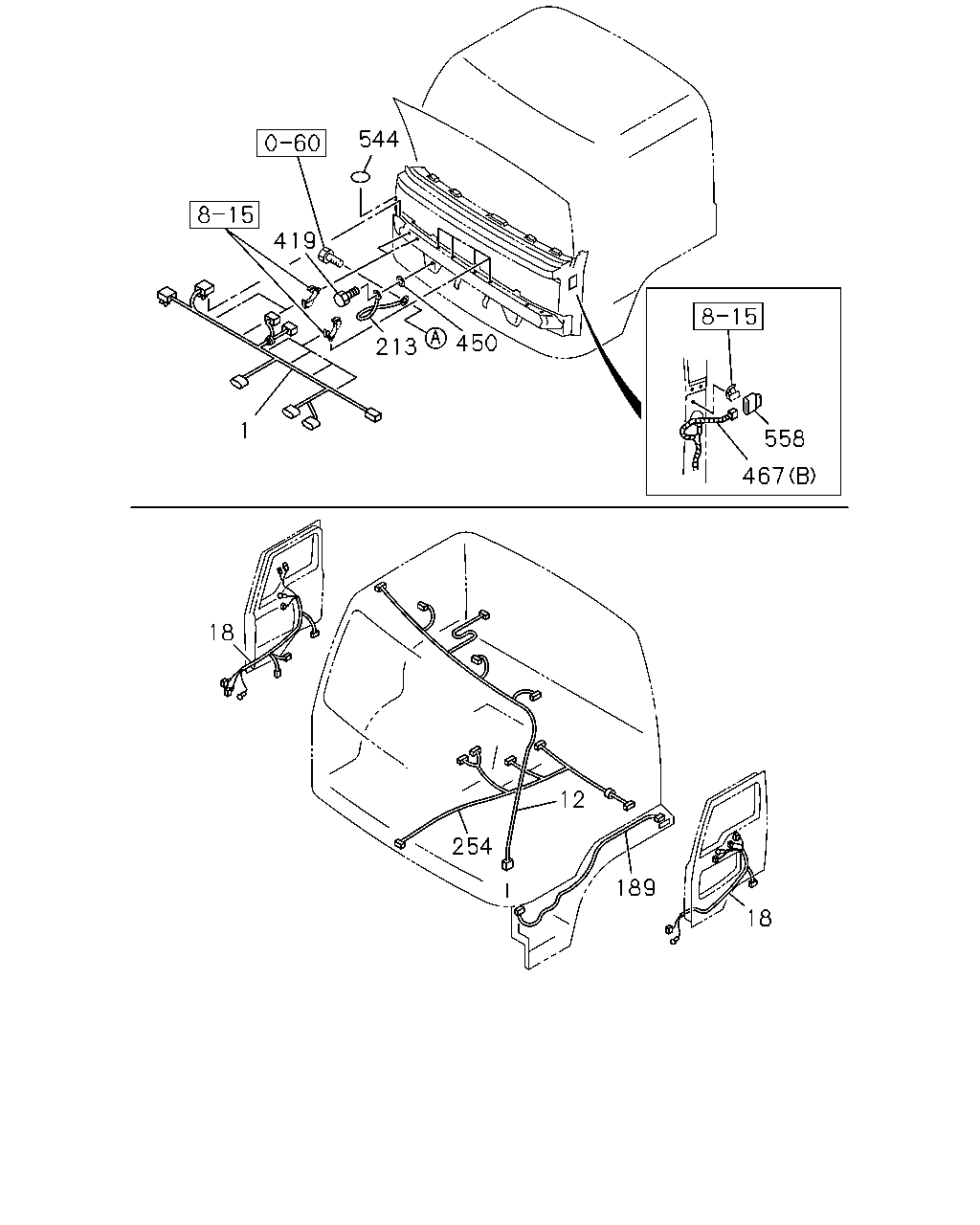

544 419 450 213 1 558 467 18 12 254 189 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	0201-0210	●	●
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	0211-	●
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	9510-9603	●	●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	9510-9603	●	●
1	HARNESS; CAB	1-82625-725-3	01	1	9604-0112	●	●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	0201-0210	●	●
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	0211-	●
12	HARNESS; ROOF HIGH ROOF<S2F>	1-82625-714-3	01	1	9510-9603	●	●
12	HARNESS; ROOF LOW ROOF<6XQ>	1-82625-713-2	01	1	9510-9603	●	●
12	HARNESS; ROOF	1-82625-713-4	01	1	9604-0210	●	●
12	HARNESS; ROOF	1-82625-713-4	01	1	0211-	●
18	HARNESS; DOOR POWER WINDOW<A30>	1-82625-721-0	01	1	9510-9603	●	●
18	HARNESS; DOOR POWER WINDOW<A30>	1-82625-723-0	01	1	9510-9603	●	●
189	HARNESS; EXT	1-82625-673-2	02	1	9510-0210	●	●
189	HARNESS; EXT	1-82625-673-2	02	1	0211-	●
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	9510-0210	●	●
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	0211-	●
254	HARNESS; CAB FLOOR	1-82625-711-4	01	1	9510-9802	●	●
254	HARNESS; CAB FLOOR	1-82625-711-4	01	1	9803-0004	●	●
254	HARNESS; CAB FLOOR	1-82629-307-3	01	1	0005-0210	●	●
254	HARNESS; CAB FLOOR	1-82629-307-3	01	1	0211-	●
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9805	●	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9806-0210	●	●
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1201	●
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0205-0210	●	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605	●
450	WASHER; PL,CAB EARTH ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0201-0210	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0211-	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603	●	●
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-3	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0211-	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-3	01	1	9510-9603	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0211-	●
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9510-9603	●	●
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	9604-0112	●	●
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0201-0210	●	●
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0211-	●
558	CONNECTOR; HARNESS EXC. POWER WINDOW<A30>	1-82690-666-0	02	1	9510-9603	●	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	9604-0210	●	●
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	0211-	●

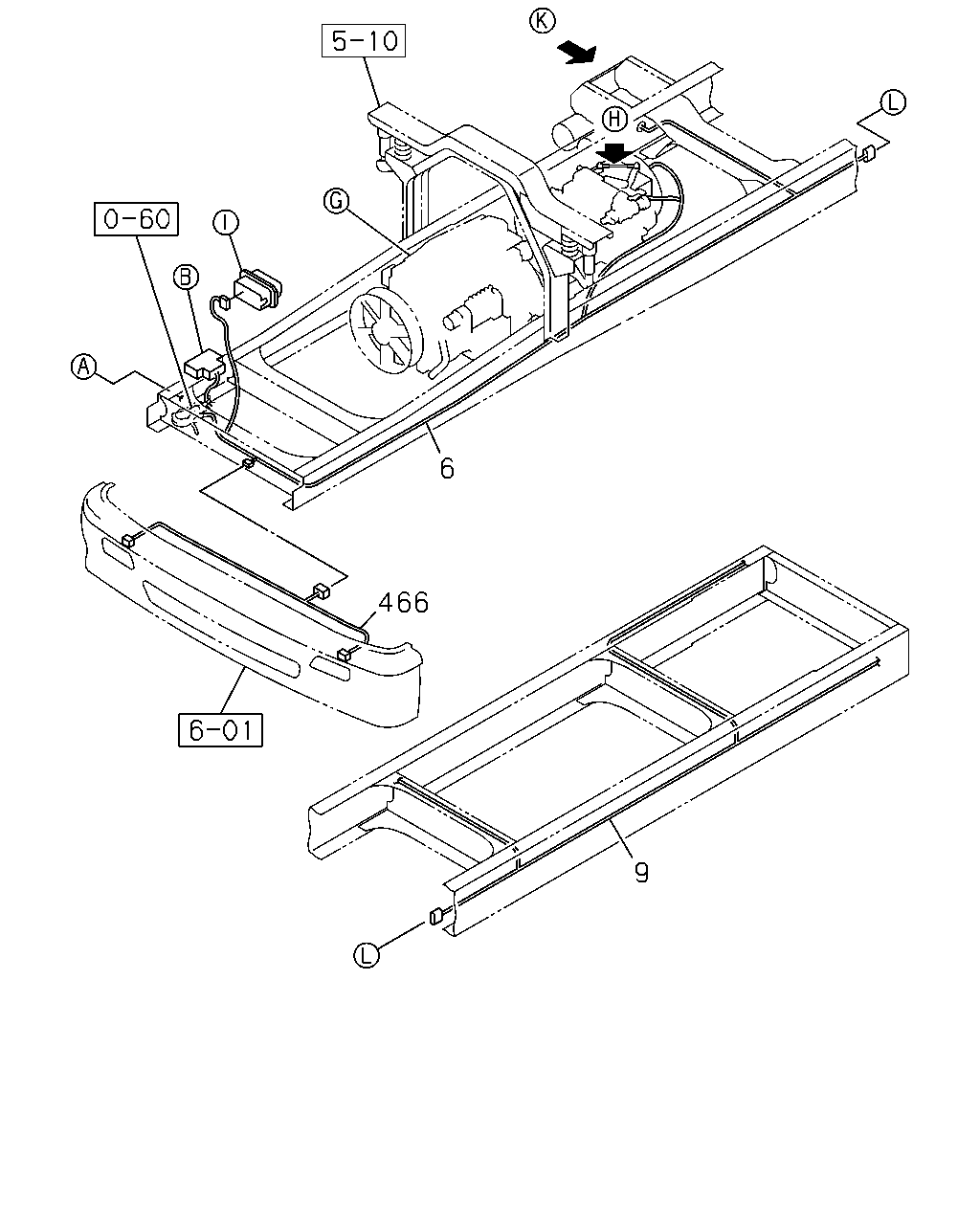

6 466 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82675-031-0	01	1	0107-0401	●
6	HARNESS; FRAME WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82677-479-0	01	1	0402-	●
6	HARNESS; FRAME HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-021-2	01	1	9510-9603	●	●
6	HARNESS; FRAME HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-022-2	01	1	9510-9802	●	●
6	HARNESS; FRAME	1-82639-022-2	01	1	9803-0004	●	●
6	HARNESS; FRAME	1-82673-003-2	01	1	0005-0106	●	●
6	HARNESS; FRAME	1-82673-003-2	01	1	0107-0210		●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-003-2	01	1	0107-0210	●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82673-003-2	01	1	0211-0401	●
6	HARNESS; FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82677-476-0	01	1	0402-	●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82672-979-1	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-007-1	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82673-008-1	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-498-0	01	1	9910-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-498-0	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-051-0	01	1	9910-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-051-0	01	1	0107-	●
9	HARNESS; FRAME,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-040-2	01	1	9510-9802		●
9	HARNESS; FRAME,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-494-0	01	1	9803-0210		●
9	HARNESS; FRAME,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-037-0	01	1	9510-0210		●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-041-2	01	1	9510-9802	●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-495-0	01	1	9803-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-495-0	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-050-0	01	1	9510-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-050-0	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-042-2	01	1	9510-9802	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-496-0	01	1	9803-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-496-0	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-038-0	01	1	9510-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-038-0	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-043-2	01	1	9510-9802	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-497-0	01	1	9803-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-497-0	01	1	0107-	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-039-0	01	1	9510-0106	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-039-0	01	1	0107-	●
466	HARNESS; BUMPER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82638-758-1	01	1	9510-9603	●	●
466	HARNESS; BUMPER HEADLAMPS RECTANGULAR<TR4>	1-82638-996-0	01	1	9510-9705	●	●
466	HARNESS; BUMPER HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82638-996-1	01	1	9706-0004	●	●
466	HARNESS; BUMPER	1-82638-758-1	01	1	0005-0210	●	●
466	HARNESS; BUMPER	1-82638-758-1	01	1	0211-	●

483 467 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0201-0210	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0211-	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603	●	●
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-3	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0211-	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-3	01	1	9510-9603	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0211-	●
483	HARNESS; EXT,RADIO RADIO CLARION(SK2)	8-98075-645-0	01	1	0703-	●

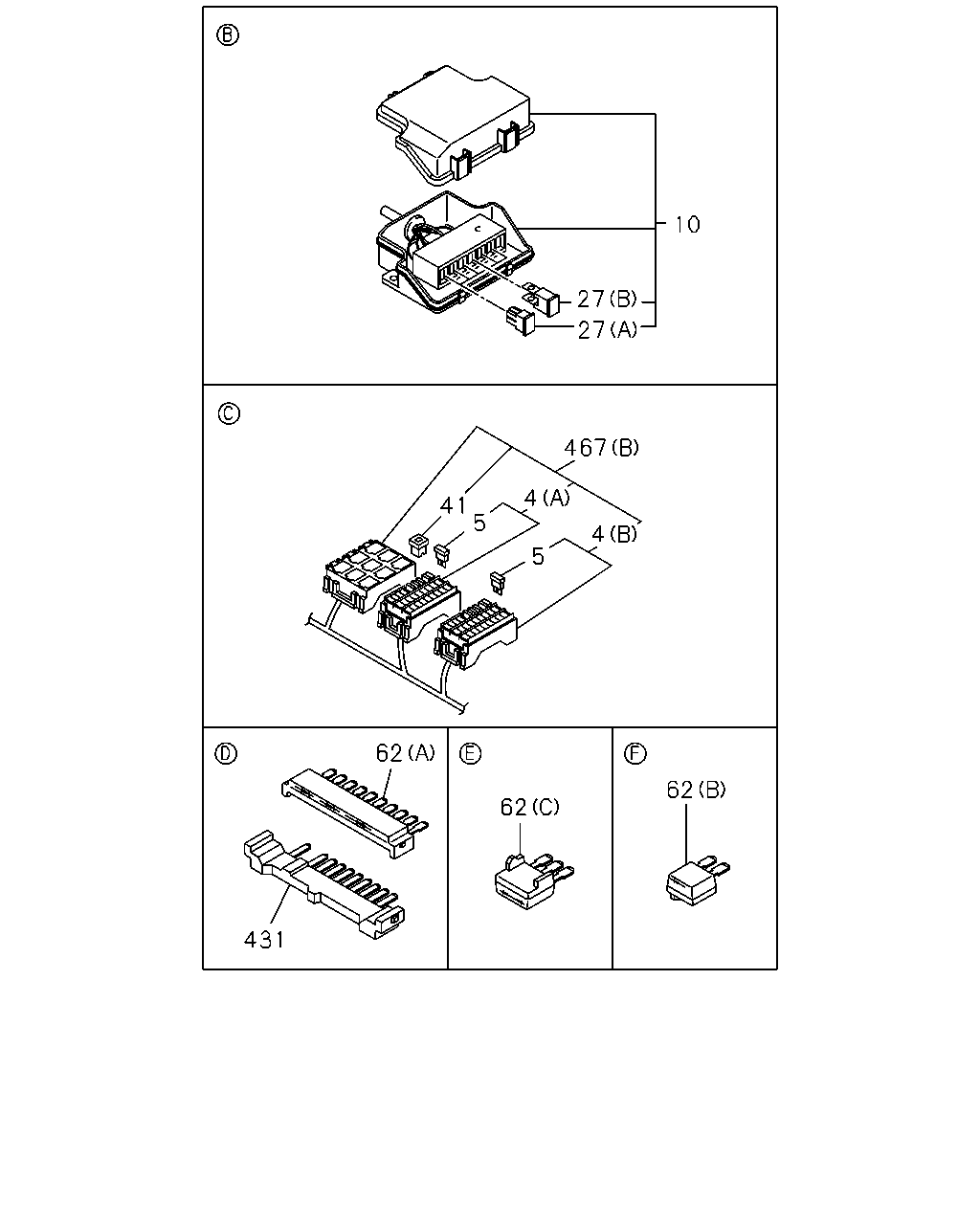

10 27 27 467 4 41 5 4 5 62 62 62 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS (B) 15AX12	1-82510-432-0	01	1	9510-9805	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX13	1-82510-475-0	01	1	9806-0207	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX14	1-82510-472-0	01	1	0208-0210	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX14	1-82510-472-0	01	1	0211-	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX13	1-82510-421-0	01	1	9510-9805	●	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14	1-82510-486-0	01	1	9806-0210	●	●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14	1-82510-486-0	01	1	0211-	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	12	1	9510-9805	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	13	1	9806-0207	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	14	1	0208-0210	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	14	1	0211-	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	13	1	9510-9805	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	14	1	9806-0210	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	14	1	0211-	●
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	9510-0210	●	●
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	0211-	●
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	9510-0210	●	●
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	0211-	●
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	9510-0210	●	●
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	0211-	●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	9510-0210	●	●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0211-	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0005-0210	●	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0211-	●
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0208-0210	●	●
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0211-	●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	9510-0210	●	●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0211-	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9510-9805	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	01	1	9510-9805	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9806-0004	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9806-0004	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0005-0210	●	●
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0211-	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0201-0210	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82629-277-3	01	1	0211-	●
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603	●	●
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603	●	●
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-3	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0112	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0201-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-2	01	1	0005-0210	●	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-275-3	01	1	0211-	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603	●	●
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-3	01	1	0211-	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603	●	●
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-3	01	1	9510-9603	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0112	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0201-0210	●	●
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
