8-05 — INTERIOR LAMP (#58496) — 42 parça

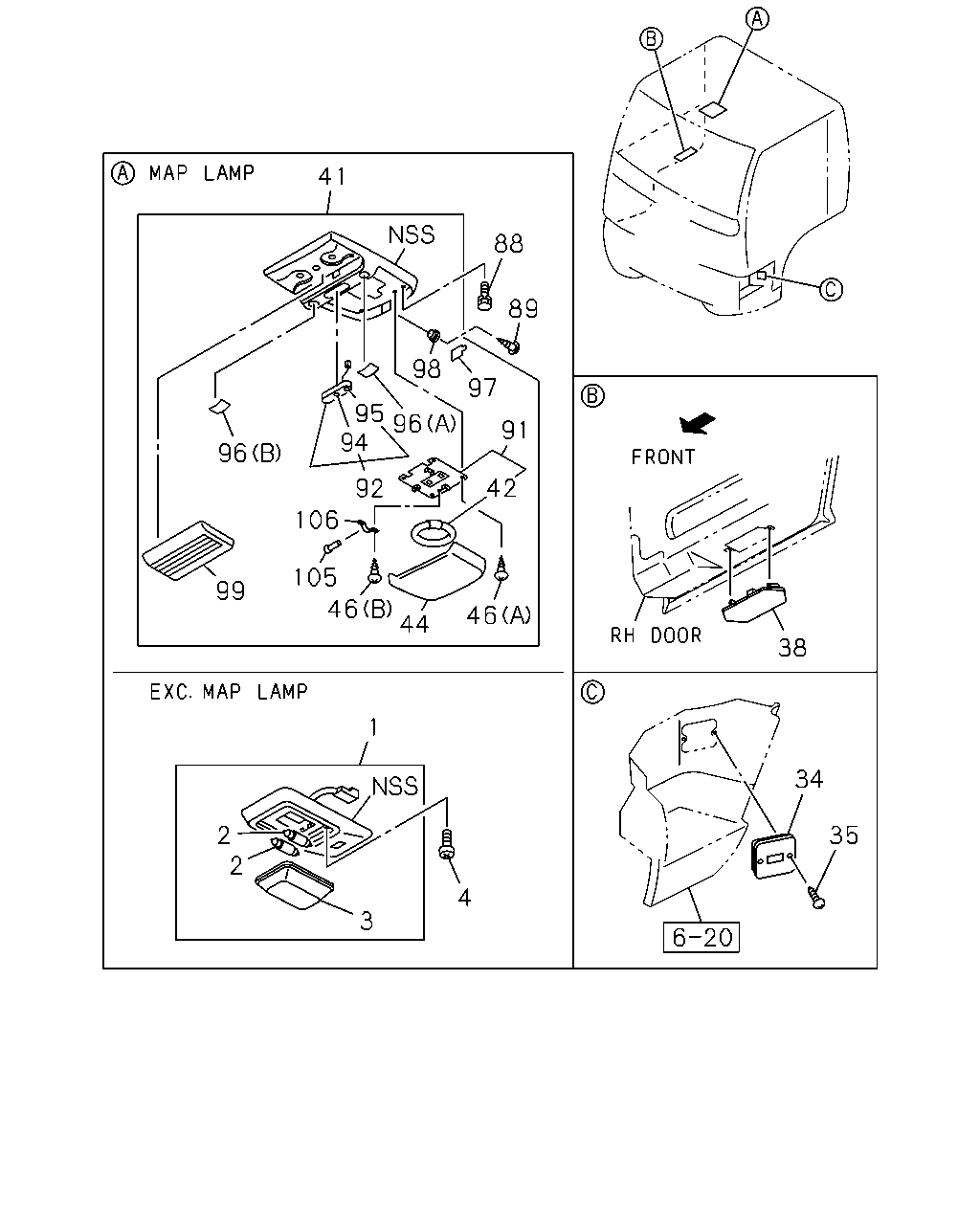

çizim 172794
41 88 89 98 97 95 96 94 91 96 42 92 106 105 99 46 44 46 38 1 34 2 2 35 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM 1-82140-050-0 01 1 9510-9510 ● ●
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-0 01 1 9511-9603 ● ●
1 LAMP ASM; ROOM 1-82140-050-1 01 1 9604-0210 ● ●
1 LAMP ASM; ROOM 1-82140-050-1 01 1 0211- ●
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 9510-9510 ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 9511-9603 ● ●
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 9604-0210 ● ●
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 0211- ●
3 LENS; ROOM LAMP 8-94206-208-0 01 1 9510-9510 ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		8-94206-208-0 01 1 9511-9603 ● ●
3 LENS; ROOM LAMP 8-94206-208-0 01 1 9604-9709 ● ●
3 LENS; ROOM LAMP 1-82145-020-0 01 1 9710-0210 ● ●
3 LENS; ROOM LAMP 1-82145-020-0 01 1 0211- ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 9510-9603 ● ●
4 SCREW; ROOM LAMP
M5X20 TAPPING 		9-07066-520-0 03 1 9604-0210 ● ●
4 SCREW; ROOM LAMP
M5X20 TAPPING 		9-07066-520-0 03 1 0211-0603 ●
4 SCREW; ROOM LAMP
M5X20 TAPPING 		0-71040-520-0 03 1 0604- ●
34 COVER; STEP LAMP 1-79998-925-0 02 1 9510-0210 ● ●
34 COVER; STEP LAMP 1-79998-925-0 02 1 0211- ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74310-420-0 04 1 9510-0210 ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74310-420-0 04 1 0211-0604 ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 0605- ●
38 COVER; STEP LAMP,DOOR 1-74997-029-2 01 1 9510-0210 ● ●
38 COVER; STEP LAMP,DOOR 1-74997-029-2 01 1 0211- ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-245-1 01 1 9510-9603 ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-0 01 1 9510-9603 ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 9510-9603 ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 04 1 9510-9603 ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 02 1 9510-9603 ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 06 1 9510-9603 ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 9510-9603 ● ●
91 LAMP SUB ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-207-0 01 1 9510-9603 ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-280-0 01 1 9510-9603 ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> 		1-86830-098-0 01 1 9510-9603 ● ●
95 KNOB; SPOT LAMP SW
MAP LAMP<C85> 		1-86830-099-0 01 1 9510-9603 ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> (A) 		1-86830-100-0 01 1 9510-9603 ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> (B) 		1-86830-282-0 01 1 9510-9603 ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-101-0 01 1 9510-9603 ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 9510-9603 ● ●
99 COVER; AIR PURIFIER
MAP LAMP<C85> 		1-86830-103-0 01 1 9510-9603 ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 9510-9603 ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 9510-9603 ● ●
