Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#58493) — 267 parça

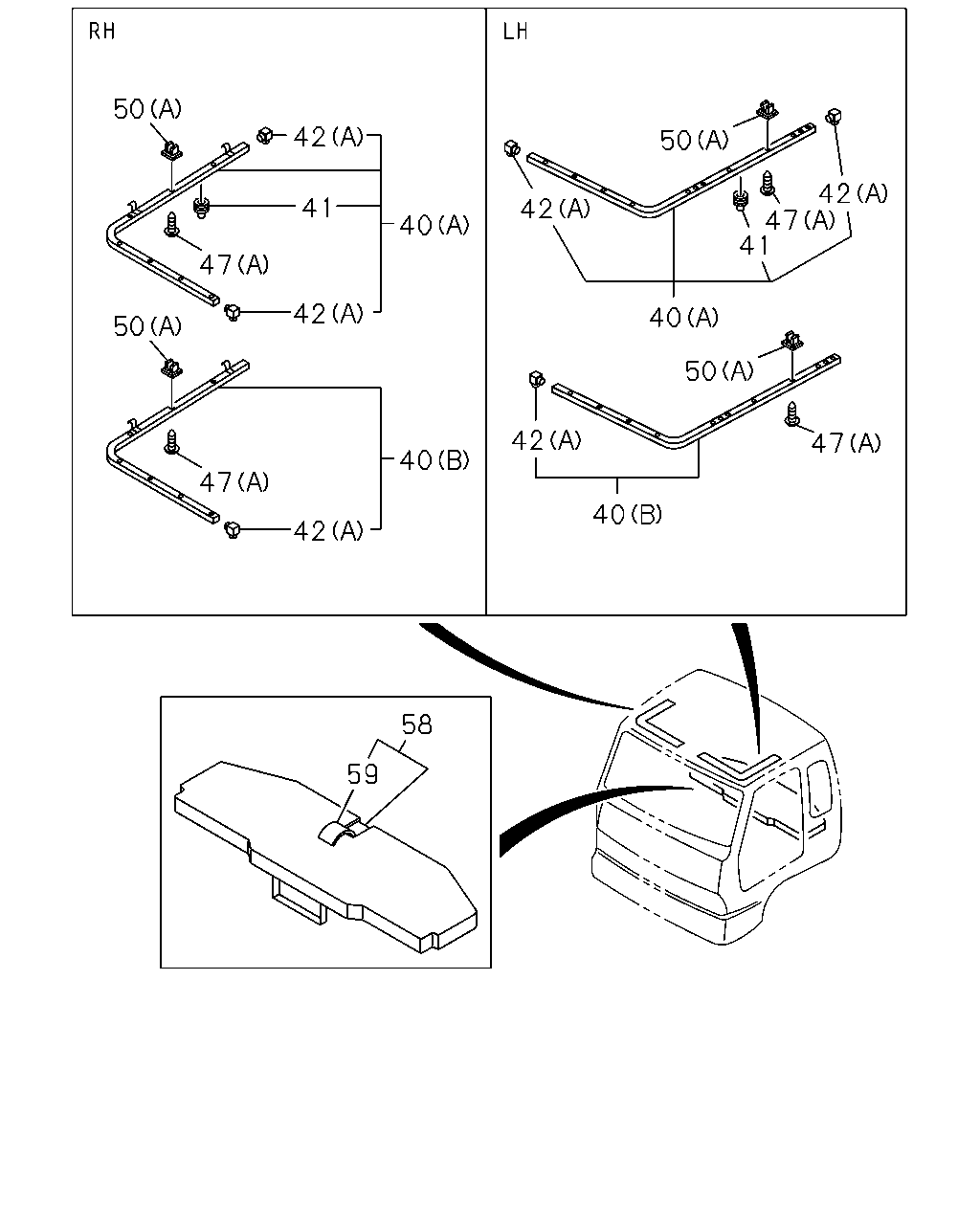

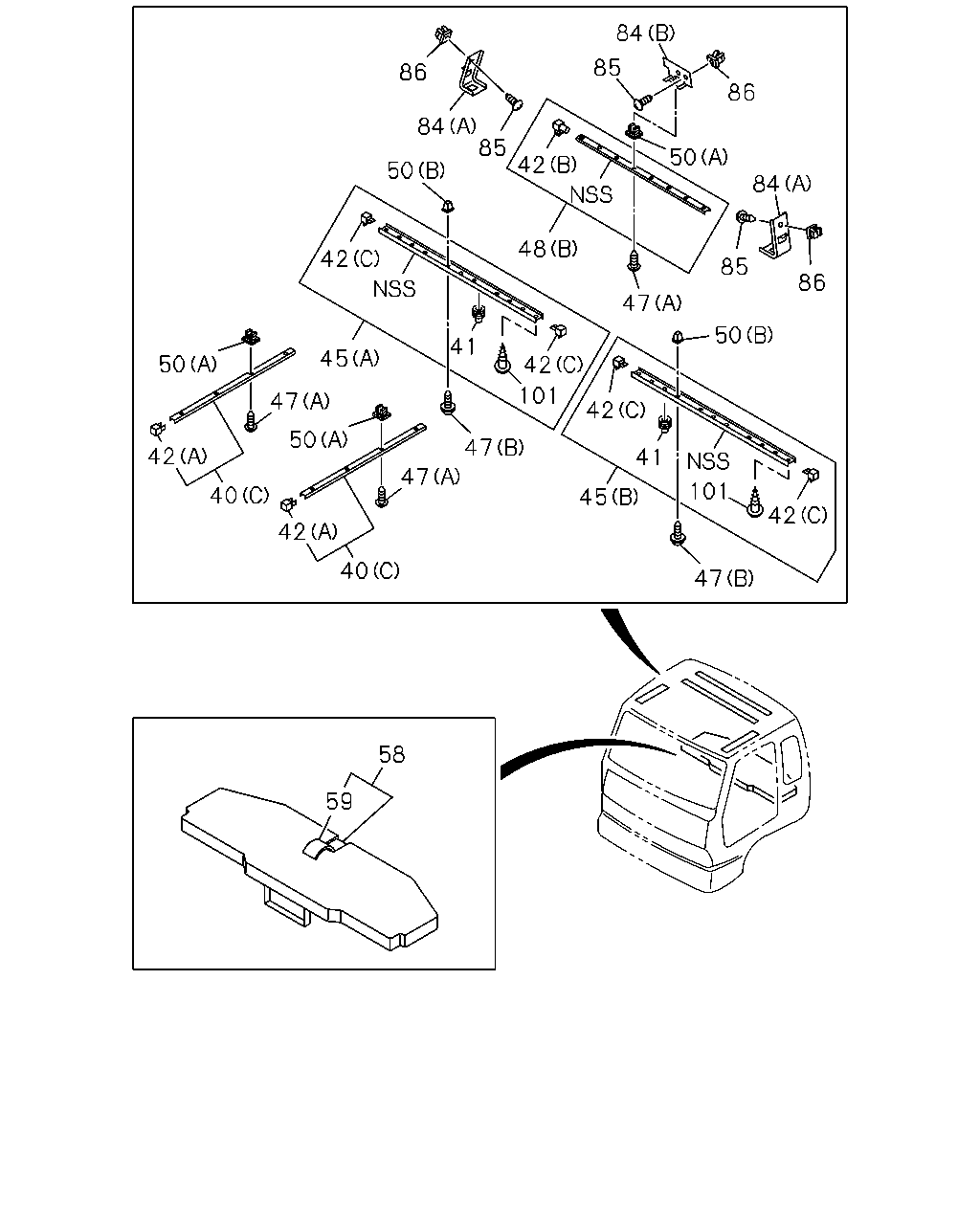

84 85 86 86 84 85 50 42 50 84 48 42 85 86 47 50 41 45 50 42 101 47 42 50 47 42 41 47 101 40 45 42 42 40 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-204-0	02	1	9510-9512	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-219-0	01	1	9601-9603	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-219-0	01	1	9604-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0211-		●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-220-0	01	1	9601-9603	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-220-0	01	1	9604-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0211-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9604-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0007-0210	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0211-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9510-9512	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-9603	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73908-193-0	02	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0211-		●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-403-1	02	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0211-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0211-		●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-3	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-150-0	01	1	9604-0004	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0211-		●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9604-0004	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0211-		●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	9604-0210	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0211-		●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9604-0210	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0211-		●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9510-9603	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9510-9603	●	●
48	RAIL; CURTAIN,BACK (B)	8-94265-811-0	01	1	9604-0004	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0211-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9604-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-0211		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-		●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9604-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0211-0211		●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212		●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9510-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-0210	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0211-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9510-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-0210	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0211-		●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9510-9603	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9510-0210	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0211-		●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9510-9603	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9604-0210	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0211-		●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9803-0004	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0005-0210	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0211-		●
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9510-9603	●	●
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9510-9603	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	9604-9802	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9803-0004	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9803-0004	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-0210	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0211-		●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9510-9603	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9510-9603	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9604-9708	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9802	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9803-0004	●	●
101	SCREW; STOPPER LOW ROOF<6XQ>	1-73907-400-0	02	1	9510-9603	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	9604-0210	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	0211-		●

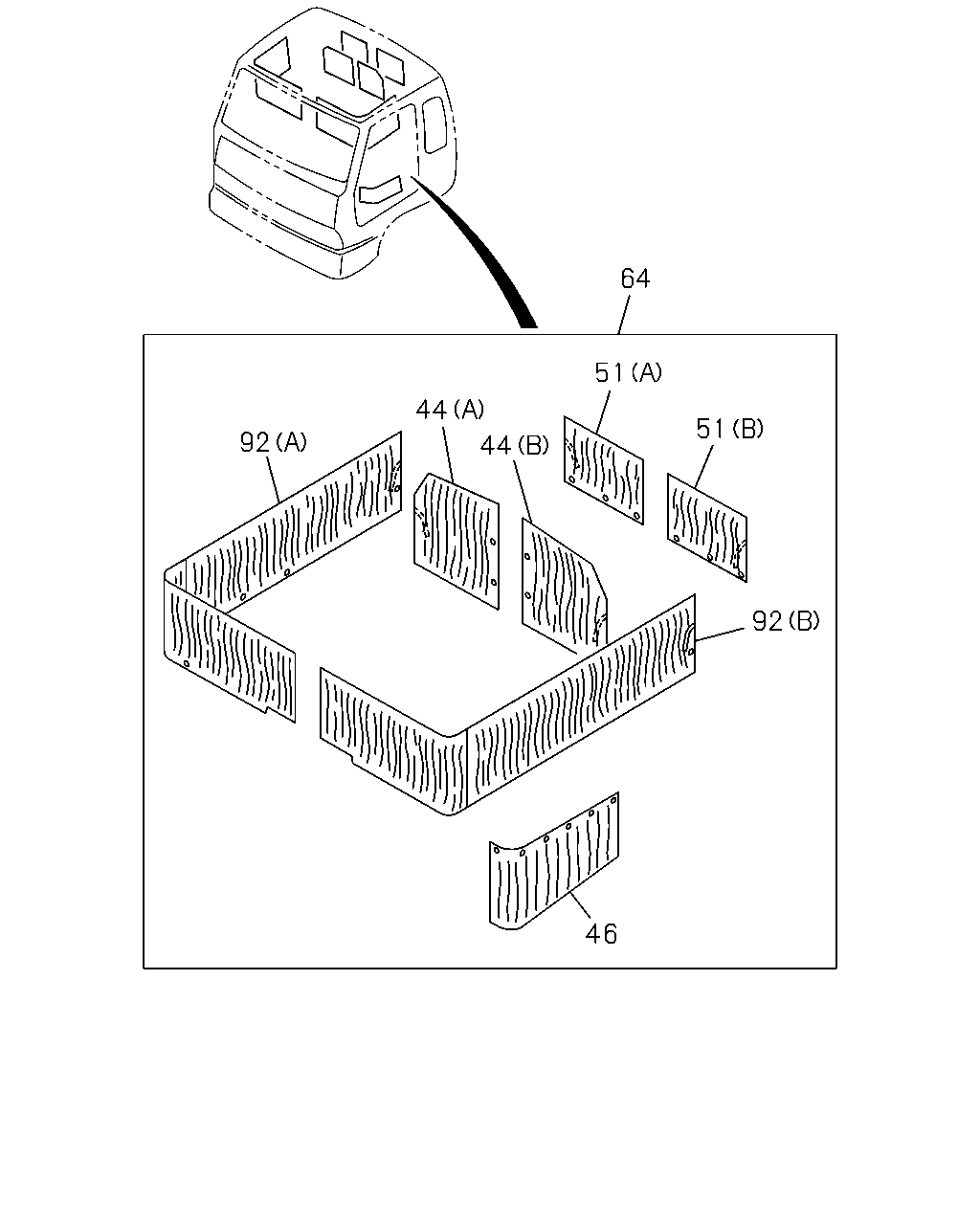

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-0	01	1	9510-9603	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-1	01	1	9604-0210	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-1	01	1	0211-		●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-0	01	1	9510-9603	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-1	01	1	9604-0210	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-1	01	1	0211-		●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	9510-9603	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73908-211-0	01	1	9510-9603	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73908-212-0	01	1	9510-9603	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-0	01	1	9510-9603	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73908-215-0	01	1	9510-9603	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73908-216-0	01	1	9510-9603	●	●

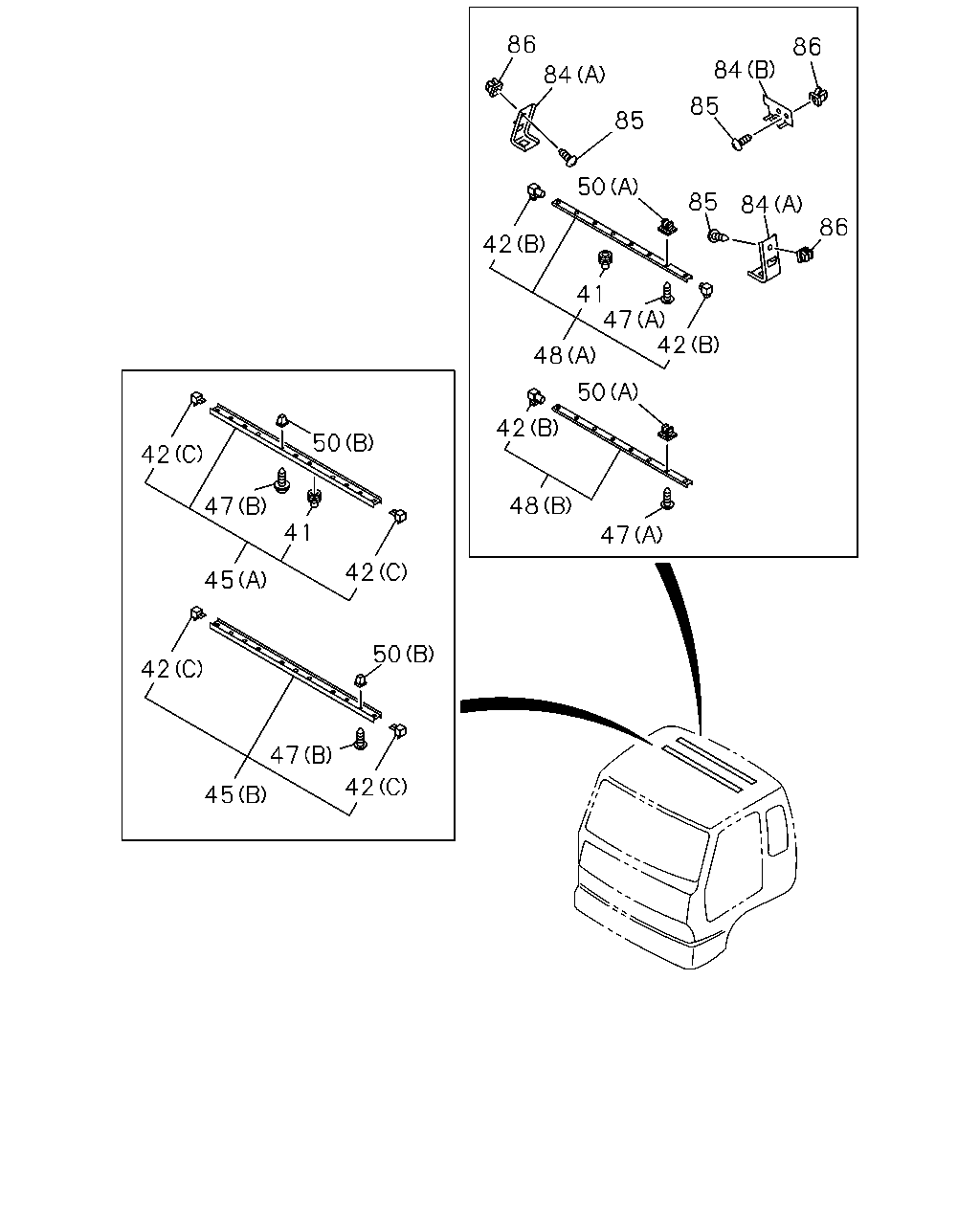

86 86 84 84 85 85 50 85 84 86 42 41 47 42 48 50 42 50 42 48 47 41 47 42 45 50 42 47 42 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9604-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0007-0210	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0211-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9510-9512	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-9603	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73908-193-0	02	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0211-		●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-403-1	02	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0211-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0211-		●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-3	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-150-0	01	1	9604-0004	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-374-2	01	1	0211-		●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9510-9603	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9604-0004	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0211-		●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	9604-0210	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0211-		●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9604-0210	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0211-		●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9510-9603	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9510-9603	●	●
48	RAIL; CURTAIN,BACK (B)	8-94265-811-0	01	1	9604-0004	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0005-0210	●	●
48	RAIL; CURTAIN,BACK (B)	1-73996-385-1	01	1	0211-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9604-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-0211		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-		●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9604-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0211-0211		●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212		●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-		●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9510-9603	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9510-0210	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0211-		●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9510-9603	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9604-0210	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0211-		●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9803-0004	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0005-0210	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0211-		●
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9510-9603	●	●
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9510-9603	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	9604-9802	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9803-0004	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9803-0004	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0005-0210	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0211-		●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9510-9603	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9510-9603	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9604-9708	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9802	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9803-0004	●	●

50 42 50 42 47 41 41 42 40 47 42 40 50 50 42 47 40 47 40 42 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9510-9603	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-204-0	02	1	9510-9512	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-219-0	01	1	9601-9603	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-219-0	01	1	9604-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-379-0	01	1	0211-		●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (C)	1-73908-220-0	01	1	9601-9603	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73908-220-0	01	1	9604-0004	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE (C)	1-73996-380-1	01	1	0211-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9510-9603	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	13	1	9604-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0007-0210	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0211-		●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-279-2	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9510-9512	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-9603	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-9603	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73908-193-0	02	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0211-		●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-403-1	02	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73907-657-0	02	1	0211-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9510-9603	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	01	1	9604-0004	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0211-		●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	9604-0210	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	17	1	0211-		●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9510-9603	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9604-0210	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0211-		●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9604-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-0211		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-		●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9510-9603	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9604-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0211-0211		●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212		●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9510-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-0210	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0211-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9510-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-0210	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
