◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#58490) — 95 parça
çizim 172759
307 315 306 242 100 317 316 315 317
BalonParca AdiParca NoAdetTipApplied Date A B
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 9510-0004 ● ●
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97535-034-0 01 1 0005-0210 ● ●
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97535-034-0 01 1 0211- ●
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-198-2 01 1 9510-0004 ● ●
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97535-131-0 01 1 0005-0210 ● ●
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97535-131-0 01 1 0211- ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9510-0202 ● ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 0203-0210 ● ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 0211- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9510-9603 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 02 1 9510-9603 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 02 1 9604-0004 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 02 1 0005-0210 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 02 1 0211- ●
315 COVER; HOLE,SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 06 1 9803-0210 ● ●
315 COVER; HOLE,SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 06 1 0211- ●
315 COVER; HOLE,SW
PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 9510-9802 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9803-9806 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9803-9806 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-0004 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9807-0004 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-0004 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0005-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011-0210 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0011-0210 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011-0210 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0211- ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0211- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0211- ●
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 04 1 9510-0210 ● ●
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 04 1 0211- ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 07 1 9510-9802 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 9510-9603 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9510-9603 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9604-9802 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9803-9806 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 9807-0004 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0005-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0011-0210 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0211- ●
316 BOX; COIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94482-280-2 02 1 9803-0210 ● ●
316 BOX; COIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94482-280-2 02 1 0211- ●
317 CONSENT 1-82523-020-2 01 1 9510-0210 ● ●
317 CONSENT 1-82523-020-2 01 1 0211- ●

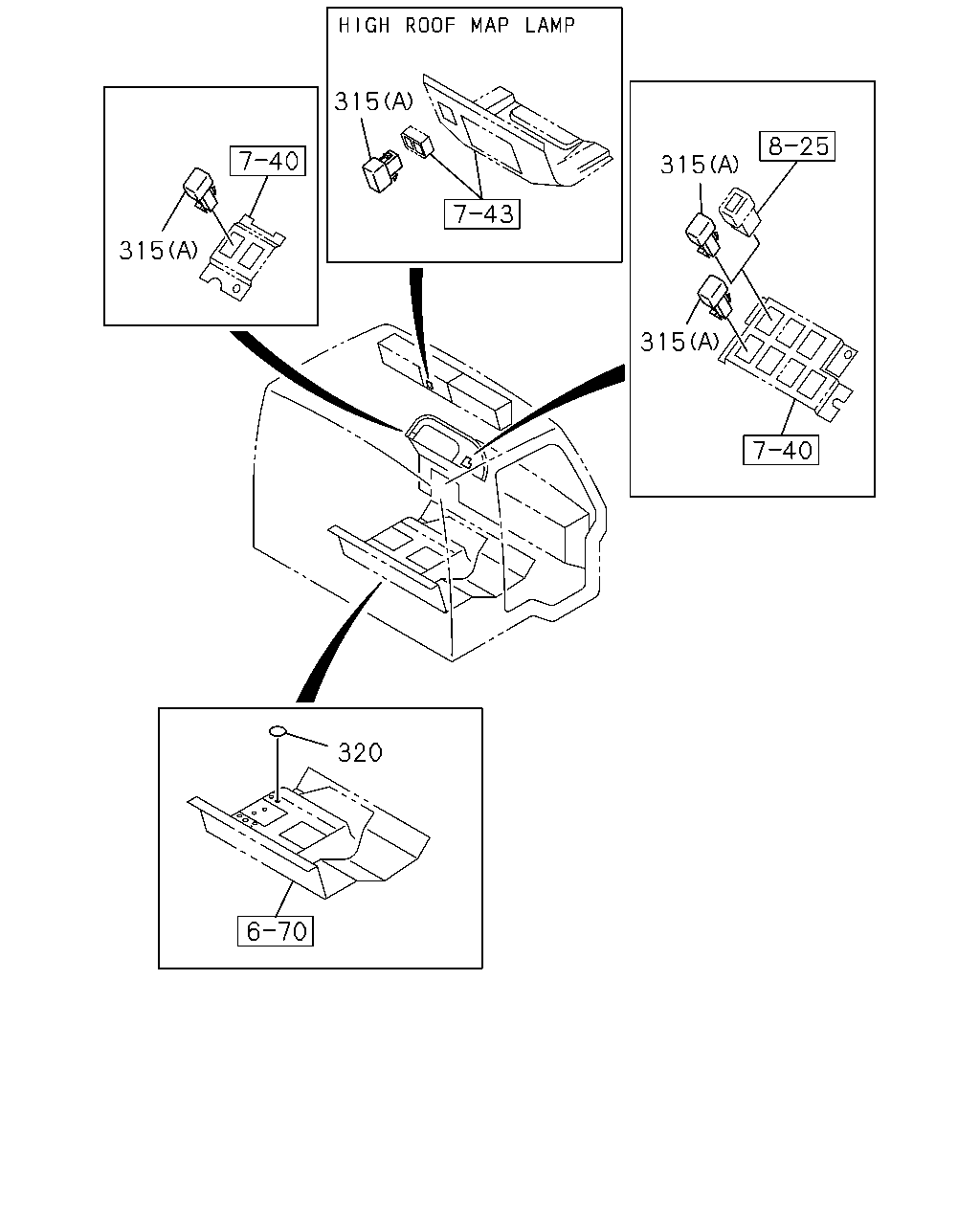

çizim 172761
315 315 315 315 320
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 06 1 9803-0210 ● ●
315 COVER; HOLE,SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 06 1 0211- ●
315 COVER; HOLE,SW
PTO CONTROL<SV6> (A) 		1-82359-069-2 06 1 9510-9802 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9803-9806 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9803-9806 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-0004 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 9807-0004 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 9807-0004 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0005-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0005-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011-0210 ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0011-0210 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0011-0210 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0211- ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 01 1 0211- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0211- ●
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 04 1 9510-0210 ● ●
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-97043-732-1 04 1 0211- ●
315 COVER; HOLE,SW
EXC. PTO CONTROL<SV6> (A) 		1-82359-069-2 07 1 9510-9802 ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 9510-9603 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9510-9603 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 9604-9802 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9803-9806 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 9807-0004 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0005-0010 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0011-0210 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 06 1 0211- ●
320 SEAL; HOLE,TRAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9510-0210 ● ●
320 SEAL; HOLE,TRAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 0211- ●
320 SEAL; HOLE,TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 9510-0210 ● ●
320 SEAL; HOLE,TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ●
çizim 172763
113 106 311 313 8 312 35 311 307 171 288 313 312 310 36 189
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9510-9603 ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 02 1 9510-9603 ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9602-9603 ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9510-9603 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-175-5 01 1 9510-9601 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9602-9603 ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9510-9603 ● ●
189 NUT; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE 		0-91150-108-0 02 1 9510-9601 ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9510-9603 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9510-9603 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 02 1 9510-9603 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 02 1 9604-0004 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 02 1 0005-0210 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-76337-461-0 02 1 0211- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9510-9603 ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9510-9603 ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9510-9603 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 9510-9603 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 9510-9603 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
