7-43 — SUN VISOR AND ASSIST GRIP (#58489) — 147 parça

24 24 24 26 14 121 26 33 24 14 33 121 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-9603	●	●
14	SCREW; BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9604-0210	●	●
14	SCREW; BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0211-		●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	9510-0004	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0005-0210	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0211-		●
23	SUN VISOR	1-73138-150-0	01	1	9510-9704	●	●
23	SUN VISOR	1-73138-150-1	01	1	9705-0004	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-0210	●	●
23	SUN VISOR	1-73138-157-1	01	1	0211-		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9510-9603	●	●
24	BRACKET; SUN VISOR (A)	1-73138-143-1	01	1	9604-0210	●	●
24	BRACKET; SUN VISOR (A)	1-73138-143-1	01	1	0211-		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9510-9603	●	●
24	BRACKET; SUN VISOR (A)	1-73138-144-1	01	1	9604-0210	●	●
24	BRACKET; SUN VISOR (A)	1-73138-144-1	01	1	0211-		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9510-9603	●	●
24	BRACKET; SUN VISOR (B)	1-73138-145-0	02	1	9604-0210	●	●
24	BRACKET; SUN VISOR (B)	1-73138-145-0	02	1	0211-		●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-9603	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9604-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-0210	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0211-		●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-9603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9604-0101	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0210	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0211-0603		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-		●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9511-9603	●	●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9603	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9603	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9604-0210	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9604-0210	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0211-		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0211-		●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9510-9603	●	●
121	SCREW; BRKT,SUN VISOR M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9604-0210	●	●
121	SCREW; BRKT,SUN VISOR M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0211-		●

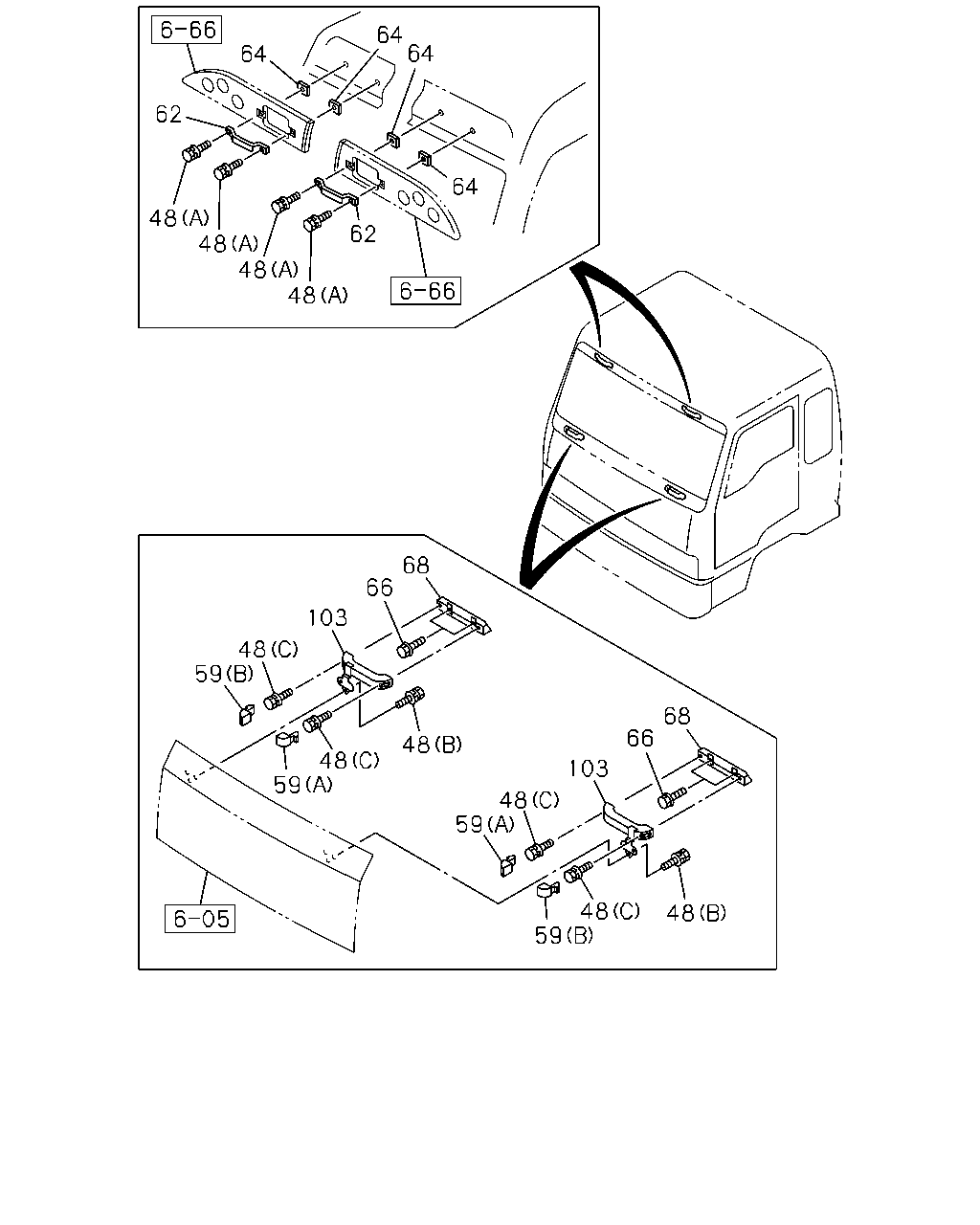

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-0210	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0211-		●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-0210	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0211-		●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-0210	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0211-0411		●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-		●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9510-0210	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0211-		●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9510-0210	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0211-		●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71997-895-1	02	1	9510-9603	●	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9510-9603	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9510-0210	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0211-		●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9510-0210	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0211-		●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	9510-0210	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0211-0411		●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0412-		●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	9510-0210	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0211-0411		●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0412-		●

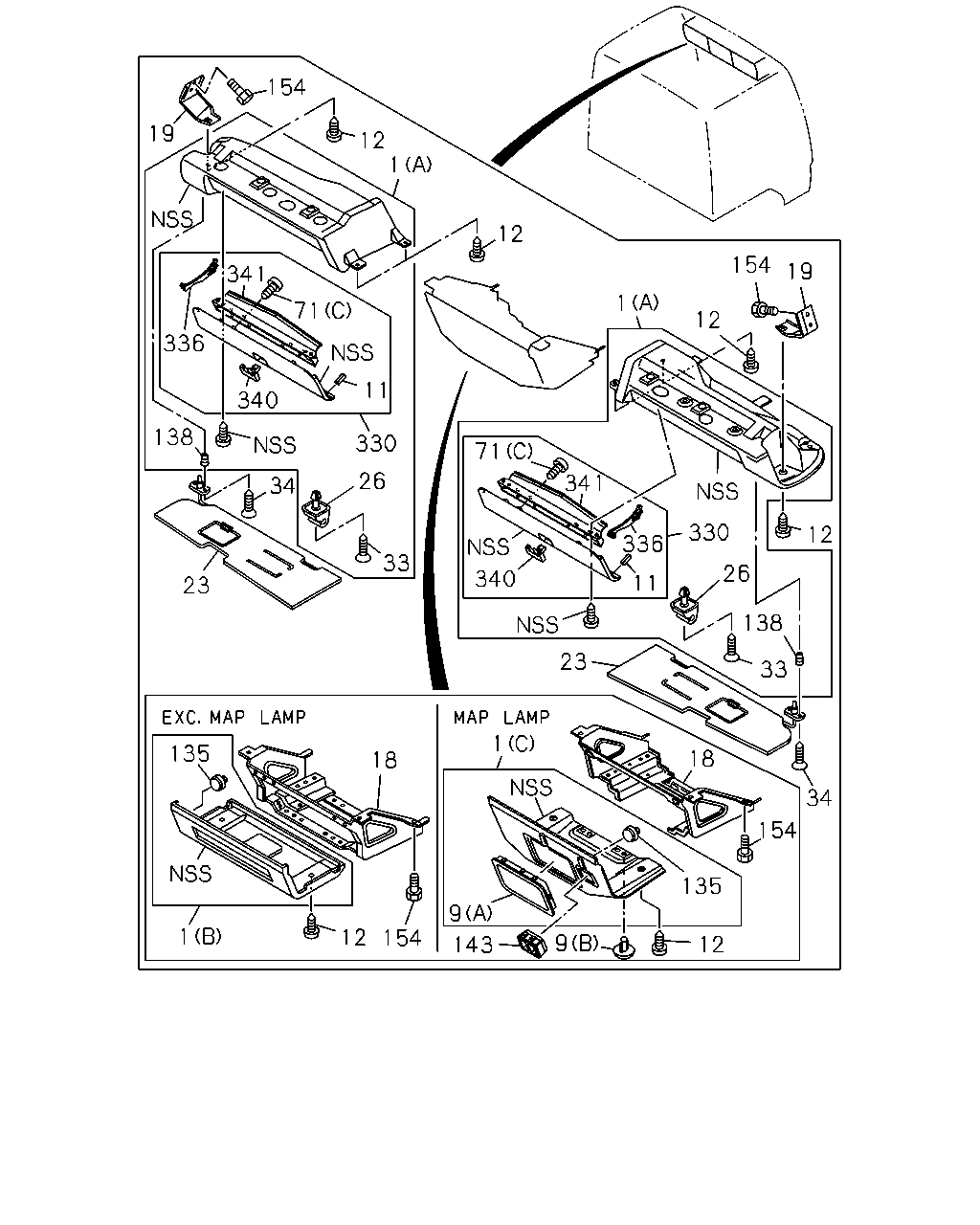

154 19 12 1 12 154 19 341 1 71 12 336 11 340 138 330 71 26 341 34 330 12 336 33 26 340 11 23 138 23 33 1 135 18 18 34 154 135 9 1 12 154 9 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (C) CENTER	1-72448-573-0	01	1	9510-9603	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-568-0	01	1	9510-9603	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9511-9603	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9511-9603	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F> (A)	1-72448-547-2	01	1	9510-9603	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-9603	●	●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9510-9603	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9510-9512	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-9603	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-574-2	01	1	9510-9603	●	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	1-72448-552-4	01	1	9510-9603	●	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9510-9603	●	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9510-9603	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	9510-0004	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0005-0210	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0211-		●
23	SUN VISOR	1-73138-150-0	01	1	9510-9704	●	●
23	SUN VISOR	1-73138-150-1	01	1	9705-0004	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-0210	●	●
23	SUN VISOR	1-73138-157-1	01	1	0211-		●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9510-9603	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9604-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-0210	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0211-		●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9510-9603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9604-0101	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0210	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0211-0603		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-		●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9511-9603	●	●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9603	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9510-9603	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9604-0210	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9604-0210	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0211-		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0211-		●
71	SCREW HIGH ROOF<S2F> (B) M6X25	1-09981-441-0	04	1	9510-9510	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9603	●	●
71	SCREW HIGH ROOF<S2F> (C) M5X14	8-94279-325-0	06	1	9510-9512	●	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9603	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0210	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> OD=7.9 BLACK	8-94279-974-1	03	1	9510-9603	●	●
138	NUT; BRKT,HEADER SHELF HIGH ROOF<S2F>	1-09984-166-0	04	1	9510-9603	●	●
143	BEZEL MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-532-0	01	1	9510-9603	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9510-9603	●	●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9510-9603	●	●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9510-9603	●	●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9510-9603	●	●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9510-9603	●	●

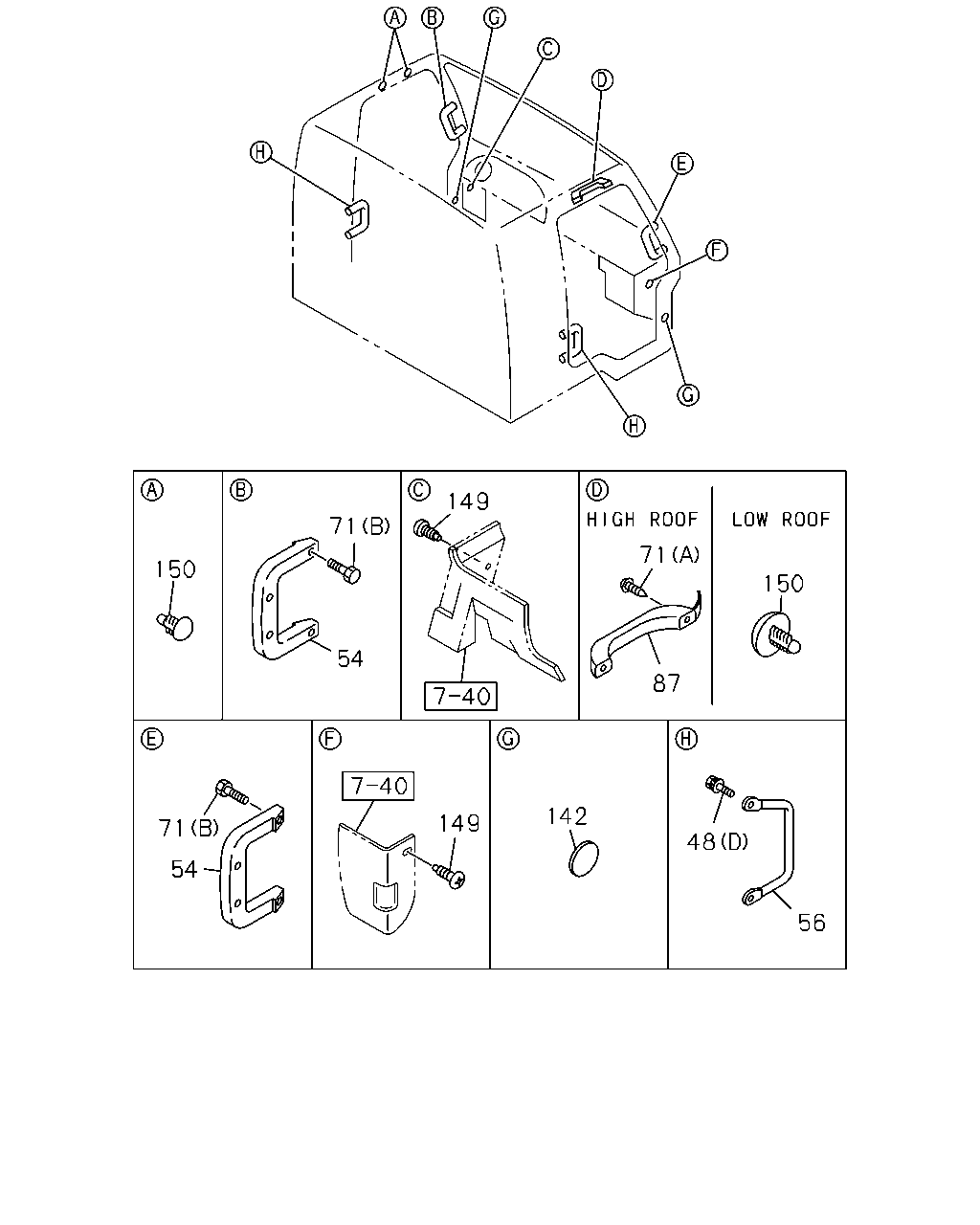

149 71 71 150 150 54 87 142 149 71 48 54 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9510-9603	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9510-0210	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0211-		●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-0210	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0211-		●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9510-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-0210	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0211-0411		●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-		●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	9510-0210	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-158-2	02	1	0211-0211		●
54	GRIP; ASSIST,QUARTER SIDE	1-73618-185-1	02	1	0212-		●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9510-0210	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0211-0402		●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804		●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-		●
71	SCREW HIGH ROOF<S2F> (B) M6X25	1-09981-441-0	04	1	9510-9510	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9510-9603	●	●
71	SCREW HIGH ROOF<S2F> (C) M5X14	8-94279-325-0	06	1	9510-9512	●	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9603	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9510-0210	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0211-0211		●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9510-9603	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9510-0004	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	03	1	0005-0210	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	03	1	0211-		●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	9510-0210	●	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	0211-0302		●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-		●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	9510-9510	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9510-9603	●	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9510-9603	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9604-0210	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0211-		●
