Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#58486) — 298 parça

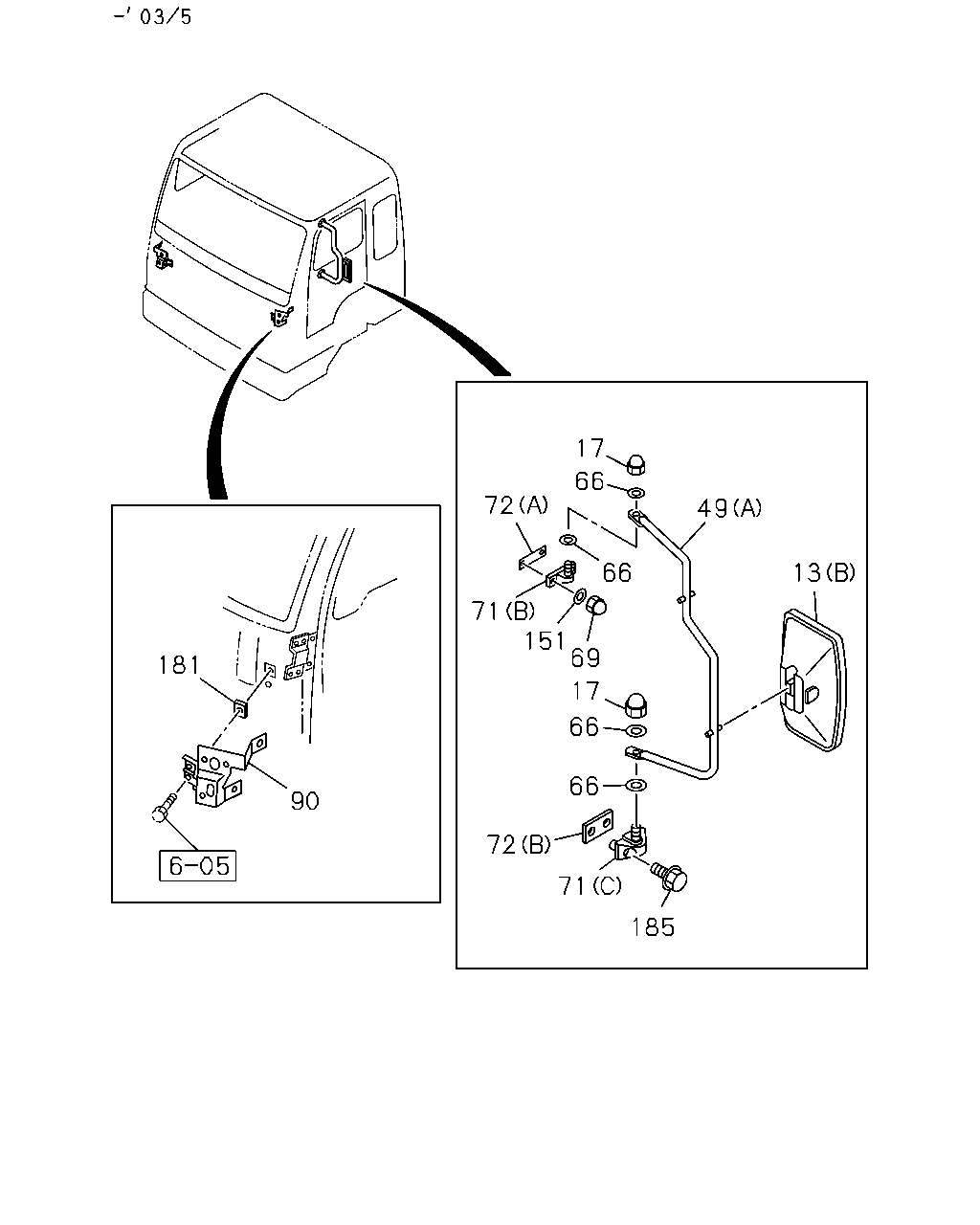

17 66 72 13 66 71 151 69 17 181 66 49 66 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-1	02	1	9510-9612	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	9701-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	1-71798-862-1	01	1	0306-		●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	9510-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-97867-880-1	02	1	0306-0602		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-98037-583-1	02	1	0603-		●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	01	1	9510-9602	●	●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	04	1	9510-0208	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0209-0210	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0211-		●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (B)	1-71798-872-2	01	1	0306-		●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (C)	1-71798-873-1	01	1	0306-		●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9510-9602	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9510-9710	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9711-0210	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0211-		●
69	NUT; CAP M8	1-09984-187-0	02	1	9510-9602	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	9510-0210	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0211-0809		●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (D)	8-98099-810-0	01	1	0804-		●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-		●
72	SHEET (A)	1-71798-487-3	01	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	01	1	0211-0803		●
72	SHEET (A)	1-71798-487-3	02	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	02	1	0211-		●
72	SHEET (B)	1-71798-488-1	02	1	9510-0210	●	●
72	SHEET (B)	1-71798-488-1	02	1	0211-		●
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0211-0809		●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0211-		●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9510-9602	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9510-0210	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0211-		●
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	9902-0004	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0005-0210	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0211-		●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9510-9707	●	●
185	BOLT; BRKT M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-9511	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9512-0210	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	0211-0512		●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605		●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-		●

2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73118-026-0	01	1	9510-0004	●	●
1	MIRROR; ROOM	1-73117-033-1	01	1	0005-0210	●	●
1	MIRROR; ROOM	1-73117-033-1	01	1	0211-		●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9510-9906	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9907-0210	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0211-		●

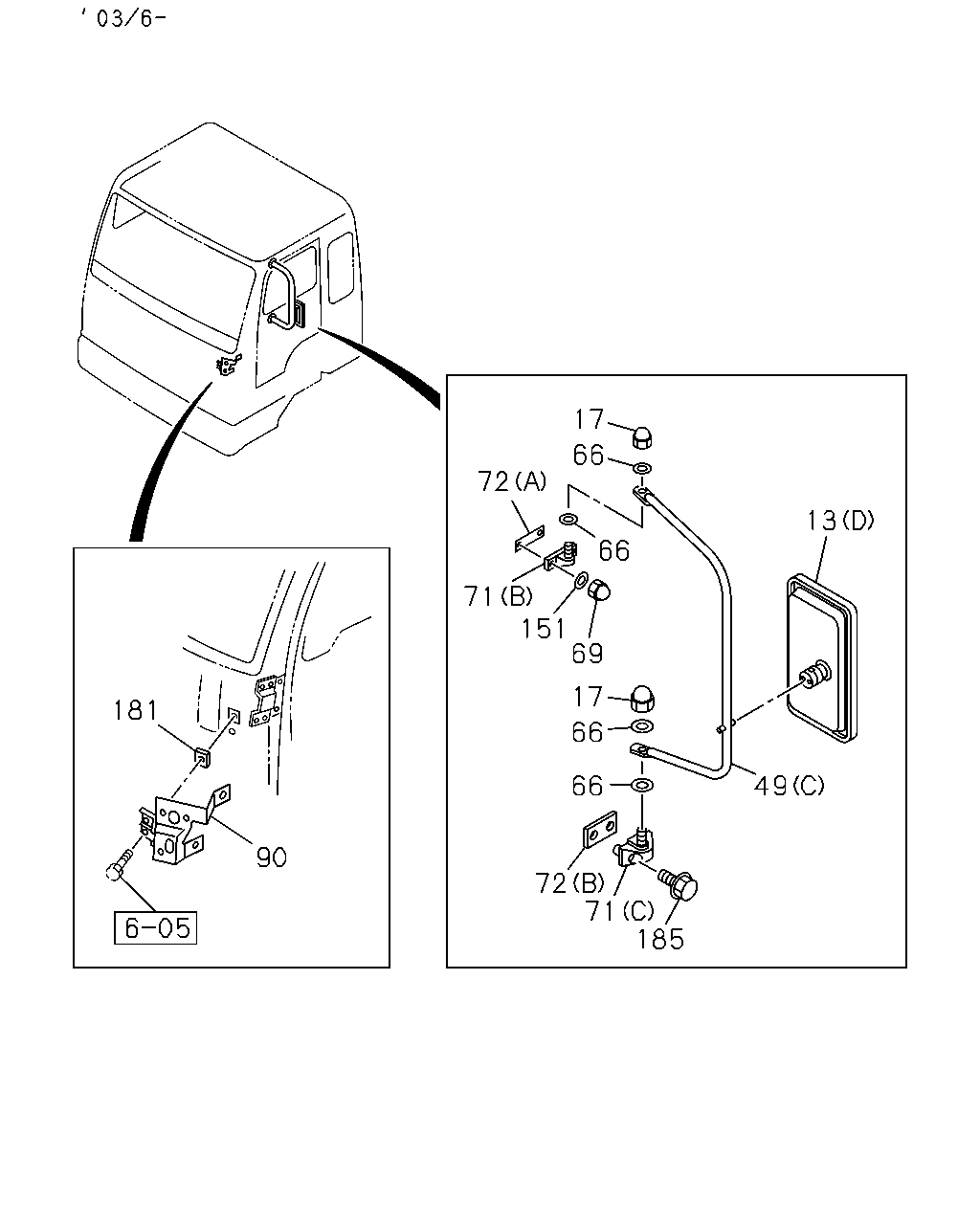

17 66 72 49 13 66 71 151 69 181 17 66 66 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-1	02	1	9510-9612	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	9701-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	1-71798-862-1	01	1	0306-		●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	9510-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-97867-880-1	02	1	0306-0602		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-98037-583-1	02	1	0603-		●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	01	1	9510-9602	●	●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	04	1	9510-0208	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0209-0210	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0211-		●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (B)	1-71798-872-2	01	1	0306-		●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (C)	1-71798-873-1	01	1	0306-		●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9510-9602	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9510-9710	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9711-0210	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0211-		●
69	NUT; CAP M8	1-09984-187-0	02	1	9510-9602	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	9510-0210	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0211-0809		●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (D)	8-98099-810-0	01	1	0804-		●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-		●
72	SHEET (A)	1-71798-487-3	01	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	01	1	0211-0803		●
72	SHEET (A)	1-71798-487-3	02	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	02	1	0211-		●
72	SHEET (B)	1-71798-488-1	02	1	9510-0210	●	●
72	SHEET (B)	1-71798-488-1	02	1	0211-		●
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0211-0809		●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0211-		●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9510-9602	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9510-0210	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0211-		●
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	9902-0004	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0005-0210	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0211-		●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9510-9707	●	●
185	BOLT; BRKT M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-9511	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9512-0210	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	0211-0512		●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605		●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-		●

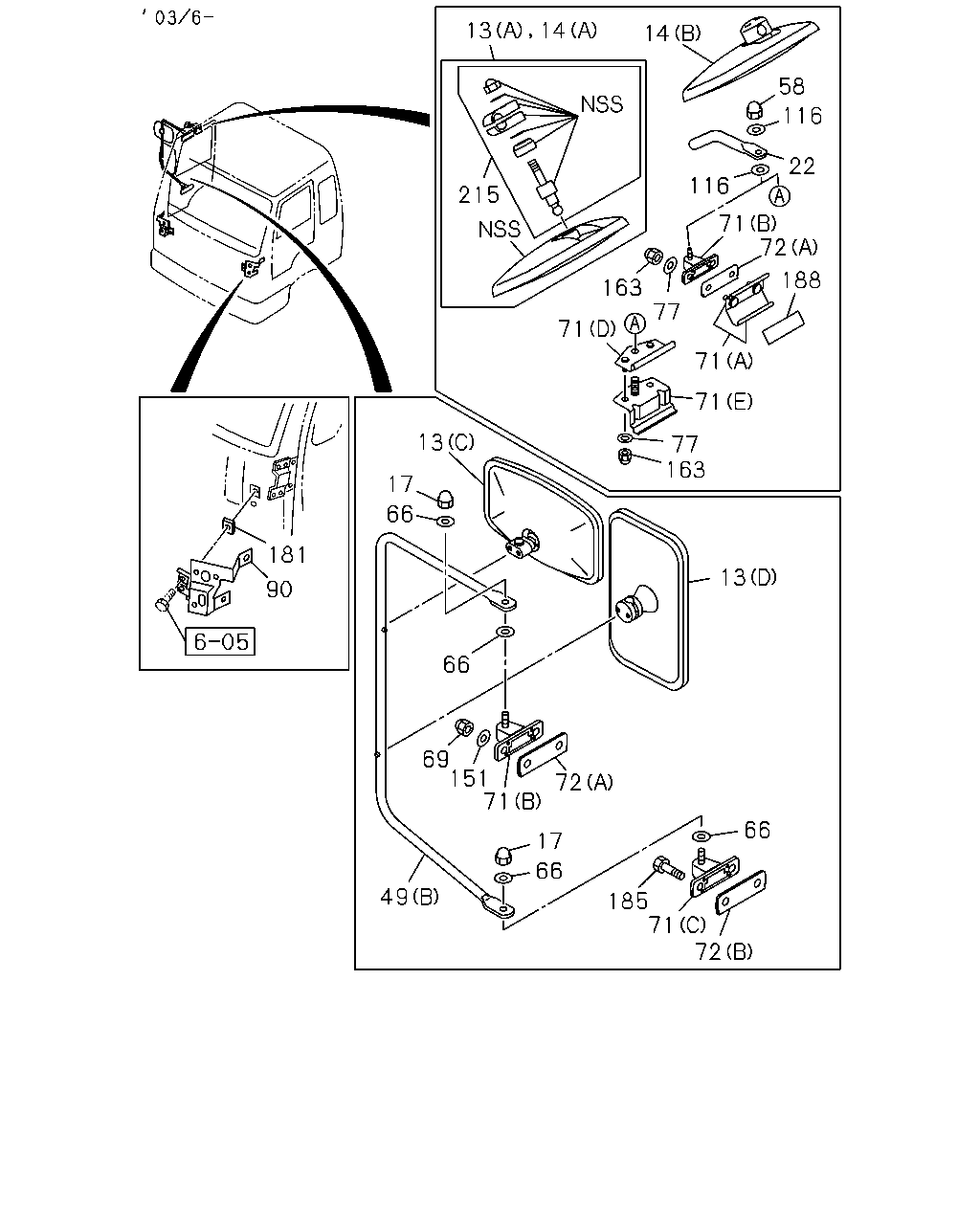

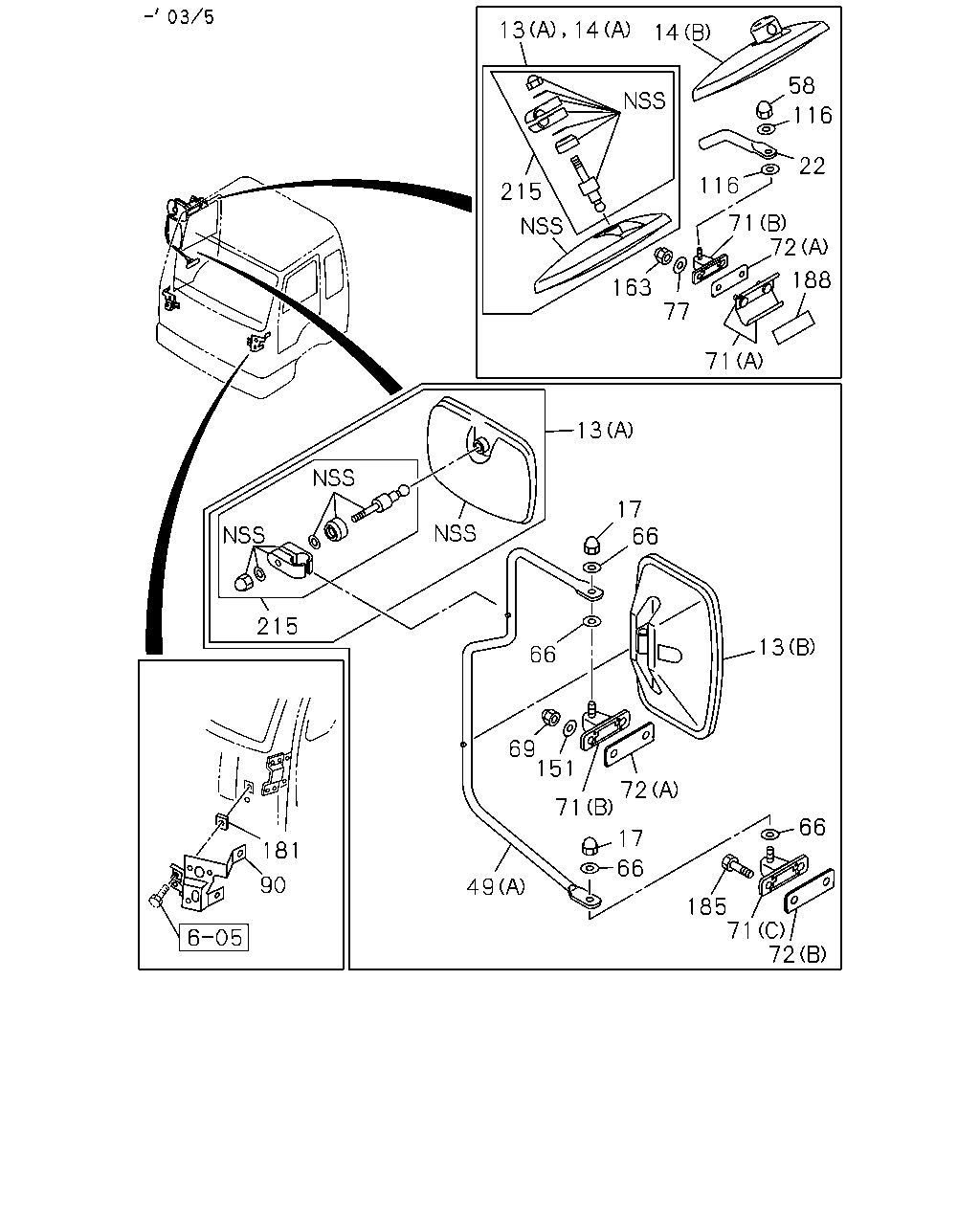

13 14 14 58 116 22 116 71 72 215 188 163 77 71 71 71 13 77 163 17 66 181 13 90 66 69 151 71 72 66 17 66 49 185 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-1	02	1	9510-9612	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	9701-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	1-71798-862-1	01	1	0306-		●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	9510-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-97867-880-1	02	1	0306-0602		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-98037-583-1	02	1	0603-		●
14	MIRROR ASM; OUTSIDE (A)	1-71798-651-2	01	1	9701-0210	●	●
14	MIRROR ASM; OUTSIDE (A)	1-71798-651-2	01	1	0211-0310		●
14	MIRROR ASM; OUTSIDE (B)	1-71798-862-1	01	1	0311-		●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	01	1	9510-9602	●	●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	04	1	9510-0208	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0209-0210	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0211-		●
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	9701-0210	●	●
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	0211-		●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (B)	1-71798-872-2	01	1	0306-		●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (C)	1-71798-873-1	01	1	0306-		●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	9603-0210	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0211-		●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9510-9602	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9510-9710	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9711-0210	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0211-		●
69	NUT; CAP M8	1-09984-187-0	02	1	9510-9602	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	9510-0210	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0211-0809		●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (D)	8-98099-810-0	01	1	0804-		●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-		●
72	SHEET (A)	1-71798-487-3	01	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	01	1	0211-0803		●
72	SHEET (A)	1-71798-487-3	02	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	02	1	0211-		●
72	SHEET (B)	1-71798-488-1	02	1	9510-0210	●	●
72	SHEET (B)	1-71798-488-1	02	1	0211-		●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9603-0210	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0211-		●
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0211-0809		●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0211-		●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9603-0210	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0211-		●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9510-9602	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9510-0210	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0211-		●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	9603-0210	●	●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	0211-0910		●
163	NUT; MIRROR BRKT M8 CAP NUT	8-98059-914-0	02	1	0911-		●
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	9902-0004	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0005-0210	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0211-		●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9510-9707	●	●
185	BOLT; BRKT M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-9511	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9512-0210	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	0211-0512		●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605		●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-		●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	9612-0210	●	●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	0211-0803		●
215	FIXING KIT; MIRROR	1-71707-040-0	02	1	9510-9802	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	9803-0210	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	9803-0210	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	0211-0305		●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	0211-0305		●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	0306-0310		●

13 14 14 58 116 22 116 71 72 215 188 163 77 71 13 17 66 215 13 66 69 151 72 71 66 17 181 66 90 49 185 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-1	02	1	9510-9612	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	9701-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-651-2	01	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	1-71798-862-1	01	1	0306-		●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	9510-0210	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-587-2	02	1	0211-0305		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-97867-880-1	02	1	0306-0602		●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	8-98037-583-1	02	1	0603-		●
14	MIRROR ASM; OUTSIDE (A)	1-71798-651-2	01	1	9701-0210	●	●
14	MIRROR ASM; OUTSIDE (A)	1-71798-651-2	01	1	0211-0310		●
14	MIRROR ASM; OUTSIDE (B)	1-71798-862-1	01	1	0311-		●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	01	1	9510-9602	●	●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	04	1	9510-0208	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0209-0210	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0211-		●
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	9701-0210	●	●
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	0211-		●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (B)	1-71798-872-2	01	1	0306-		●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	9510-0210	●	●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	0211-0305		●
49	STAY; MIRROR SIDE (C)	1-71798-873-1	01	1	0306-		●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	9603-0210	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0211-		●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9510-9602	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9510-9710	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9711-0210	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0211-		●
69	NUT; CAP M8	1-09984-187-0	02	1	9510-9602	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	9510-0210	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0211-0809		●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (D)	8-98099-810-0	01	1	0804-		●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	02	1	0211-		●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	9510-0210	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-664-2	01	1	0211-0803		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007		●
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-		●
72	SHEET (A)	1-71798-487-3	01	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	01	1	0211-0803		●
72	SHEET (A)	1-71798-487-3	02	1	9510-0210	●	●
72	SHEET (A)	1-71798-487-3	02	1	0211-		●
72	SHEET (B)	1-71798-488-1	02	1	9510-0210	●	●
72	SHEET (B)	1-71798-488-1	02	1	0211-		●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9603-0210	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0211-		●
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0211-0809		●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-		●
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9510-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9904-0210	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0211-		●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9603-0210	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0211-		●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9510-9602	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9510-0210	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0211-		●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	9603-0210	●	●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	0211-0910		●
163	NUT; MIRROR BRKT M8 CAP NUT	8-98059-914-0	02	1	0911-		●
181	SEAL; BRKT 25X25	8-94272-533-0	04	1	9902-0004	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0005-0210	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0211-		●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9510-9707	●	●
185	BOLT; BRKT M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9510-9511	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9512-0210	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	0211-0512		●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605		●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-		●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	9612-0210	●	●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	0211-0803		●
215	FIXING KIT; MIRROR	1-71707-040-0	02	1	9510-9802	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	9803-0210	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	9803-0210	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	0211-0305		●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	0211-0305		●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	0306-0310		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
