◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#58482) — 18 parça

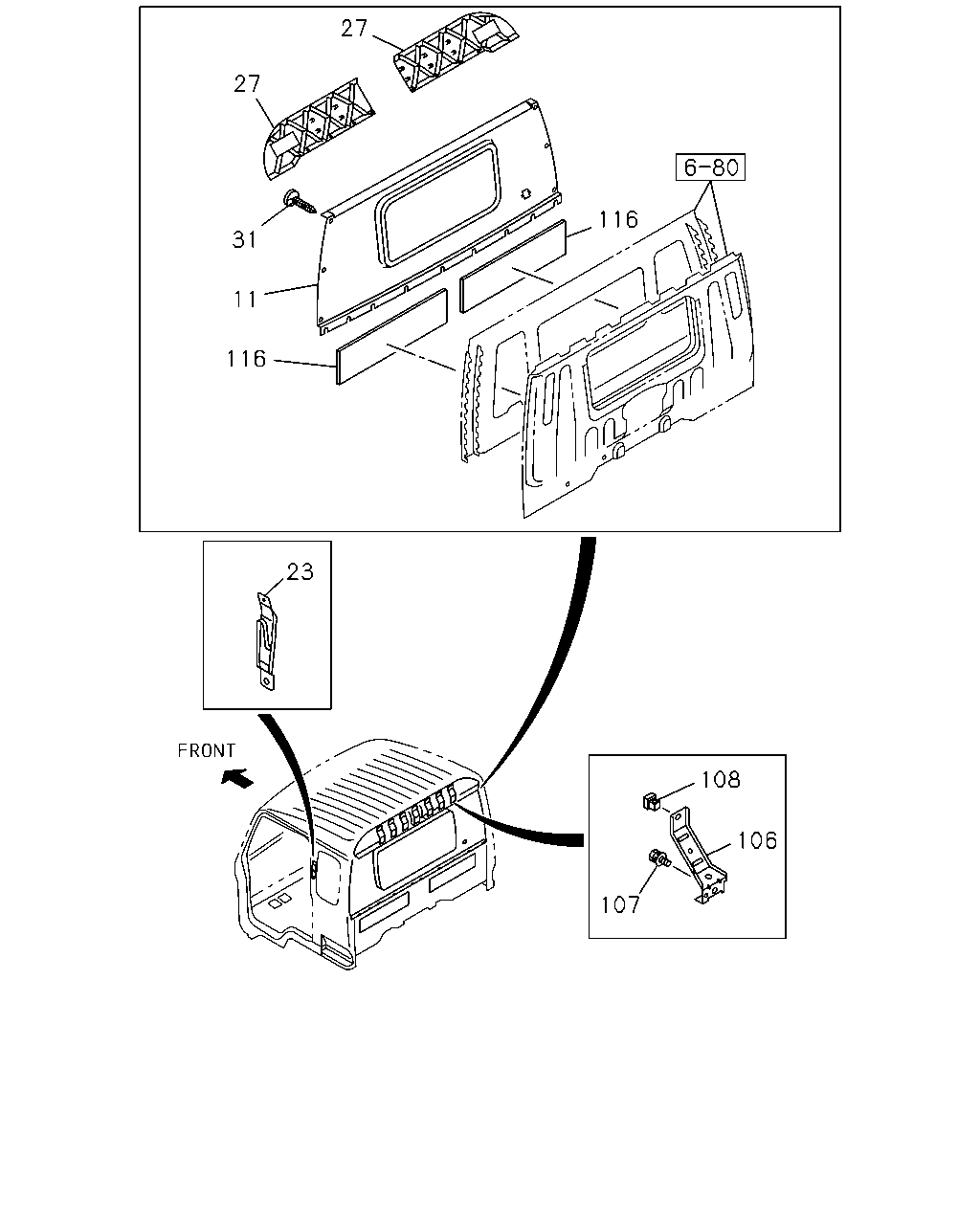

çizim 172753
27 27 116 31 11 116 23 108 106 107
BalonParca AdiParca NoAdetTipApplied Date A B
11 TRIM; ROOM,BACK INNER 1-73348-874-3 01 1 9510-0004 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-968-1 01 1 0005-0210 ● ●
11 TRIM; ROOM,BACK INNER 1-73348-968-1 01 1 0211- ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9510-0210 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0211- ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9510-0210 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0211- ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> 		1-73348-887-1 01 1 9510-9603 ● ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> 		1-73348-888-0 01 1 9510-9603 ● ●
31 CLIP; TRIM PAD
D6X23 BEIGE 		1-09987-225-0 04 1 9510-0004 ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0005-0210 ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0211- ●
31 CLIP; TRIM PAD
D6X23 DARK GRAY 		1-09987-238-0 23 1 9510-0004 ● ●
106 BRACKET; BACK TRIM
HIGH ROOF<S2F> 		1-73348-411-4 07 1 9510-9603 ● ●
107 SCREW; BRKT
HIGH ROOF<S2F> M5X20 		5-09981-059-0 14 1 9510-9603 ● ●
108 GROMMET; SCREW
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 14 1 9510-9603 ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 9510-0210 ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
