◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#58479) — 76 parça

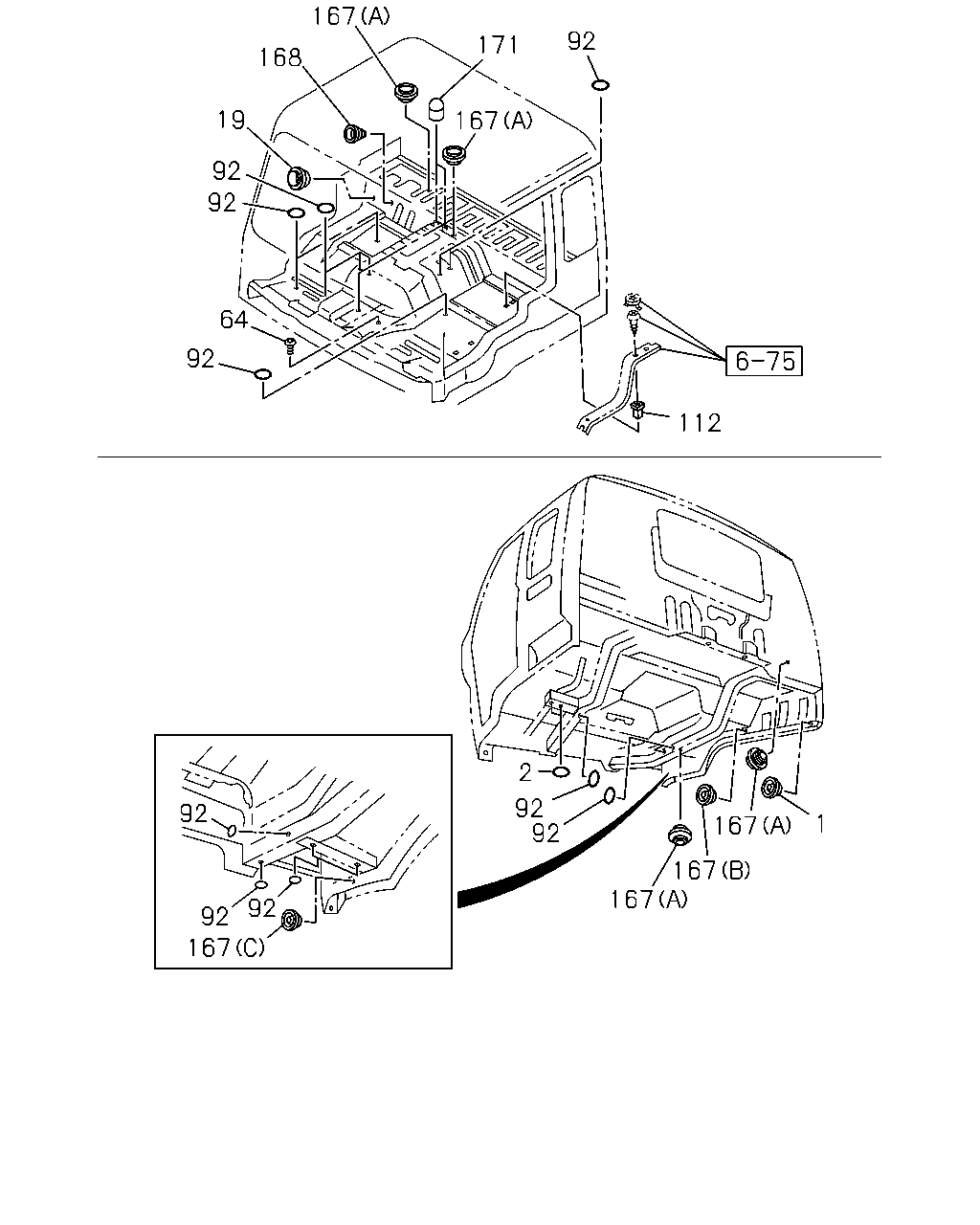

çizim 172752
167 92 171 168 19 167 92 92 64 92 112 2 92 92 92 1 167 167 167 92 92 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 GROMMET
OD=40 		1-09600-083-0 02 1 9510-0210 ● ●
1 GROMMET
OD=40 		1-09600-083-0 02 1 0211- ●
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 9511-0210 ● ●
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 0211- ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 9510-0210 ● ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 0211- ●
64 PLUG; ENG HOOD
D4.7X11 		1-76378-154-0 01 1 9510-9803 ● ●
64 PLUG; ENG HOOD
D7.8X20 		8-94353-238-0 01 1 9804-0210 ● ●
64 PLUG; ENG HOOD
D7.8X20 		8-94353-238-0 01 1 0211- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9510-0105 ● ●
92 SEAL; LOCATION HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9510-0210 ● ●
92 SEAL; LOCATION HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 0211- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 19 1 9510-9510 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 10 1 9510-9512 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 12 1 9601-9710 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9711-0004 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 0005-0112 ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 04 1 0201-0210 ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 04 1 0211- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 9510-9802 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 9803-0004 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 0005-0210 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 0211- ●
92 SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9510-9603 ● ●
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9510-9603 ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9510-9603 ● ●
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 9604-0105 ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 9604-0105 ● ●
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0106-0112 ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0106-0112 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0106-0112 ● ●
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0201-0210 ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0201-0210 ● ●
92 SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0201-0210 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0201-0210 ● ●
92 SEAL; LOCATION HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0211- ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0211- ●
92 SEAL; LOCATION HOLE
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0211- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0211- ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 04 1 9510-9603 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 04 1 9604-9802 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 9803-0004 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 0005-0210 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 0211- ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9510-9710 ● ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9711-9806 ● ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9711-9806 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0203 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0203 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0204-0210 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211- ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 01 1 9510-9806 ● ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807-0105 ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9510-0210 ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0211- ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 9510-0210 ● ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 0211- ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 9510-0210 ● ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 0211- ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 04 1 9510-9510 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9510-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710-0210 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710-0210 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0211- ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0211- ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 03 1 9510-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 03 1 9710-0210 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 03 1 0211- ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9510-0210 ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 0211- ●
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> 		1-71736-200-0 02 1 9510-9510 ● ●
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> 		1-71736-200-0 02 1 9601-9603 ● ●
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> 		1-71736-200-0 02 1 9604-0210 ● ●
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> 		1-71736-200-0 02 1 0211- ●
171 CAP; STUD
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> M8 		1-09984-109-0 02 1 9511-9512 ● ●
