◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#58475) — 38 parça

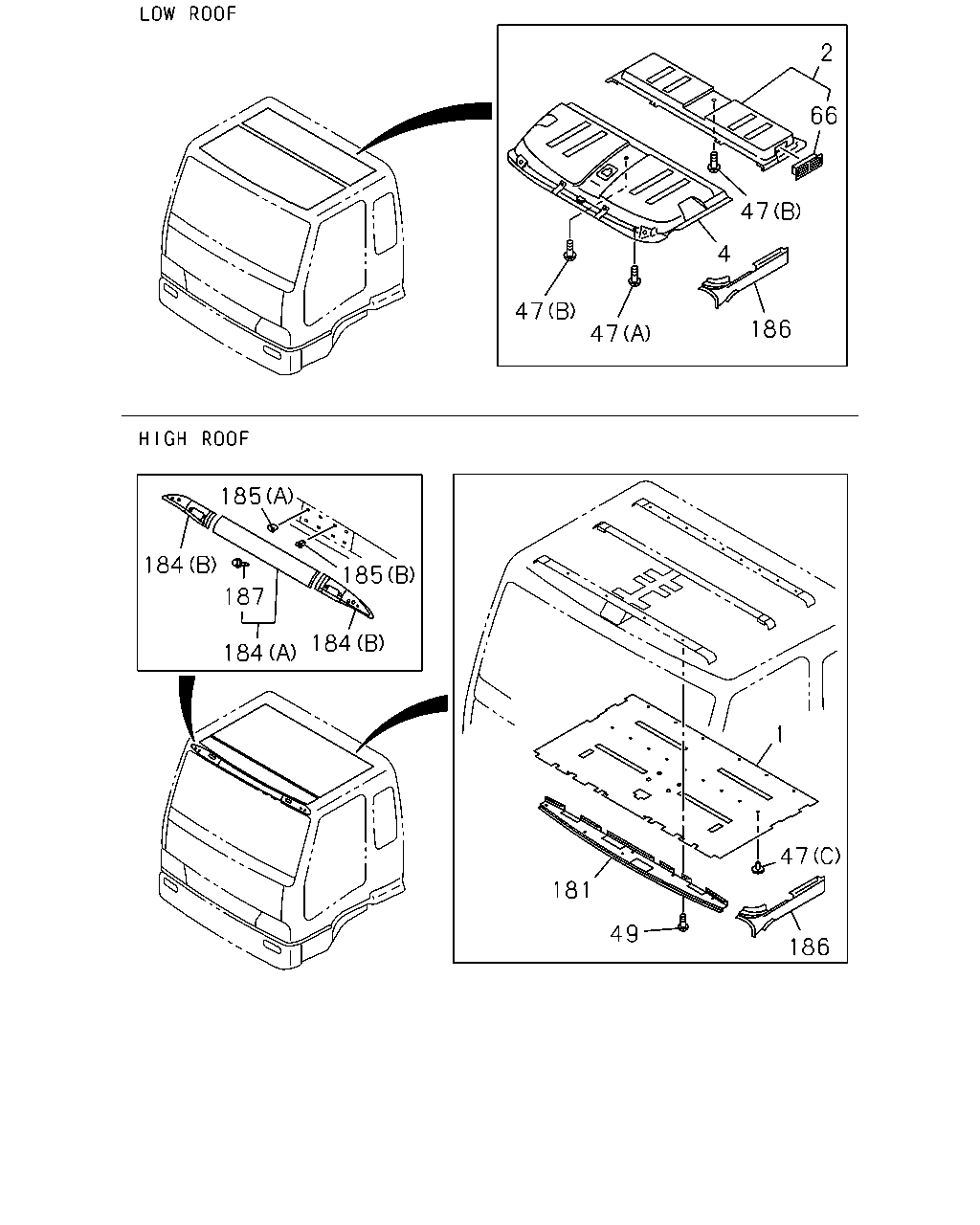

çizim 172815
2 66 47 4 47 186 47 185 184 185 187 184 184 1 47 181 49 186
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
MAP LAMP<C85> HIGH ROOF<S2F> 		1-73318-567-1 01 1 9510-9603 ● ●
1 LINING; HD
HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		1-73318-571-1 01 1 9510-9603 ● ●
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-2 01 1 9510-9603 ● ●
2 LINING; HD,ROOF RR 1-73318-573-3 01 1 9604-0210 ● ●
2 LINING; HD,ROOF RR 1-73318-573-3 01 1 0211- ●
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-2 01 1 9510-9603 ● ●
4 LINING; ROOF,FRT 1-73318-572-3 01 1 9604-0210 ● ●
4 LINING; ROOF,FRT 1-73318-572-3 01 1 0211- ●
47 CLIP; HEADLINING
HIGH ROOF<S2F> (C) D4.7X15 GRAY 		8-94279-801-0 07 1 9510-9603 ● ●
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 DARK GRAY 		1-09987-238-0 08 1 9510-9603 ● ●
47 CLIP; HEADLINING
(A) D6X23 DARK GRAY 		1-09987-238-0 08 1 9604-9802 ● ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 08 1 9803-0210 ● ●
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 08 1 0211- ●
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9510-9603 ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9604-0210 ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211- ●
49 CLIP; TRIM COVER
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 01 1 9510-9603 ● ●
66 GRILLE; AIR OUTLET
LOW ROOF<6XQ> 		1-73318-608-0 02 1 9510-9603 ● ●
66 GRILLE; AIR OUTLET 1-73318-608-0 02 1 9604-0210 ● ●
66 GRILLE; AIR OUTLET 1-73318-608-0 02 1 0211- ●
181 TRIM; ROOM,HEADER
HIGH ROOF<S2F> 		1-73908-107-1 01 1 9510-9603 ● ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (A) 		1-73318-481-2 01 1 9510-9602 ● ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (A) 		1-73318-587-0 01 1 9603-9603 ● ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-485-2 01 1 9510-9602 ● ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-580-0 01 1 9603-9603 ● ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-486-2 01 1 9510-9602 ● ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-581-0 01 1 9603-9603 ● ●
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 9510-9603 ● ●
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 9510-9603 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-464-9 01 1 9510-9512 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9601-0004 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-962-0 01 1 0005-0210 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-962-1 01 1 0211- ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-465-9 01 1 9510-9512 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9601-0004 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-963-0 01 1 0005-0210 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-963-1 01 1 0211- ●
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 9510-9603 ● ●
