◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#58474) — 58 parça

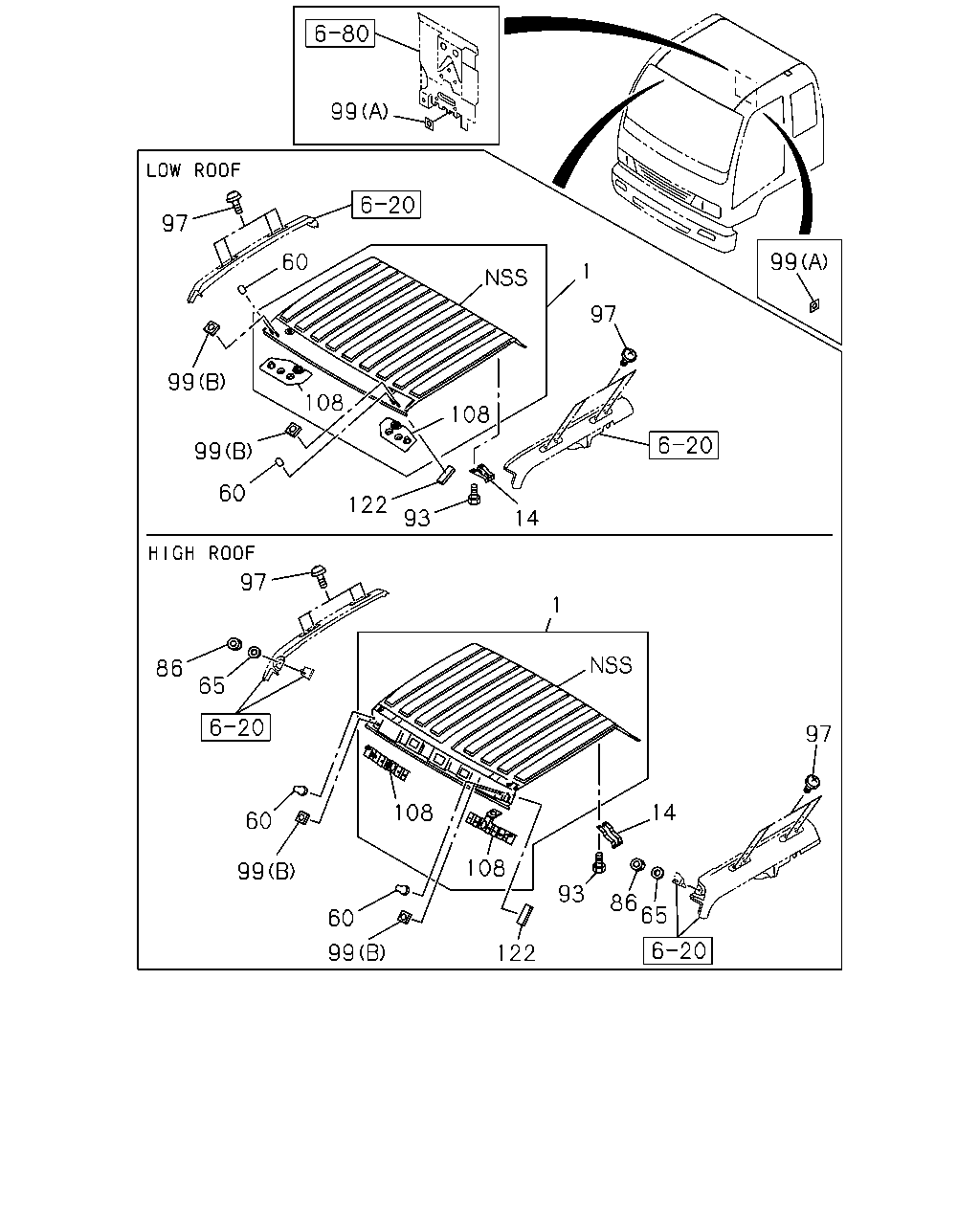

çizim 172756
99 97 99 60 1 97 99 108 108 99 60 122 93 14 97 1 86 65 97 108 14 60 108 99 93 86 65 60 99 122
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
HIGH ROOF<S2F> 		1-61181-070-1 01 1 9510-9603 ● ●
1 PANEL; ROOF
LOW ROOF<6XQ> 		1-61181-072-0 01 1 9510-9603 ● ●
1 PANEL; ROOF 1-61181-072-0 01 1 9604-0210 ● ●
1 PANEL; ROOF 1-61181-072-0 01 1 0211- ●
14 SUPPORT; ROOF
HIGH ROOF<S2F> 		1-73318-493-3 02 1 9510-9603 ● ●
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-510-1 02 1 9510-9603 ● ●
14 SUPPORT; ROOF 1-73318-510-1 02 1 9604-0210 ● ●
14 SUPPORT; ROOF 1-73318-510-1 02 1 0211- ●
60 COVER; ROOF
HIGH ROOF<S2F> 		1-79998-922-0 02 1 9510-9603 ● ●
60 COVER; ROOF
HIGH ROOF<S2F> 		1-79998-922-0 03 1 9510-9603 ● ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 02 1 9510-9603 ● ●
60 COVER; ROOF 1-71736-200-0 02 1 9604-0004 ● ●
60 COVER; ROOF 1-71736-200-0 02 1 0005-0210 ● ●
60 COVER; ROOF 1-71736-200-0 02 1 0005-0210 ● ●
60 COVER; ROOF 1-71736-200-0 02 1 0211- ●
60 COVER; ROOF 1-71736-200-0 02 1 0211- ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 03 1 9510-9603 ● ●
60 COVER; ROOF 1-71736-200-0 03 1 9604-0004 ● ●
65 WASHER; PL
HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9510-9603 ● ●
65 WASHER; PL
HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9510-9603 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 9510-9603 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 9510-9603 ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9510-0210 ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 0211- ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9510-9612 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9701-0210 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 0211- ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 9807-0210 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 0211- ●
99 SEAL; BODY,METAL
(B) 30X30 ID=20 T=0.7 		1-61281-380-1 13 1 9807-0001 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=20 T=0.7 		1-61281-380-2 17 1 0002-0210 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=20 T=0.7 		1-61281-380-2 17 1 0211- ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0210 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0210 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0211-0403 ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0211-0403 ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (B) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9510-9603 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9510-9603 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9510-9603 ● ●
99 SEAL; BODY,METAL
LOW ROOF<6XQ> (B) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9510-9603 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=20 T=0.7 		1-61281-380-1 25 1 9510-9806 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9510-9806 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (B) 30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9510-9603 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9604-9806 ● ●
99 SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9604-9806 ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-956-3 01 1 9510-9603 ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-979-3 01 1 9510-9603 ● ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61181-029-4 01 1 9510-9603 ● ●
108 PATCH; MIRROR 1-61181-029-4 01 1 9604-0210 ● ●
108 PATCH; MIRROR 1-61181-029-4 01 1 0211- ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61281-241-5 01 1 9510-9603 ● ●
108 PATCH; MIRROR 1-61281-241-5 01 1 9604-0210 ● ●
108 PATCH; MIRROR 1-61281-241-5 01 1 0211- ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9705-0210 ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0211-0809 ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ●
