6-47 — MUD GUARD AND INSULATOR (#58473) — 193 parça

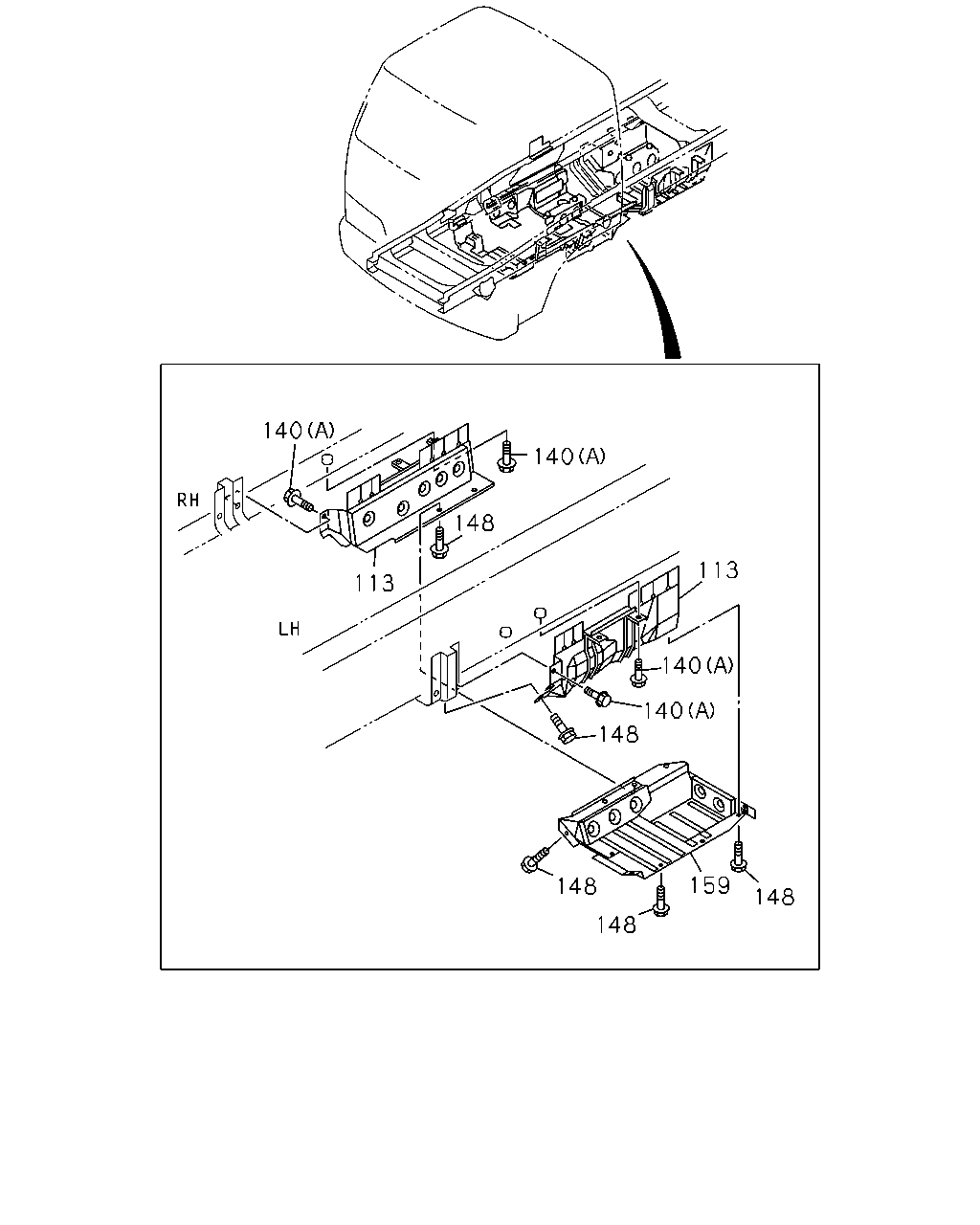

140 140 148 113 113 140 140 148 159 148 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	PANEL; SIDE	1-53192-910-1	01	1	0211-0212	●
113	PANEL; SIDE	1-53194-389-0	01	1	0301-	●
113	PANEL; SIDE	1-53192-912-2	01	1	0211-0302	●
113	PANEL; SIDE	1-53194-391-0	01	1	0303-	●
140	BOLT; SIDE PANEL (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0211-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	05	1	0211-0512	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
140	BOLT; SIDE PANEL (A) M8X40 FLANGE	0-28680-840-0	04	1	0211-0512	●
140	BOLT; SIDE PANEL (A) M8X40 FLANGE	0-28650-840-0	04	1	0601-	●
140	BOLT; SIDE PANEL (B) M8X16 FLANGE	0-28080-816-0	04	1	9510-9510	●	●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28080-825-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL (B) M8X16 FLANGE	0-28080-816-0	04	1	9602-0210	●	●
140	BOLT; SIDE PANEL (B) M8X16 FLANGE	0-28080-816-0	04	1	0211-0301	●
140	BOLT; SIDE PANEL (A) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0210	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0211-	●
159	PANEL; SIDE,TRANS,CTR	1-53192-913-1	01	1	0211-	●

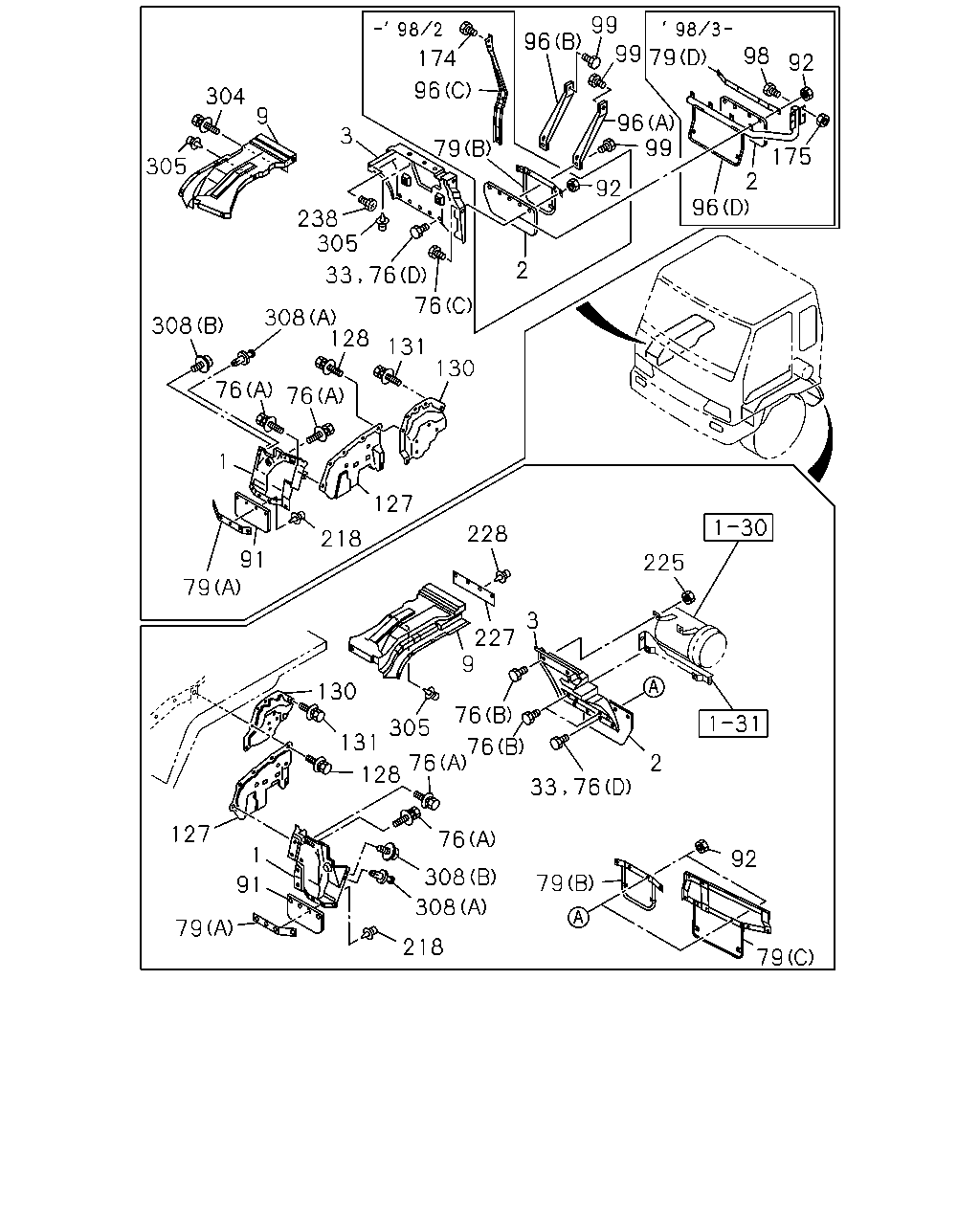

99 96 99 79 98 174 92 96 304 9 96 99 3 79 175 305 2 96 92 238 305 2 76 308 128 308 131 130 76 76 1 127 228 218 91 225 79 3 227 9 130 76 305 131 76 2 76 128 127 76 1 92 308 79 91 308 79 218 79 76 33 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9510-0210	●	●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	0211-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9510-0210	●	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	0211-	●
2	COVER; MUD,TIRE RR	1-79931-117-0	01	1	9510-9511	●	●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9512-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	9602-0210	●	●
2	COVER; MUD,TIRE RR	1-79931-255-2	01	1	0211-	●
2	COVER; MUD,TIRE RR	1-79931-175-0	01	1	9510-9511	●	●
2	COVER; MUD,TIRE RR	1-79931-222-0	01	1	9512-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-973-0	01	1	9607-9802	●	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	9803-0210	●	●
2	COVER; MUD,TIRE RR	1-79931-271-0	01	1	0211-	●
3	GUARD; MUD,RR	1-79938-826-9	01	1	9510-9605	●	●
3	GUARD; MUD,RR	1-79938-959-1	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	9712-0210	●	●
3	GUARD; MUD,RR	1-79938-998-0	01	1	0211-	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9510-9607	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-0210	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0211-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9510-9601	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	9602-0210	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0211-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9510-9802	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	9803-0210	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0211-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9510-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-0210	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0211-	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-0210	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0211-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9510-0210	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0211-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9510-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-0210	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-	●
76	BOLT; MUD GUARD (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-0210	●	●
76	BOLT; MUD GUARD (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0211-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9510-0210	●	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	0211-	●
79	RETAINER; MUD COVER (B)	1-79931-174-1	01	1	9510-9511	●	●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9512-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-174-1	01	1	9602-9606	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9607-9802	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9803-0210	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	0211-	●
79	RETAINER; MUD COVER (B)	1-79931-176-1	01	1	9510-9511	●	●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9512-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9711	●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	9712-0210	●	●
79	RETAINER; MUD COVER (C)	1-79931-304-0	01	1	0211-	●
91	COVER; MUD,FRT	1-79931-043-0	02	1	9510-9511	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	9512-0210	●	●
91	COVER; MUD,FRT	1-79931-214-1	02	1	0211-	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	9803-0004	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0210	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0211-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	04	1	0603-	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9510-9511	●	●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9802	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9803-0004	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	0005-0210	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	05	1	0211-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	05	1	0603-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9510-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9802	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9803-0210	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0211-	●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9510-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9802	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9803-0210	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0211-	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9802	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9803-0210	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	0211-	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9803-0210	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0211-0512	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9510-0210	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0211-	●
127	APRON; FRT	1-53192-301-3	01	1	9510-0210	●	●
127	APRON; FRT	1-53192-301-3	01	1	0211-	●
127	APRON; FRT	1-53193-222-0	01	1	9510-9611	●	●
127	APRON; FRT	1-53193-223-1	01	1	9612-0210	●	●
127	APRON; FRT	1-53193-223-1	01	1	0211-	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9510-0210	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0211-	●
130	PANEL; SHUTTER NOISE	1-53192-305-2	01	1	9510-0210	●	●
130	PANEL; SHUTTER NOISE	1-53192-305-2	01	1	0211-	●
130	PANEL; SHUTTER NOISE	1-53192-307-3	01	1	9510-9611	●	●
130	PANEL; SHUTTER NOISE	1-53192-308-3	01	1	9612-0210	●	●
130	PANEL; SHUTTER NOISE	1-53192-308-3	01	1	0211-0602	●
130	PANEL; SHUTTER NOISE	1-53192-308-3	01	1	0604-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9510-0210	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0211-	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-9802	●	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9803-0210	●	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	0211-0602	●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9510-0210	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	0211-	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9510-9612	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-0210	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0603-	●
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9510-9601	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-0210	●	●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0211-	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9510-0210	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0211-	●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9510-9705	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-0210	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0211-	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9510-0210	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0211-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9510-9802	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9803-0210	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	0211-0404	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0405-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0405-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9510-9710	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9802	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9803-0210	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	0211-0404	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9510-9602	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-0210	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0211-0404	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-0210	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0211-0404	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●

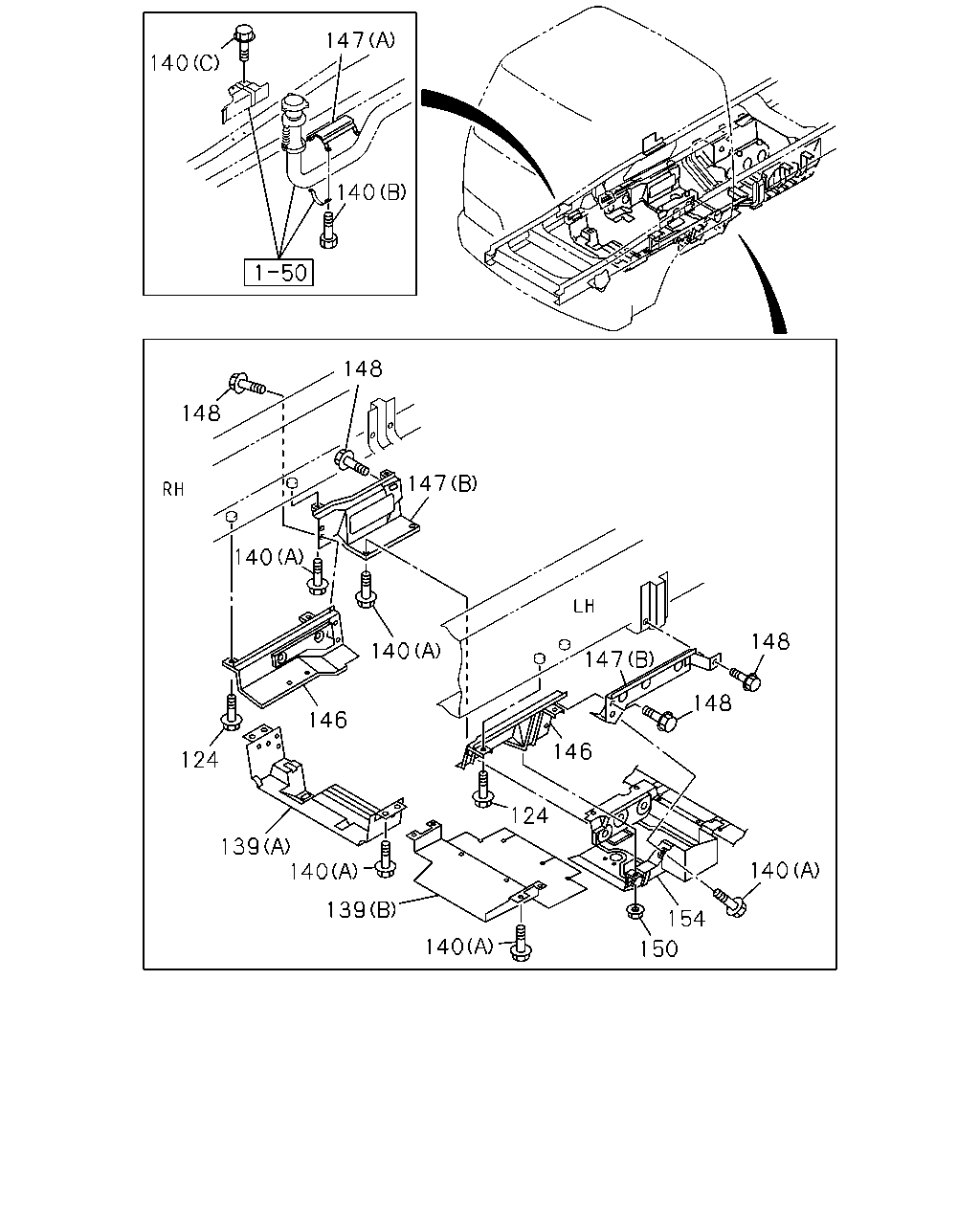

147 140 140 148 148 147 140 148 140 147 148 146 146 124 124 139 140 140 139 154 140 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
139	PANEL; SIDE (A)	1-53192-593-0	01	1	0211-	●
139	PANEL; SIDE (B)	1-53192-917-2	01	1	0301-	●
140	BOLT; SIDE PANEL (A) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0211-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	05	1	0211-0512	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
140	BOLT; SIDE PANEL (A) M8X40 FLANGE	0-28680-840-0	04	1	0211-0512	●
140	BOLT; SIDE PANEL (A) M8X40 FLANGE	0-28650-840-0	04	1	0601-	●
140	BOLT; SIDE PANEL (B) M8X16 FLANGE	0-28080-816-0	04	1	9510-9510	●	●
140	BOLT; SIDE PANEL (C) M8X25 FLANGE	0-28080-825-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL (B) M8X16 FLANGE	0-28080-816-0	04	1	9602-0210	●	●
140	BOLT; SIDE PANEL (B) M8X16 FLANGE	0-28080-816-0	04	1	0211-0301	●
140	BOLT; SIDE PANEL (A) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9511-9601	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-0210	●	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
140	BOLT; SIDE PANEL PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
146	PANEL; SIDE,UNDER,FRT	1-53192-937-1	01	1	0211-	●
146	PANEL; SIDE,UNDER,FRT	1-53192-939-0	01	1	0211-	●
147	PANEL; SIDE,UNDER,RR (B)	1-53192-923-1	01	1	0211-	●
147	PANEL; SIDE,UNDER,RR (B)	1-53193-051-1	01	1	0211-	●
147	PANEL; SIDE,UNDER,RR (A)	1-22119-346-0	01	1	9510-9510	●	●
147	PANEL; SIDE,UNDER,RR (B)	1-53193-050-1	01	1	9511-9601	●	●
147	PANEL; SIDE,UNDER,RR (A)	1-22119-346-0	01	1	9602-0210	●	●
147	PANEL; SIDE,UNDER,RR (A)	1-22119-346-0	01	1	0211-0301	●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0211-	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	01	1	0211-0602	●
150	NUT; SIDE PANEL M8 FLANGE	0-91180-108-0	01	1	0603-	●
154	PANEL; SIDE,UNDER ENG CTR	1-53192-920-1	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
