◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#58472) — 28 parça

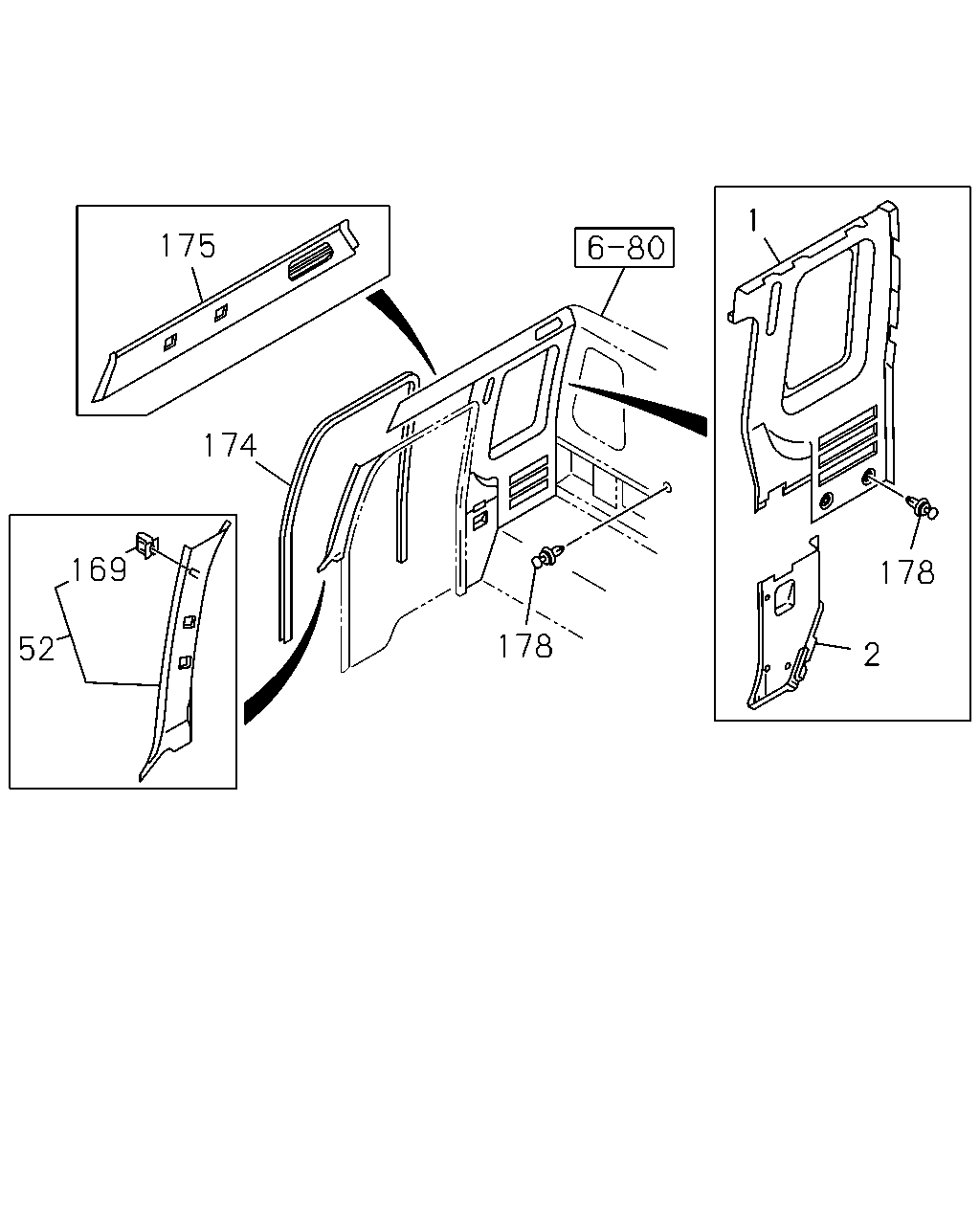

çizim 172839
1 175 174 169 178 178 52 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-877-2 01 1 9510-0004 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-964-1 01 1 0005-0210 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-964-3 01 1 0211- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-878-2 01 1 9510-0004 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-965-1 01 1 0005-0210 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-965-3 01 1 0211- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9510-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-977-1 01 1 0005-0210 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-977-2 01 1 0211- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9510-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-978-1 01 1 0005-0210 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-978-2 01 1 0211- ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9510-0004 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005-0210 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0211- ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9510-0004 ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005-0210 ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0211- ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9510-0210 ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0211- ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9510-0210 ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0211- ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-781-0 01 1 9510-9603 ● ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-901-0 01 1 9510-9603 ● ●
178 CLIP; TRIM COVER
HIGH ROOF<S2F> OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9510-9603 ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9706-0004 ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005-0210 ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
