◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#58470) — 108 parça

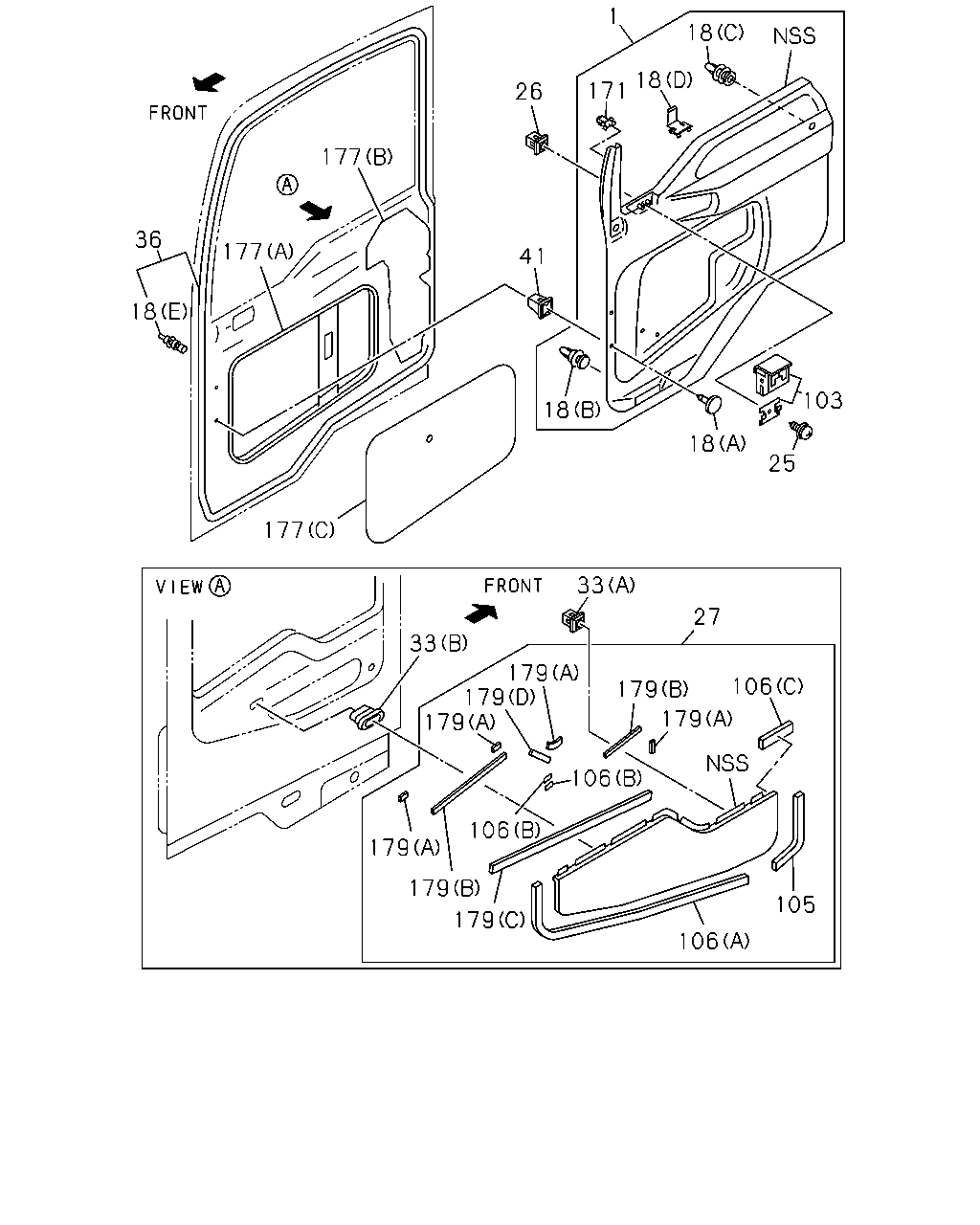

çizim 172751
1 18 18 171 26 41 18 18 25 103 177 177 36 18 177 33 33 27 179 179 179 179 179 179 106 106 179 179 106 105 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9510-9603 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9510-9603 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9510-9603 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9604-0004 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101-0210 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0211-0702 ●
1 PAD; TRIM,FRT DOOR 1-73337-515-1 01 1 0703- ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9510-9603 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9604-0004 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-485-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0101-0210 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0211-0702 ●
1 PAD; TRIM,FRT DOOR 1-73337-514-1 01 1 0703- ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 0005-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0210 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0211- ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9510-0210 ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0211- ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9510-0210 ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0211- ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-0210 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0211- ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0005-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-0210 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0211- ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9510-0004 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0005-0210 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0211- ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9510-0210 ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0211- ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9510-0210 ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0211- ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-5 01 1 9510-0210 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 0211-1210 ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-5 01 1 9510-0210 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 0211- ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9510-0210 ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0211- ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9510-0210 ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0211-0802 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9510-0210 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0211-1010 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9510-0210 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0211-1010 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9510-0210 ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0211- ●
103 TRAY ASM; ASH,DOOR 1-76458-069-6 01 1 9510-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9701-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-0210 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0211- ●
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9510-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9701-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-0210 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0211- ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9510-0210 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9510-0210 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0211- ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0211- ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9510-0210 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9510-0210 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0211- ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0211- ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0210 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9510-0210 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0211- ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0211- ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9510-0004 ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9510-0004 ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0005-0210 ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0211- ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-4 01 1 9510-9603 ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-0 01 1 9510-9603 ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-036-1 02 1 9510-9511 ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9512-0210 ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0211- ●
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9510-9603 ● ●
177 SEAL; WATER,DOOR
(C) 		1-76778-047-3 02 1 9604-0210 ● ●
177 SEAL; WATER,DOOR
(C) 		1-76778-047-3 02 1 0211- ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0211- ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0211- ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 01 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-1 01 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0211- ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0211- ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 01 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-0 01 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0211- ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0211- ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 02 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-0 02 1 9510-0210 ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0211- ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
