6-47 — MUD GUARD AND INSULATOR (#5847) — 679 parça

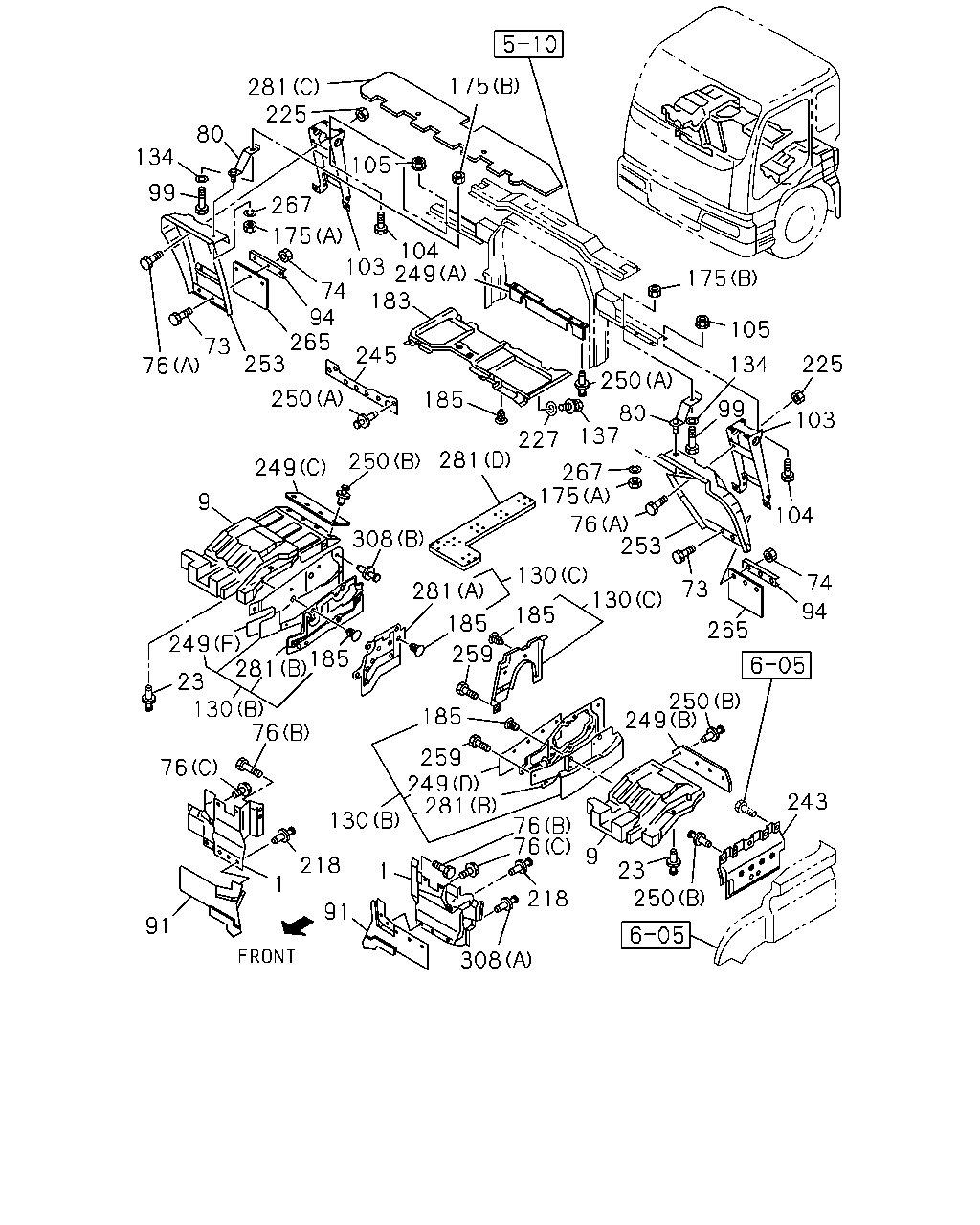

çizim 5931
175 281 225 80 134 105 267 99 175 104 103 249 74 183 94 265 253 175 105 73 245 225 134 76 250 250 185 103 99 80 137 227 281 250 249 267 175 9 308 104 76 253 130 130 74 73 281 94 185 185 265 249 185 281 259 23 130 76 250 249 185 259 249 281 76 243 130 76 76 9 218 23 1 1 250 218 91 91 308
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9603- ● ●
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9603- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-908-3 01 1 9603- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-907-3 01 1 9603- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
10PE1N(61L) 		1-79937-893-3 01 1 9603-9904 ● ●
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-893-3 01 1 9905- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
10PE1N(61L) 		1-79937-892-3 01 1 9603-9904 ● ●
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-892-3 01 1 9905- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 23 1 9603-9710 ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9609-9904 ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9609-9904 ●
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9603- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9604 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9605-9904 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 03 1 9905- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606 ● ●
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) M8X16 FLANGE 		0-28280-816-0 03 1 9607-9608 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9609-9904 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9905- ● ●
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9905- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603- ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9603-9604 ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9605-9606 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9605-9606 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ●
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9603- ● ●
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9603- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9603- ● ●
91 COVER; MUD,FRT
CAB UP +50MM<W60> 		1-79931-241-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
CAB UP +110MM<TGG> 		1-79931-204-1 01 1 9905- ● ●
91 COVER; MUD,FRT
CAB UP +50MM<W60> 		1-79931-240-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
CAB UP +110MM<TGG> 		1-79931-203-1 01 1 9905- ● ●
91 COVER; MUD,FRT 1-79931-200-0 01 1 9603-9707 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +50MM<W60> 		1-79931-200-1 01 1 9708-9904 ●
91 COVER; MUD,FRT 1-79931-200-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> 		1-79931-200-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +110MM<TGG> 		1-79931-200-1 01 1 9909- ● ●
91 COVER; MUD,FRT 1-79931-199-0 01 1 9603-9707 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +50MM<W60> 		1-79931-199-1 01 1 9708-9904 ●
91 COVER; MUD,FRT 1-79931-199-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> 		1-79931-199-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +110MM<TGG> 		1-79931-199-1 01 1 9909- ● ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-79931-241-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-79931-240-1 01 1 9905-9908 ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9603- ● ●
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ●
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9609 ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 9610-9804 ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9805- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-088-3 02 1 9603-9904 ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 9905- ● ●
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28081-025-0 08 1 9603-9606 ● ●
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 06 1 9607-9904 ● ●
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 08 1 9905- ● ●
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28081-025-0 07 1 9603-9606 ● ●
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28681-025-0 07 1 9607- ● ●
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-110-0 08 1 9603-9606 ● ●
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 06 1 9607-9904 ● ●
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 08 1 9905- ● ●
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-110-0 07 1 9603-9606 ● ●
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-210-0 07 1 9607- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-915-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53192-767-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-2 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-1 01 1 9907- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-928-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-972-0 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-919-2 01 1 9603-9708 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-919-2 01 1 9709- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-916-4 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 		1-79937-969-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9603- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-782-6 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-1 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-952-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-990-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) 		1-79937-918-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-993-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-920-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-971-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-0 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-203-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-945-1 01 1 9603-9804 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-945-1 01 1 9805- ●
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9603- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9804 ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9805- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-169-2 01 1 9603-9705 ●
183 INSULATOR; HEAT,BED PAN 1-71907-506-0 01 1 9706-9711 ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-2 01 1 9712- ●
183 INSULATOR; HEAT,BED PAN 1-71907-374-0 01 1 9603-9705 ●
183 INSULATOR; HEAT,BED PAN 1-71907-507-0 01 1 9706-9711 ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-2 01 1 9712- ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 10 1 9907- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 11 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 9905- ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 9905- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-9708 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ● ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 11 1 9805-9805 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ●
185 CLIP; HEAT INSULATOR
EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9709-9709 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9709-9709 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9805 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9805 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9805 ●
185 CLIP; HEAT INSULATOR
V TYPE ENG<91L> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ● ●
185 CLIP; HEAT INSULATOR
EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ● ●
185 CLIP; HEAT INSULATOR
V TYPE ENG<91L> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 08 1 9905- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-0 08 1 9603-9606 ● ●
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 9607- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9603- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9603- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9603- ● ●
245 RUBBER; SHUTTER,RAD 1-79937-900-0 01 1 9603-9711 ●
245 RUBBER; SHUTTER,RAD 1-79937-982-0 01 1 9712- ●
245 RUBBER; SHUTTER,RAD 1-79937-949-0 01 1 9603- ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-965-0 01 1 9907- ●
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9603-9904 ● ●
249 RUBBER; SHUTTER
EXC. CAB UP +110MM<TGG> (B) 		1-79937-902-2 01 1 9905- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9603- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9603-9904 ● ●
249 RUBBER; SHUTTER
EXC. CAB UP +110MM<TGG> (C) 		1-79937-975-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
L TYPE ENG<90L> CAB UP +110MM<TGG> (E) 		1-79937-967-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (F) 		1-79937-989-0 01 1 9905- ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 9603- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 9603- ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9603- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9603- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 9603-9904 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9905- ● ●
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9603-9904 ● ●
250 FASTENER; SHUTTER
EXC. CAB UP +110MM<TGG> (B) D6X20 		8-94361-318-0 04 1 9905- ● ●
250 FASTENER; SHUTTER
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 04 1 9905- ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-067-7 01 1 9603- ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-065-7 01 1 9603- ● ●
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-066-7 01 1 9603- ● ●
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-064-7 01 1 9603- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9603- ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603- ●
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9603- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9603- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-541-1 01 1 9603-9606 ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 9607- ●
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9603-9904 ●
281 INSULATOR; NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-71907-170-1 01 1 9905-9906 ●
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9907- ●
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-307-0 01 1 9603-9904 ●
281 INSULATOR; NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 		1-71907-307-0 01 1 9905- ●
281 INSULATOR; NOISE
L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 		1-71907-455-0 01 1 9905- ●
281 INSULATOR; NOISE
V TYPE ENG<91L> (A) 		1-71907-166-0 01 1 9603- ●
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9603- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9603- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 9603- ●
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-167-0 01 1 9603- ●
281 INSULATOR; NOISE
V TYPE ENG<91L> (A) 		1-71907-420-0 01 1 9603- ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9603- ● ●
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9603-9801 ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802- ● ●

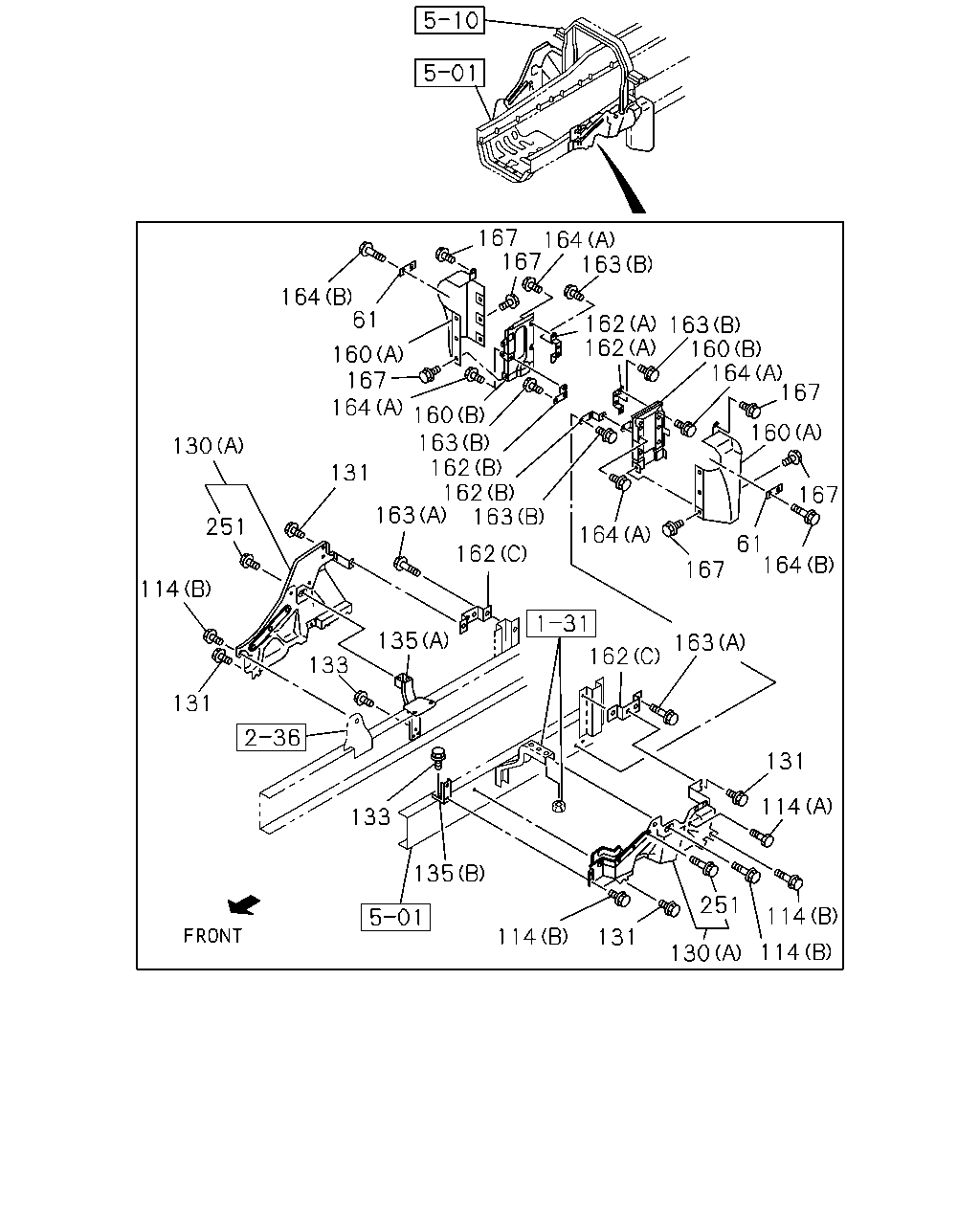

çizim 6584
167 164 167 163 164 61 162 162 163 160 164 160 167 164 167 160 163 162 162 163 160 130 131 167 163 251 164 61 164 162 167 114 135 163 162 133 131 131 114 133 135 251 114 114 131 114 130
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
V TYPE ENG<91L> 		1-53441-536-1 02 1 9603- ● ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9603-9606 ●
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-9904 ●
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-9904 ●
114 BOLT
L TYPE ENG<90L>,V TYPE ENG<91L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-9904 ●
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9905- ● ●
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9905- ● ●
114 BOLT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
114 BOLT
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9603-9606 ● ●
114 BOLT
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9607-9904 ●
114 BOLT
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9905- ● ●
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 9605-9606 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-915-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53192-767-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-2 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-1 01 1 9907- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-928-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-972-0 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-919-2 01 1 9603-9708 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-919-2 01 1 9709- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-916-4 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 		1-79937-969-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9603- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-782-6 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-1 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-952-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-990-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) 		1-79937-918-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-993-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-920-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-971-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-0 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-203-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-945-1 01 1 9603-9804 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-945-1 01 1 9805- ●
131 BOLT; PANEL
10PE1S(60L) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606 ● ●
131 BOLT; PANEL
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606 ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9607- ● ●
131 BOLT; PANEL
L TYPE ENG<90L> M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9605-9606 ●
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ●
133 BOLT; FRAME
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ●
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9607- ● ●
133 BOLT; FRAME
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 04 1 9607- ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-509-0 01 1 9603-9606 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-509-0 01 1 9612-0012 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0101- ● ●
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9603-9611 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9612- ● ●
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9612- ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (B) 		1-53441-507-0 01 1 9603-9606 ●
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9607- ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (B) 		1-53441-507-0 01 1 9607- ● ●
160 COVER ASM; EXH
V TYPE ENG<91L> (A) 		1-79931-063-1 01 1 9603- ● ●
160 COVER ASM; EXH
V TYPE ENG<91L> (B) 		1-79931-111-0 01 1 9603- ● ●
160 COVER ASM; EXH
V TYPE ENG<91L> (A) 		1-79931-061-1 01 1 9603- ● ●
160 COVER ASM; EXH
V TYPE ENG<91L> (B) 		1-79931-256-1 01 1 9603- ● ●
162 BRACKET
V TYPE ENG<91L> (A) 		1-53441-521-2 02 1 9603- ● ●
162 BRACKET
V TYPE ENG<91L> (B) 		1-53441-522-0 02 1 9603- ● ●
162 BRACKET
10PE1S(60L) (C) 		1-53441-520-0 02 1 9603-9606 ● ●
162 BRACKET
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 02 1 9603-9606 ●
162 BRACKET
(C) 		1-53441-520-0 02 1 9607- ● ●
162 BRACKET
L TYPE ENG<90L> (C) 		1-53441-520-0 01 1 9605-9606 ●
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28080-825-0 06 1 9603-9606 ● ●
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28680-825-0 06 1 9607- ● ●
163 BOLT; BRKT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ● ●
163 BOLT; BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607- ● ●
163 BOLT; BRKT
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9605-9606 ●
163 BOLT; BRKT
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607 ●
164 BOLT; FLEX COVER
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28080-820-0 10 1 9603-9606 ● ●
164 BOLT; FLEX COVER
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28680-820-0 10 1 9607- ● ●
164 BOLT; FLEX COVER
V TYPE ENG<91L> (B) M8X20 FLANGE 		0-28280-820-0 04 1 9603-9603 ● ●
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 12 1 9603-9606 ● ●
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28680-820-0 12 1 9607- ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 9603-9604 ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605- ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 07 1 9603-9904 ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 04 1 9605-9904 ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> 		8-94279-048-0 04 1 9905- ● ●
251 CLIP; NOISE INSULATOR
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> 		8-94279-048-0 08 1 9603- ● ●
251 CLIP; NOISE INSULATOR
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> 		8-94279-048-0 02 1 9603- ●

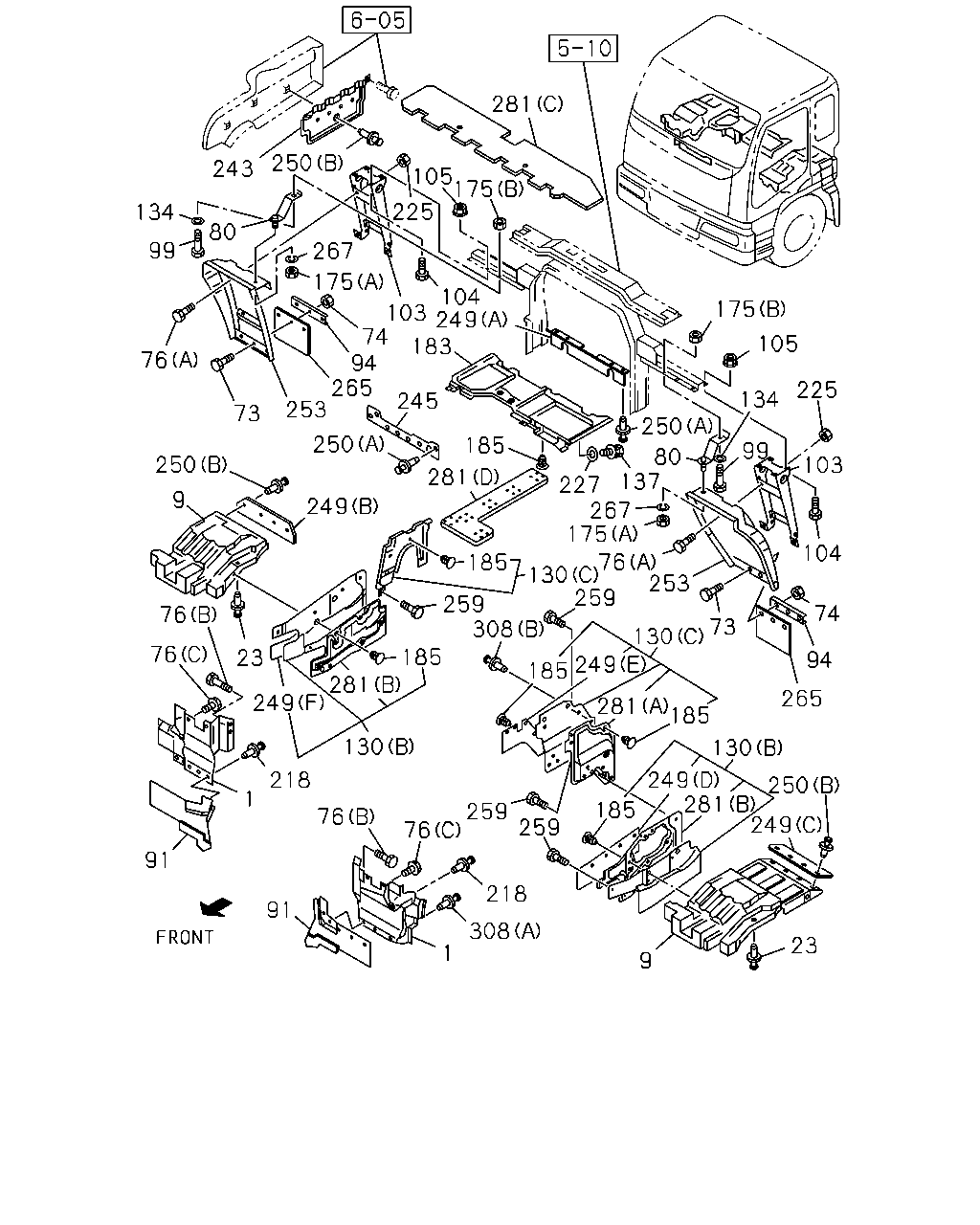

çizim 7703
281 250 105 175 243 225 134 267 80 99 175 104 103 249 74 183 94 265 253 175 105 76 225 134 245 73 250 103 250 185 99 80 137 250 281 227 267 175 9 249 104 76 130 259 253 185 259 308 74 76 73 130 249 185 76 185 281 249 23 94 265 281 185 130 130 218 249 281 249 250 1 185 259 76 76 259 91 218 91 308 23 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9603- ● ●
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9603- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-908-3 01 1 9603- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-907-3 01 1 9603- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
10PE1N(61L) 		1-79937-893-3 01 1 9603-9904 ● ●
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-893-3 01 1 9905- ● ●
9 GUARD; SPLASH,WHEEL HOUSE
10PE1N(61L) 		1-79937-892-3 01 1 9603-9904 ● ●
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-892-3 01 1 9905- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 23 1 9603-9710 ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9609-9904 ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9609-9904 ●
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9603- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9604 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9605-9904 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 03 1 9905- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606 ● ●
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) M8X16 FLANGE 		0-28280-816-0 03 1 9607-9608 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9609-9904 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9905- ● ●
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9905- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603- ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9603-9604 ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9605-9606 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9605-9606 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ●
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9603- ● ●
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9603- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9603- ● ●
91 COVER; MUD,FRT
CAB UP +50MM<W60> 		1-79931-241-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
CAB UP +110MM<TGG> 		1-79931-204-1 01 1 9905- ● ●
91 COVER; MUD,FRT
CAB UP +50MM<W60> 		1-79931-240-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
CAB UP +110MM<TGG> 		1-79931-203-1 01 1 9905- ● ●
91 COVER; MUD,FRT 1-79931-200-0 01 1 9603-9707 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +50MM<W60> 		1-79931-200-1 01 1 9708-9904 ●
91 COVER; MUD,FRT 1-79931-200-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> 		1-79931-200-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +110MM<TGG> 		1-79931-200-1 01 1 9909- ● ●
91 COVER; MUD,FRT 1-79931-199-0 01 1 9603-9707 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +50MM<W60> 		1-79931-199-1 01 1 9708-9904 ●
91 COVER; MUD,FRT 1-79931-199-1 01 1 9708-9904 ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> 		1-79931-199-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
EXC. CAB UP +110MM<TGG> 		1-79931-199-1 01 1 9909- ● ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-79931-241-1 01 1 9905-9908 ● ●
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-79931-240-1 01 1 9905-9908 ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9603- ● ●
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ●
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9609 ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 9610-9804 ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9805- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-088-3 02 1 9603-9904 ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 9905- ● ●
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28081-025-0 08 1 9603-9606 ● ●
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 06 1 9607-9904 ● ●
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 08 1 9905- ● ●
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28081-025-0 07 1 9603-9606 ● ●
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28681-025-0 07 1 9607- ● ●
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-110-0 08 1 9603-9606 ● ●
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 06 1 9607-9904 ● ●
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 08 1 9905- ● ●
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-110-0 07 1 9603-9606 ● ●
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-210-0 07 1 9607- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-915-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53192-767-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-2 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-1 01 1 9907- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-928-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-972-0 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-919-2 01 1 9603-9708 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-919-2 01 1 9709- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-916-4 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 		1-79937-969-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9603- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-782-6 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-1 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-952-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-990-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) 		1-79937-918-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-993-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-920-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-971-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-0 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-203-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-945-1 01 1 9603-9804 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-945-1 01 1 9805- ●
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9603- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9804 ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9805- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-169-2 01 1 9603-9705 ●
183 INSULATOR; HEAT,BED PAN 1-71907-506-0 01 1 9706-9711 ●
183 INSULATOR; HEAT,BED PAN 1-71907-526-2 01 1 9712- ●
183 INSULATOR; HEAT,BED PAN 1-71907-374-0 01 1 9603-9705 ●
183 INSULATOR; HEAT,BED PAN 1-71907-507-0 01 1 9706-9711 ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-2 01 1 9712- ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 10 1 9907- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 11 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 9905- ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 9905- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-9708 ● ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9603-9708 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ● ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ● ●
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9710-9804 ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 11 1 9805-9805 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ●
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9904 ●
185 CLIP; HEAT INSULATOR
EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905- ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9709-9709 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9709-9709 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9709-9709 ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9805 ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9805 ● ●
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9805-9805 ●
185 CLIP; HEAT INSULATOR
V TYPE ENG<91L> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ● ●
185 CLIP; HEAT INSULATOR
EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ● ●
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ● ●
185 CLIP; HEAT INSULATOR
V TYPE ENG<91L> ID=6.2 L=11.4 		8-97808-623-0 05 1 9905- ●
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 08 1 9905- ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-0 08 1 9603-9606 ● ●
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 9607- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9603- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9603- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9603- ● ●
245 RUBBER; SHUTTER,RAD 1-79937-900-0 01 1 9603-9711 ●
245 RUBBER; SHUTTER,RAD 1-79937-982-0 01 1 9712- ●
245 RUBBER; SHUTTER,RAD 1-79937-949-0 01 1 9603- ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-965-0 01 1 9907- ●
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9603-9904 ● ●
249 RUBBER; SHUTTER
EXC. CAB UP +110MM<TGG> (B) 		1-79937-902-2 01 1 9905- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9603- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9603-9904 ● ●
249 RUBBER; SHUTTER
EXC. CAB UP +110MM<TGG> (C) 		1-79937-975-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
L TYPE ENG<90L> CAB UP +110MM<TGG> (E) 		1-79937-967-0 01 1 9905- ● ●
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (F) 		1-79937-989-0 01 1 9905- ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 9603- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 9603- ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9603- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9603- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 9603-9904 ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9905- ● ●
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9603-9904 ● ●
250 FASTENER; SHUTTER
EXC. CAB UP +110MM<TGG> (B) D6X20 		8-94361-318-0 04 1 9905- ● ●
250 FASTENER; SHUTTER
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 04 1 9905- ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-067-7 01 1 9603- ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-065-7 01 1 9603- ● ●
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-066-7 01 1 9603- ● ●
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-064-7 01 1 9603- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9603- ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603- ●
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9603- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9603- ● ●
281 INSULATOR; NOISE
(D) 		1-73237-541-1 01 1 9603-9606 ●
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 9607- ●
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9603-9904 ●
281 INSULATOR; NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-71907-170-1 01 1 9905-9906 ●
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9907- ●
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-307-0 01 1 9603-9904 ●
281 INSULATOR; NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 		1-71907-307-0 01 1 9905- ●
281 INSULATOR; NOISE
L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 		1-71907-455-0 01 1 9905- ●
281 INSULATOR; NOISE
V TYPE ENG<91L> (A) 		1-71907-166-0 01 1 9603- ●
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9603- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9603- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 9603- ●
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-167-0 01 1 9603- ●
281 INSULATOR; NOISE
V TYPE ENG<91L> (A) 		1-71907-420-0 01 1 9603- ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9603- ● ●
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9603-9801 ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802- ● ●

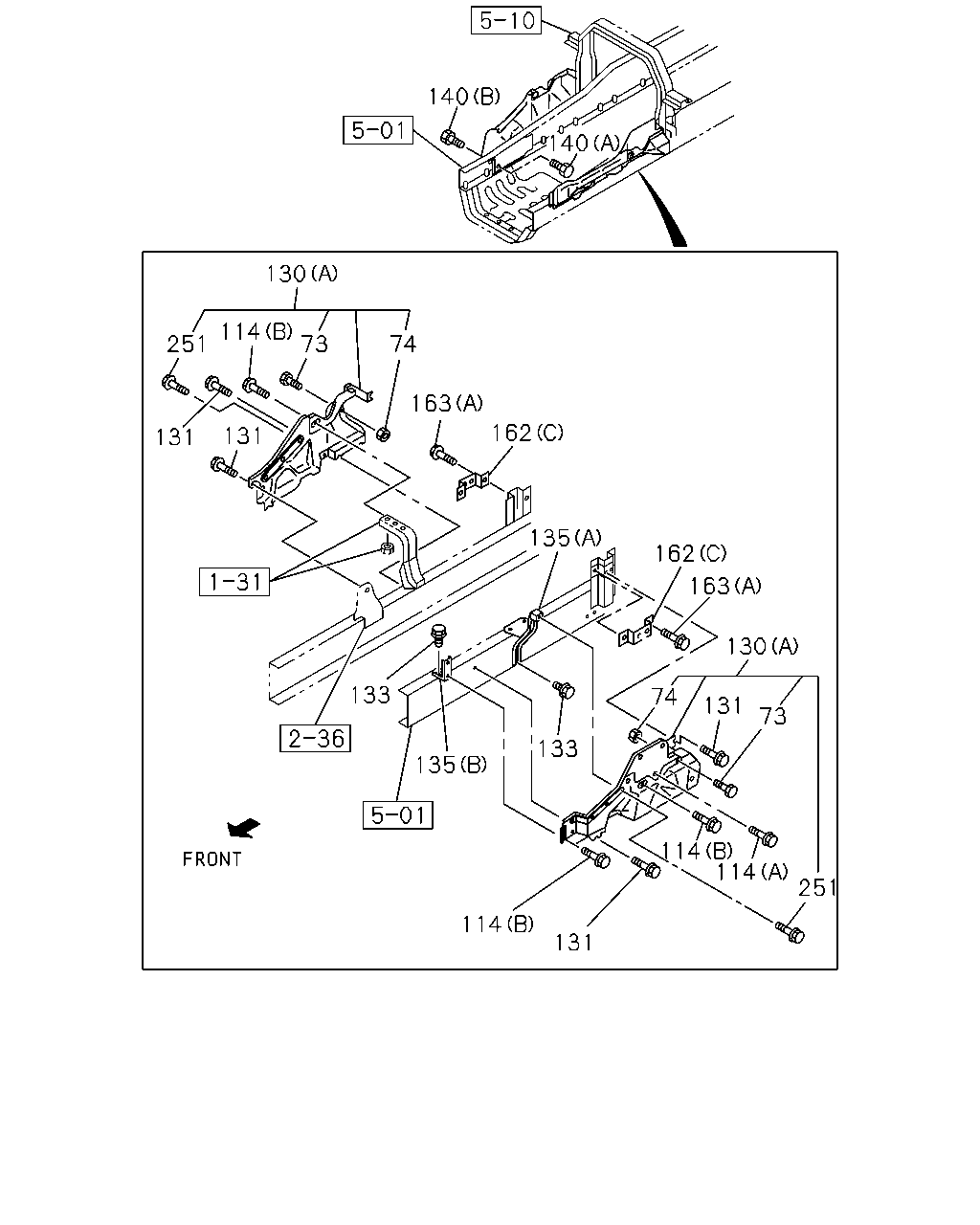

çizim 42557
140 140 130 114 73 251 74 163 162 131 131 135 162 163 130 133 74 131 73 133 135 114 114 251 114 131
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9609-9904 ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9609-9904 ●
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9603- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9603-9604 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9605-9904 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 03 1 9905- ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606 ● ●
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) M8X16 FLANGE 		0-28280-816-0 03 1 9607-9608 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9609-9904 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9905- ● ●
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9905- ● ●
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603- ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9603-9604 ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9605-9606 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9605-9606 ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ● ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9607-9608 ●
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9609-9904 ●
74 NUT
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
74 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9603-9606 ●
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-9904 ●
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-9904 ●
114 BOLT
L TYPE ENG<90L>,V TYPE ENG<91L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-9904 ●
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9905- ● ●
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9905- ● ●
114 BOLT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ●
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
114 BOLT
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9603-9606 ● ●
114 BOLT
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9607-9904 ●
114 BOLT
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9905- ● ●
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 9605-9606 ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-915-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A) 		1-53192-767-3 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-2 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-1 01 1 9907- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-928-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-229-0 01 1 9607-9608 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-329-1 01 1 9609-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (A) 		1-53193-328-0 01 1 9607-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-972-0 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-919-2 01 1 9603-9708 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-919-2 01 1 9709- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-916-4 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 		1-79937-969-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9603- ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-782-6 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-196-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9603-9904 ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-53193-215-0 01 1 9905- ●
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-1 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
EXC. CAB UP +110MM<TGG> (B) 		1-79937-952-3 01 1 9905- ●
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-990-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-918-2 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (C) 		1-79937-918-2 01 1 9905- ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 		1-79937-993-1 01 1 9905- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-920-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-971-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-0 01 1 9603-9904 ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-210-1 01 1 9905- ● ●
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) 		1-53193-203-2 01 1 9603- ●
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-945-1 01 1 9603-9804 ●
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-945-1 01 1 9805- ●
131 BOLT; PANEL
10PE1S(60L) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606 ● ●
131 BOLT; PANEL
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9603-9606 ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9607- ● ●
131 BOLT; PANEL
L TYPE ENG<90L> M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9605-9606 ●
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ●
133 BOLT; FRAME
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ●
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9607- ● ●
133 BOLT; FRAME
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 04 1 9607- ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-509-0 01 1 9603-9606 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-509-0 01 1 9612-0012 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0101- ● ●
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9603-9611 ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9612- ● ●
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9612- ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (B) 		1-53441-507-0 01 1 9603-9606 ●
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9607- ● ●
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (B) 		1-53441-507-0 01 1 9607- ● ●
140 BOLT; SIDE PANEL
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9903- ● ●
140 BOLT; SIDE PANEL
L TYPE ENG<90L> (B) M8X30 FLANGE 		0-28680-830-0 02 1 9903- ● ●
162 BRACKET
V TYPE ENG<91L> (A) 		1-53441-521-2 02 1 9603- ● ●
162 BRACKET
V TYPE ENG<91L> (B) 		1-53441-522-0 02 1 9603- ● ●
162 BRACKET
10PE1S(60L) (C) 		1-53441-520-0 02 1 9603-9606 ● ●
162 BRACKET
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 02 1 9603-9606 ●
162 BRACKET
(C) 		1-53441-520-0 02 1 9607- ● ●
162 BRACKET
L TYPE ENG<90L> (C) 		1-53441-520-0 01 1 9605-9606 ●
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28080-825-0 06 1 9603-9606 ● ●
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28680-825-0 06 1 9607- ● ●
163 BOLT; BRKT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ● ●
163 BOLT; BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607- ● ●
163 BOLT; BRKT
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9605-9606 ●
163 BOLT; BRKT
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607 ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 9603-9604 ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605- ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 07 1 9603-9904 ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 04 1 9605-9904 ● ●
251 CLIP; NOISE INSULATOR
L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. SILENCER SINGLE VERTICAL<N28> 		8-94279-048-0 04 1 9905- ● ●
251 CLIP; NOISE INSULATOR
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> 		8-94279-048-0 08 1 9603- ● ●
251 CLIP; NOISE INSULATOR
V TYPE ENG<91L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> 		8-94279-048-0 02 1 9603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
