◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#58468) — 230 parça

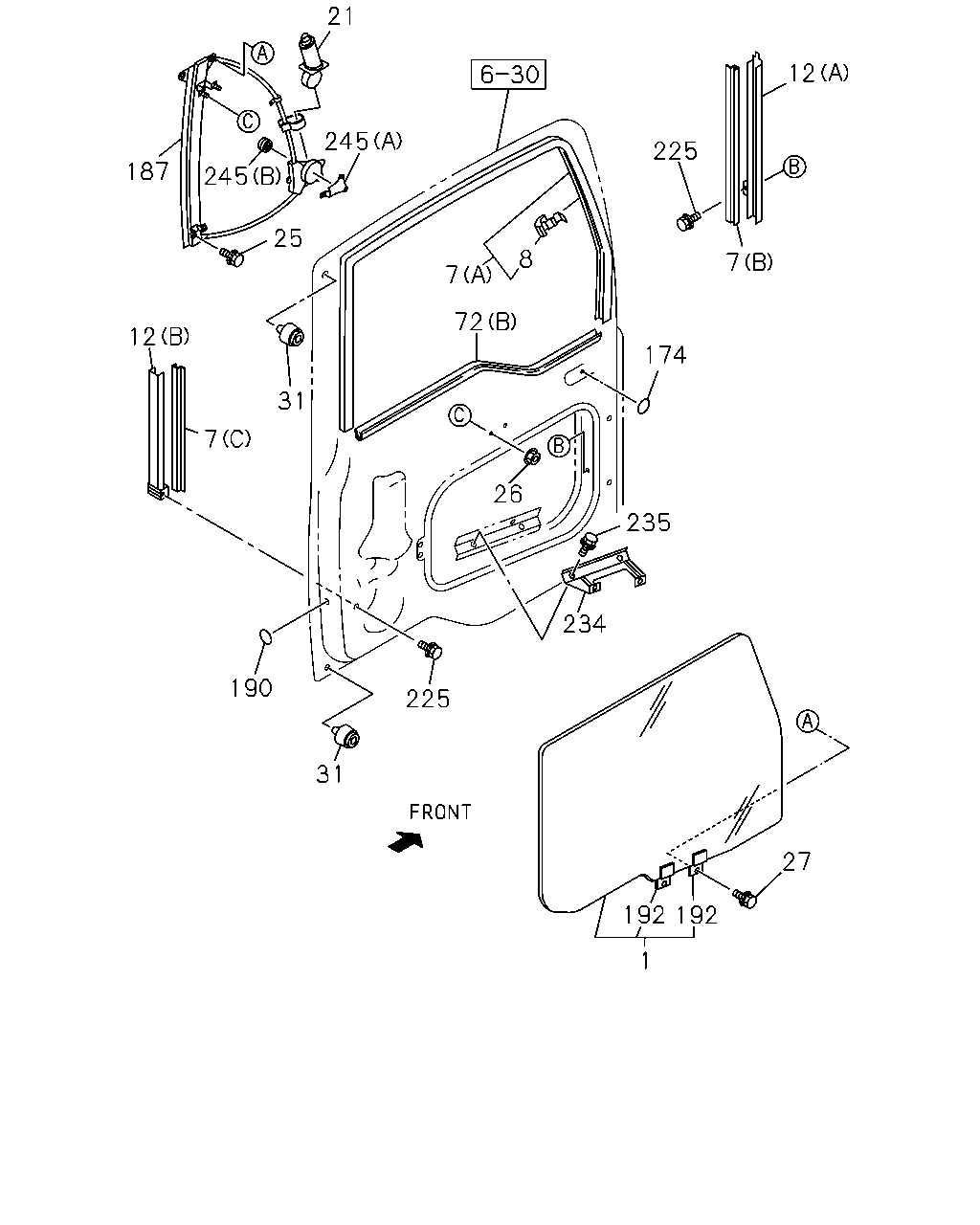

çizim 172743
21 12 245 225 187 245 25 8 7 7 72 12 174 31 7 26 235 234 190 225 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-071-0 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-068-1 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR 1-76148-068-1 01 1 9604-9611 ● ●
1 GLASS; FRT DOOR 1-76167-159-0 01 1 9612-9712 ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 9801-0210 ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 0211- ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-069-1 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR 1-76148-069-1 01 1 9604-9611 ● ●
1 GLASS; FRT DOOR 1-76148-079-0 01 1 9612-9712 ● ●
1 GLASS; FRT DOOR 1-76148-094-2 01 1 9801-0210 ● ●
1 GLASS; FRT DOOR 1-76148-094-2 01 1 0211- ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9510-0210 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 0211- ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9510-0210 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 0211- ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-031-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9601-9705 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-034-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9706-9901 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-036-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-037-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9510-0210 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0211- ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902-0210 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 0211- ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902-0210 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 0211- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-139-2 01 1 9510-9603 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9510-9603 ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9510-9603 ● ●
25 BOLT; WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9510-9603 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9604-0207 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0208-0210 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0211- ●
26 NUT; FLANGE,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9510-9603 ● ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9510-9603 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 04 1 9604-9606 ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9510-0210 ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0211- ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9510-0210 ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0211- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0211-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0211-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0211- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0211- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 9510-9603 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 9510-9603 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 9604-0210 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 0211-0212 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 22 1 0301- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 06 1 9510-9603 ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 9604-0210 ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 0211- ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-138-2 01 1 9510-9603 ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9510-9603 ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9510-0210 ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0211- ●
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9510-9603 ● ●
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9604-9712 ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9802-0210 ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0211- ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0003 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0210 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0211-0512 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
234 BRACKET; OK WINDOW 1-74998-057-3 01 1 9510-0210 ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0211- ●
234 BRACKET; OK WINDOW 1-74998-062-3 01 1 9510-0210 ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0211- ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ●
235 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 08 1 0711- ●
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-9603 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-9603 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0210 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0210 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-146-0 02 1 9510-9603 ● ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 02 1 9510-9603 ● ●

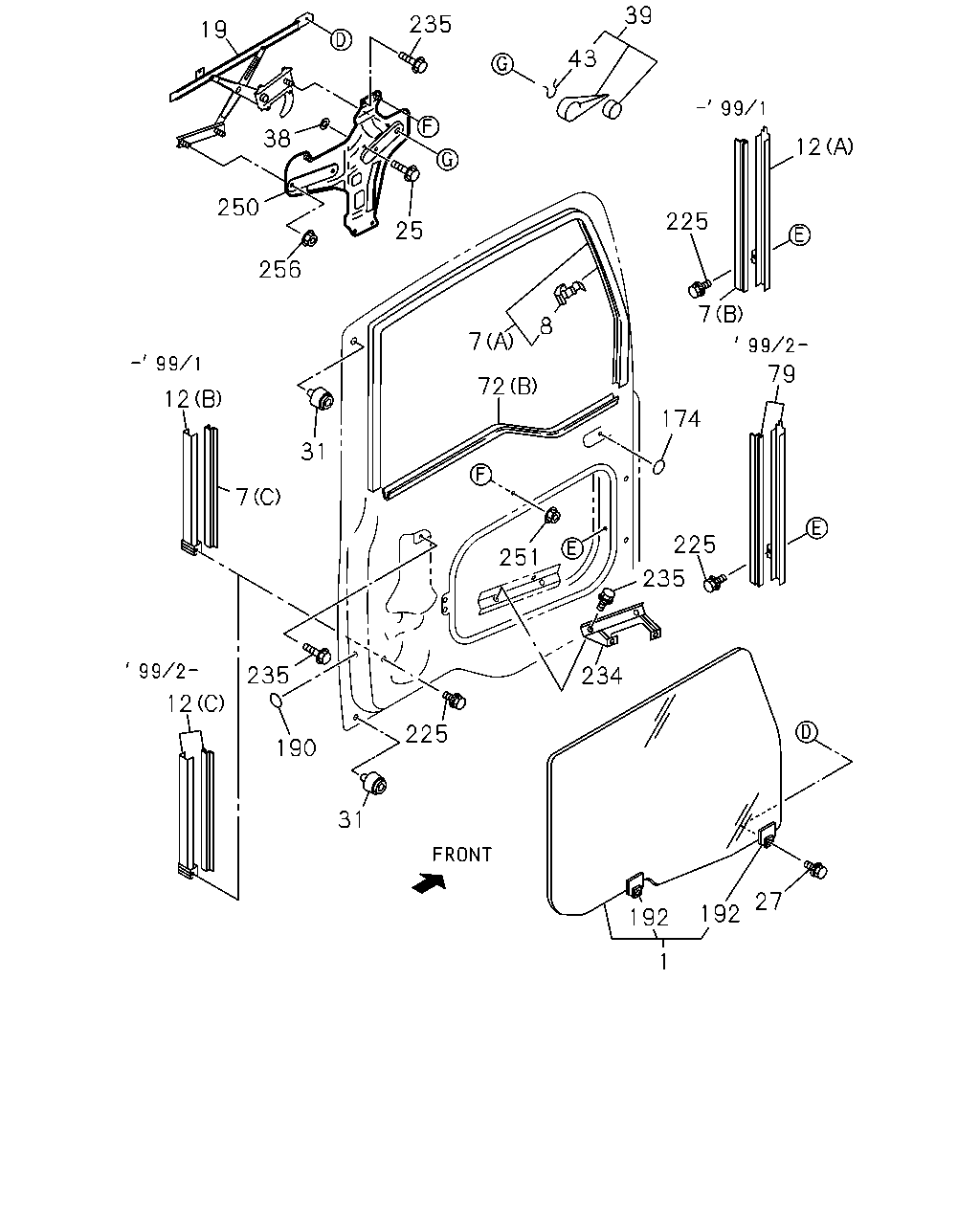

çizim 172744
39 235 19 43 38 12 250 225 25 256 7 8 7 79 72 12 174 31 7 225 251 235 235 234 12 225 190 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-071-0 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-068-1 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR 1-76148-068-1 01 1 9604-9611 ● ●
1 GLASS; FRT DOOR 1-76167-159-0 01 1 9612-9712 ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 9801-0210 ● ●
1 GLASS; FRT DOOR 1-76167-174-2 01 1 0211- ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-069-1 01 1 9510-9603 ● ●
1 GLASS; FRT DOOR 1-76148-069-1 01 1 9604-9611 ● ●
1 GLASS; FRT DOOR 1-76148-079-0 01 1 9612-9712 ● ●
1 GLASS; FRT DOOR 1-76148-094-2 01 1 9801-0210 ● ●
1 GLASS; FRT DOOR 1-76148-094-2 01 1 0211- ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9510-0210 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 0211- ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9510-0210 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 0211- ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-031-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9601-9705 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-034-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9706-9901 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-036-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-037-0 01 1 9510-9512 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9510-0210 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0211- ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902-0210 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 0211- ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9510-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902-0210 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 0211- ●
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-134-4 01 1 9510-9603 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-134-5 01 1 9604-0210 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-134-5 01 1 0211- ●
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-144-4 01 1 9510-9603 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-144-5 01 1 9604-0210 ● ●
19 REGULATOR; WINDOW,FRT DOOR 1-74418-144-5 01 1 0211- ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9510-9603 ● ●
25 BOLT; WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9510-9603 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9604-0207 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0208-0210 ● ●
25 BOLT; WINDOW REG
M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0211- ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9510-0210 ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0211- ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9510-0210 ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0211- ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0208-0210 ● ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0211- ●
38 WASHER; PL,WINDOW REG
DOOR WINDOW MANUAL CONT<SKF> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9510-9603 ● ●
38 WASHER; PL,WINDOW REG
ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 9604-9606 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> BLACK 		8-94371-427-0 02 1 9510-9603 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
BLACK 		8-94371-427-0 02 1 9604-0210 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
BLACK 		8-94371-427-0 02 1 0211- ●
43 CLIP; REG HANDLE,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		8-94220-591-0 02 1 9510-9603 ● ●
43 CLIP; REG HANDLE,FRT DOOR 8-94220-591-0 02 1 9604-0210 ● ●
43 CLIP; REG HANDLE,FRT DOOR 8-94220-591-0 02 1 0211- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0211-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0211-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0211- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0211- ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902-0210 ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0211- ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9902-0210 ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0211- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 9510-9603 ● ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 9510-9603 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 9604-0210 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 20 1 0211-0212 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 22 1 0301- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 06 1 9510-9603 ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 9604-0210 ● ●
174 SEAL; LOCATION HOLE
OD=52 BLACK 		1-76798-041-0 06 1 0211- ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9510-0210 ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 0211- ●
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9510-9603 ● ●
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9604-9712 ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9802-0210 ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0211- ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510-0003 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0210 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0211-0512 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
234 BRACKET; OK WINDOW 1-74998-057-3 01 1 9510-0210 ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0211- ●
234 BRACKET; OK WINDOW 1-74998-062-3 01 1 9510-0210 ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0211- ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ●
235 BOLT; BRKT
M6X16 FLANGE 		0-28050-616-0 08 1 0601-0710 ●
235 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 08 1 0711- ●
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-9603 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9510-9603 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0210 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9604-0210 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0211-0405 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ●
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-148-0 01 1 9510-9603 ● ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 9604-0210 ● ●
250 BRACKET; REGULATOR 1-74418-148-0 01 1 0211- ●
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-149-0 01 1 9510-9603 ● ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 9604-0210 ● ●
250 BRACKET; REGULATOR 1-74418-149-0 01 1 0211- ●
251 NUT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9510-9603 ● ●
251 NUT; BRKT
M6 FLANGE 		1-09984-141-0 04 1 9604-0210 ● ●
251 NUT; BRKT
M6 FLANGE 		1-09984-141-0 04 1 0211- ●
256 NUT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0208-0210 ● ●
256 NUT
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0211- ●

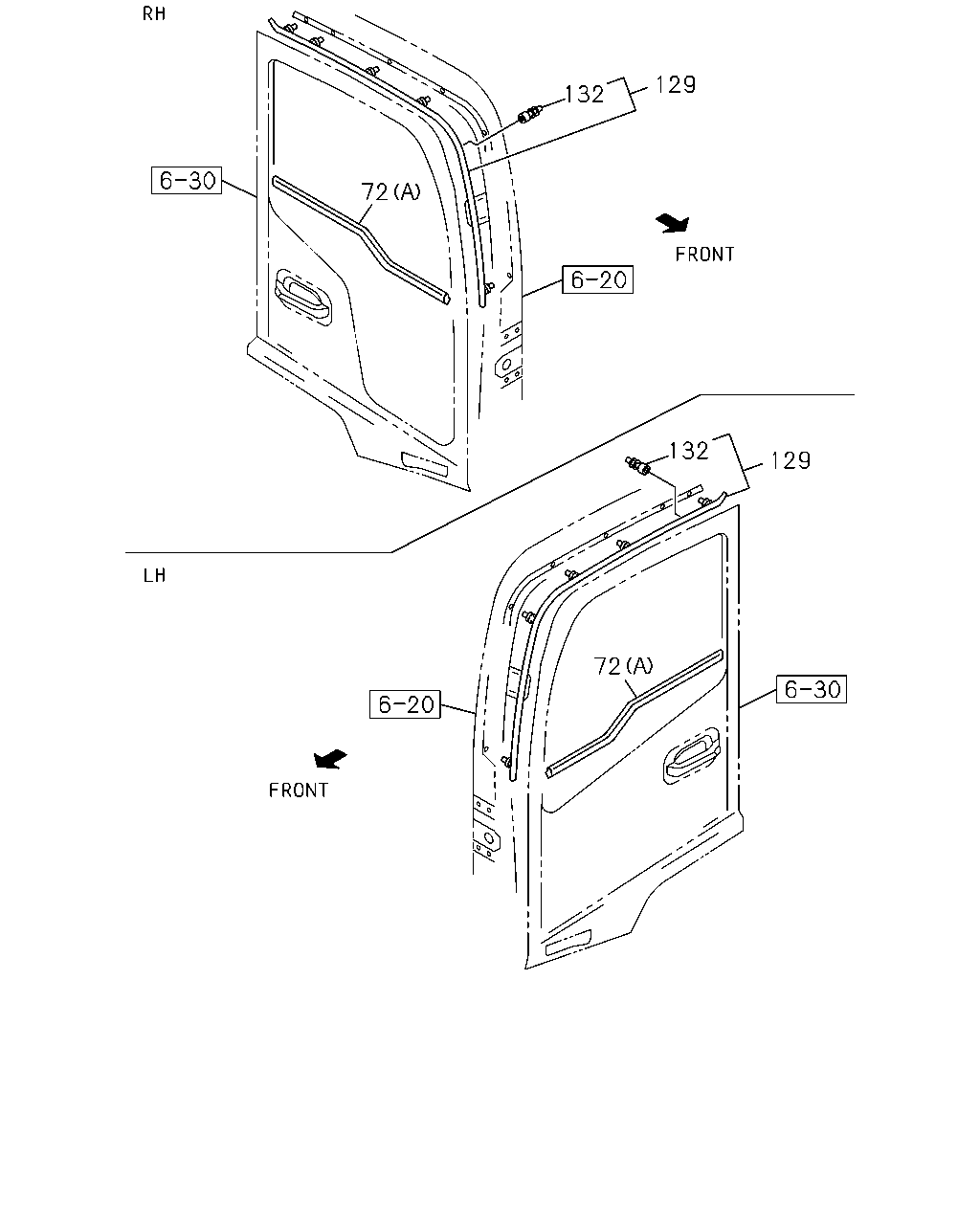

çizim 172745
129 132 72 132 129 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0211-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0211-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0211- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9510-0210 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0211- ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9510-0210 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0211- ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9510-0210 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0211- ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-0210 ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0211- ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-0210 ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
