◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#58463) — 4 parça

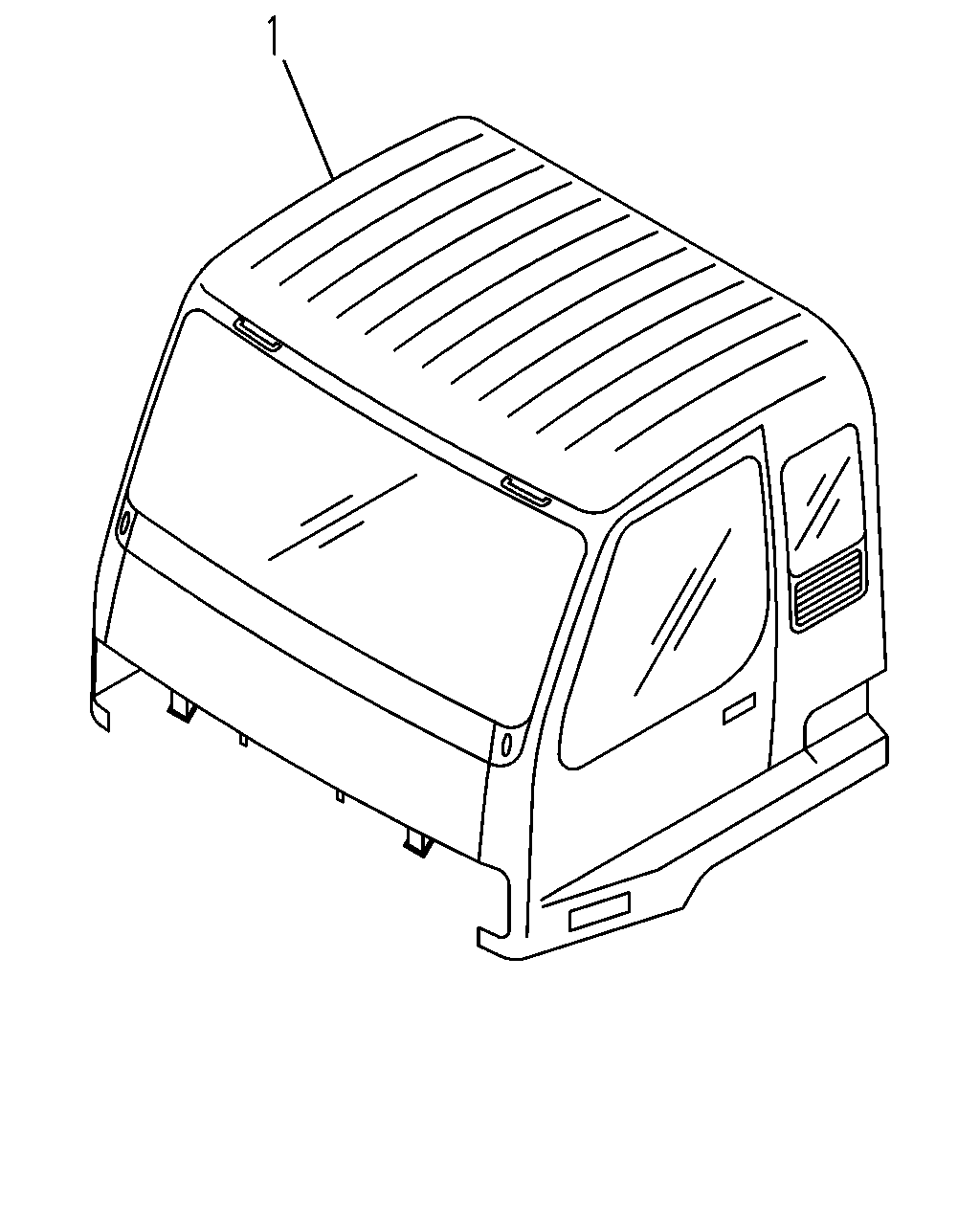

çizim 172740
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MIDDLE EAST(WH1) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE NO PLATE<E6D>,CHEV BRAND PACKAGE<PS2>, ANTENNA RADIO<U73> 		1-61083-472-0 01 1 9510-9802 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MIDDLE EAST(WH1) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. ENGINE NO PLATE<E6D>,CHEV BRAND PACKAGE<PS2>, ANTENNA RADIO<U73> 		1-61083-857-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MIDDLE EAST(WH1) LOW ROOF<6XQ> PROVISIONAL PACKAGE<NLY> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ANTENNA RADIO<U73> EXC. HEATER & DEFROSTER(C41),ENGINE NO PLATE<E6D>, FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2>,VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-61086-892-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MIDDLE EAST(WH1) LOW ROOF<6XQ> PROVISIONAL PACKAGE<NLY> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION SEMI FLOATING<SDK> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HEATER & DEFROSTER(C41),ENGINE NO PLATE<E6D>, FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2>,VENTILATOR & DEFROSTER WO/HEATER(SAZ),ANTENNA RADIO<U73> 		1-61086-898-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
