◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#58461) — 125 parça

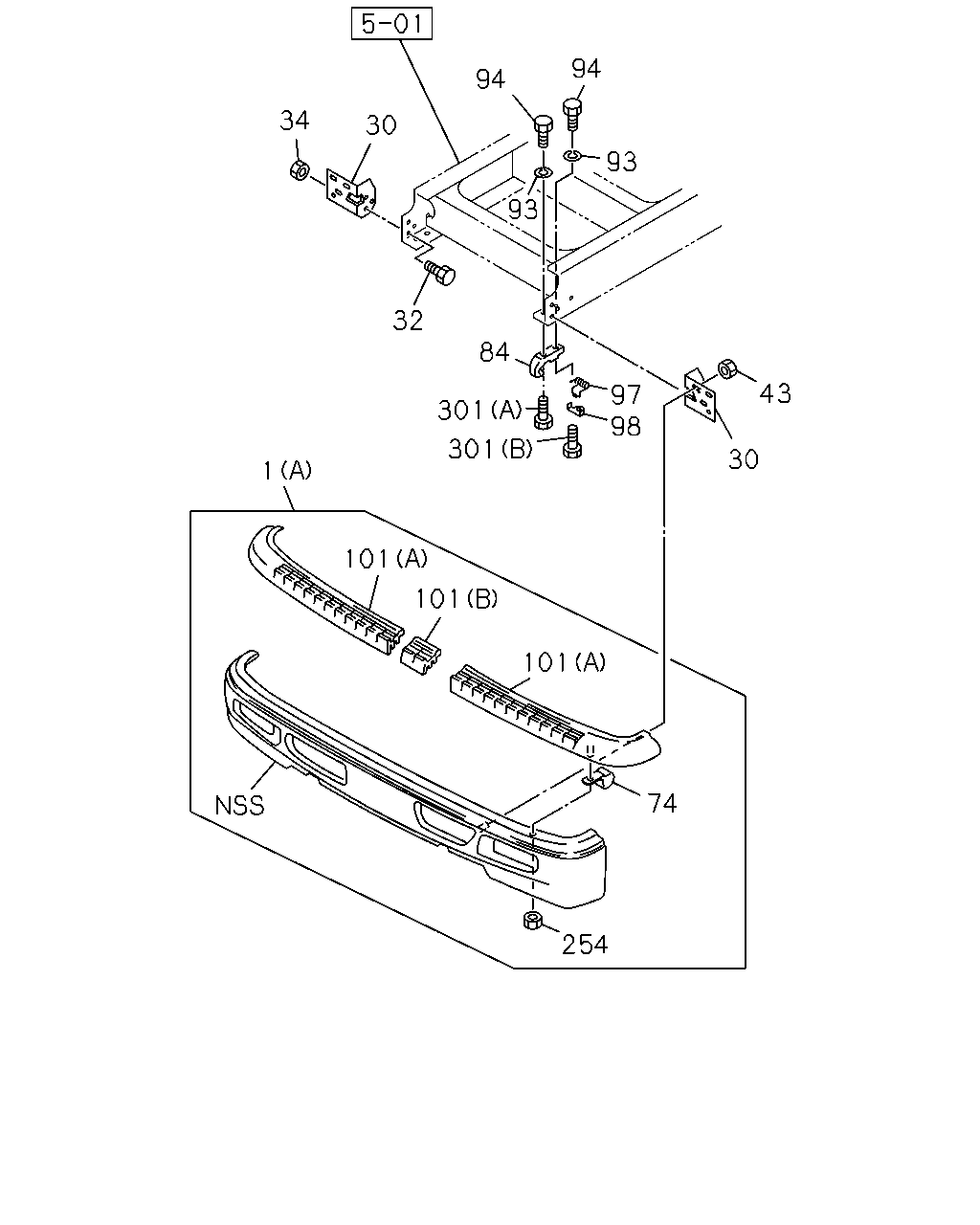

çizim 172725
94 94 34 30 93 93 32 84 43 97 98 301 301 30 1 101 101 101 74 254
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-583-4 01 1 9510-0106 ● ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-583-4 01 1 0107-0210 ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		1-71210-583-4 01 1 0107-0210 ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		1-71210-583-4 01 1 0211- ●
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		1-71210-661-2 01 1 0107- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510-0210 ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 0211- ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0111 ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0112-0210 ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0211- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0210 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0211-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0210 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0211-0602 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 04 1 9510-9606 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9607-0210 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510-0210 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0211- ●
84 HOOK 1-57181-027-1 01 1 9510-0210 ● ●
84 HOOK 1-57181-027-1 01 1 0211- ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9510-0210 ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0211-0603 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9510-0206 ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0210 ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0211-0512 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9510-0106 ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0107-0210 ●
97 SPRING; FRT HOOK
EXC. FRONT SPOILER<VP1> 		9-53519-003-0 01 1 0107-0210 ●
97 SPRING; FRT HOOK
EXC. FRONT SPOILER<VP1> 		9-53519-003-0 01 1 0211- ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9510-0106 ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0107-0210 ●
98 STOPPER; SPR,FRT HOOK
EXC. FRONT SPOILER<VP1> 		9-53519-006-0 01 1 0107-0210 ●
98 STOPPER; SPR,FRT HOOK
EXC. FRONT SPOILER<VP1> 		9-53519-006-0 01 1 0211- ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510-0210 ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0211- ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510-0210 ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0211- ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510-0210 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 0211- ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0210 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 0211-0602 ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 9510-0210 ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 0211-0512 ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 0601- ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 9510-0210 ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 0211-0512 ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 0601- ●

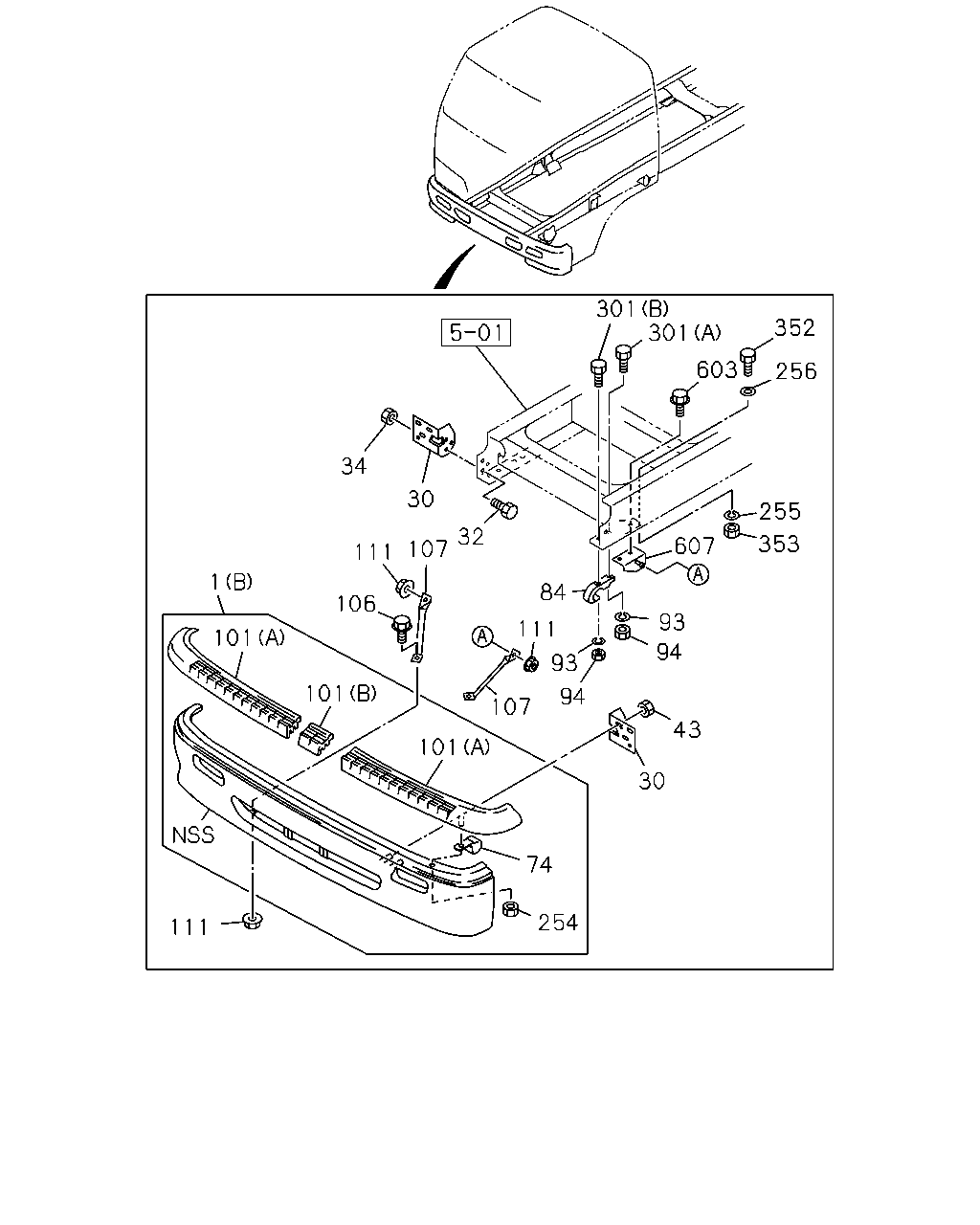

çizim 172747
301 301 352 603 256 34 30 255 32 107 353 607 111 1 84 106 93 111 101 94 93 101 94 107 43 101 30 74 254 111
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-583-4 01 1 9510-0106 ● ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-583-4 01 1 0107-0210 ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		1-71210-583-4 01 1 0107-0210 ●
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (A) WHITE 		1-71210-583-4 01 1 0211- ●
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (B) WHITE 		1-71210-661-2 01 1 0107- ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 9510-0210 ● ●
30 BRACKET; FRT BUMPER 1-71230-208-3 01 1 0211- ●
30 BRACKET; FRT BUMPER 1-71230-207-3 01 1 9510-0111 ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0112-0210 ● ●
30 BRACKET; FRT BUMPER 1-71230-568-1 01 1 0211- ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28081-030-0 06 1 9510-9606 ● ●
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28681-035-0 06 1 9607-9608 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 9609-0210 ● ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28681-030-0 06 1 0211-0512 ●
32 BOLT; BRKT,BUMPER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
34 NUT; BRKT,BUMPER
M10 		9-09110-510-0 06 1 9510-9606 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 9607-0210 ● ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91150-210-0 06 1 0211-0602 ●
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-110-0 04 1 9510-9606 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 9607-0210 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 9510-0210 ● ●
74 CLIP; FOG LAMP HARNESS 1-09701-203-0 05 1 0211- ●
84 HOOK 1-57181-027-1 01 1 9510-0210 ● ●
84 HOOK 1-57181-027-1 01 1 0211- ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9510-0210 ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0211-0603 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ●
94 NUT; HOOK
M16 		9-99110-416-0 02 1 9510-0206 ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0207-0210 ● ●
94 NUT; HOOK
M16 		9-99110-516-0 02 1 0211-0512 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0601- ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 9510-0210 ● ●
101 STEP; BUMPER
(A) 		1-71260-080-1 01 1 0211- ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 9510-0210 ● ●
101 STEP; BUMPER
(A) 		1-71260-081-1 01 1 0211- ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 9510-0210 ● ●
101 STEP; BUMPER
(B) 		1-71260-082-1 01 1 0211- ●
106 BOLT; AIR DAM
FRONT SPOILER<VP1> M10X25 FLANGE 		0-28681-025-0 02 1 0107-0512 ●
106 BOLT; AIR DAM
FRONT SPOILER<VP1> M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
107 STAY; AIR DAM
FRONT SPOILER<VP1> 		1-71260-129-1 01 1 0107- ●
107 STAY; AIR DAM
FRONT SPOILER<VP1> 		1-71260-130-1 01 1 0107- ●
111 NUT; STAY
FRONT SPOILER<VP1> M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ●
111 NUT; STAY
FRONT SPOILER<VP1> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 9510-0210 ● ●
254 NUT; STEP
M8 FLANGE 		0-91150-108-0 11 1 0211-0602 ●
254 NUT; STEP
M8 FLANGE 		0-91180-108-0 11 1 0603- ●
255 WASHER; LK
FRONT SPOILER<VP1> ID=16.2 		9-09150-616-0 01 1 0108-0206 ●
255 WASHER; LK
FRONT SPOILER<VP1> ID=16.2 		9-09150-516-0 01 1 0207-0603 ●
255 WASHER; LK
FRONT SPOILER<VP1> ID=16.2 		0-91510-516-0 01 1 0604- ●
256 WASHER; PL
FRONT SPOILER<VP1> ID=16.2 		1-09503-223-0 01 1 0108- ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 9510-0210 ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10811-660-0 01 1 0211-0512 ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 0601- ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 9510-0210 ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10811-670-0 01 1 0211-0512 ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 0601- ●
352 BOLT; FRAME
FRONT SPOILER<VP1> M16X40 		0-20801-640-0 01 1 0108-0512 ●
352 BOLT; FRAME
FRONT SPOILER<VP1> M16X40 		0-20851-640-0 01 1 0601- ●
353 NUT; FRAME
FRONT SPOILER<VP1> M16 		9-99110-516-0 01 1 0108-0512 ●
353 NUT; FRAME
FRONT SPOILER<VP1> M16 		0-91110-516-0 01 1 0601- ●
603 BOLT; BRKT
FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X35 FLANGE 		0-28681-235-0 04 1 0108-0512 ●
603 BOLT; BRKT
FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X35 FLANGE 		0-28651-235-0 04 1 0601-0905 ●
603 BOLT; BRKT
FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X30 FLANGE 		0-28051-230-0 04 1 0906- ●
607 BRACKET
FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> 		1-47477-689-0 01 1 0108- ●
607 BRACKET
FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> 		1-47477-690-0 01 1 0108- ●
