◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#58460) — 41 parça

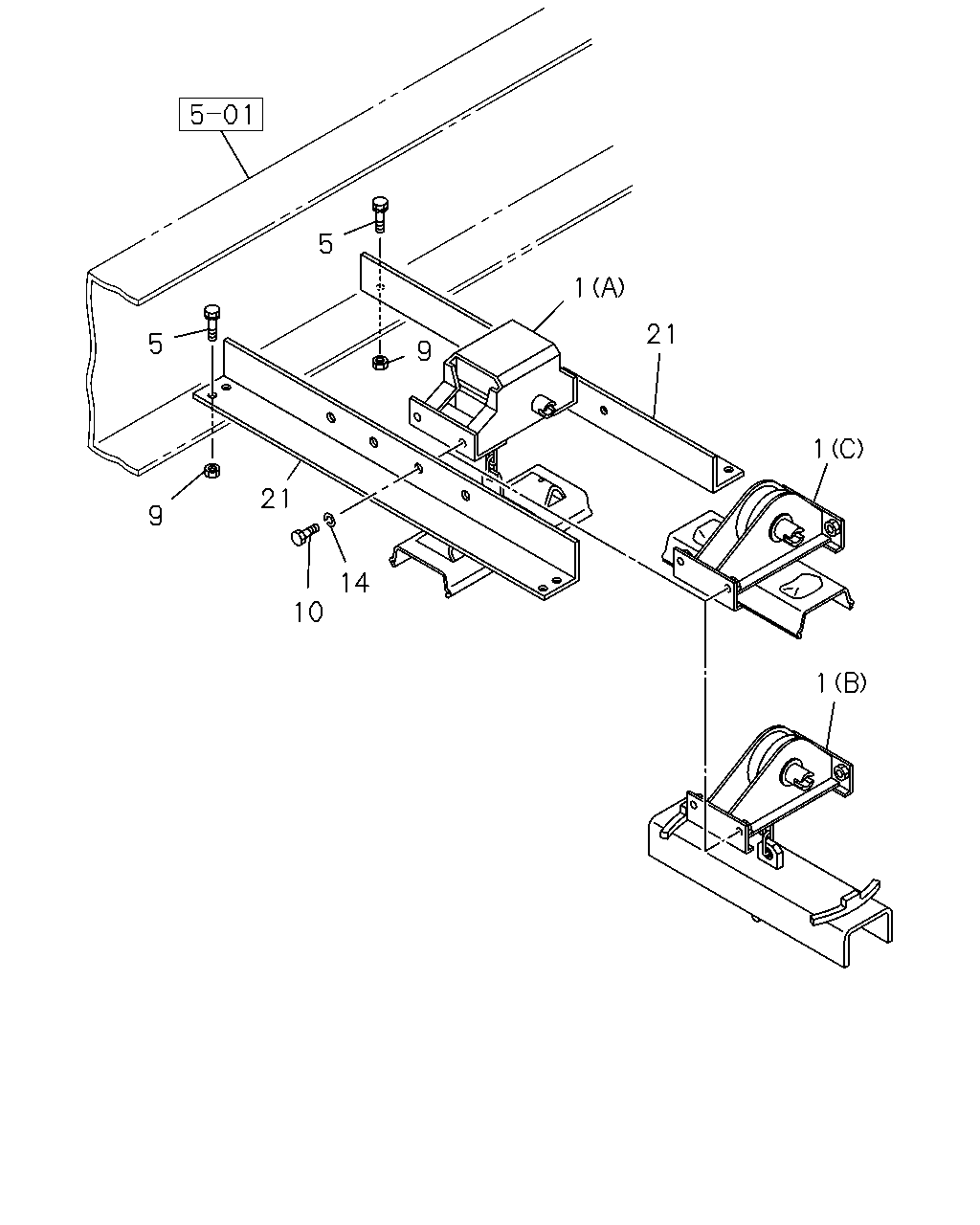

çizim 172726
5 1 21 5 9 1 21 9 14 10 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-147-2 01 1 9510-9510 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-53630-147-2 01 1 9510-9510 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-147-2 01 1 9510-9608 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-147-2 01 1 9510-9608 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-1 01 1 9609-9809 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-1 01 1 9609-9809 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-3 01 1 9810-0210 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-3 01 1 9810-0210 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-208-3 01 1 0211- ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-146-1 01 1 9510-9510 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) 		1-53630-146-1 01 1 9510-9510 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-146-1 01 1 9510-9608 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-146-1 01 1 9510-9608 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9809 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9809 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9810-0005 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9810-0005 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 0006-0210 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 0006-0210 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-4 01 1 0211- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9510-9606 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28681-030-0 08 1 9607-9608 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9609-0512 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9510-9606 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607-0602 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9510-9608 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M16X30 		0-20801-630-0 04 1 9510-9608 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0210 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9609-0210 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 0211-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
14 WASHER; LK,TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9510-9608 ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> ID=16.2 		9-09150-516-0 04 1 9510-9608 ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> ID=16.2 		9-09150-516-0 04 1 9609-0006 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 10.00-20-14 GULF LUG(51N),TIRE 10.00-20-14 GULF RIB(52N),TIRE 10.00-20-16 GULF RIB(53N),TIRE 10.00-20-16 GULF LUG(67N),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,R R 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-475-0 02 1 0408-0802 ●
21 BRACKET; SPARE TIRE HANGER
TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE FRT,RR 10.00R20-16 RIB(88N),TIRE FRT,RR 10.00R20-16 LUG(91N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-475-0 02 1 0803- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-209-2 02 1 9510-9608 ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 9609-0407 ●
21 BRACKET; SPARE TIRE HANGER
TIRE 9.00-20-14 GULF RIB(66N),TIRE 11R22.5-14 GULFRIB(68N),TIRE FRT,RR 9.00R20-14(89N) SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 0408- ●
