◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#5846) — 29 parça

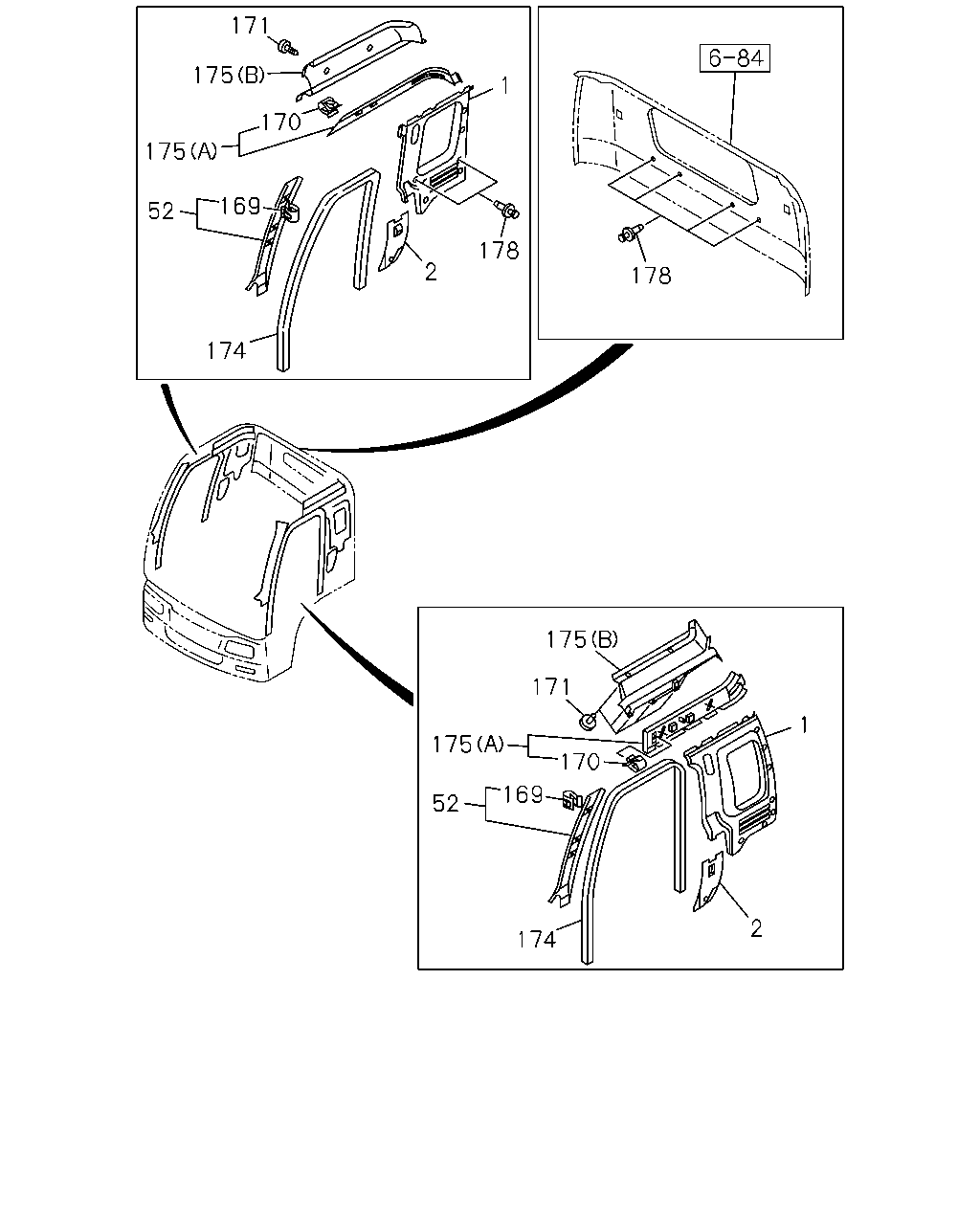

çizim 42001
171 175 1 170 175 169 52 178 2 178 174 175 171 1 175 170 169 52 2 174
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-810-2 01 1 9603- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-801-3 01 1 9603- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-800-3 01 1 9603- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-799-3 01 1 9603- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
ISRINGHAUSEN SEAT(SJA) 		1-73347-877-0 01 1 0012- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9603-9904 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. ISRINGHAUSEN SEAT(SJA) 		1-73347-780-8 01 1 9905- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9603-0011 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. ISRINGHAUSEN SEAT(SJA) 		1-73347-779-8 01 1 0012- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 0012- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
ISRINGHAUSEN SEAT(SJA) 		1-73347-876-0 01 1 9905- ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9603- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9603- ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9603- ● ●
170 CLIP; HOLE
AUTO ROUND CURTAIN<TAR> 		8-94313-458-0 04 1 9603- ●
170 CLIP; HOLE 8-94313-458-0 04 1 9603- ●
170 CLIP; HOLE
EXC. AUTO ROUND CURTAIN<TAR> 		8-94313-458-0 04 1 9603- ●
171 CLIP; TRIM PAD
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 54 1 9905- ● ●
174 FINISHER; BODY SIDE 1-76718-175-3 02 1 9603- ● ●
175 COVER; TRIM,SIDE
(A) 		1-73347-761-3 01 1 9603- ●
175 COVER; TRIM,SIDE
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73347-761-3 01 1 9603- ●
175 COVER; TRIM,SIDE
AUTO ROUND CURTAIN<TAR> (A) 		1-73347-760-3 01 1 9603- ●
175 COVER; TRIM,SIDE
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73347-797-1 01 1 9603- ●
175 COVER; TRIM,SIDE
(A) 		1-73347-797-1 01 1 9603- ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> (B) 		1-73347-745-1 01 1 9905- ● ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> (B) 		1-73347-744-1 01 1 9905- ● ●
175 COVER; TRIM,SIDE
AUTO ROUND CURTAIN<TAR> (A) 		1-73347-798-1 01 1 9603- ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
