◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#58459) — 71 parça

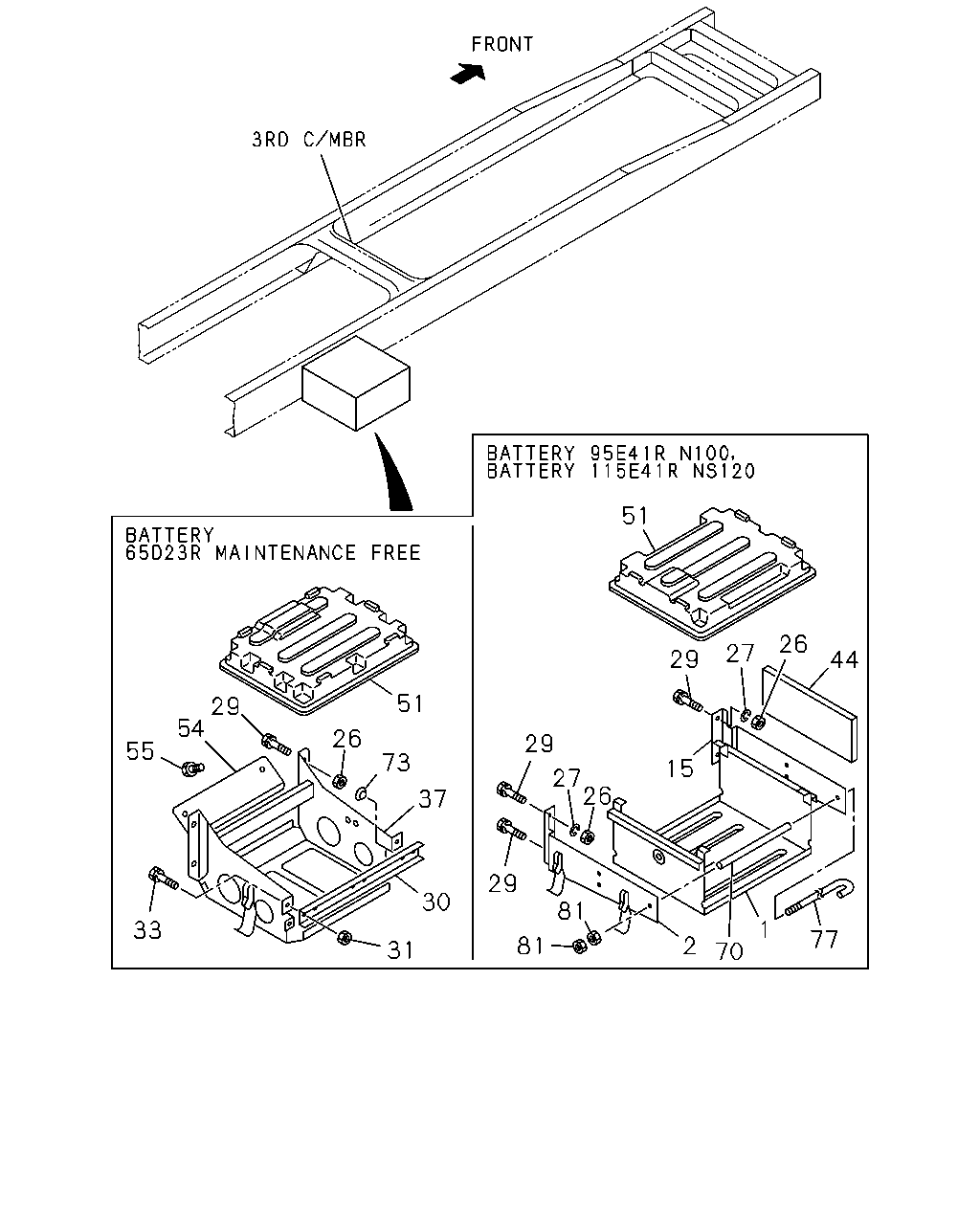

çizim 172735
51 26 27 29 44 51 29 54 26 29 55 73 15 27 26 37 29 30 81 1 33 77 81 2 31 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 9510-0210 ● ●
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 0211- ●
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 9510-0210 ● ●
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 0211- ●
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 9510-0210 ● ●
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 0211- ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 0110-0210 ●
26 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 0110-0210 ●
26 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 0211-0512 ●
26 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		0-91110-514-0 04 1 0601- ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 0110-0210 ●
26 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 0110-0210 ●
26 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 0211-0512 ●
26 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		0-91110-510-0 04 1 0601- ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 9510-9606 ● ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 FLANGE 		0-91150-210-0 04 1 9607-9608 ● ●
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 9609-0004 ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 9510-0004 ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 0110-0210 ●
27 WASHER; LK,BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 0110-0210 ●
27 WASHER; LK,BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 0211-0603 ●
27 WASHER; LK,BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		0-91510-514-0 04 1 0604- ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 9510-0004 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X30 FLANGE 		0-28081-030-0 04 1 9510-9606 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28681-035-0 04 1 9607-0210 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ●
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20801-435-0 04 1 9510-0210 ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20801-435-0 04 1 0211-0512 ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20851-435-0 04 1 0601- ●
30 PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53616-046-3 01 1 9510-0210 ● ●
30 PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53616-046-3 01 1 0211- ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		9-09110-408-0 02 1 9510-9606 ● ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 FLANGE 		0-91150-108-0 02 1 9607-9608 ● ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		9-09110-408-0 02 1 9609-0210 ● ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		9-09110-408-0 02 1 0211-0512 ●
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		0-91110-508-0 02 1 0601- ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9709 ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 9710-0210 ● ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
37 BRACKET; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 9510-0210 ● ●
37 BRACKET; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 0211- ●
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 9510-0210 ● ●
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 0211- ●
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 9510-0210 ● ●
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 0211- ●
51 COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53612-019-1 01 1 9510-0210 ● ●
51 COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53612-019-1 01 1 0211- ●
54 PROTECTOR; HEAT,BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53619-069-1 01 1 9510-0106 ● ●
54 PROTECTOR; HEAT,BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53619-069-1 01 1 0107-0210 ●
54 PROTECTOR; HEAT,BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53619-069-1 01 1 0107-0210 ●
54 PROTECTOR; HEAT,BATTERY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53619-069-1 01 1 0211- ●
55 BOLT; HEAT PROTECTOR
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X16 FLANGE 		0-28280-816-0 02 1 9510-9606 ● ●
55 BOLT; HEAT PROTECTOR
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 9607-0106 ● ●
55 BOLT; HEAT PROTECTOR
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0210 ●
55 BOLT; HEAT PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0210 ●
55 BOLT; HEAT PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
55 BOLT; HEAT PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 9609-0210 ● ●
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 0211- ●
73 RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-09337-002-0 04 1 9510-0210 ● ●
73 RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-09337-002-0 04 1 0211- ●
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 9510-0210 ● ●
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 0211- ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9510-9606 ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 04 1 9607-9710 ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9711-0210 ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 0211-0512 ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 04 1 0601- ●
