◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#58450) — 197 parça

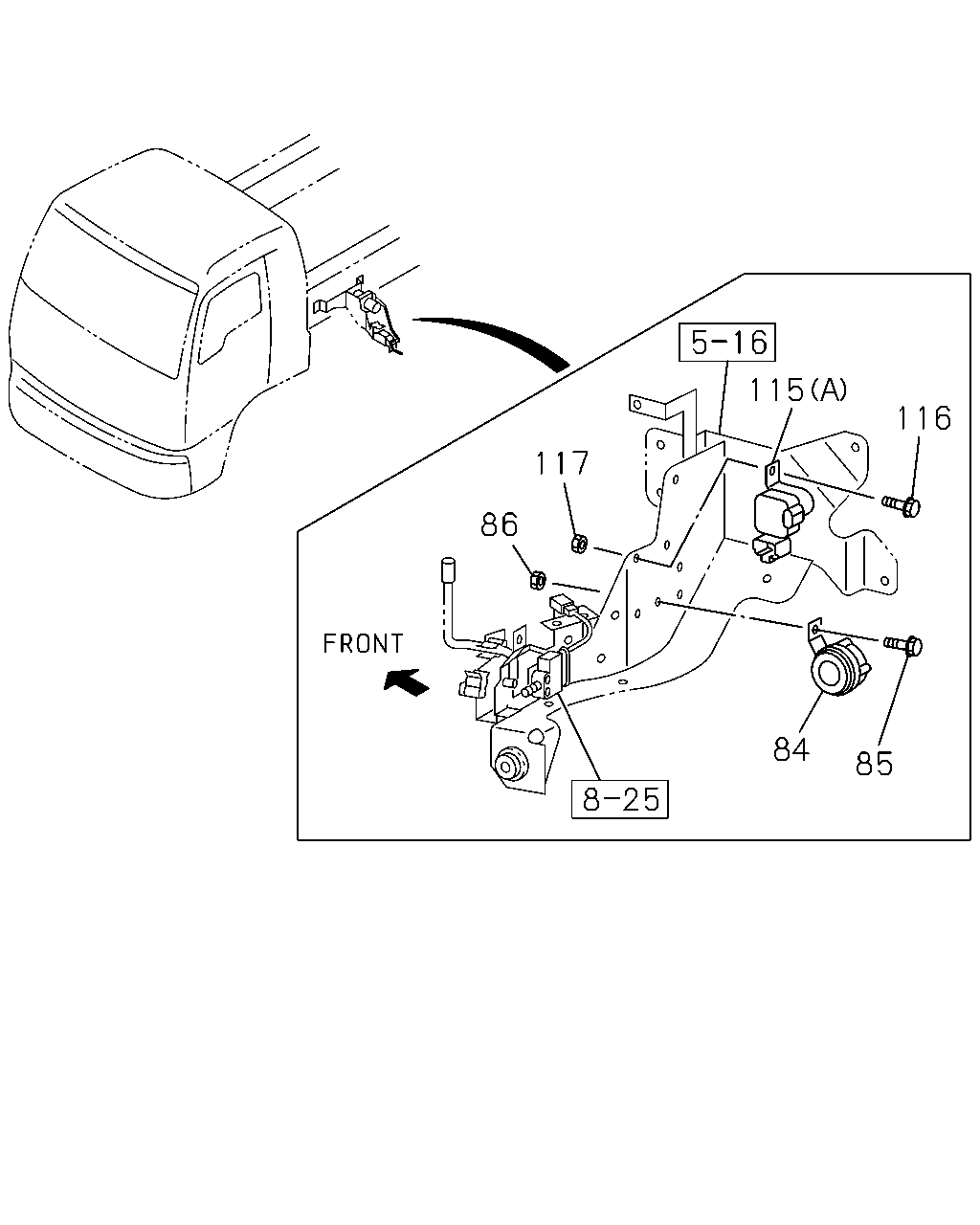

çizim 172166
117 86 115 116 84 85
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1010- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1010- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●

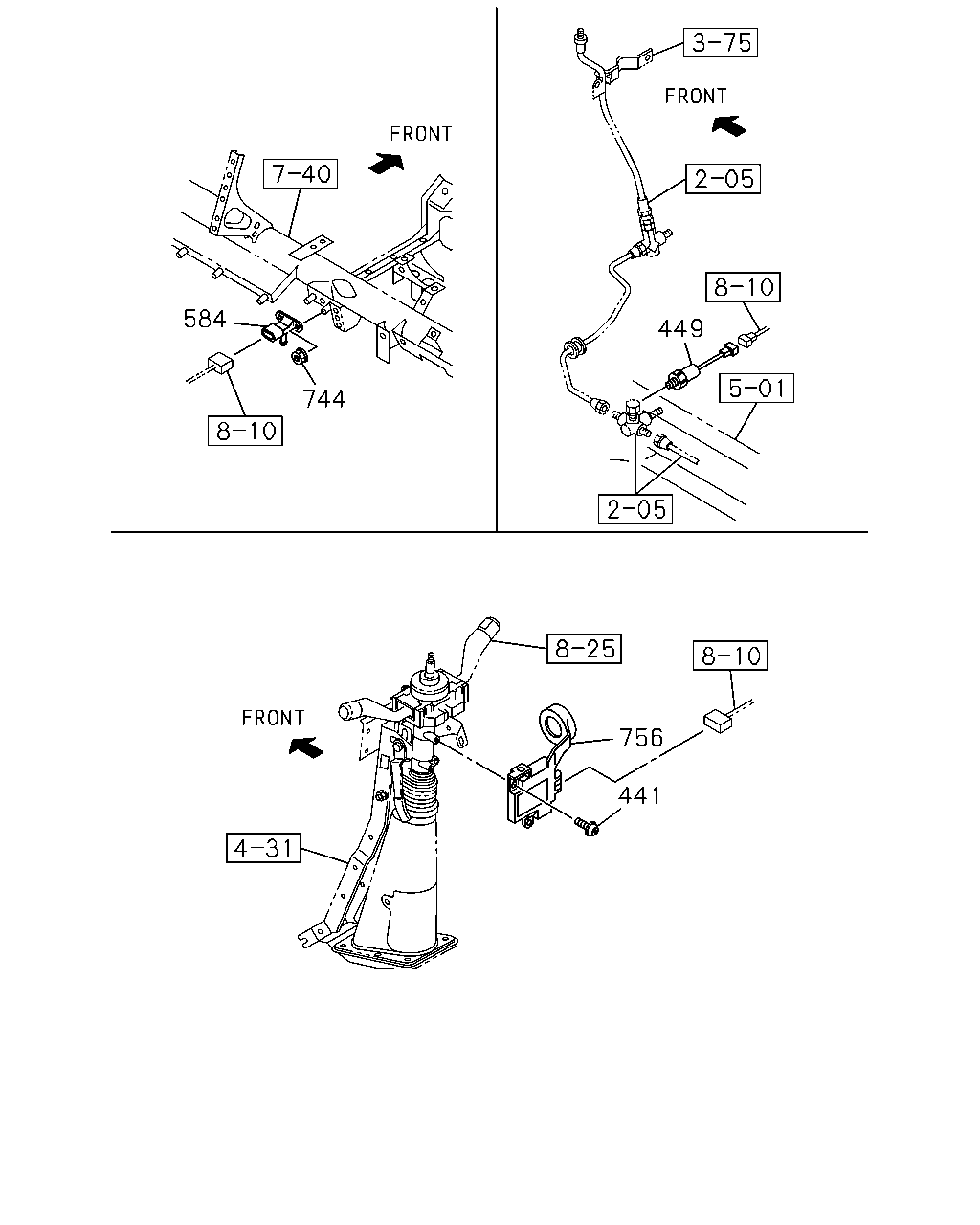

çizim 172174
584 744 449 756 441
BalonParca AdiParca NoAdetTipApplied Date A B
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1010- ● ●
449 SWITCH; OIL PRESS,CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1010- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1010-1306 ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1307- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1010-1306 ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1010- ● ●

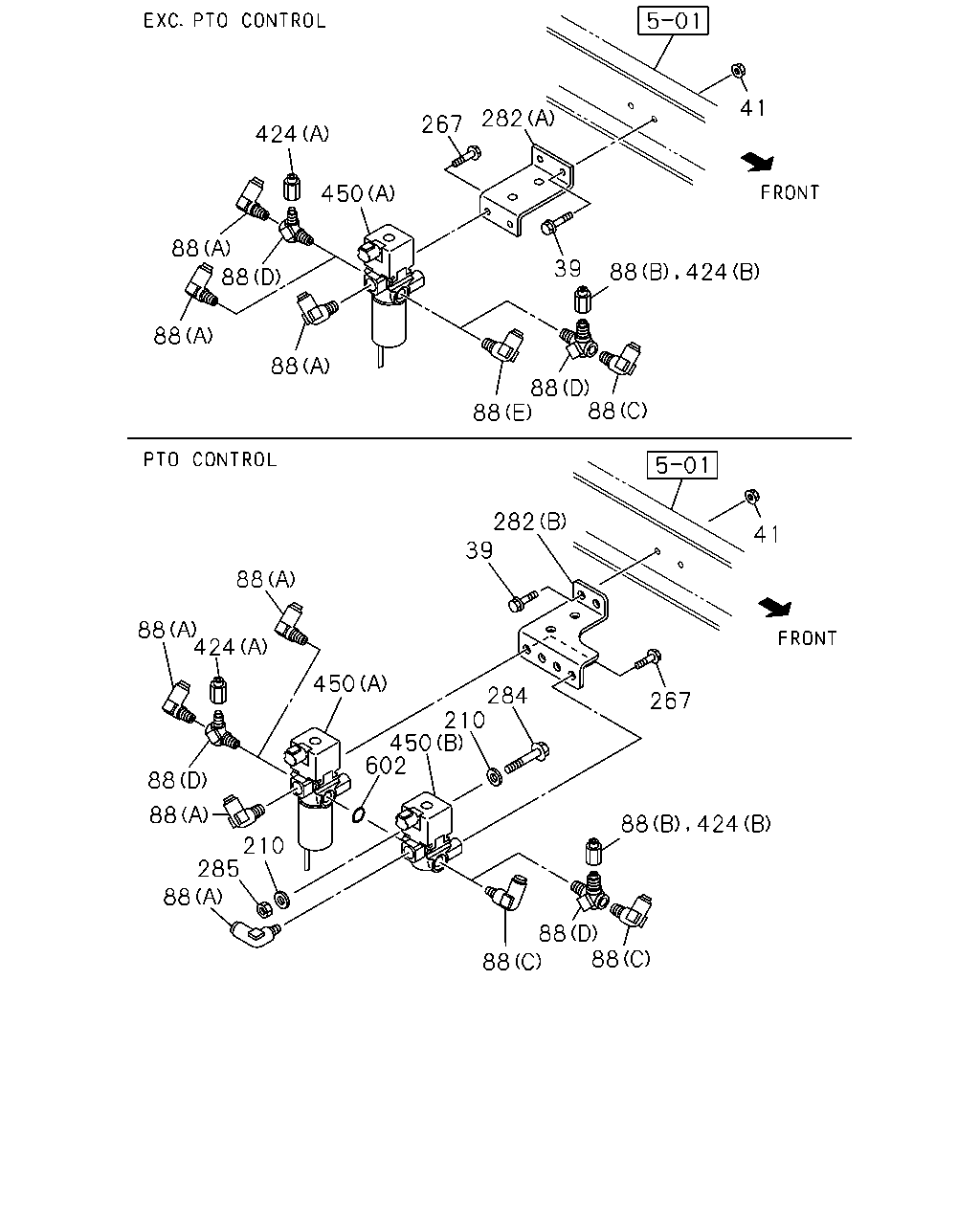

çizim 172177
424 88 88 88 88 450 267 282 39 88 424 88 88 88 41 88 88 424 450 88 88 88 285 210 602 450 210 284 39 282 41 267 88 424 88 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 1010-1306 ● ●
39 BOLT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
39 BOLT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
41 NUT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
41 NUT; BRKT,MAG VLV
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307- ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1010-1111 ● ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112-1306 ●
210 WASHER; PL,BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) 		1-82569-266-0 02 1 1307- ●
267 BOLT; VLV TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1111 ●
267 BOLT; VLV TO BRKT
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1010-1111 ●
267 BOLT; VLV TO BRKT
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1010-1111 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1111 ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98154-633-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) 		8-98154-633-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		8-98154-633-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1010-1111 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112-1306 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO ZF TRANS RR(BDM) (A) 		8-98154-633-0 01 1 1307- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1010-1111 ● ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 1112-1306 ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) (B) 		8-98101-296-0 01 1 1307- ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 1010-1111 ● ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 1112-1306 ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) M6X50 FLANGE 		0-28050-650-0 01 1 1307- ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1010-1111 ● ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1112-1306 ●
285 NUT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) M6 FLANGE 		0-91180-106-0 01 1 1307- ●
424 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1111 ●
424 ADAPTER
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1111 ●
424 ADAPTER
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1111 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1111 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1306 ●
424 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307- ●
450 VALVE; MAG
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) 		8-97633-075-0 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1010-1111 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1112-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1112-1306 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112-1306 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1307- ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1010-1111 ● ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112-1306 ●
602 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) ID=16.8 		9-09565-117-0 01 1 1307- ●

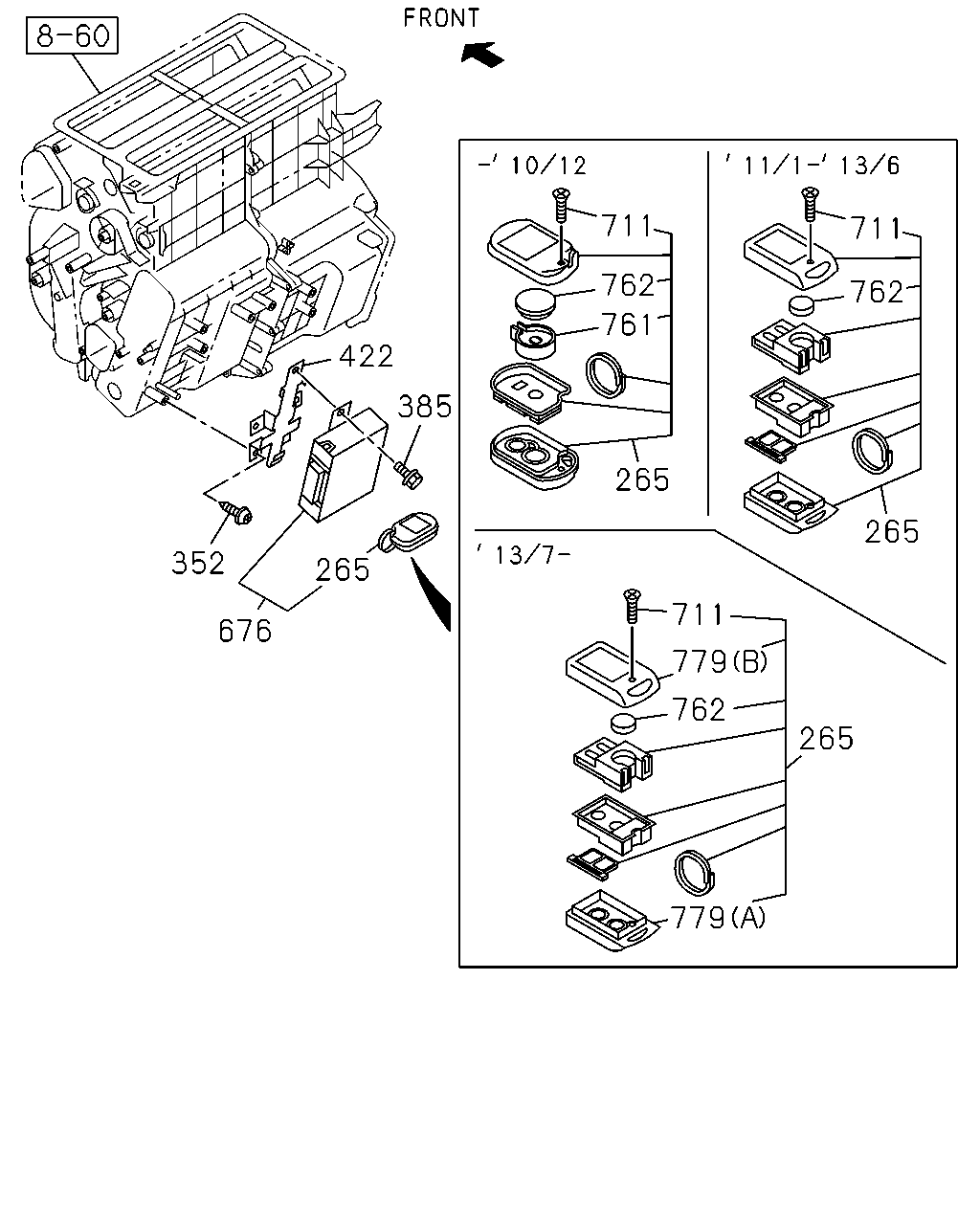

çizim 172178
422 385 265 676 352 711 762 761 265 711 779 762 265 779 265 762 711
BalonParca AdiParca NoAdetTipApplied Date A B
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1010-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1010- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1010- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1010- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 1010-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1010-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 1010-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 1010- ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1307- ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1307- ● ●

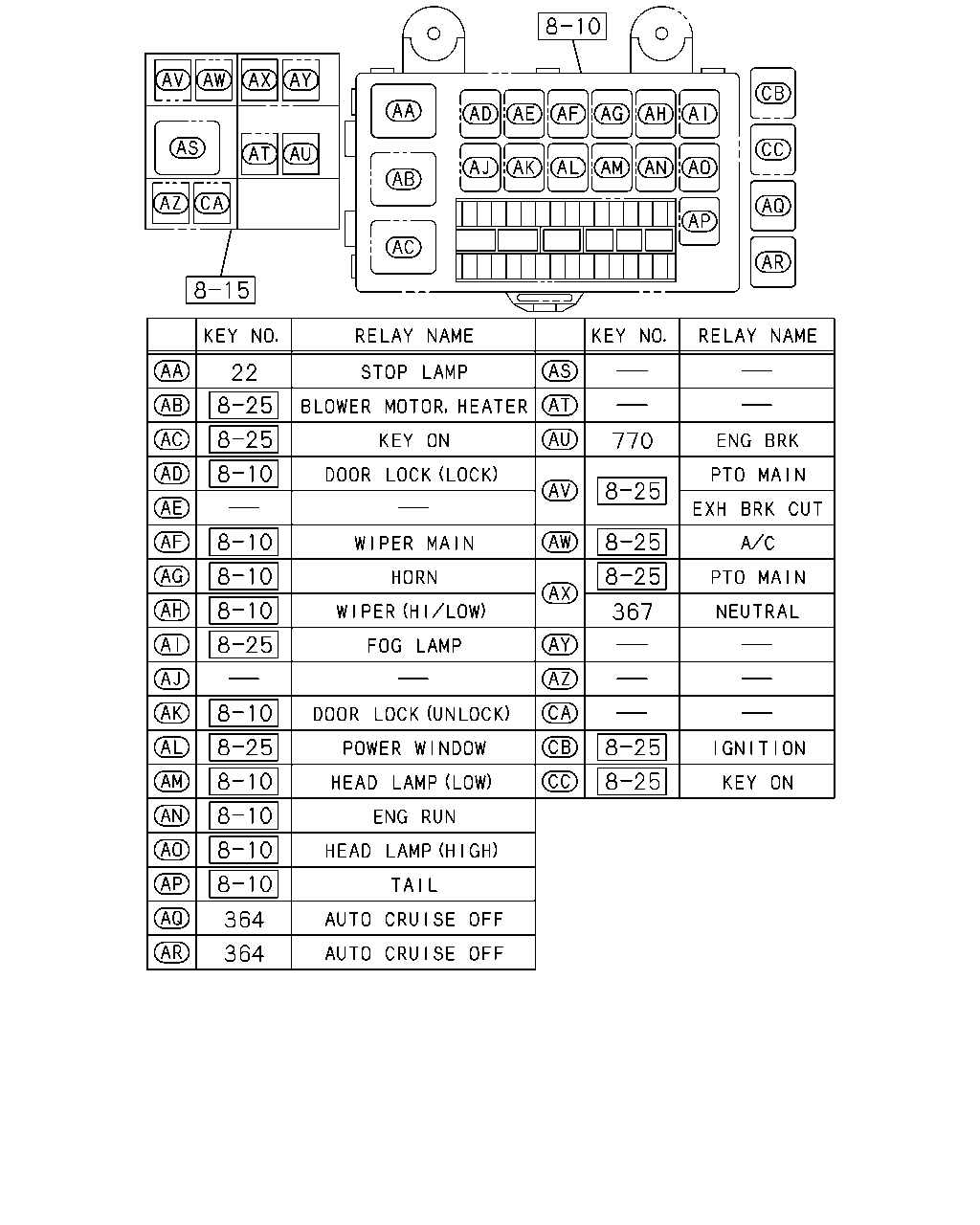

çizim 172183
22 364 770 367 364
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010- ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1010- ● ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●

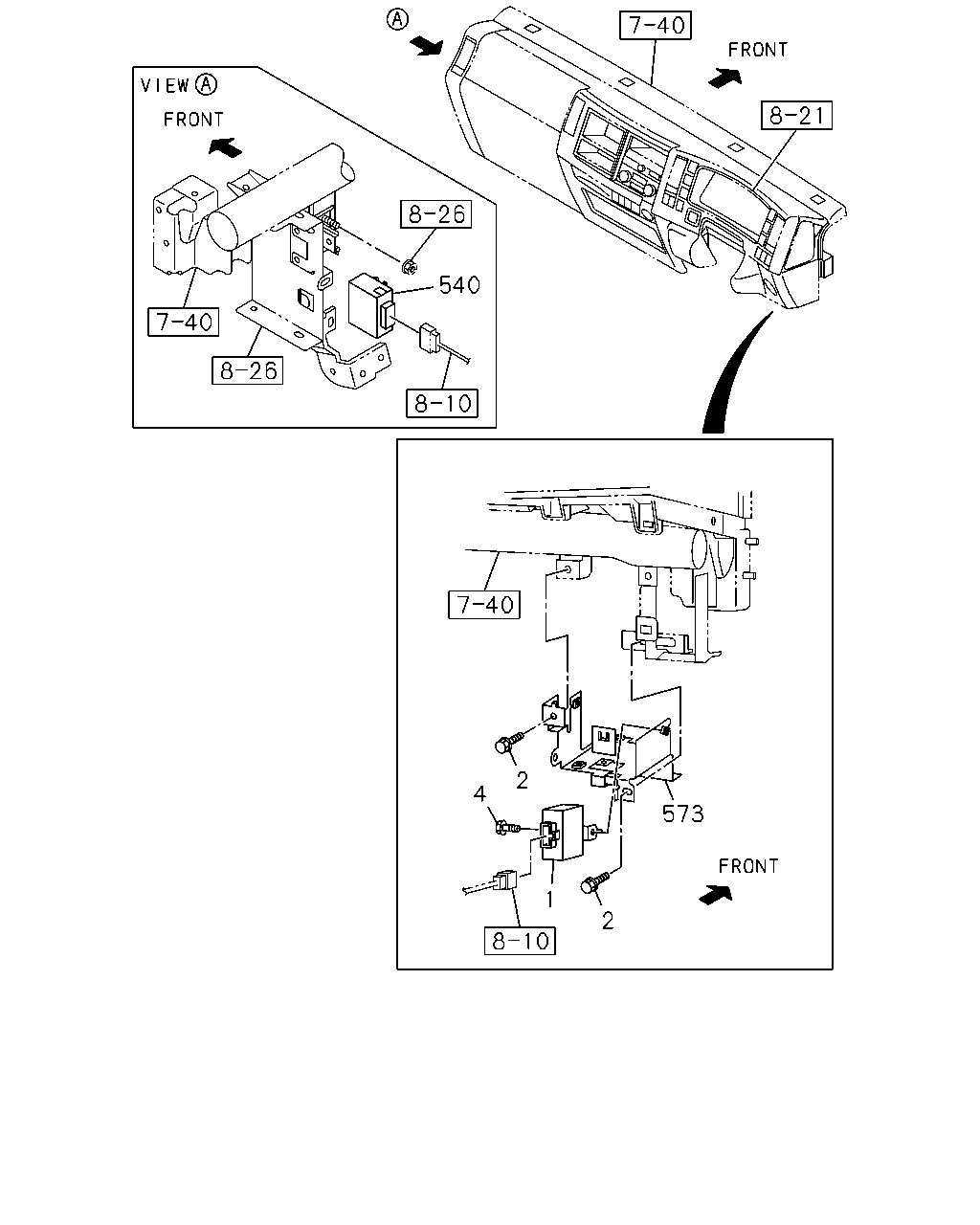

çizim 172199
540 4 573 2 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1010- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1010-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1010- ● ●
çizim 172215
79 40 88 88 88 450
BalonParca AdiParca NoAdetTipApplied Date A B
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) 		8-98057-863-0 01 1 1010-1306 ● ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> 		8-98057-863-0 01 1 1307- ●
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98057-863-0 01 1 1307- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
79 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112-1306 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1307- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1111 ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1010-1111 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112-1306 ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307- ●
450 VALVE; MAG
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		8-97633-075-0 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) 		8-97633-075-0 01 1 1112- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1010-1111 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1010-1111 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-82563-871-2 01 1 1112-1306 ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1112-1306 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1112-1306 ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) (B) 		1-82563-871-2 01 1 1307- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-82563-871-2 01 1 1307- ●

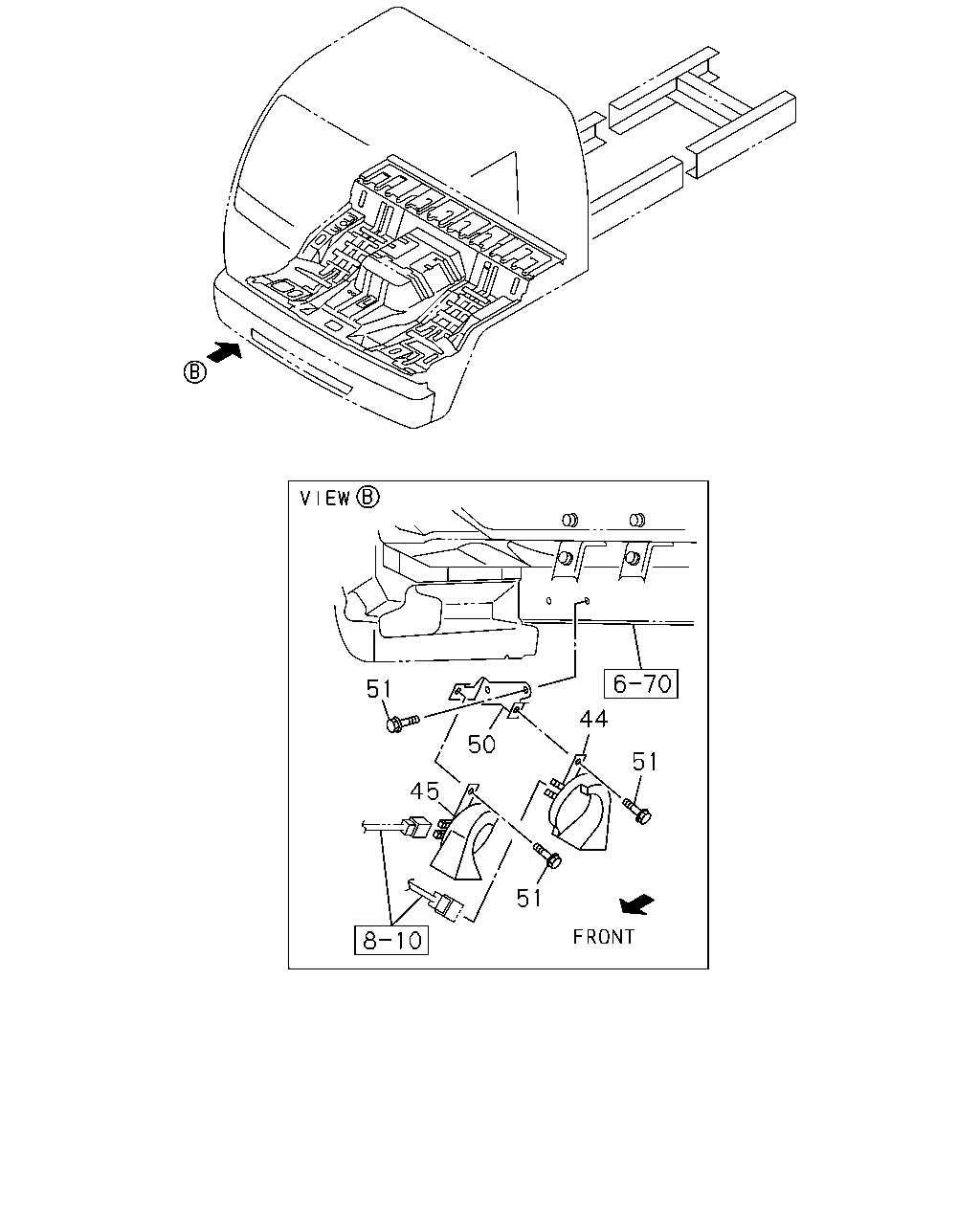

çizim 172219
51 50 44 51 45 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1010- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1010- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1010- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1307- ● ●
çizim 480894
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1010- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1010- ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1010-1306 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1307-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
