Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#58444) — 444 parça

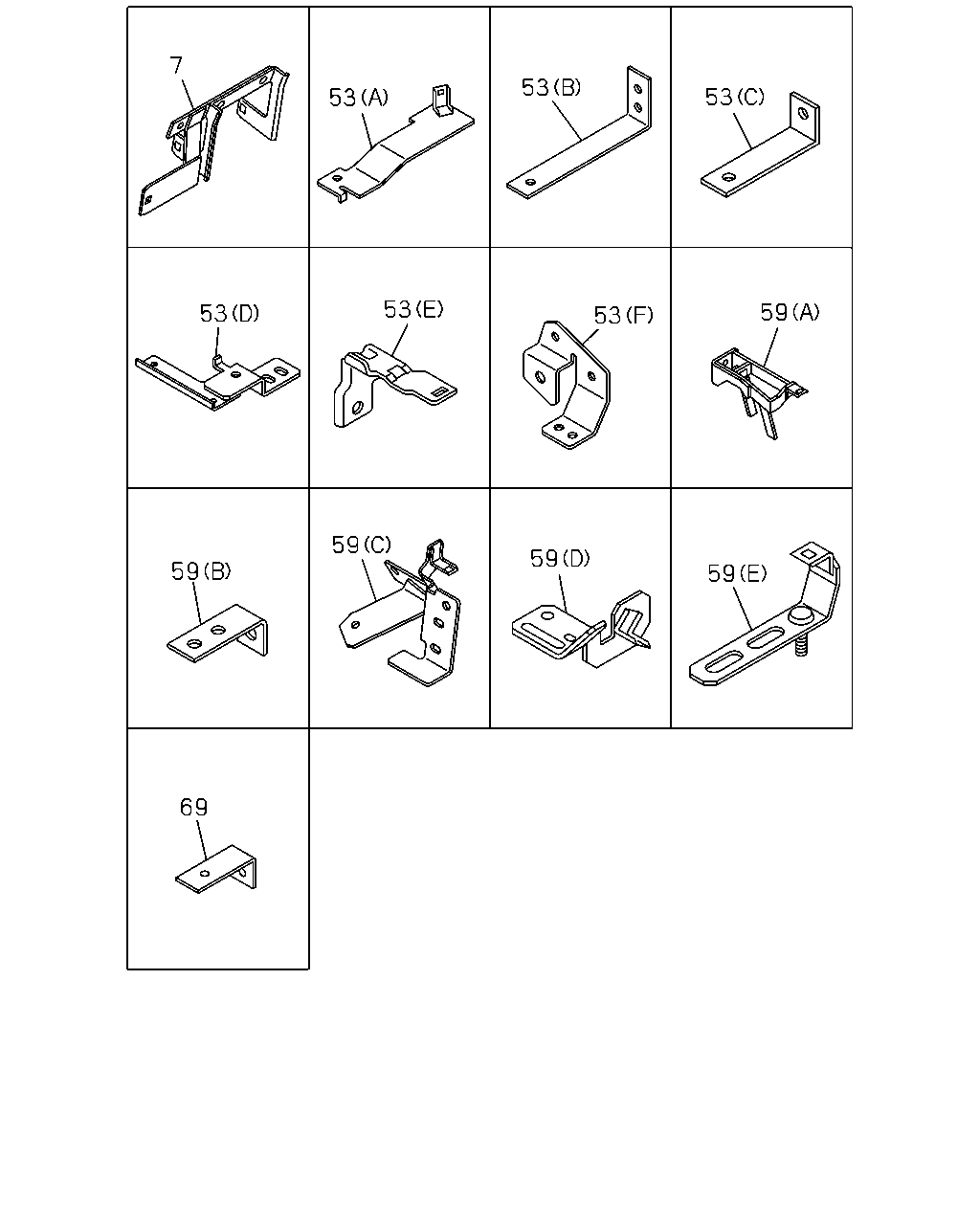

7 53 53 53 59 53 53 53 59 59 59 59 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1010-	●	●
53	BRACKET; HARNESS (C) L=95	1-82699-085-0	04	1	1010-1306	●
53	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=95	1-82699-085-0	04	1	1010-1306		●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	1010-1306	●	●
53	BRACKET; HARNESS (D)	8-97620-485-0	01	1	1010-	●	●
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	1010-1306	●	●
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	1307-	●	●
53	BRACKET; HARNESS (A)	8-98107-610-1	01	1	1010-1306	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F)	8-98084-590-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS WHEEL BASE 4200MM(42W) (B) L=62	1-21464-170-2	01	1	1010-		●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55	1-47475-304-0	01	1	1010-	●	●

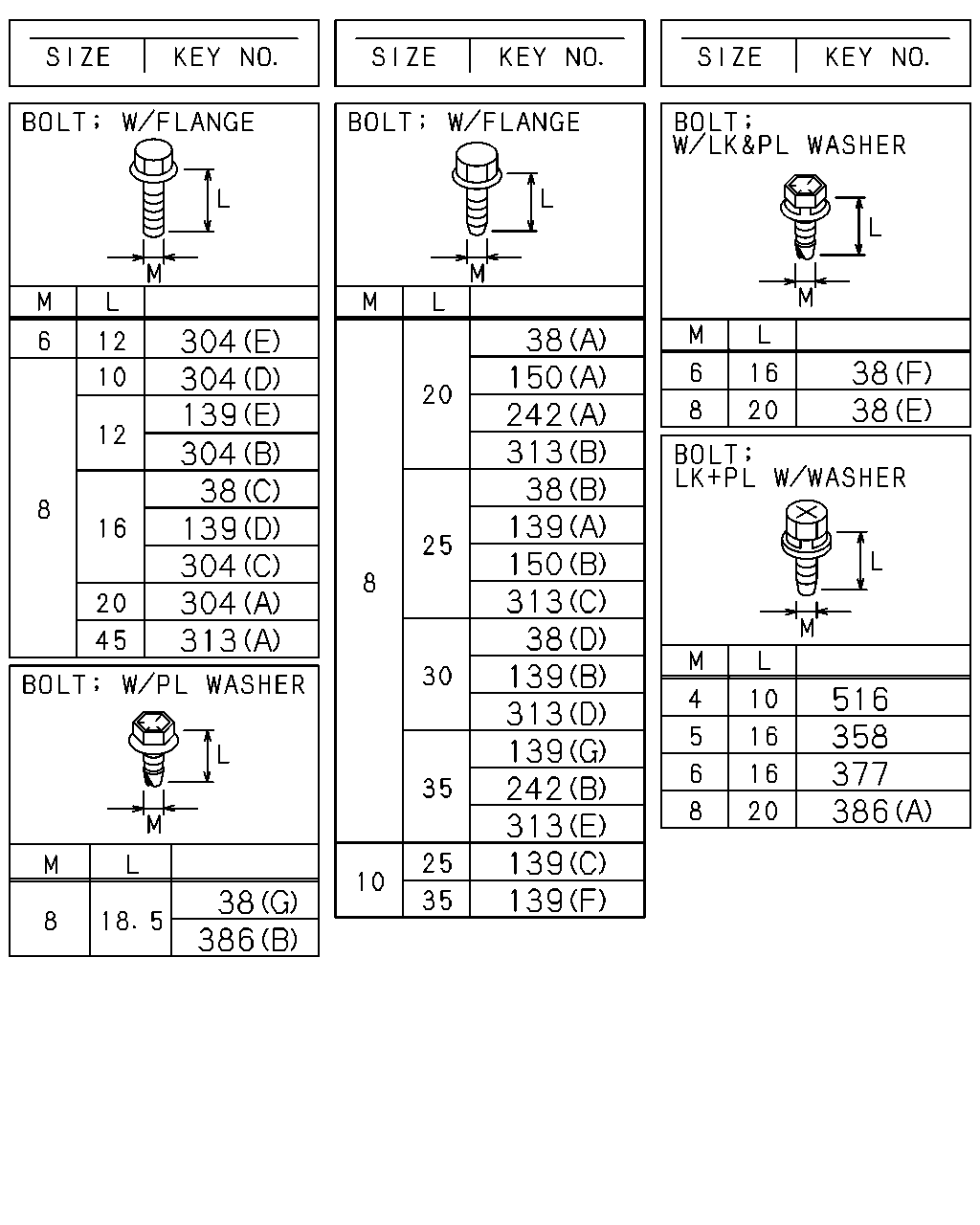

304 139 304 38 304 313 304 139 304 139 313 150 139 38 139 242 313 139 139 313 313 242 150 38 38 38 386 377 386 358 516 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS A/T<X9D> (F) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (F) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1307-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (D) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306		●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1307-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1010-1201	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1010-1201	●	●
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3060P A/T(Y4G) (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1010-1306	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1307-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1010-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1010-1306	●	●
139	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1010-1306	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1307-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1306	●	●
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	1010-		●
139	BOLT; BRKT WHEEL BASE 4200MM(42W) (G) M8X35 FLANGE	0-28650-835-0	01	1	1010-		●
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●	●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
242	BOLT; BRKT,HARNESS (B) M8X35 FLANGE	0-28650-835-0	01	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	1010-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1010-	●	●
313	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	04	1	1010-1306	●
313	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M8X30 FLANGE	0-28650-830-0	04	1	1010-1306		●
313	BOLT; BRKT (A) M8X45 FLANGE	0-28050-845-0	01	1	1010-1306	●	●
313	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●	●
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	1010-1306	●	●
313	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1010-1306	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1010-1306	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1307-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1010-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1010-	●	●

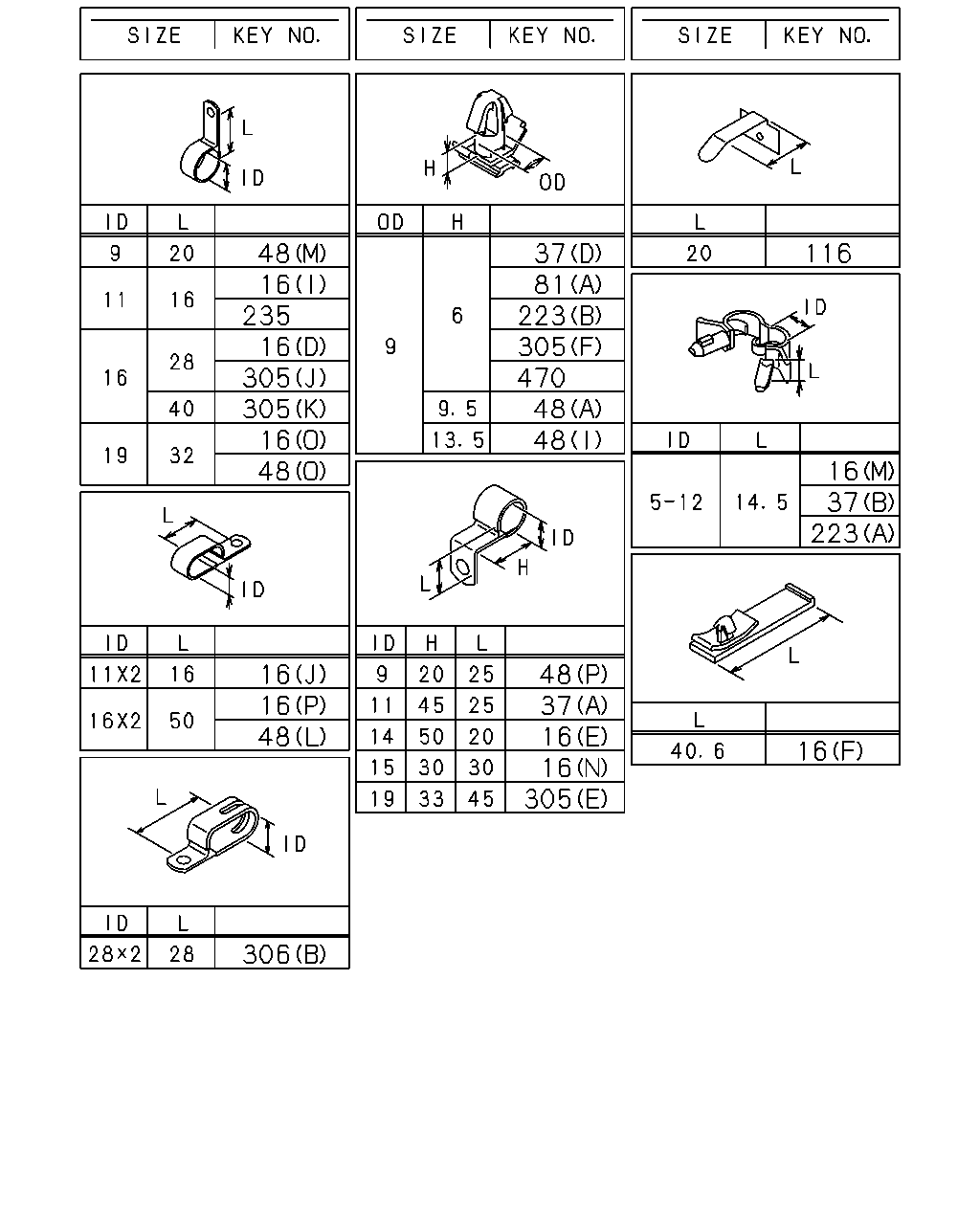

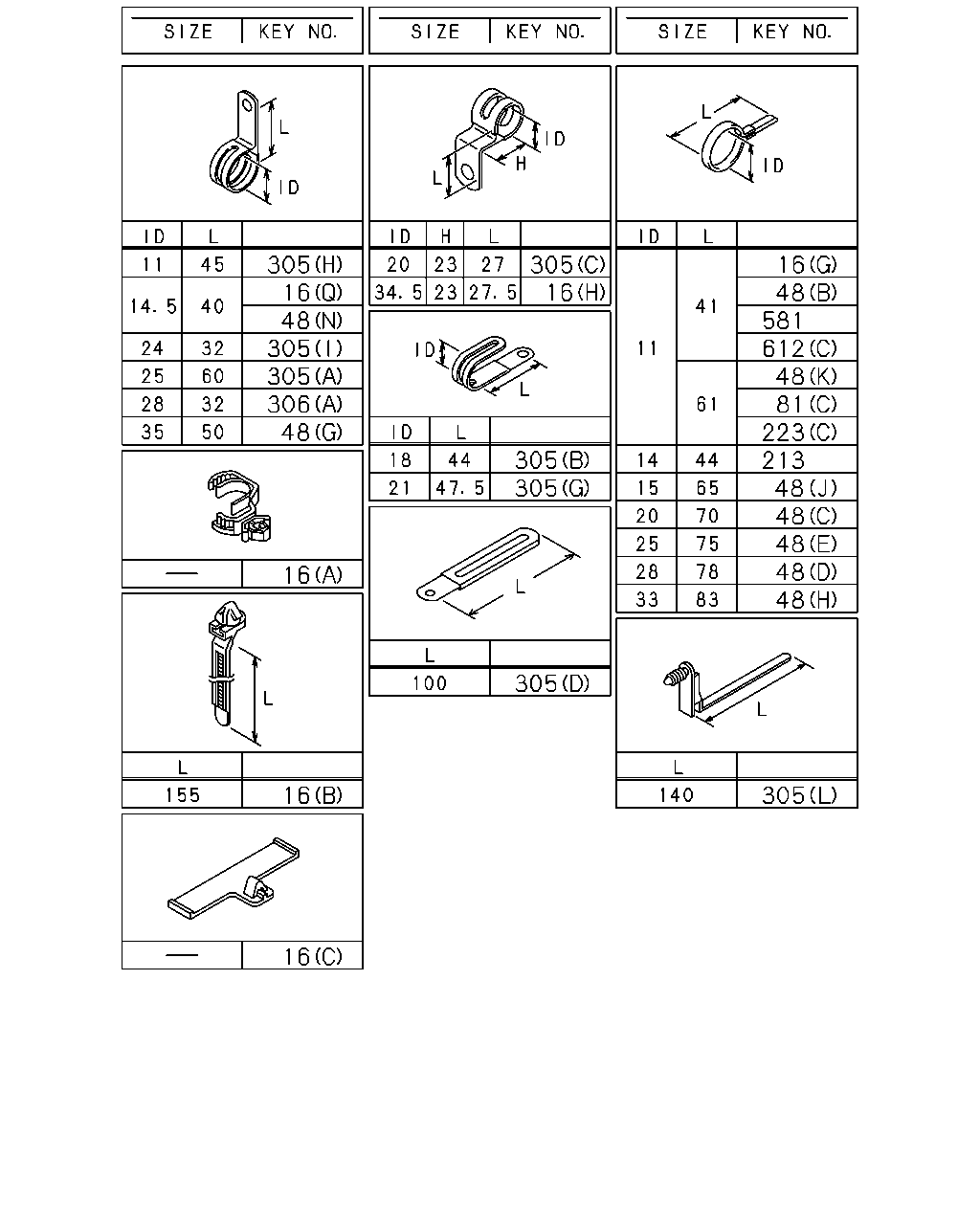

305 48 16 305 306 305 48 16 16 16 305 305 16 305 305 16 581 48 612 81 213 48 223 48 48 48 48 305 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-	●	●
16	CLIP; HARNESS ALLISON MD3060P A/T(Y4G) (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	03	1	1010-1306	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G) ID=11 L=41	1-09700-403-0	03	1	1010-1306		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (P) ID=16X2 L=50	0-95325-586-0	01	1	1307-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1307-	●	●
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40	1-09701-014-0	01	1	1307-	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-1306	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1010-		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (C) ID=20 L=70	1-09700-485-0	18	1	1209-1306		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	05	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=11 L=41	1-09700-403-0	05	1	1010-1306		●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	04	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	04	1	1010-1306		●
48	CLIP; FRAME HARNESS (E) ID=25 L=75	1-09701-275-0	02	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) ID=25 L=75	1-09701-275-0	02	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	08	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	09	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	09	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=20 L=70	1-09700-485-0	13	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	11	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (C) ID=20 L=70	1-09700-485-0	17	1	1010-1306	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (M) ID=9 L=20	0-95234-835-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (O) ID=19 L=32	0-95235-866-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (P) ID=9 H=20 L=25	1-09701-073-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=11 L=61	1-09700-484-0	06	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (K) ID=11 L=61	1-09700-484-0	05	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (J) ID=15 L=65	1-09700-466-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	04	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (J) ID=15 L=65	1-09700-466-0	05	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	07	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=20 L=70	1-09700-485-0	14	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 4200MM(42W) (C) ID=11 L=61	1-09700-484-0	01	1	1010-1306		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1010-	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	04	1	1010-1306	●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 L=41	1-09700-403-0	04	1	1010-1306		●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 4200MM(42W) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
612	CLIP; HARNESS DPD (B) L=135	1-09987-143-1	02	1	1010-1309	●	●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	01	1	1010-1306	●	●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309		●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309		●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1310-		●

48 16 16 305 16 235 48 305 16 16 48 306 48 37 16 16 305 48 48 470 305 223 81 37 116 16 223 37 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-	●	●
16	CLIP; HARNESS ALLISON MD3060P A/T(Y4G) (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	03	1	1010-1306	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G) ID=11 L=41	1-09700-403-0	03	1	1010-1306		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (P) ID=16X2 L=50	0-95325-586-0	01	1	1307-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1307-	●	●
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40	1-09701-014-0	01	1	1307-	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-1306	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1010-		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (C) ID=20 L=70	1-09700-485-0	18	1	1209-1306		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	05	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=11 L=41	1-09700-403-0	05	1	1010-1306		●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	04	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	04	1	1010-1306		●
48	CLIP; FRAME HARNESS (E) ID=25 L=75	1-09701-275-0	02	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) ID=25 L=75	1-09701-275-0	02	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	08	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	09	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	09	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=20 L=70	1-09700-485-0	13	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	11	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (C) ID=20 L=70	1-09700-485-0	17	1	1010-1306	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (M) ID=9 L=20	0-95234-835-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (O) ID=19 L=32	0-95235-866-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (P) ID=9 H=20 L=25	1-09701-073-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=11 L=61	1-09700-484-0	06	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (K) ID=11 L=61	1-09700-484-0	05	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (J) ID=15 L=65	1-09700-466-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	04	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (J) ID=15 L=65	1-09700-466-0	05	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	07	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=20 L=70	1-09700-485-0	14	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1010-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 4200MM(42W) (C) ID=11 L=61	1-09700-484-0	01	1	1010-1306		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1010-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1010-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●	●

16 48 14 16 37 81 183 194 206 208 217 225 491 612 530 612 14 538 503 1 1 178 178 596

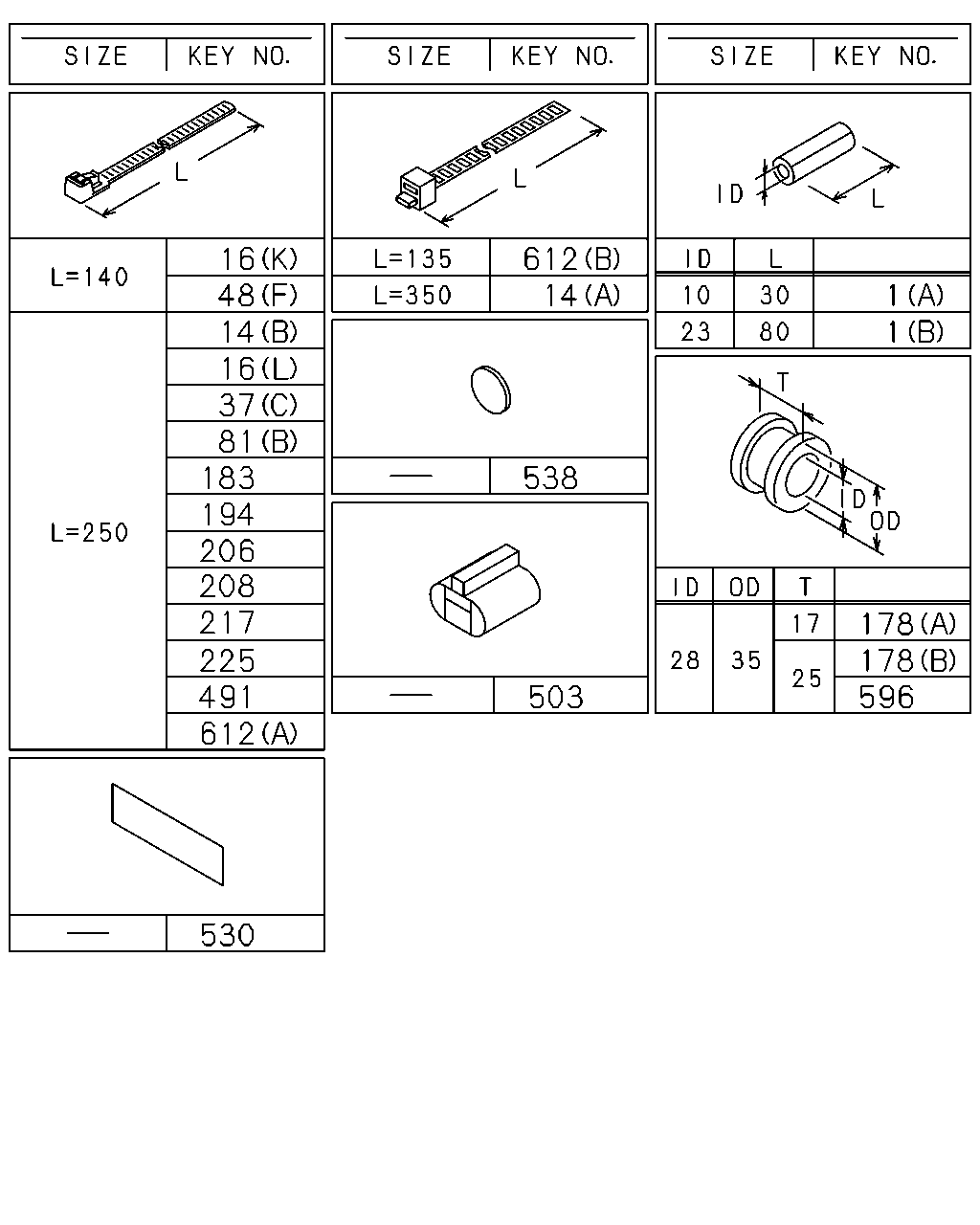

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1010-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1010-	●	●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1010-	●	●
14	CLIP; BAND,HARNESS ALLISON MD3060P A/T(Y4G) (B) L=250	5-09707-030-1	14	1	1010-1205	●	●
14	CLIP; BAND,HARNESS ALLISON MD3060P A/T(Y4G) (B) L=250	8-98216-430-0	14	1	1206-	●	●
14	CLIP; BAND,HARNESS ZF9S1110 M/T(Y5E) (B) L=250	5-09707-030-1	13	1	1010-1205	●	●
14	CLIP; BAND,HARNESS ZF9S1110 M/T(Y5E) (B) L=250	8-98216-430-0	13	1	1206-	●	●
16	CLIP; HARNESS (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-	●	●
16	CLIP; HARNESS ALLISON MD3060P A/T(Y4G) (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	03	1	1010-1306	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G) ID=11 L=41	1-09700-403-0	03	1	1010-1306		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (P) ID=16X2 L=50	0-95325-586-0	01	1	1307-	●	●
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1307-	●	●
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40	1-09701-014-0	01	1	1307-	●	●
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1010-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-1306	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1010-		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (C) ID=20 L=70	1-09700-485-0	18	1	1209-1306		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	05	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=11 L=41	1-09700-403-0	05	1	1010-1306		●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	04	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	04	1	1010-1306		●
48	CLIP; FRAME HARNESS (E) ID=25 L=75	1-09701-275-0	02	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) ID=25 L=75	1-09701-275-0	02	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	08	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	09	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	09	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=20 L=70	1-09700-485-0	13	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (J) ID=15 L=65	1-09700-466-0	11	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (C) ID=20 L=70	1-09700-485-0	17	1	1010-1306	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (B) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1010-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (M) ID=9 L=20	0-95234-835-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (O) ID=19 L=32	0-95235-866-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3060P A/T(Y4G) (P) ID=9 H=20 L=25	1-09701-073-0	01	1	1010-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=11 L=61	1-09700-484-0	06	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (K) ID=11 L=61	1-09700-484-0	05	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (J) ID=15 L=65	1-09700-466-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	04	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (J) ID=15 L=65	1-09700-466-0	05	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (J) ID=15 L=65	1-09700-466-0	07	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=20 L=70	1-09700-485-0	14	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1010-1306	●	●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-		●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-		●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1010-1306	●	●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1010-1306	●	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	1010-1306	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1010-1306	●	●
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1010-1306	●
208	CLIP; HARNESS,MAG VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	01	1	1010-1306		●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1010-1306	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	01	1	1010-1306	●
225	CLIP; AIR TANK HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	01	1	1010-1306		●
225	CLIP; AIR TANK HARNESS WHEEL BASE 4200MM(42W) L=250	5-09707-030-1	03	1	1010-1306		●
225	CLIP; AIR TANK HARNESS WHEEL BASE 4200MM(42W) L=250	5-09707-030-1	04	1	1010-1306		●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	07	1	1010-	●	●
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1010-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1010-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1010-1305	●	●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1010-1306	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1307-	●	●
596	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1010-1306	●	●
612	CLIP; HARNESS DPD (B) L=135	1-09987-143-1	02	1	1010-1309	●	●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	01	1	1010-1306	●	●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309		●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309		●
612	CLIP; HARNESS DPD WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	01	1	1310-		●

524 219 294 525 294 47 139 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1010-1306	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1307-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1010-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1010-1306	●	●
139	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1010-1306	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1307-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1306	●	●
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	1010-		●
139	BOLT; BRKT WHEEL BASE 4200MM(42W) (G) M8X35 FLANGE	0-28650-835-0	01	1	1010-		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1010-1306	●
294	NUT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE	0-91180-108-0	04	1	1010-1306		●
294	NUT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	01	1	1307-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT WHEEL BASE 4200MM(42W) (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1307-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1010-1306	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1010-1306	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1307-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1010-	●	●

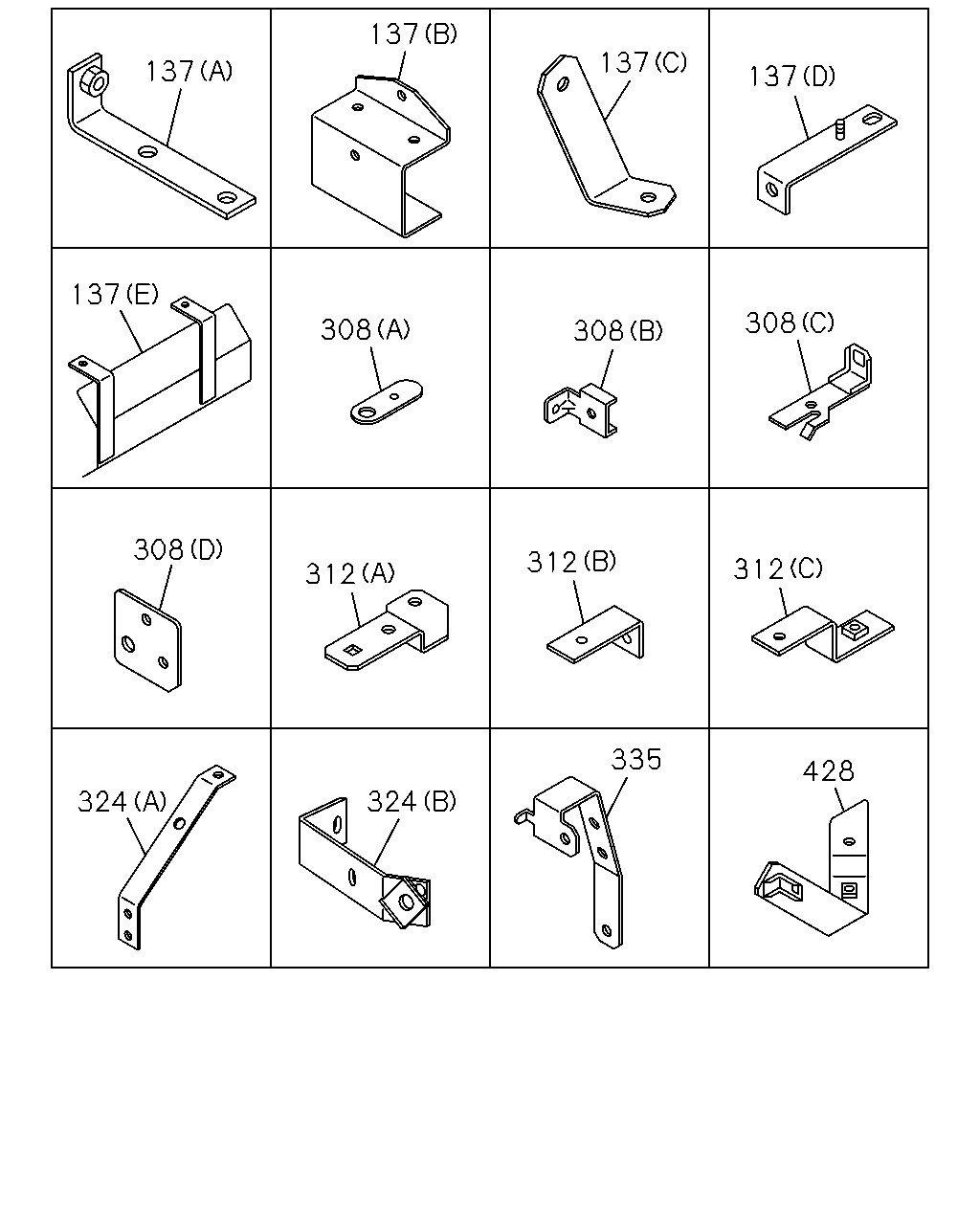

137 137 137 137 308 308 308 137 308 312 312 312 428 335 324 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (E)	8-98073-436-0	01	1	1307-1406	●	●
137	BRACKET; HARNESS CLAMP (E)	8-98255-001-0	01	1	1407-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (D)	8-97624-013-0	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (A)	1-82698-140-0	01	1	1010-		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1010-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1010-	●	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1010-1306	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1010-1306	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	1010-1306	●	●
324	BRACKET; CLIP (A)	1-47479-430-0	02	1	1010-1306	●	●
324	BRACKET; CLIP (B)	8-98210-921-1	01	1	1307-	●	●
324	BRACKET; CLIP (B)	8-98210-922-1	01	1	1307-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1010-1306	●	●
428	BRACKET	8-97620-514-0	01	1	1010-1306	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
