Sayfa 7-42 - Isuzu EPC

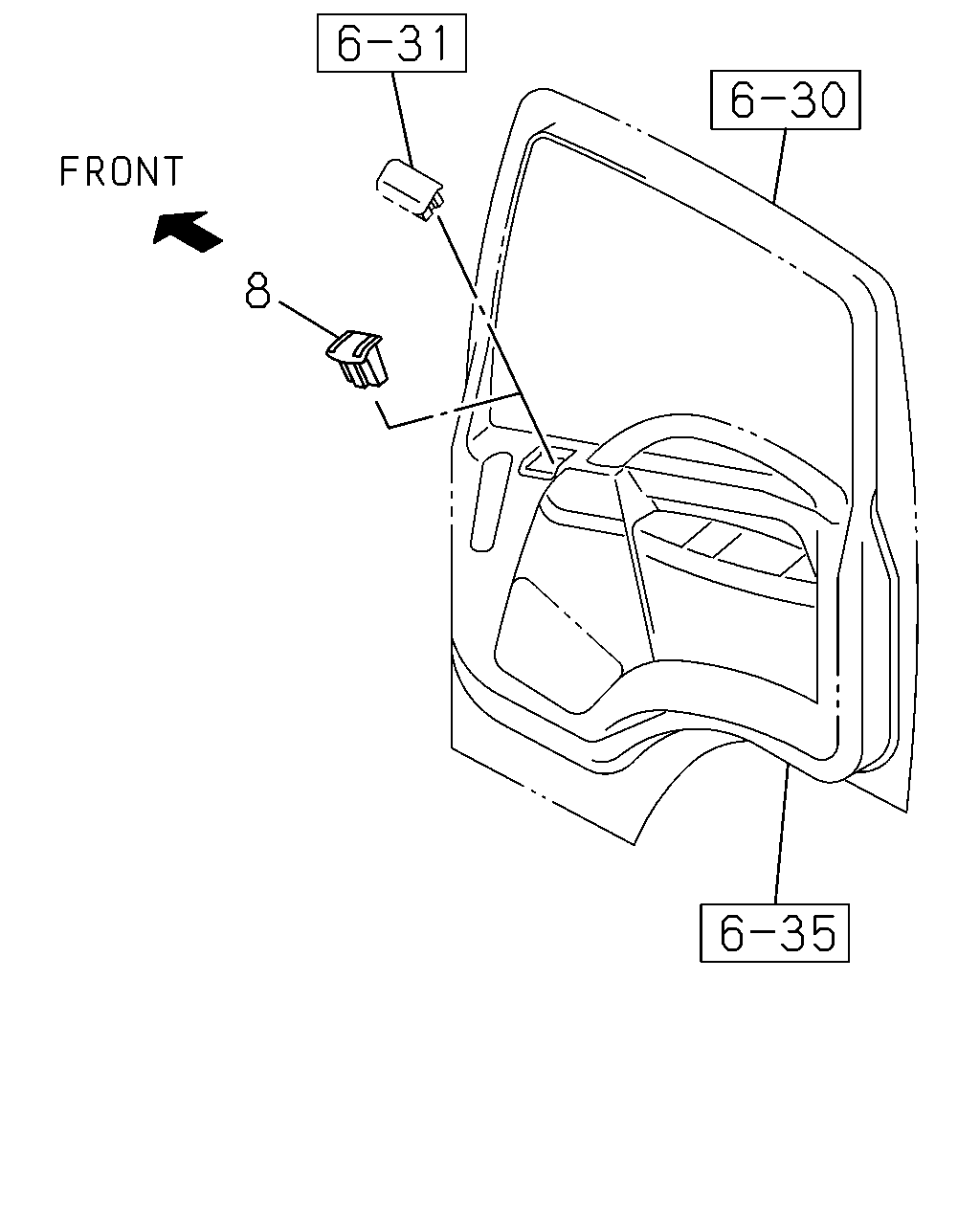

7-42 — ASH TRAY (#58434) — 6 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	TRAY ASM; ASH ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-320-1	02	1	1010-1306	●	●
8	TRAY ASM; ASH ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-320-1	01	1	1307-1312	●	●
8	TRAY ASM; ASH ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-320-1	01	1	1307-1312	●	●
8	TRAY ASM; ASH GRAY	8-97405-320-1	01	1	1401-	●	●
8	TRAY ASM; ASH ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-320-1	01	1	1401-	●	●
8	TRAY ASM; ASH EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-320-1	01	1	1010-1306	●	●
