◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#58433) — 187 parça
çizim 172112
564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1010- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1010-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1010- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1010- ● ●
564 COVER; SW 8-97043-732-1 02 1 1010- ● ●

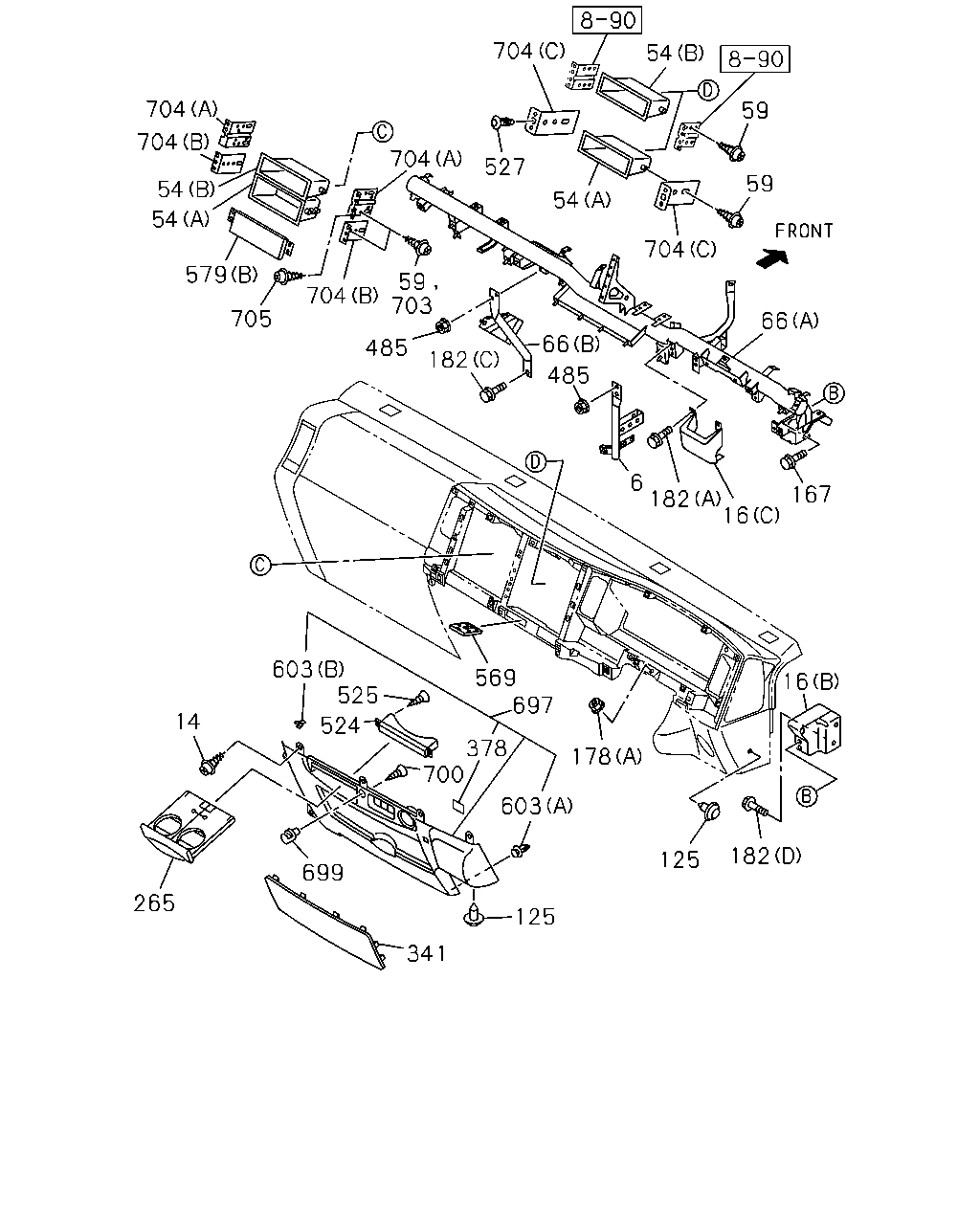

çizim 172131
704 704 54 579 54 705 704 485 59 182 703 54 527 704 704 54 59 59 704 66 167 16 182 6 16 182 125 178 603 378 700 697 569 525 603 14 699 265 341 125 524 485 66
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1010-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1010- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98180-277-1 01 1 1010- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1010- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1010- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1010- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1010- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1010- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-2 01 1 1010-1209 ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 1010-1209 ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-2 01 1 1210-1306 ● ●
54 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD<8PG> (A) H=69.8 BLACK 		8-97408-865-2 01 1 1210-1306 ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-3 01 1 1307- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1209 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1209 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1209 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1010-1209 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-700-1 01 1 1010-1105 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-905-1 01 1 1106-1306 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-608-0 01 1 1307- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-701-1 01 1 1010-1105 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-904-1 01 1 1106-1306 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-609-0 01 1 1307- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 1010- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 1010- ● ●
125 CLIP; INST PANEL
GRAY 		8-97408-817-0 04 1 1010- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1010-1306 ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1307- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1010- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1010-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1010-1306 ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1307- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1010- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1010-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1010- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 1010- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1010- ● ●
579 COVER; INST PNL
(B) BLACK 		8-97466-735-0 01 1 1508- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 1010- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1010- ● ●
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1010- ● ●
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1010- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1010- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1010- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1010- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1010-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1010- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1010- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1010-1209 ● ●
704 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> (B) 		8-97585-616-2 02 1 1210-1306 ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1010-1306 ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1307- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 1010- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1010-1209 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-1306 ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-1306 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1010- ● ●

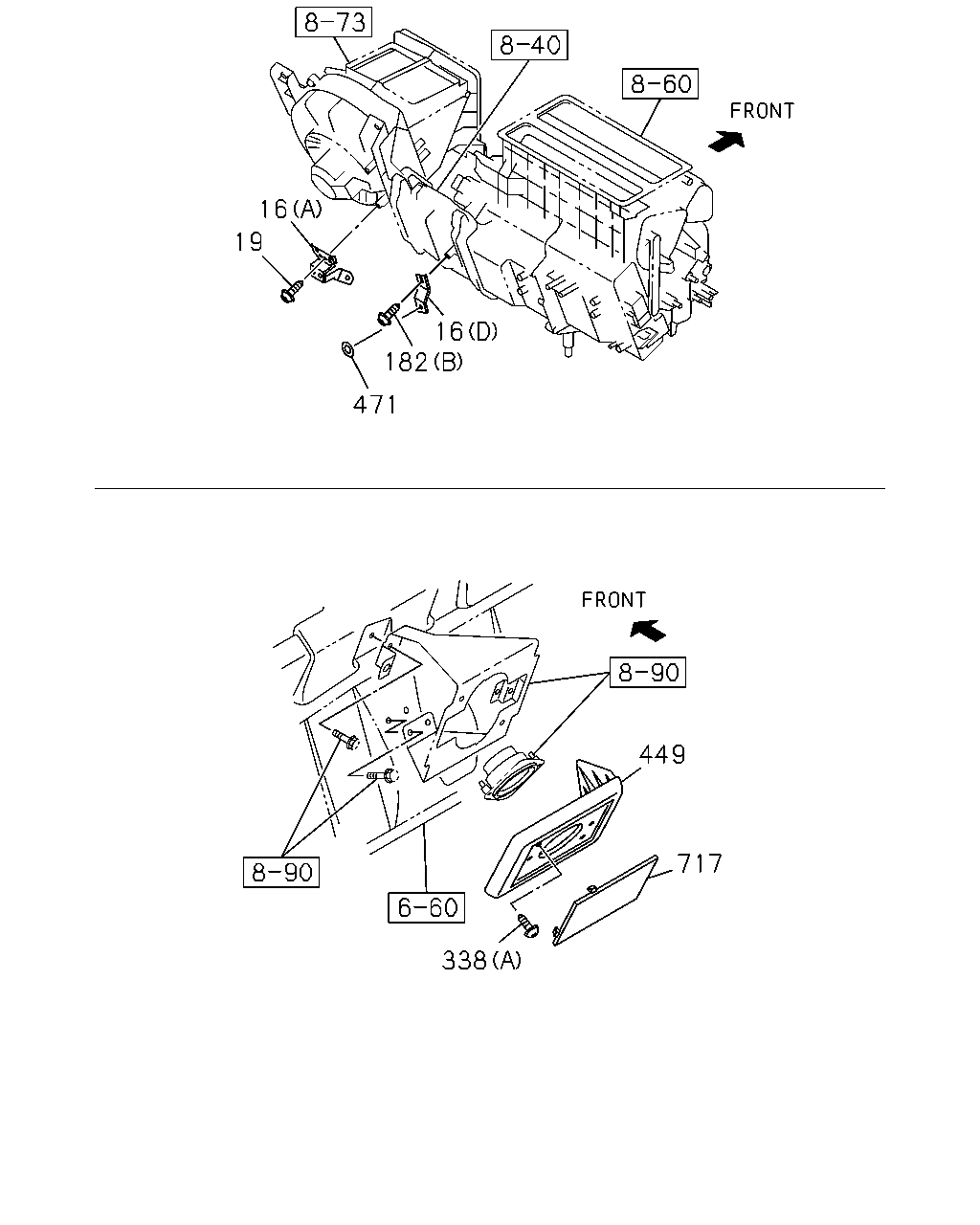

çizim 172142
338 717 449 471 182 16 19 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98180-277-1 01 1 1010- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1010- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1010- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1010- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1010- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1010-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1010-1306 ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1307- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1010- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 1010-1308 ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 1010-1308 ● ●
471 WASHER; PL 8-98179-641-0 02 1 1010- ● ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 1010-1308 ● ●

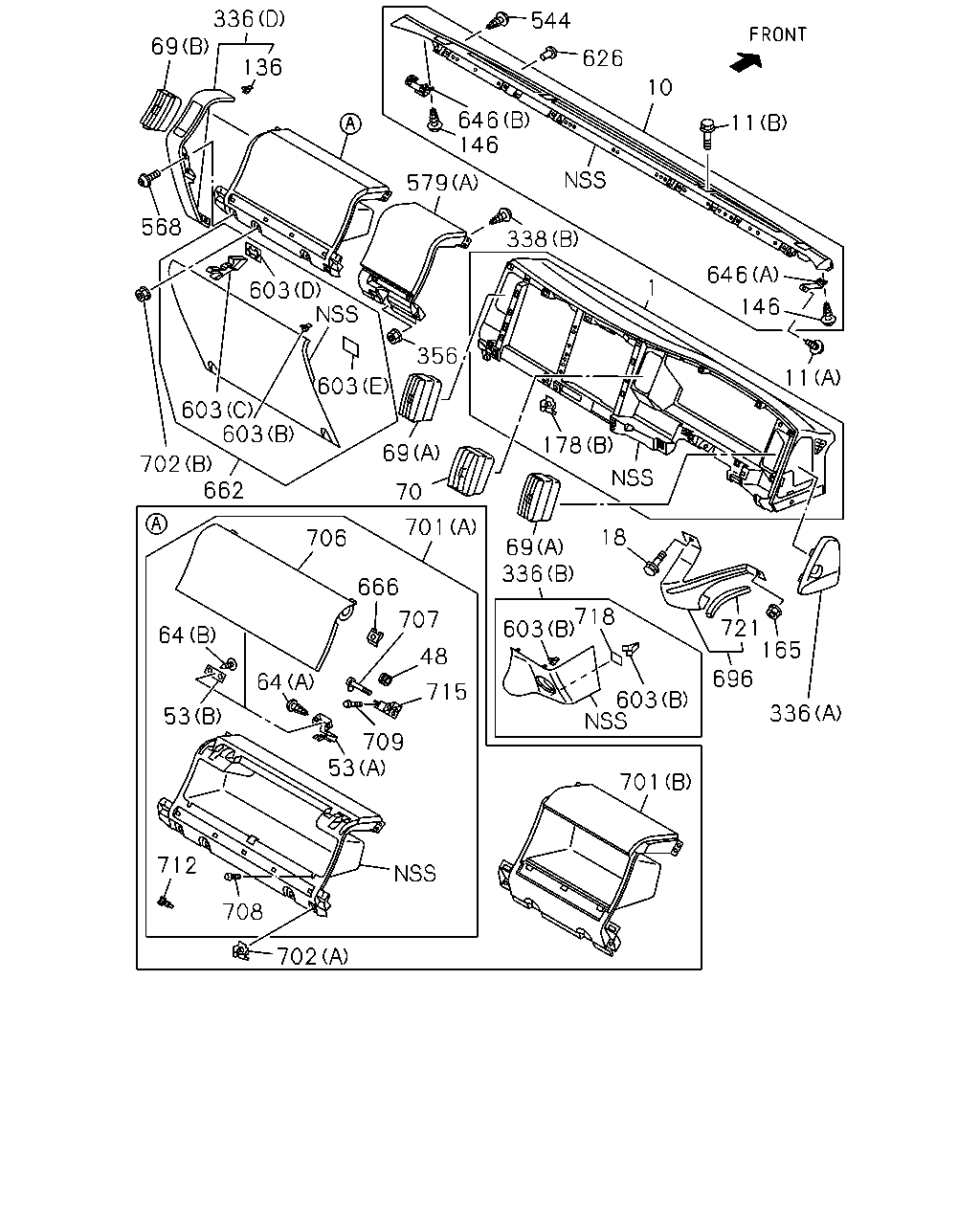

çizim 172153
336 69 136 568 603 603 603 356 603 69 702 706 662 70 666 701 69 336 603 18 178 1 721 165 696 336 701 603 718 11 715 48 707 709 53 702 708 712 53 64 64 646 11 146 10 626 544 646 579 338 146
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1010- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1010- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1010- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1010- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1010- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1010-1101 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1102-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1010-1101 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1102-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1010-1101 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1102-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1010-1101 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1102-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1010- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1010- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1010- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1010- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1010- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1010- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1010-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1010- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1010- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1010- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 1010-1308 ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010-1306 ● ●
544 SCREW; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ● ●
544 SCREW; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ● ●
568 BOLT; COVER
M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1010- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1010-1306 ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307- ● ●
579 COVER; INST PNL
(B) BLACK 		8-97466-735-0 01 1 1508- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 1010- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1010- ● ●
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1010- ● ●
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1010- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1010- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1010- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1010- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1010- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1010- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1010- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97422-092-2 01 1 1010- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1010-1101 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1102-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1010- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 1010-1101 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1102- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 1010-1101 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1102-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1010-1306 ● ●
702 NUT; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1010-1306 ● ●
702 NUT; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98037-629-0 01 1 1307- ● ●
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98037-629-0 01 1 1307- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1010-1101 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1102-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1010-1101 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1102-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1010-1101 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1102- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1010-1101 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1102- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1010-1101 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1102- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1010-1101 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1102-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1010-1101 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1102-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1010- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
