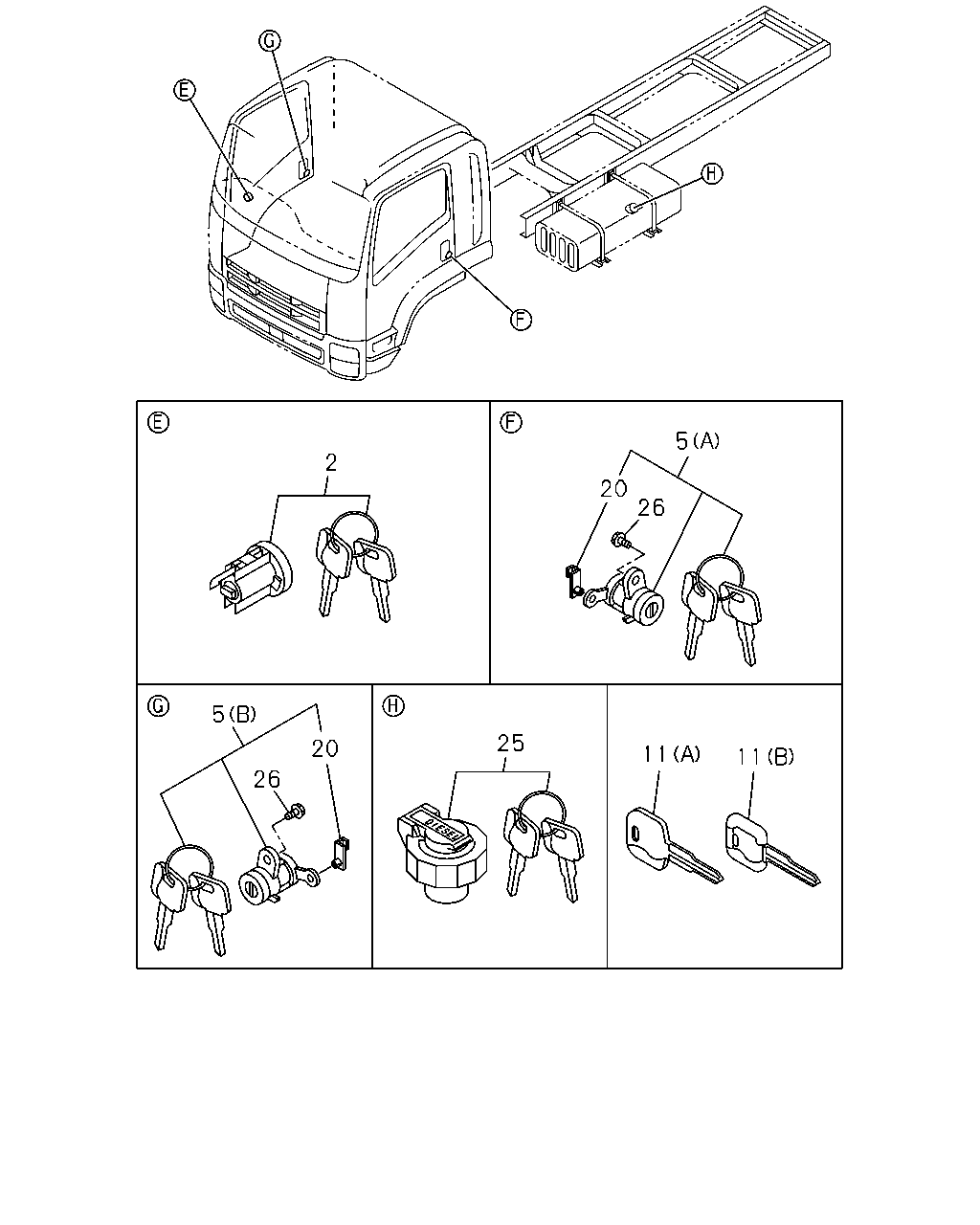

7-30 — LOCK CYLINDER SET (#58432) — 14 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98145-977-0	01	1	1010-1203	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98201-214-0	01	1	1204-	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK 400L<SDH> (B)	8-98041-686-1	01	1	1010-1203	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK 400L<SDH> (B)	8-98201-160-0	01	1	1204-	●	●

2 5 20 26 5 20 26 25 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-147-0	01	1	1010-1203	●	●
2	BARREL ASM; W/KEY,STRG LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98201-341-0	01	1	1204-	●	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B)	8-98055-149-0	01	1	1010-	●	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (A)	8-98055-150-0	01	1	1010-	●	●
11	KEY; BLANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B) IMMOBILIZER	8-98055-168-0	AR	1	1010-	●	●
11	KEY; BLANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (A)	8-98055-170-0	AR	1	1010-	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	1010-	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	1010-	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK 200L FRAME SIDE<N20>	8-98146-010-0	01	1	1010-	●	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1010-	●	●
