◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#58430) — 14 parça
çizim 172091
160 49 35
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 1010- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1010- ● ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 1010- ● ●

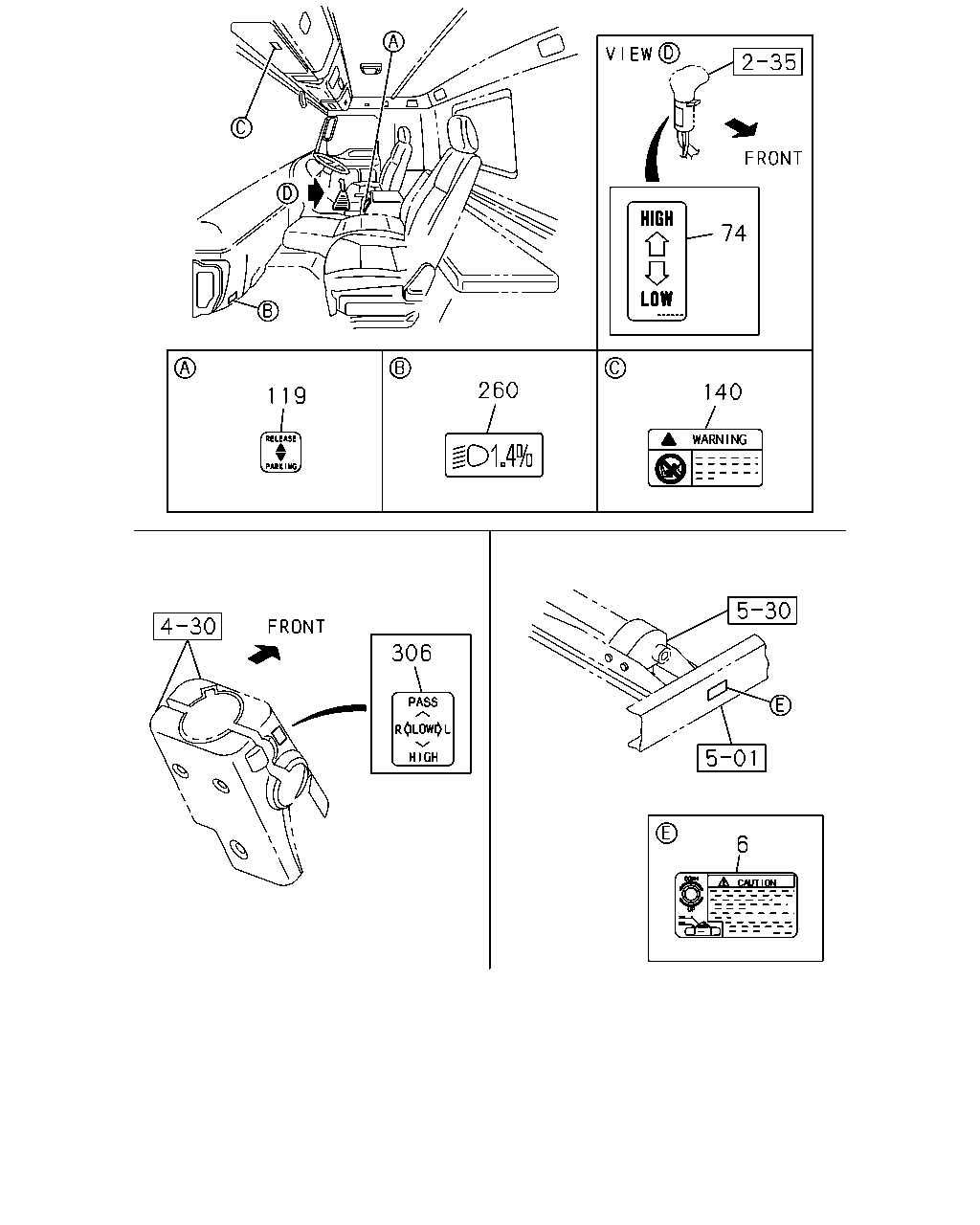

çizim 172128
74 119 260 140 6 306
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1010-1107 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1010-1107 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 1108- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1108- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 1010-1306 ● ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) 		8-98118-493-0 01 1 1307- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1010- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1010- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1010-1306 ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1307- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1010- ● ●
