◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#5841) — 69 parça

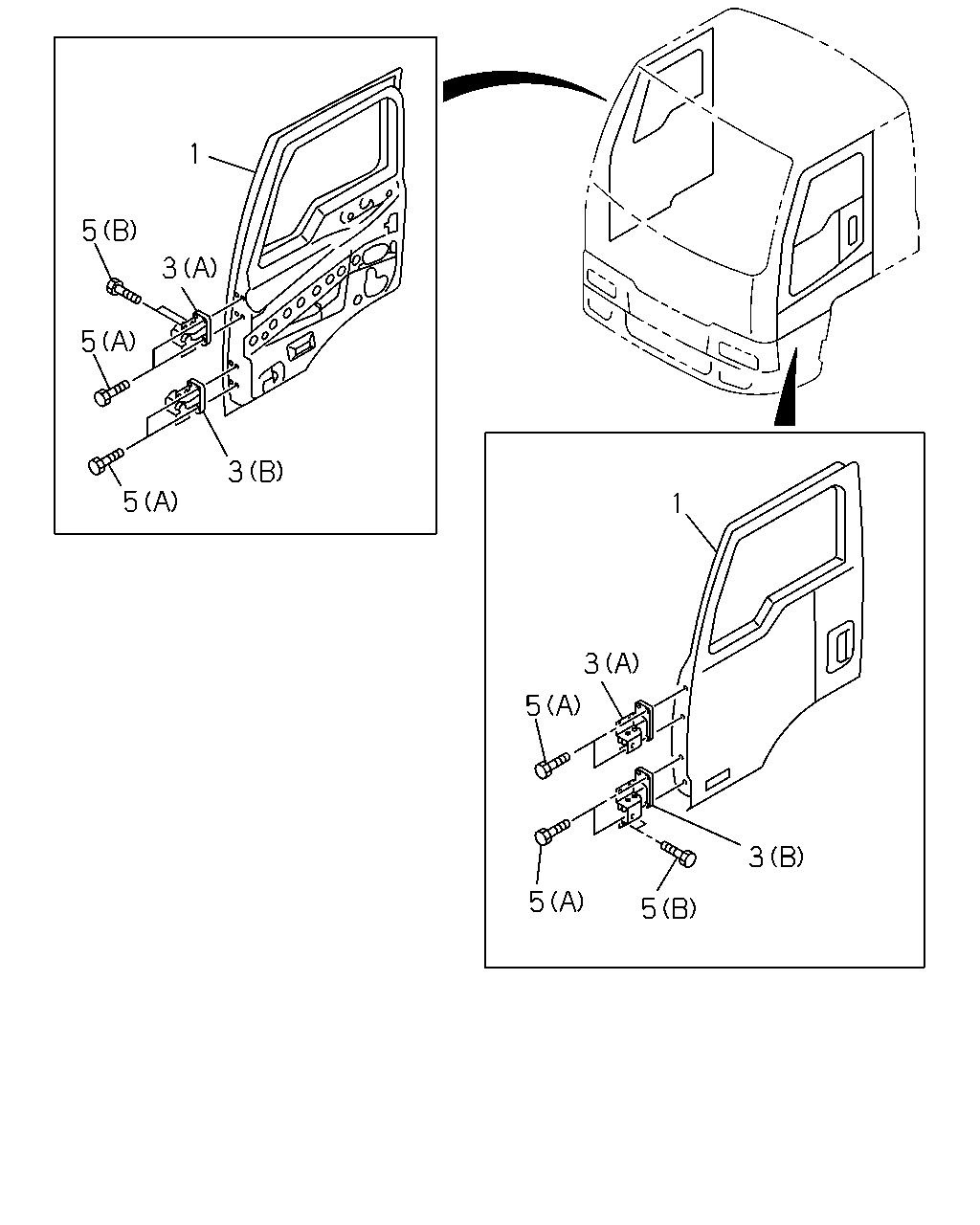

çizim 6295
1 5 3 3 5 1 3 5 3 5 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 1-64080-325-0 01 1 9603-9801 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. KENYA EQUIPMENT(PQ2) 		1-64080-325-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(WH1) 		1-64080-325-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. KENYA EQUIPMENT(PQ2) 		1-64080-390-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(WH1) 		1-64080-390-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-390-0 01 1 9905-0011 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-390-0 01 1 9905-0011 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND EQUIPMENT(PK5) 		1-64080-390-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-390-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER 		1-64080-320-0 01 1 9603-9901 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-389-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-64080-389-0 01 1 9905-0011 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5) 		1-64080-389-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-328-0 01 1 9603-9705 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-328-0 01 1 9706-9901 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-0 01 1 9905-9909 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-0 01 1 9910-0011 ●
1 DOOR ASM; FRT,WO/TRIM
OPENABLE ANGLE DOOR NARROW<NGJ> 		1-64080-392-0 01 1 9910-0011 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-64080-392-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
NEW ZEALAND EQUIPMENT(PK5) 		1-64080-394-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
NEW ZEALAND EQUIPMENT(PK5) 		1-64080-395-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9603-9705 ●
1 DOOR ASM; FRT,WO/TRIM
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-64080-326-0 01 1 9706-9901 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-326-0 01 1 9706-9901 ●
1 DOOR ASM; FRT,WO/TRIM
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-64080-391-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-391-0 01 1 9905-0011 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-0 01 1 9905-0011 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-391-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-2 01 1 0012- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-327-0 01 1 9603-9901 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-393-0 01 1 9902- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER 		1-64080-333-0 01 1 9603-9801 ●
1 DOOR ASM; FRT,WO/TRIM
KENYA EQUIPMENT(PQ2) PRIMER 		1-64080-333-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8> PRIMER 		1-64080-333-0 01 1 9802-9901 ●
1 DOOR ASM; FRT,WO/TRIM
KENYA EQUIPMENT(PQ2) 		1-64080-388-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. SAUDI ARABIA EQUIPMENT(WH1),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-388-0 01 1 9902-9904 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> 		1-64080-388-0 01 1 9905-9909 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-388-0 01 1 9905-9909 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> 		1-64080-388-2 01 1 9910- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-388-2 01 1 9910- ●
3 HINGE; DOOR FRT
KENYA EQUIPMENT(PQ2) (B) 		1-64780-090-2 01 1 9805-9904 ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-64780-090-2 01 1 9905-9909 ●
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> (B) 		1-64780-090-2 01 1 9910-0011 ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> (B) 		1-64780-090-2 01 1 0012- ●
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-64780-090-2 01 1 0012- ●
3 HINGE; DOOR FRT
KENYA EQUIPMENT(PQ2) (A) 		1-64780-091-2 01 1 9805-9904 ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-64780-091-2 01 1 9905-9909 ●
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> (A) 		1-64780-091-2 01 1 9910-0011 ●
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> (A) 		1-64780-091-2 01 1 0012- ●
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-64780-091-2 01 1 0012- ●
3 HINGE; DOOR FRT
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-64780-090-2 02 1 0012- ●
3 HINGE; DOOR FRT
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-64780-091-2 02 1 0012- ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-2 01 1 9603-9909 ● ●
3 HINGE; DOOR FRT
EXC. OPENABLE ANGLE DOOR NARROW<NGJ> (A) UPPER 		1-64780-088-2 01 1 9910-0011 ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-2 01 1 9910-0011 ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) (A) UPPER 		1-64780-088-3 01 1 0012- ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-3 01 1 0012- ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-2 01 1 9603-9909 ● ●
3 HINGE; DOOR FRT
EXC. OPENABLE ANGLE DOOR NARROW<NGJ> (B) LOWER 		1-64780-089-2 01 1 9910-0011 ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-2 01 1 9910-0011 ●
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) (B) LOWER 		1-64780-089-3 01 1 0012- ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-3 01 1 0012- ●
5 BOLT; HINGE
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9603- ● ●
5 BOLT; HINGE
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 9603-0011 ● ●
5 BOLT; HINGE
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0012- ● ●
5 BOLT; HINGE
NEW ZEALAND EQUIPMENT(PK5) (B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0012- ●
