6-03 — RADIATOR GRILLE (#58408) — 176 parça

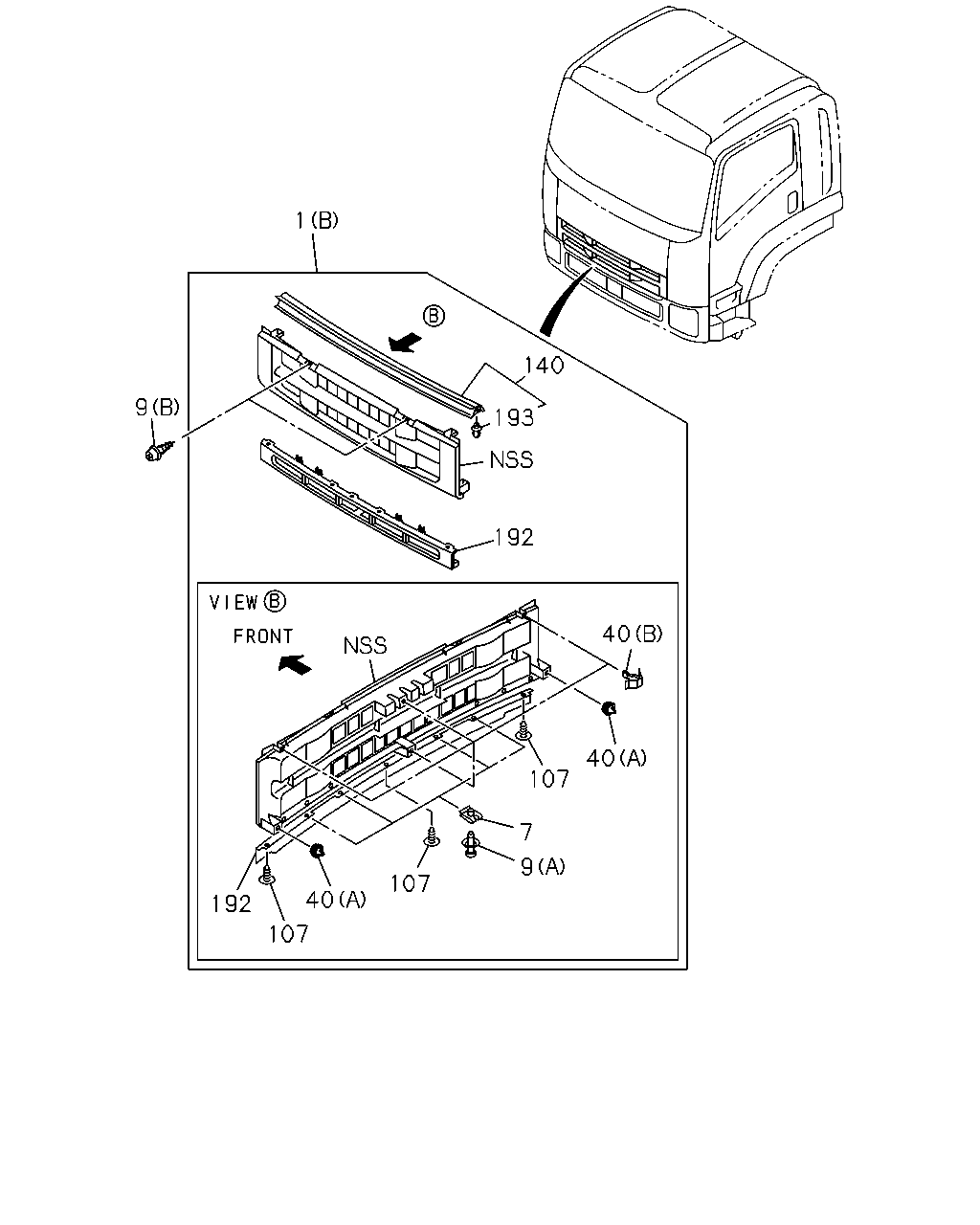

çizim 172109
140 193 192 40 40 107 7 9 107 40 107 192 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-013-6 01 1 1405- ● ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ● ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-015-6 01 1 1401- ● ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97423-772-6 01 1 1203- ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1010- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 1010- ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1010- ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 1010-1306 ● ●
7 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1307-1312 ● ●
7 NUT; SPIRE,RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1307-1312 ● ●
7 NUT; SPIRE,RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1307-1312 ● ●
7 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1401-1404 ● ●
7 NUT; SPIRE,RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1401-1404 ● ●
7 NUT; SPIRE,RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1401-1404 ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 1405- ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1010-1306 ● ●
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1307-1312 ● ●
9 SCREW; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1307-1312 ● ●
9 SCREW; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1307-1312 ● ●
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1401-1404 ● ●
9 SCREW; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1401-1404 ● ●
9 SCREW; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1401-1404 ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1405- ● ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1010-1306 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1405- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1010-1306 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1405- ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 1010-1306 ● ●
107 RIVET; ROCKER CVR
BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1307-1312 ● ●
107 RIVET; ROCKER CVR
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1307-1312 ● ●
107 RIVET; ROCKER CVR
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1307-1312 ● ●
107 RIVET; ROCKER CVR
BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1401-1404 ● ●
107 RIVET; ROCKER CVR
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1401-1404 ● ●
107 RIVET; ROCKER CVR
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1401-1404 ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 1405- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1010-1306 ● ●
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1307-1312 ● ●
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1307-1312 ● ●
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1307-1312 ● ●
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1401-1404 ● ●
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1401-1404 ● ●
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1401-1404 ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1405- ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 1010-1306 ● ●
192 EXTENSION; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1307-1312 ● ●
192 EXTENSION; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1307-1312 ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1307-1312 ● ●
192 EXTENSION; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1401-1404 ● ●
192 EXTENSION; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1401-1404 ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1401-1404 ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 1405- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1010-1306 ● ●
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1307-1312 ● ●
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1307-1312 ● ●
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1307-1312 ● ●
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1401-1404 ● ●
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1401-1404 ● ●
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1401-1404 ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1405- ● ●

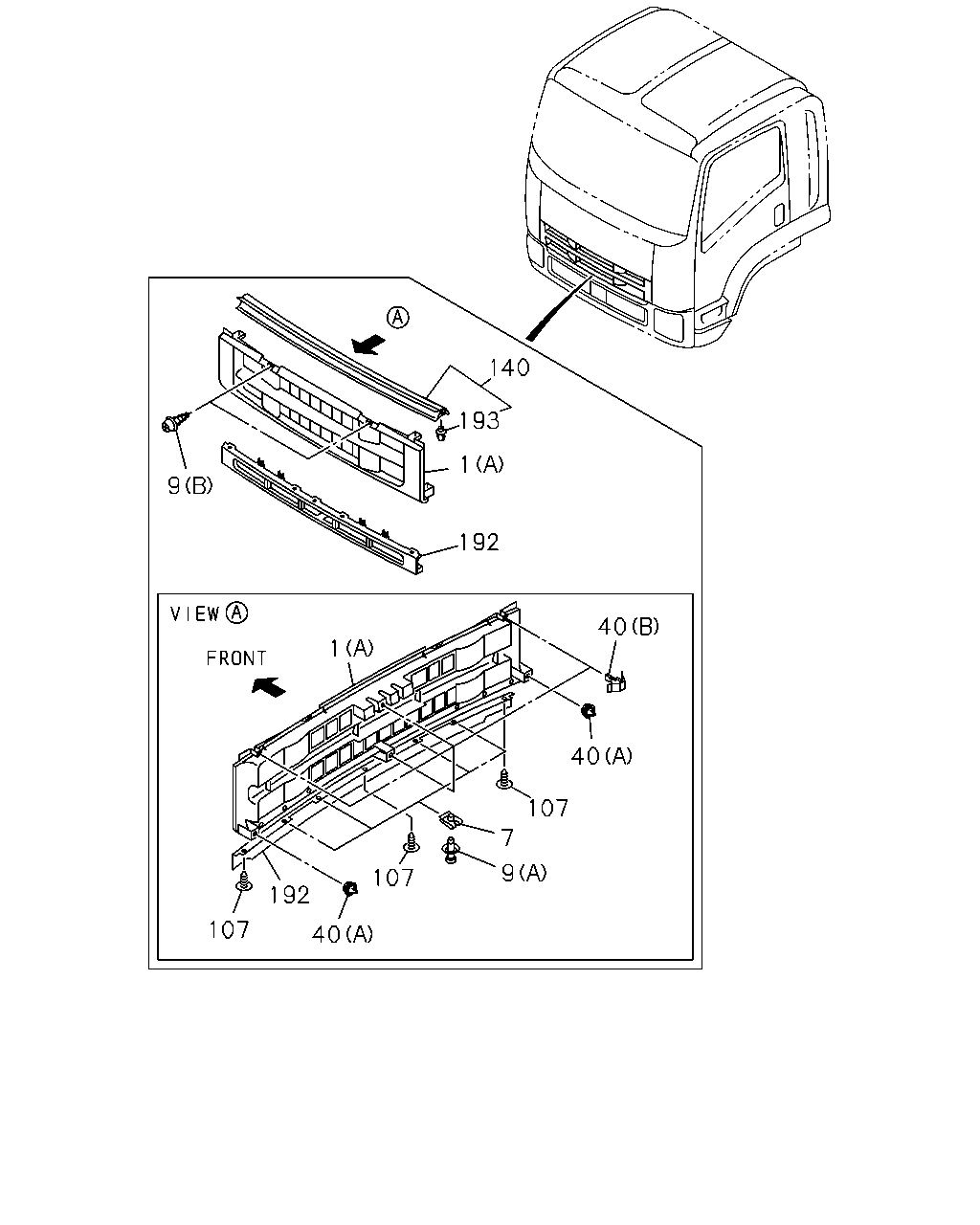

çizim 172175
40 40 192 1 193 140 9 1 107 7 9 107 192 40 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-013-6 01 1 1405- ● ●
1 GRILLE; RAD
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-014-6 01 1 1405- ● ●
1 GRILLE; RAD
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97428-015-6 01 1 1401- ● ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97423-772-6 01 1 1203- ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 1010- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 1010- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 1010- ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 1010- ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 1010-1306 ● ●
7 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1307-1312 ● ●
7 NUT; SPIRE,RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1307-1312 ● ●
7 NUT; SPIRE,RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1307-1312 ● ●
7 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1401-1404 ● ●
7 NUT; SPIRE,RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1401-1404 ● ●
7 NUT; SPIRE,RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 1401-1404 ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 1405- ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1010-1306 ● ●
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1307-1312 ● ●
9 SCREW; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1307-1312 ● ●
9 SCREW; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1307-1312 ● ●
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1401-1404 ● ●
9 SCREW; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1401-1404 ● ●
9 SCREW; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 1401-1404 ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 1405- ● ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1010- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1010-1306 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1405- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1010-1306 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1307-1312 ● ●
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 1401-1404 ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1405- ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 1010-1306 ● ●
107 RIVET; ROCKER CVR
BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1307-1312 ● ●
107 RIVET; ROCKER CVR
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1307-1312 ● ●
107 RIVET; ROCKER CVR
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1307-1312 ● ●
107 RIVET; ROCKER CVR
BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1401-1404 ● ●
107 RIVET; ROCKER CVR
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1401-1404 ● ●
107 RIVET; ROCKER CVR
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 1401-1404 ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 1405- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1010-1306 ● ●
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1307-1312 ● ●
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1307-1312 ● ●
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1307-1312 ● ●
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1401-1404 ● ●
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1401-1404 ● ●
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 1401-1404 ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1405- ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 1010-1306 ● ●
192 EXTENSION; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1307-1312 ● ●
192 EXTENSION; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1307-1312 ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1307-1312 ● ●
192 EXTENSION; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1401-1404 ● ●
192 EXTENSION; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1401-1404 ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 1401-1404 ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 1405- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1010-1306 ● ●
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1307-1312 ● ●
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1307-1312 ● ●
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1307-1312 ● ●
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1401-1404 ● ●
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1401-1404 ● ●
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 1401-1404 ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
