Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#58407) — 213 parça

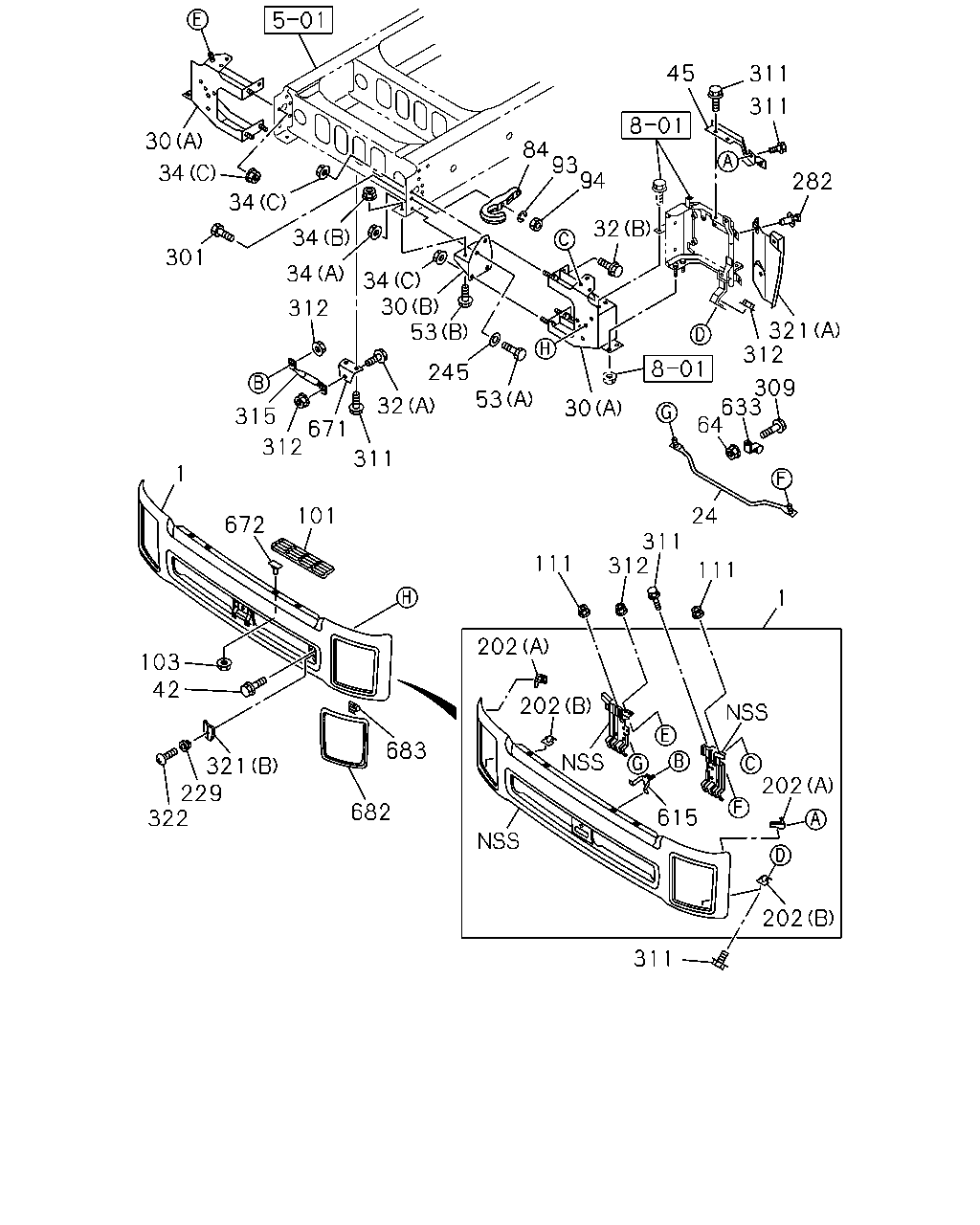

30 301 34 34 315 312 671 34 34 312 34 53 30 245 32 311 1 103 42 321 229 322 672 101 683 682 53 84 32 93 94 45 311 311 282 321 312 309 633 64 30 24 111 311 312 111 202 202 615 202 202 311 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1010-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1010-1306	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1010-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1010-	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1010-1306	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1307-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1010-1306	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1307-	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1010-1306	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1307-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1010-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1010-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1010-1306	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1307-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1010-1306	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1307-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1010-1306	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1307-	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1010-	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1010-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1010-1306	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
84	HOOK	1-57181-027-1	01	1	1010-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1010-1306	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1307-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1010-1306	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1307-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1307-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1307-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1010-1306	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1307-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A)	8-97613-636-0	01	1	1307-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A)	8-97613-637-0	01	1	1307-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B)	8-97613-640-1	01	1	1307-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B)	8-97613-641-1	01	1	1307-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1010-1306	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1307-	●	●
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1010-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1010-1306	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1307-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1010-1306	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1307-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1010-1306	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1307-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1010-1306	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1307-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1010-1306	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1307-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1010-1306	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1307-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1010-1306	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1307-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1306	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1307-	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1010-1306	●	●
615	BRACKET; BUMPER CENTER BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999)	8-97613-643-1	01	1	1307-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1010-1306	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1307-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1010-1306	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1307-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1010-1306	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1307-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1307-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1307-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1010-1306	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1307-	●	●

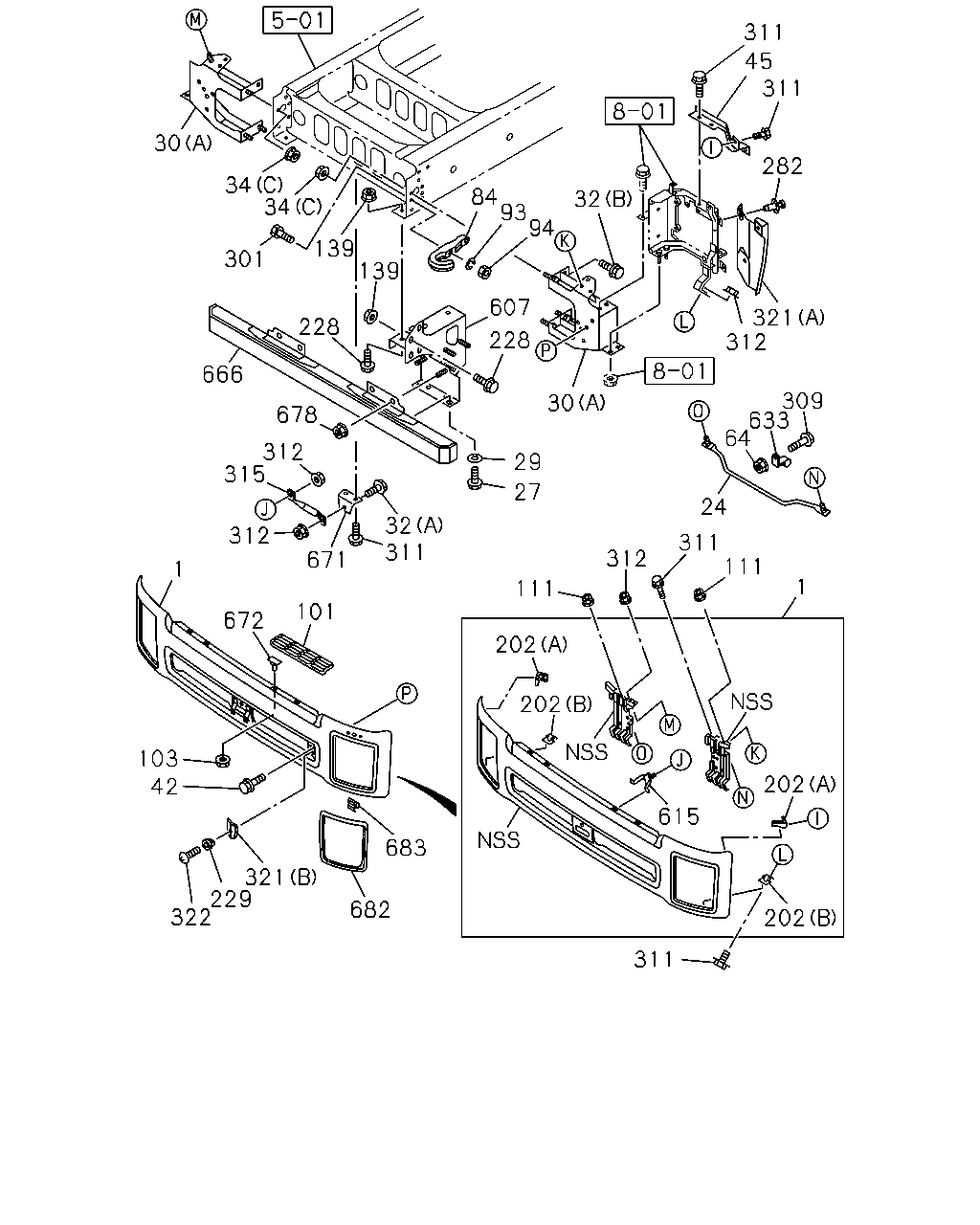

30 301 666 34 34 139 228 678 139 84 607 29 30 228 93 94 32 311 311 282 321 312 309 633 64 24 311 1 111 312 111 202 202 615 311 202 202 682 321 229 322 683 42 103 672 1 101 671 312 311 315 312 32 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1010-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1010-1306	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1307-	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1010-	●	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	04	1	1010-1409	●	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	08	1	1410-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1010-1306	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1307-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1010-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1010-	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1010-1306	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1307-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1010-1306	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1307-	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1010-1306	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1307-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1010-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1010-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1010-1306	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1307-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1010-1306	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
84	HOOK	1-57181-027-1	01	1	1010-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1010-1306	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1307-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1010-1306	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1307-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1307-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1010-1306	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1307-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1010-1306	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1307-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1010-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1010-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A)	8-97613-636-0	01	1	1307-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A)	8-97613-637-0	01	1	1307-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B)	8-97613-640-1	01	1	1307-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1010-1306	●	●
202	BRACKET; BUMPER SIDE BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B)	8-97613-641-1	01	1	1307-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1010-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1010-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1010-1306	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1307-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1010-1306	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1307-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1010-1306	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1307-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1010-1306	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1307-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1010-1306	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	1307-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1010-1306	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	1307-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1010-1306	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1307-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1010-1306	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1307-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1010-1306	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1307-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-1306	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1307-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98233-077-0	01	1	1307-1409		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-069-0	01	1	1410-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98233-078-0	01	1	1307-1409		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-070-0	01	1	1410-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98233-079-0	01	1	1307-1409		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-071-0	01	1	1410-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98233-080-0	01	1	1307-1409		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-072-0	01	1	1410-		●
607	BRACKET TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-693-1	01	1	1010-1109	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-693-1	01	1	1110-1209	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-693-1	01	1	1210-1306	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R20-16 RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-693-1	01	1	1210-1306		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-693-1	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-068-0	01	1	1410-	●
607	BRACKET TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-692-1	01	1	1010-1109	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-692-1	01	1	1110-1209	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-692-1	01	1	1210-1306	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R20-16 RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-692-1	01	1	1210-1306		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-692-1	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-067-0	01	1	1410-	●
607	BRACKET TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-754-1	01	1	1010-1109	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-754-1	01	1	1110-1209	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-754-1	01	1	1210-1306	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R20-16 RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-754-1	01	1	1210-1306		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-754-1	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-066-0	01	1	1410-	●
607	BRACKET TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-753-1	01	1	1010-1109	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-753-1	01	1	1110-1209	●	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-753-1	01	1	1210-1306	●
607	BRACKET TIRE 275/70R22.5 SPECIAL(45P),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11.00R20-16 RIB(85R),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-753-1	01	1	1210-1306		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98045-753-1	01	1	1307-1409	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-065-0	01	1	1410-	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1010-1306	●	●
615	BRACKET; BUMPER CENTER BODY COLOR AL GRAY(517),BODY COLOR TOLL GREEN(543) ,BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BO DY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999)	8-97613-643-1	01	1	1307-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1010-1306	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1307-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-820-2	01	1	1010-1105	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1106-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1010-1306	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1307-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1010-1306	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1307-	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1010-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1307-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1010-1306	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1307-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1010-1306	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
