◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#58406) — 72 parça

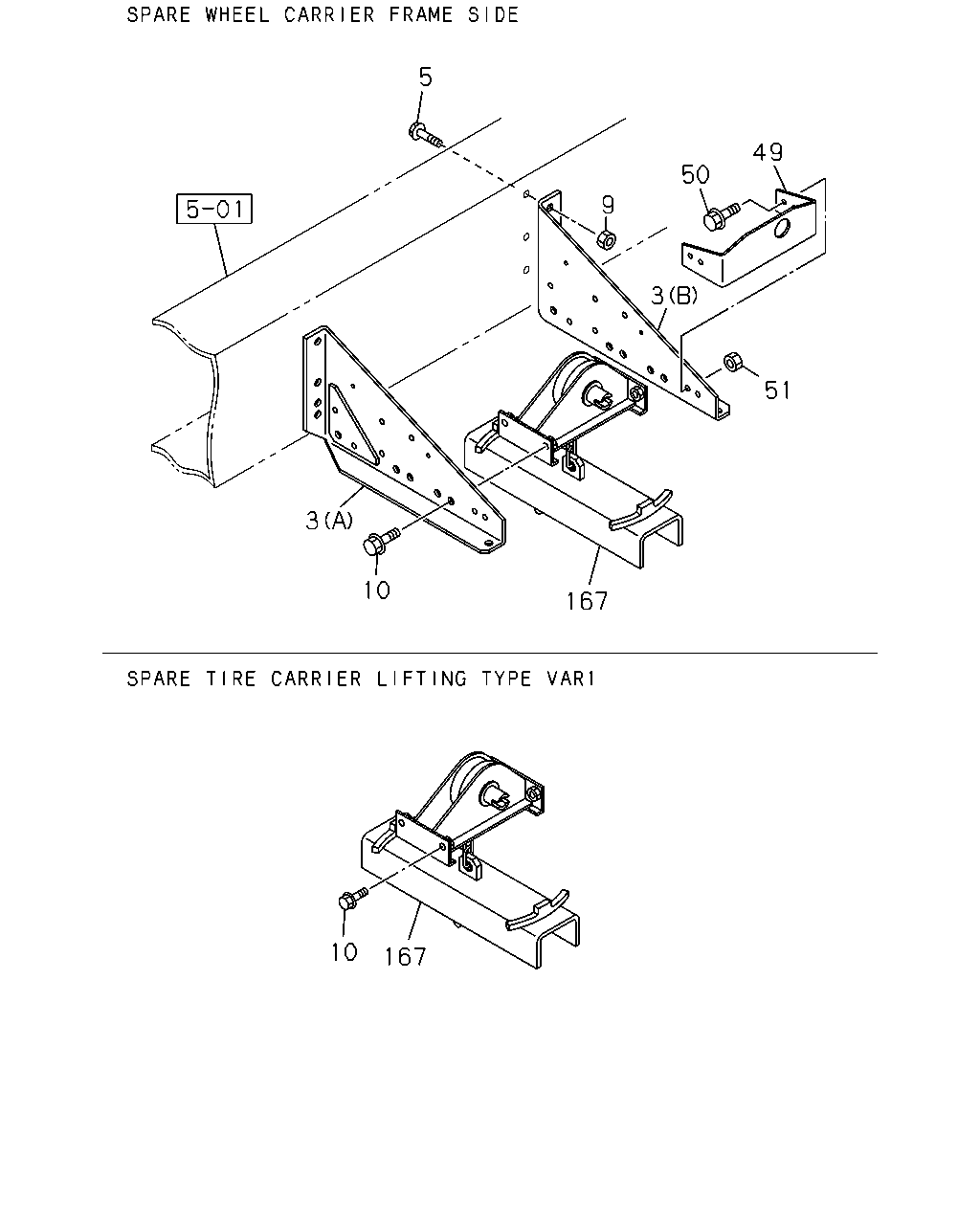

çizim 172076
167 10 167 10 3 51 3 9 50 49 5
BalonParca AdiParca NoAdetTipApplied Date A B
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98106-690-0 01 1 1010-1107 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98106-690-0 01 1 1108-1306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		8-98106-690-0 01 1 1108-1306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98106-690-0 01 1 1307- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98106-691-0 01 1 1010-1107 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98106-691-0 01 1 1108-1306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		8-98106-691-0 01 1 1108-1306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98106-691-0 01 1 1307- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 1010-1107 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 1108-1306 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12X45 FLANGE 		0-28051-245-0 06 1 1108-1306 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 1307- ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4200MM(42W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1307- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 1010-1107 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 1108-1306 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12 		0-91110-512-0 01 1 1108-1306 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 1307- ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1010-1101 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1102-1107 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1102-1107 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1108-1306 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12 		0-91110-512-0 06 1 1108-1306 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 03 1 1307- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1010-1107 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1010-1107 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1108-1306 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1108-1306 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12X30 FLANGE 		0-28651-230-0 04 1 1108-1306 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 1010-1107 ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 1108-1306 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-53631-466-1 01 1 1108-1306 ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 1307- ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 1010-1107 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 1108-1306 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M8X30 FLANGE 		0-28650-830-0 04 1 1108-1306 ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 1307- ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 1010-1107 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 1108-1203 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M8 		0-91110-508-0 04 1 1108-1203 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1204-1306 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M8 FLANGE 		0-91180-108-0 04 1 1204-1306 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1307- ● ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-2 01 1 1010-1107 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-53630-210-2 01 1 1010-1107 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-4 01 1 1108-1306 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-53630-210-4 01 1 1108-1306 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-4 01 1 1307- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-4 01 1 1307- ●

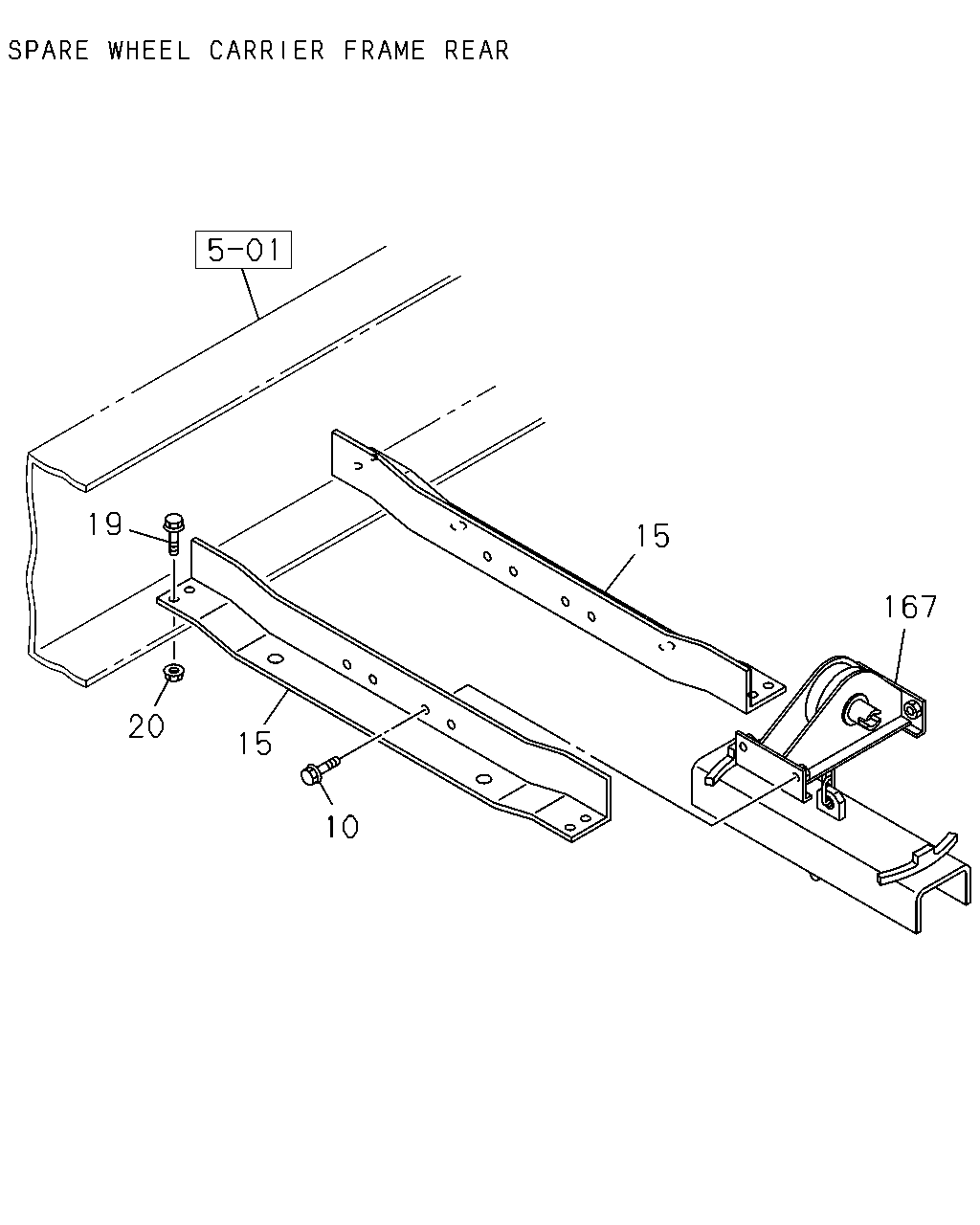

çizim 172124
19 20 15 10 15 167
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1010-1107 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1010-1107 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1108-1306 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1108-1306 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12X30 FLANGE 		0-28651-230-0 04 1 1108-1306 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1307- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 1010-1107 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-53631-395-1 02 1 1108-1306 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 1307- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28051-030-0 08 1 1010-1107 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M10X30 FLANGE 		0-28051-030-0 08 1 1108-1306 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28051-030-0 08 1 1307- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 1010-1107 ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M10 FLANGE 		0-91180-210-0 08 1 1108-1306 ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 1307- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-2 01 1 1010-1107 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-53630-210-2 01 1 1010-1107 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-4 01 1 1108-1306 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-53630-210-4 01 1 1108-1306 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-4 01 1 1307- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-4 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
