5-20 — BATTERY CARRIER (#58405) — 48 parça

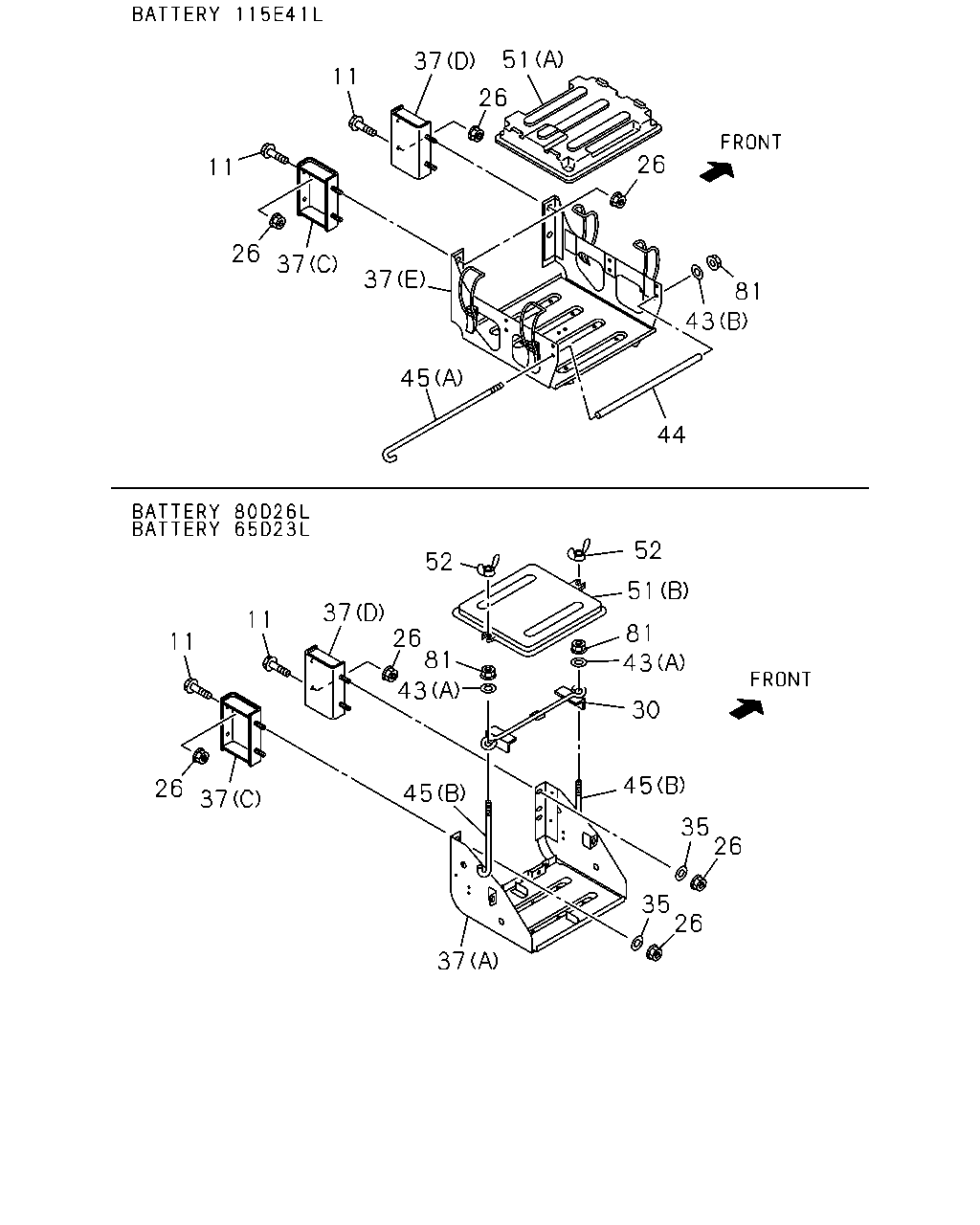

11 11 37 51 26 26 81 43 44 45 26 37 37 52 52 51 81 43 30 45 35 26 35 26 37 45 81 43 26 37 11 11 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX WHEEL BASE 4200MM(42W) M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	04	1	1010-1306	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	04	1	1010-1306	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	08	1	1307-	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1010-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98174-413-0	01	1	1010-1405		●
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> (B)	8-98174-413-0	01	1	1010-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-641-1	01	1	1406-		●
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> (B)	8-98261-641-1	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1010-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	1010-	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (C)	8-98162-291-0	01	1	1010-	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> (E)	8-98091-497-0	01	1	1010-1405	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> (E)	8-98261-636-0	01	1	1406-	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1010-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1010-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1010-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1010-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1010-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1010-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1010-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

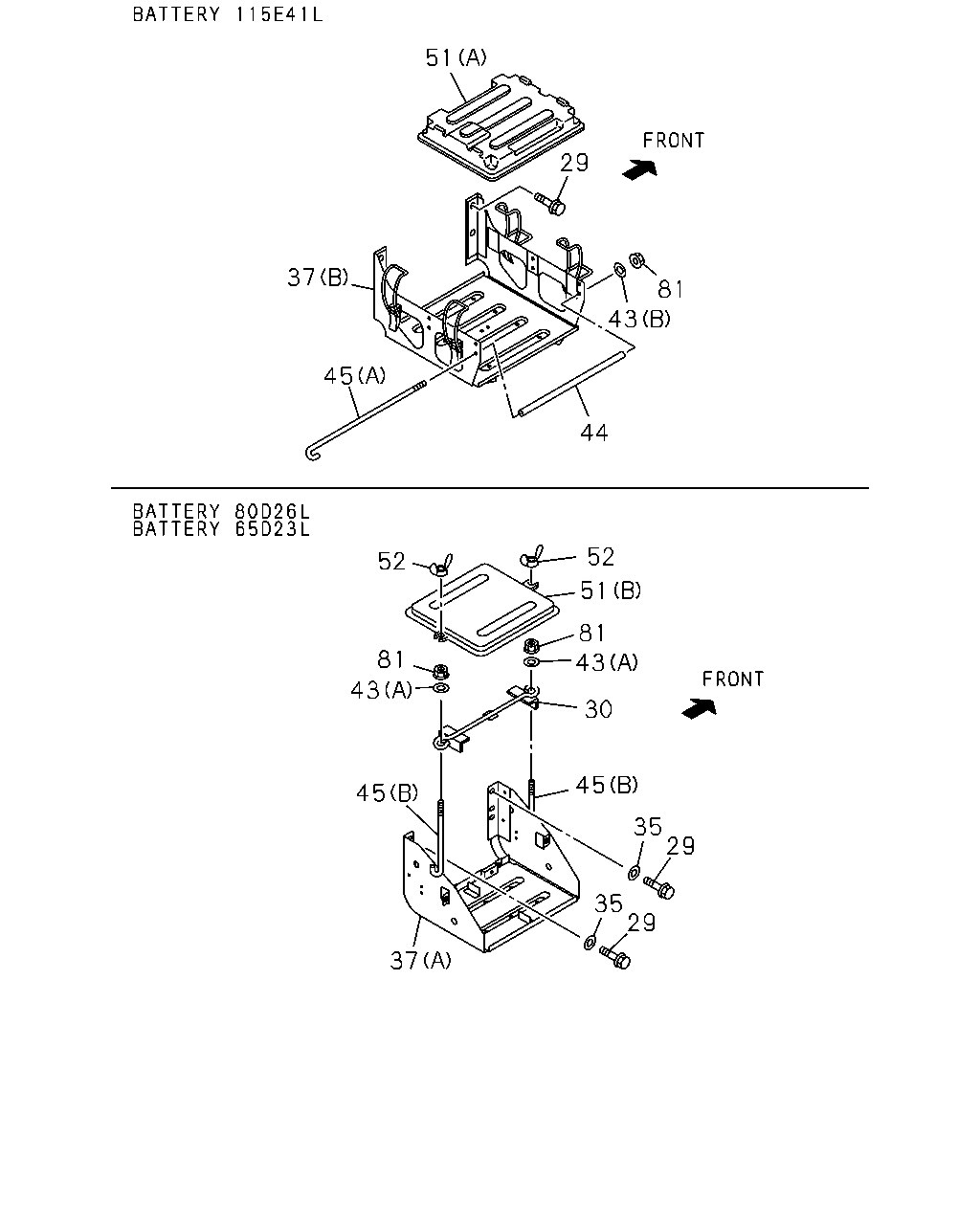

51 29 81 43 44 45 37 52 81 43 51 30 45 35 29 29 35 37 45 43 52 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1010-		●
29	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1010-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98174-413-0	01	1	1010-1405		●
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> (B)	8-98174-413-0	01	1	1010-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-641-1	01	1	1406-		●
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> (B)	8-98261-641-1	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1010-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1010-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	1010-	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (C)	8-98162-291-0	01	1	1010-	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> (E)	8-98091-497-0	01	1	1010-1405	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> (E)	8-98261-636-0	01	1	1406-	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1010-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1010-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1010-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1010-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1010-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1010-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1010-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
