◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#5840) — 188 parça
çizim 41549
446 110 517 103 444 30 304 339 455 291 136 447 103 289 285 149 289 494 138 404 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9603- ● ●
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9603- ● ●
103 PLATE; STEP
(A) 		1-53414-090-2 01 1 9603-9608 ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9609- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9603- ● ●
103 PLATE; STEP
(A) 		1-53414-089-2 01 1 9603-9608 ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9609- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9603- ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9603- ● ●
136 BOLT; OVER FENDER
CAB UP +50MM<W60> M5X22 		8-97029-303-1 06 1 9707-9711 ●
138 FENDER; OVER
CAB UP +50MM<W60> 		1-79931-263-0 01 1 9707-9711 ●
138 FENDER; OVER
CAB UP +50MM<W60> 		1-79931-264-0 01 1 9707-9711 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 08 1 9603- ● ●
285 PLATE; STEP,1ST STEP
CAB UP +50MM<W60> 		1-53414-182-0 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP
CAB UP +50MM<W60> 		1-53414-047-2 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-101-2 01 1 9603-9606 ● ●
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9607-9706 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +50MM<W60> 		1-53414-183-0 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9712-9904 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-183-0 01 1 9905- ● ●
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9603-9706 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +50MM<W60> 		1-53414-100-2 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9712-9904 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-100-2 01 1 9905- ● ●
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-182-0 01 1 9905- ● ●
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-047-2 01 1 9905- ● ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9603- ● ●
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 04 1 9603- ● ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28080-830-0 08 1 9603-9606 ● ●
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28680-835-0 08 1 9607-9904 ● ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9905- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9603- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9603- ● ●
404 BRACKET 1-53414-149-3 01 1 9603- ●
404 BRACKET 1-53414-148-3 01 1 9603- ●
404 BRACKET 1-53414-151-3 01 1 9603- ●
404 BRACKET 1-53414-150-3 01 1 9603- ●
430 NUT; PANEL
M8 		9-09110-508-0 08 1 9603-9606 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9607- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9603- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9603- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9603- ● ●
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-187-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9905- ● ●
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-186-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9905- ● ●
455 PROTECTOR; STEP 1-71907-179-1 01 1 9603-9707 ● ●
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-179-1 01 1 9708-9904 ●
455 PROTECTOR; STEP 1-71907-179-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9905- ● ●
455 PROTECTOR; STEP 1-71907-178-1 01 1 9603-9707 ● ●
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-178-1 01 1 9708-9904 ●
455 PROTECTOR; STEP 1-71907-178-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9905- ● ●
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 04 1 9603- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9603- ● ●

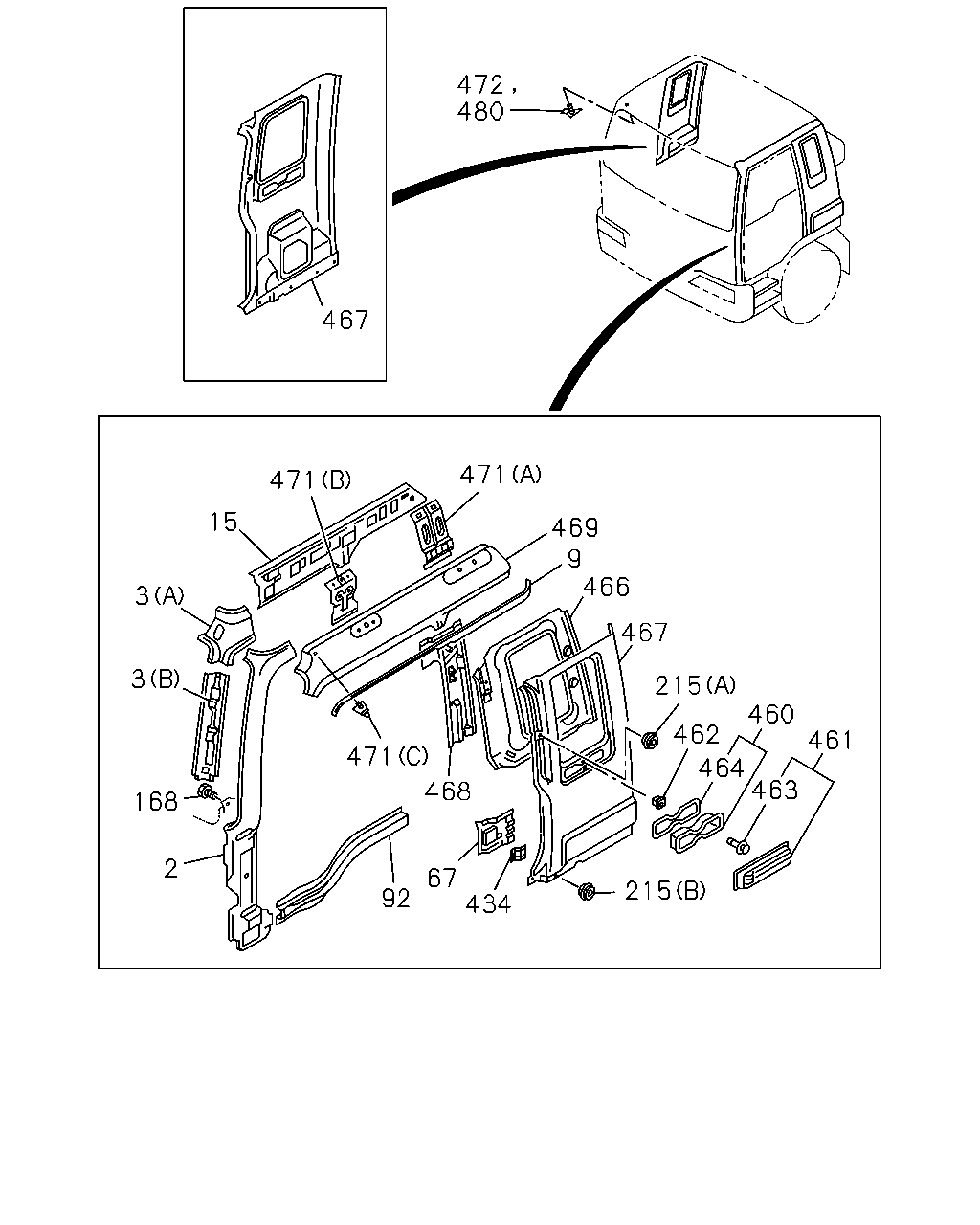

çizim 41550
472 480 467 471 471 15 469 9 466 3 467 3 215 460 462 461 471 464 463 468 168 2 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-156-4 01 1 9603- ●
2 PILLAR; FRT 1-61281-155-4 01 1 9603- ●
2 PILLAR; FRT 1-61281-410-2 01 1 9603- ●
2 PILLAR; FRT 1-61281-409-2 01 1 9603- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 9603- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 9603- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 9603- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 9603- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-4 01 1 9603-9904 ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-5 01 1 9905- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-4 01 1 9603-9904 ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-5 01 1 9905- ● ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 9905- ● ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 9905- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 9603- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9603- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9603- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9603- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 9603- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 9603- ● ●
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9603-9702 ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9603-9709 ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9603- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9603-9904 ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9905- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9905- ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9603-9904 ●
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9603- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9603- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9603- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9603- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9603- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9603- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9603- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9603- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9603-9801 ●
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-61281-204-2 01 1 9603-9801 ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9802-9904 ●
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-204-2 01 1 9802-9904 ●
467 PANEL; OUTER,BACK CORNER
V TYPE ENG<91L> 		1-61281-204-3 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BAGGAGE BOX CAB RR SIDE<TBM>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-204-3 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
L TYPE ENG<90L> 		1-61270-773-2 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61270-773-2 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-772-2 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9603-9904 ● ●
467 PANEL; OUTER,BACK CORNER
L TYPE ENG<90L> 		1-61281-203-3 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-3 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-61281-476-1 01 1 9603-9801 ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-476-1 01 1 9802-9904 ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-476-2 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-939-1 01 1 9905- ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 9603- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 9603- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 9603- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 9603- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 9603-9904 ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9905- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9905- ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9603- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 9603- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9603- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9603-9904 ●
472 PATCH; STAY,ROOF
L TYPE ENG<90L> 		1-61270-943-1 01 1 9908- ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 9908- ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9603-9904 ● ●
472 PATCH; STAY,ROOF
L TYPE ENG<90L> 		1-61281-232-3 01 1 9905-9907 ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9905-9907 ●
480 REINFORCEMENT ASM; STAY ROOF
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-233-4 01 1 9905- ●
480 REINFORCEMENT ASM; STAY ROOF
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-232-3 01 1 9905-9907 ●
480 REINFORCEMENT ASM; STAY ROOF
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-943-1 01 1 9908- ●
çizim 44324
446 110 517 103 444 30 304 339 455 136 291 447 289 103 285 149 289 138 494 404 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9603- ● ●
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9603- ● ●
103 PLATE; STEP
(A) 		1-53414-090-2 01 1 9603-9608 ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9609- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9603- ● ●
103 PLATE; STEP
(A) 		1-53414-089-2 01 1 9603-9608 ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9609- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9603- ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9603- ● ●
136 BOLT; OVER FENDER
CAB UP +50MM<W60> M5X22 		8-97029-303-1 06 1 9707-9711 ●
138 FENDER; OVER
CAB UP +50MM<W60> 		1-79931-263-0 01 1 9707-9711 ●
138 FENDER; OVER
CAB UP +50MM<W60> 		1-79931-264-0 01 1 9707-9711 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 08 1 9603- ● ●
285 PLATE; STEP,1ST STEP
CAB UP +50MM<W60> 		1-53414-182-0 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP
CAB UP +50MM<W60> 		1-53414-047-2 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-101-2 01 1 9603-9606 ● ●
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9607-9706 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +50MM<W60> 		1-53414-183-0 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9712-9904 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-183-0 01 1 9905- ● ●
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9603-9706 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +50MM<W60> 		1-53414-100-2 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9707-9711 ●
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9712-9904 ● ●
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-100-2 01 1 9905- ● ●
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-182-0 01 1 9905- ● ●
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-047-2 01 1 9905- ● ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9603- ● ●
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 04 1 9603- ● ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28080-830-0 08 1 9603-9606 ● ●
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28680-835-0 08 1 9607-9904 ● ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9905- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9603- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9603- ● ●
404 BRACKET 1-53414-149-3 01 1 9603- ●
404 BRACKET 1-53414-148-3 01 1 9603- ●
404 BRACKET 1-53414-151-3 01 1 9603- ●
404 BRACKET 1-53414-150-3 01 1 9603- ●
430 NUT; PANEL
M8 		9-09110-508-0 08 1 9603-9606 ● ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9607- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9603- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9603- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9603- ● ●
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-187-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9905- ● ●
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-186-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9905- ● ●
455 PROTECTOR; STEP 1-71907-179-1 01 1 9603-9707 ● ●
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-179-1 01 1 9708-9904 ●
455 PROTECTOR; STEP 1-71907-179-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9905- ● ●
455 PROTECTOR; STEP 1-71907-178-1 01 1 9603-9707 ● ●
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-178-1 01 1 9708-9904 ●
455 PROTECTOR; STEP 1-71907-178-1 01 1 9708-9904 ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9905- ● ●
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 04 1 9603- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
