Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#584) — 427 parça

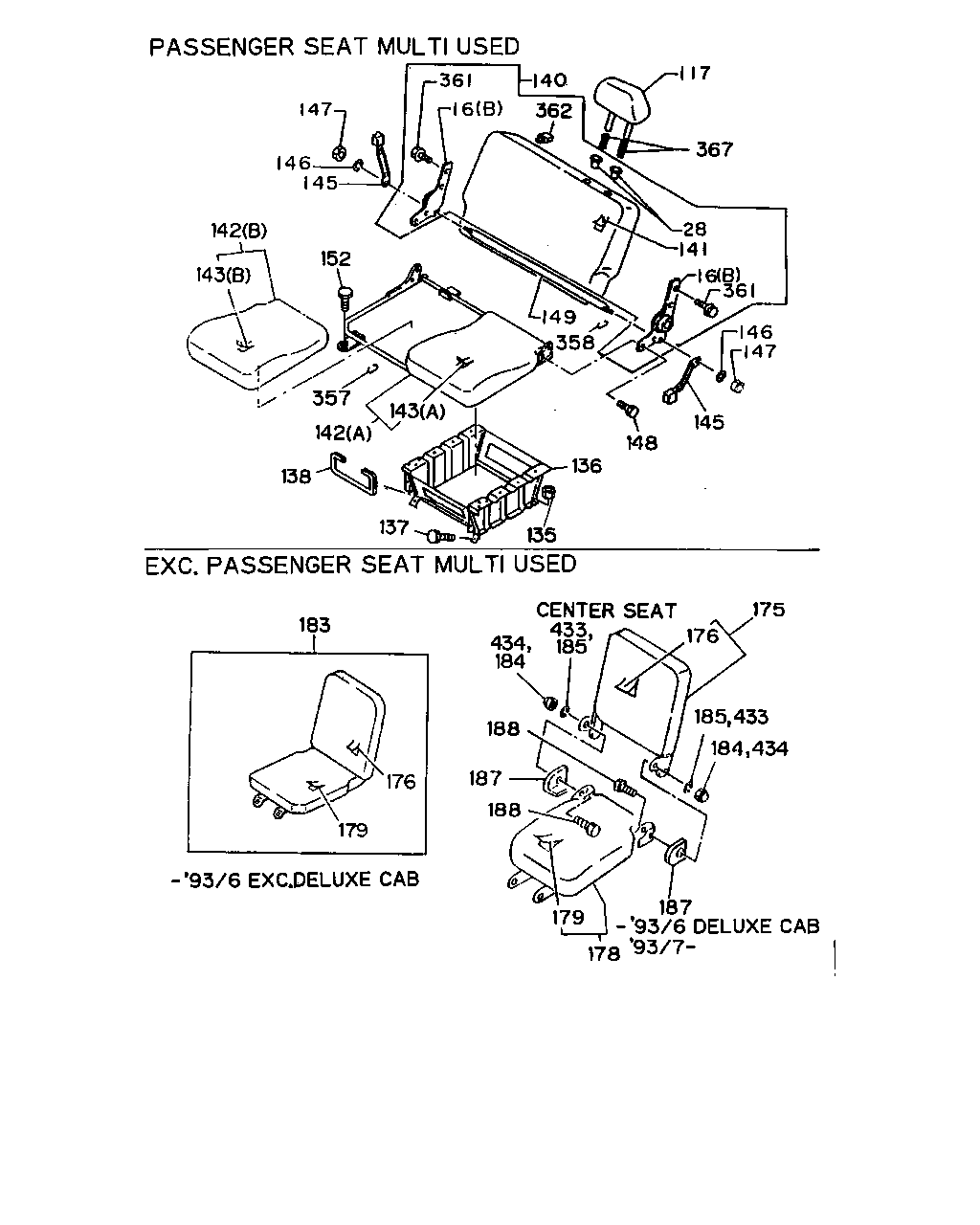

147 361 16 140 362 117 367 28 141 16 361 146 147 145 148 358 149 136 135 137 143 142 138 357 152 143 142 145 146 183 176 179 434 184 433 185 176 175 185 433 184 434 187 179 178 188 187 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING (A)	1-75417-046-1	01	1	8712-9001
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-055-2	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-043-6	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-042-4	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-064-0	01	1	9002-
28	HOLDER; GUIDE,HD REST	8-94222-211-0	01	1	8712-9001
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-
28	HOLDER; GUIDE,HD REST GRAY	8-94477-443-0	02	1	9307-
117	REST; HD	1-75658-025-0	01	1	8712-9001
117	REST; HD	1-75657-017-0	01	1	9002-9306
117	REST; HD	1-75657-023-0	01	1	9307-
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	8712-
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	8712-9306
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75557-391-8	01	1	9307-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75558-294-4	01	1	9307-
137	BOLT; STAND	1-09980-566-0	02	1	9307-
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	07	1	8712-9306
137	BOLT; STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	8712-9306
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	01	1	9307-
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	8712-9306
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI USED(WX9) SERVICED BY L=500	1-79937-746-0	01	1	9307-
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED(WX9)	1-75027-194-0	01	1	9002-9306
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED(WX9)	1-75028-436-1	01	1	9307-
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-527-1	01	1	8712-9001
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-669-0	01	1	9002-9306
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-700-1	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED(WX9) (A)	1-75027-193-1	01	1	9002-9306
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75106-846-1	01	1	8712-9001
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-084-0	01	1	9002-9002
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-204-0	01	1	9003-9306
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (A)	1-75027-250-0	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-251-0	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-082-0	01	1	9002-9002
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-203-1	01	1	9003-9306
143	COVER; TRIM,BENCH SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-656-1	01	1	9002-9306
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-489-1	01	1	8712-9001
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-490-2	01	1	8712-9001
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-594-0	01	1	9002-9002
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-675-0	01	1	9003-9306
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-710-0	01	1	9307-
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-711-0	01	1	9307-
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-591-0	01	1	9002-9002
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-670-1	01	1	9003-9306
145	LEVER; SHAFT PASSENGER SEAT MULTI USED(WX9)	1-75418-030-0	01	1	8712-
145	LEVER; SHAFT PASSENGER SEAT MULTI USED(WX9)	1-75418-024-0	01	1	8712-
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI USED(WX9)	5-09985-015-0	02	1	8712-
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI USED(WX9) M6 CAP	1-09984-031-0	02	1	8712-
148	BOLT; LEVER PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	04	1	8712-
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED(WX9)	1-75417-051-0	01	1	8712-9001
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED(WX9)	1-75418-025-0	01	1	9002-
152	BOLT; BENCH SEAT PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	01	1	9002-
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-086-2	01	1	9002-9202
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75027-086-2	01	1	9203-9306
175	BACK ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14>	1-75027-196-0	01	1	9002-9202
175	BACK ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-196-0	01	1	9203-9306
175	BACK ASM; PASSENGER CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-255-1	01	1	9307-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-558-1	01	1	9002-9202
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75117-558-1	01	1	9203-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) EXC. DELUXE CAB<W14>	1-75117-653-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-652-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14>	1-75117-657-0	01	1	9002-9202
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-657-0	01	1	9203-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-475-0	01	1	8712-9001
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) DELUXE SEAT(PQ8)	1-75117-517-0	01	1	8712-9001
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-715-1	01	1	9307-
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-085-1	01	1	9002-9306
178	CUSHION ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14>	1-75027-198-0	01	1	9002-9306
178	CUSHION ASM; PASSENGER CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75027-254-1	01	1	9307-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-559-0	01	1	9002-9202
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75117-559-0	01	1	9203-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB<W14>	1-75117-647-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14>	1-75117-659-0	01	1	9002-9202
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-659-0	01	1	9203-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8) EXC. DELUXE CAB<W14>	1-75117-651-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-650-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75117-646-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-474-0	01	1	8712-9001
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) DELUXE SEAT(PQ8)	1-75117-503-0	01	1	8712-9001
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-714-1	01	1	9307-
183	SEAT ASM; PASSENGER CENTER DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB<W14>	1-75027-137-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8) EXC. DELUXE CAB<W14>	1-75027-138-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-136-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75027-135-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) DELUXE SEAT(PQ8)	1-75106-893-0	01	1	8712-9001
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75107-835-0	01	1	8712-9001
184	NUT; CAP,CENTER SEAT DELUXE CAB<W14>	8-94279-505-0	02	1	9002-9202
184	NUT; CAP,CENTER SEAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	8-94279-505-0	02	1	9203-9306
185	WASHER; LK,CAP NUT DELUXE CAB<W14> ID=8.2	9-09150-508-0	02	1	9002-9202
185	WASHER; LK,CAP NUT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9) ID=8.2	9-09150-508-0	02	1	9203-9306
187	COVER; CENTER SEAT DELUXE CAB<W14>	1-75417-063-0	01	1	9002-9202
187	COVER; CENTER SEAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-063-0	01	1	9203-9306
187	COVER; CENTER SEAT DELUXE CAB<W14>	1-75417-062-0	01	1	9002-9202
187	COVER; CENTER SEAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-062-0	01	1	9203-9306
187	COVER; CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-063-0	01	1	9307-
187	COVER; CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-062-0	01	1	9307-
188	BOLT; BACK TO CUSHION DELUXE CAB<W14>	1-09980-577-0	02	1	9002-9202
188	BOLT; BACK TO CUSHION DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-577-0	02	1	9203-9306
188	BOLT; BACK TO CUSHION EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-577-0	02	1	9307-
357	FASTENER; TRIM COVER,CUSHION PASSENGER SEAT MULTI USED(WX9)	9-65761-007-0	18	1	9307-
358	FASTENER; TRIM COVER,BACK PASSENGER SEAT MULTI USED(WX9)	9-65761-007-0	10	1	9307-
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	04	1	8712-
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	01	1	8712-
362	CAP; HD REST PASSENGER SEAT MULTI USED(WX9)	1-75657-012-0	01	1	8712-9001
362	CAP; HD REST PASSENGER SEAT MULTI USED(WX9)	1-75658-036-1	01	1	9002-
367	BOOT; HD REST	8-94412-828-0	04	1	9002-
433	WASHER; BRKT TO CENTER SEAT EXC. PASSENGER SEAT MULTI USED(WX9) ID=8.2	9-09150-508-0	02	1	9307-
434	NUT; BRKT EXC. PASSENGER SEAT MULTI USED(WX9)	8-94279-505-0	02	1	9307-

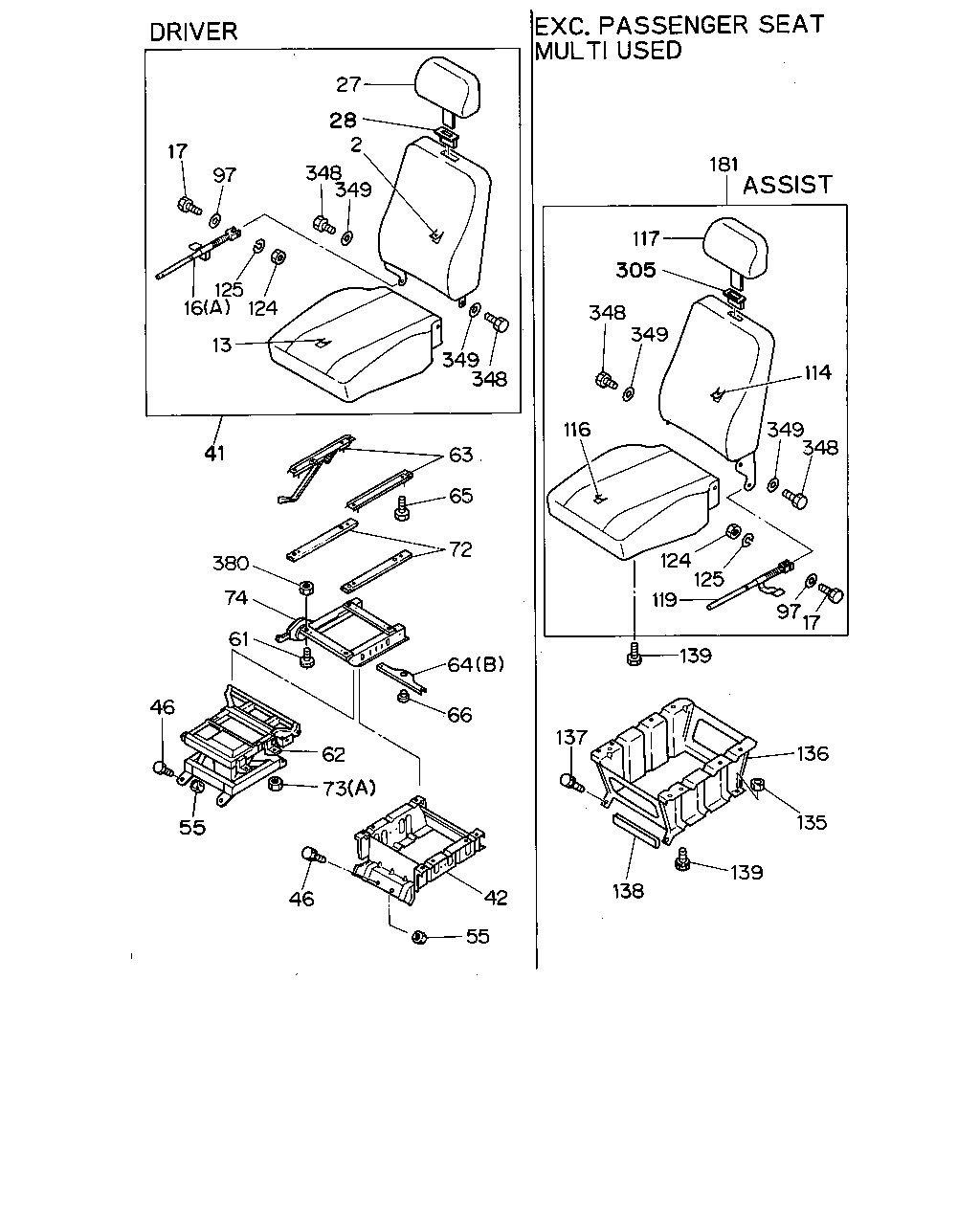

27 28 2 348 349 349 348 13 124 125 16 97 17 181 117 305 348 349 114 349 348 17 97 125 119 124 116 63 65 72 64 66 42 55 138 139 135 136 139 137 46 73 62 55 46 61 74 380 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-535-2	01	1	8712-9001
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-635-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-747-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-536-2	01	1	8712-9001
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-634-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-782-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-531-3	01	1	8712-9001
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-734-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-625-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8)	1-75117-532-3	01	1	8712-9001
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8)	1-75117-778-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-624-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8)	1-75117-623-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8)	1-75117-622-0	01	1	9002-9306
16	ADJUSTER ASM; RECLINING (A)	1-75417-046-1	01	1	8712-9001
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-055-2	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-043-6	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-042-4	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-064-0	01	1	9002-
17	BOLT; RECLINING	1-09980-248-2	02	1	8712-9001
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9002-
27	REST; HD,FRT SEAT	1-75658-025-0	01	1	8712-9001
27	REST; HD,FRT SEAT	1-75657-017-0	01	1	9002-9306
27	REST; HD,FRT SEAT	1-75657-023-0	01	1	9307-
28	HOLDER; GUIDE,HD REST	8-94222-211-0	01	1	8712-9001
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-
28	HOLDER; GUIDE,HD REST GRAY	8-94477-443-0	02	1	9307-
41	SEAT ASM; DRIVER DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75106-415-2	01	1	8712-9001
41	SEAT ASM; DRIVER DELUXE SEAT(PQ8) EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75106-415-3	01	1	8712-9001
41	SEAT ASM; DRIVER EXC. DELUXE SEAT(PQ8),SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75106-422-3	01	1	8712-9001
42	STAND; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75557-405-0	01	1	8712-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	8712-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	8712-
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	8712-9001
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	04	1	9002-

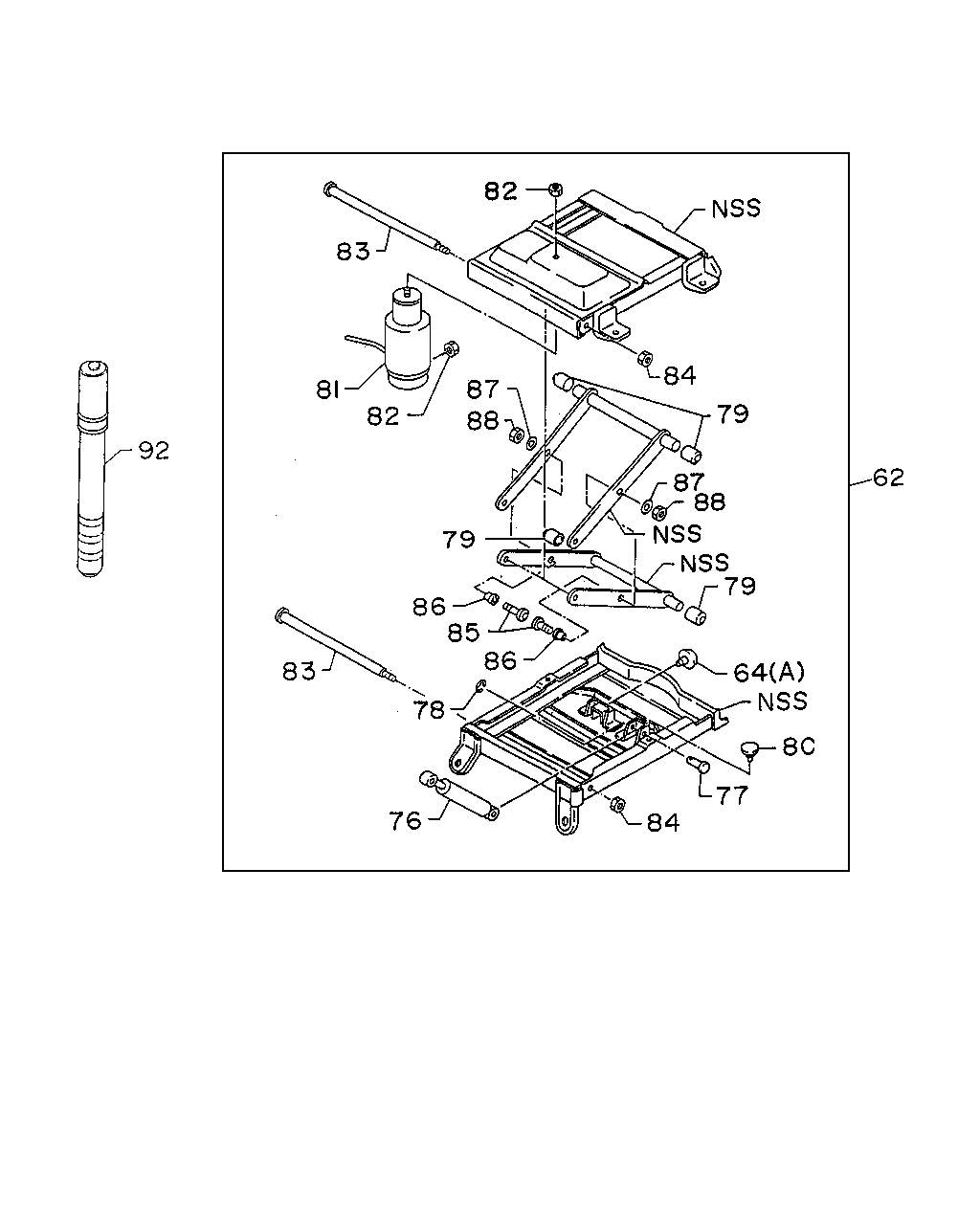

62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-113-6	01	1	8712-8908
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-0	01	1	8909-9001
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-1	01	1	9002-
63	ADJUSTER; SEAT SLIDE	1-75518-020-1	01	1	8712-
63	ADJUSTER; SEAT SLIDE	1-75518-019-1	01	1	8712-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	8712-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	8712-
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9002-
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8X23 W/LK WASHER	8-94254-743-0	04	1	8712-9001
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-130-0	01	1	8712-
72	SPACER; SEAT ADJ	1-75537-189-2	02	1	8712-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) M8 FLANGE	5-09440-005-0	08	1	8712-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) M8 FLANGE	5-09440-005-0	12	1	8712-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B) M8 FLANGE	8-94279-518-0	04	1	9505-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75517-013-7	01	1	8712-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	8712-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-537-0	01	1	8712-9001
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-696-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-538-0	01	1	8712-9001
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. HONG KONG EQUIPMENT(PQ1),PASSENGER SEAT MULTI USED(WX9)	1-75117-642-0	01	1	9002-9306
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-781-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-644-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-533-2	01	1	8712-9001
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-688-0	01	1	9307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-631-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-534-2	01	1	8712-9001
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-780-0	01	1	9307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-633-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-632-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75117-628-0	01	1	9002-9306
117	REST; HD	1-75658-025-0	01	1	8712-9001
117	REST; HD	1-75657-017-0	01	1	9002-9306
117	REST; HD	1-75657-023-0	01	1	9307-
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-047-1	01	1	8712-9001
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED(WX9)	1-75418-015-2	01	1	9002-
124	NUT; CAP,RECLINING M8	9-09110-408-0	02	1	8712-9001
124	NUT; CAP,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M8	1-09984-109-0	01	1	9002-
125	WASHER; PL,RECLINING ID=8.4	9-09160-508-0	02	1	8712-9001
125	WASHER; PL,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	8712-
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	8712-9306
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75557-391-8	01	1	9307-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75558-294-4	01	1	9307-
137	BOLT; STAND	1-09980-566-0	02	1	9307-
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	07	1	8712-9306
137	BOLT; STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	8712-9306
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	01	1	9307-
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	8712-9306
138	PROTECTOR; SEAT STAND PASSENGER SEAT MULTI USED(WX9) SERVICED BY L=500	1-79937-746-0	01	1	9307-
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	8712-9306
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	06	1	9307-9504
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	8712-
181	SEAT ASM; PASSENGER DELUXE SEAT(PQ8)	1-75106-413-2	01	1	8712-9001
181	SEAT ASM; PASSENGER EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75106-414-2	01	1	8712-9001
305	FINISHER; HD REST EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	8-94222-211-0	01	1	8712-9001
348	BOLT; HINGE,SEAT M8X23.4	1-09980-247-1	02	1	8712-9001
348	BOLT; HINGE,SEAT M10X23.4	1-09980-246-1	02	1	8712-9001
349	WASHER; HINGE BOLT ID=14.5	1-09985-086-1	02	1	8712-9001
349	WASHER; HINGE BOLT EXC. PASSENGER SEAT MULTI USED(WX9) ID=14.5	1-09985-086-1	02	1	8712-9001
380	NUT; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5), PASSENGERSEAT MULTI USED(WX9) M8 FLANGE	8-94279-504-1	04	1	8712-9001
380	NUT; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-504-1	04	1	9002-9504

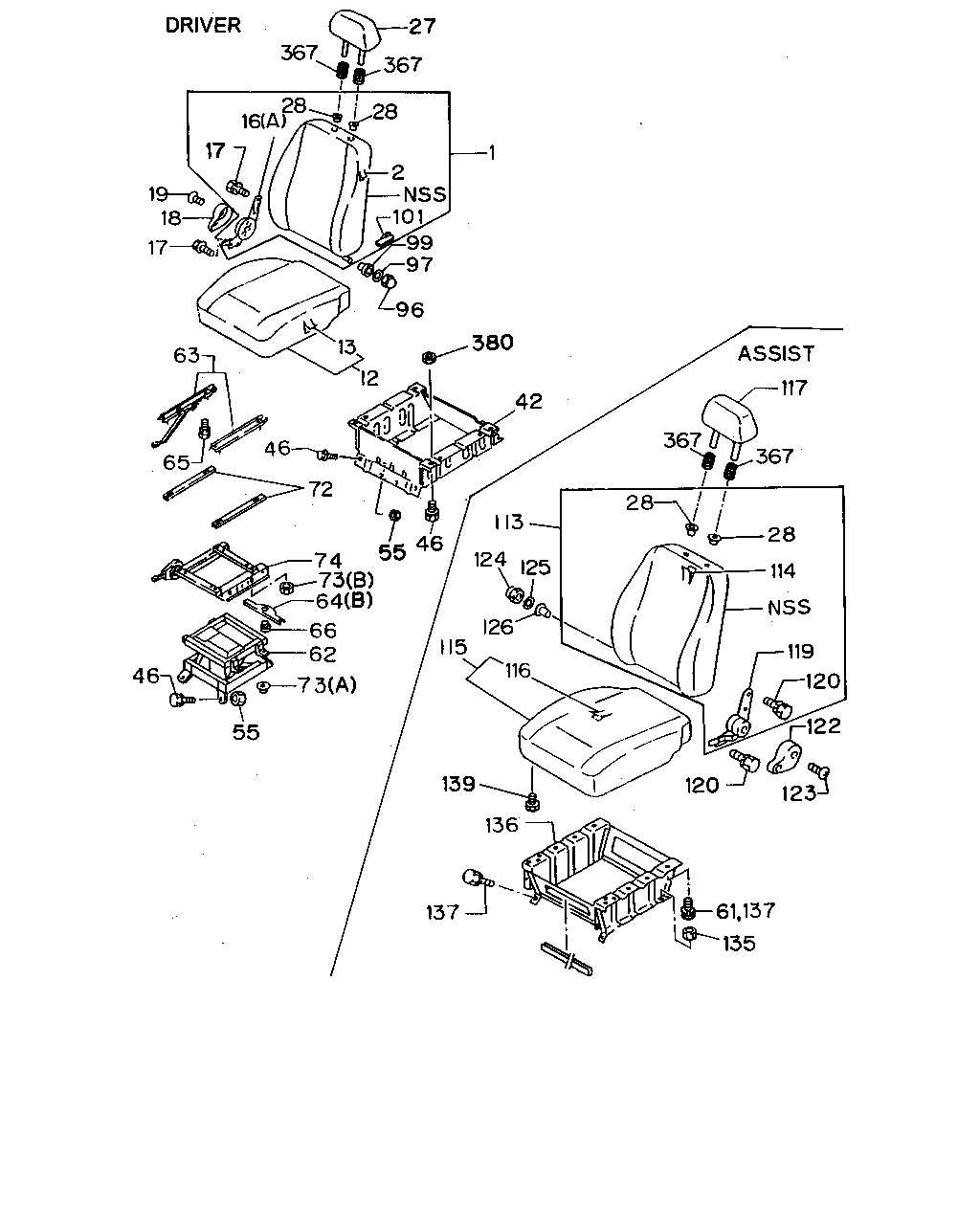

27 367 28 1 2 101 99 97 96 380 42 367 117 367 28 114 119 120 122 123 120 61 137 135 137 136 139 116 115 126 125 124 113 28 46 55 74 73 64 66 62 73 55 46 72 46 65 63 12 13 17 18 19 17 16 28 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-177-0	01	1	9002-9306
1	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-330-0	01	1	9307-
1	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8)	1-75027-176-0	01	1	9002-9306
1	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8)	1-75027-332-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-535-2	01	1	8712-9001
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-635-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8)	1-75117-747-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-536-2	01	1	8712-9001
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-634-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT(PQ8)	1-75117-782-0	01	1	9307-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8)	1-75028-423-0	01	1	9307-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-167-0	01	1	9002-9306
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT(PQ8)	1-75027-327-0	01	1	9307-
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75027-166-0	01	1	9002-9306
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8)	1-75027-165-0	01	1	9002-9306
12	CUSHION; SEAT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8)	1-75027-164-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-531-3	01	1	8712-9001
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-734-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-625-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8)	1-75117-532-3	01	1	8712-9001
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT(PQ8)	1-75117-778-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-624-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8)	1-75117-623-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8)	1-75117-622-0	01	1	9002-9306
16	ADJUSTER ASM; RECLINING (A)	1-75417-046-1	01	1	8712-9001
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-055-2	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-043-6	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-042-4	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-064-0	01	1	9002-
17	BOLT; RECLINING	1-09980-248-2	02	1	8712-9001
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9002-
18	COVER; RECLINING BLACK	8-94266-789-0	01	1	9002-9306
18	COVER; RECLINING	1-75418-042-0	01	1	9307-
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9002-
27	REST; HD,FRT SEAT	1-75658-025-0	01	1	8712-9001
27	REST; HD,FRT SEAT	1-75657-017-0	01	1	9002-9306
27	REST; HD,FRT SEAT	1-75657-023-0	01	1	9307-
28	HOLDER; GUIDE,HD REST	8-94222-211-0	01	1	8712-9001
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-
28	HOLDER; GUIDE,HD REST GRAY	8-94477-443-0	02	1	9307-
42	STAND; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75557-405-0	01	1	8712-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	8712-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	8712-
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	8712-9001
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	04	1	9002-
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-113-6	01	1	8712-8908
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-0	01	1	8909-9001
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-1	01	1	9002-
63	ADJUSTER; SEAT SLIDE	1-75518-020-1	01	1	8712-
63	ADJUSTER; SEAT SLIDE	1-75518-019-1	01	1	8712-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	8712-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	8712-
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9002-
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8X23 W/LK WASHER	8-94254-743-0	04	1	8712-9001
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-130-0	01	1	8712-
72	SPACER; SEAT ADJ	1-75537-189-2	02	1	8712-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) M8 FLANGE	5-09440-005-0	08	1	8712-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A) M8 FLANGE	5-09440-005-0	12	1	8712-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B) M8 FLANGE	8-94279-518-0	04	1	9505-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75517-013-7	01	1	8712-
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9002-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	8712-
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9002-
101	LEVER ASM; LUMBAR DRIVER	1-75508-002-0	01	1	9002-
113	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-192-0	01	1	9002-9306
113	BACK ASM; SEAT DELUXE SEAT(PQ8)	1-75027-247-0	01	1	9307-
113	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-186-0	01	1	9002-9306
113	BACK ASM; SEAT EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-331-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-537-0	01	1	8712-9001
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8)	1-75117-696-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-538-0	01	1	8712-9001
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. HONG KONG EQUIPMENT(PQ1),PASSENGER SEAT MULTI USED(WX9)	1-75117-642-0	01	1	9002-9306
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-781-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-644-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8)	1-75027-244-0	01	1	9307-
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-173-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-329-0	01	1	9307-
115	CUSHION ASM; PASSENGER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75027-175-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-174-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75027-170-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-533-2	01	1	8712-9001
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8)	1-75117-688-0	01	1	9307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-631-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-534-2	01	1	8712-9001
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-780-0	01	1	9307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8)	1-75117-633-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-632-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75117-628-0	01	1	9002-9306
117	REST; HD	1-75658-025-0	01	1	8712-9001
117	REST; HD	1-75657-017-0	01	1	9002-9306
117	REST; HD	1-75657-023-0	01	1	9307-
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED(WX9)	1-75417-047-1	01	1	8712-9001
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED(WX9)	1-75418-015-2	01	1	9002-
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED(WX9) M8X20	1-09980-438-0	04	1	9002-
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) BLACK	8-94266-795-0	01	1	9002-9306
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9)	1-75418-046-0	01	1	9307-
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M6X6	8-94216-303-0	01	1	9002-9306
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M6X6	1-09981-499-0	01	1	9307-
124	NUT; CAP,RECLINING M8	9-09110-408-0	02	1	8712-9001
124	NUT; CAP,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M8	1-09984-109-0	01	1	9002-
125	WASHER; PL,RECLINING ID=8.4	9-09160-508-0	02	1	8712-9001
125	WASHER; PL,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-
126	BUSHING; HINGE,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9)	1-75508-004-0	01	1	9002-
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	8712-
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	8712-9306
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75557-391-8	01	1	9307-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75558-294-4	01	1	9307-
137	BOLT; STAND	1-09980-566-0	02	1	9307-
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	07	1	8712-9306
137	BOLT; STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	8712-9306
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	01	1	9307-
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	8712-9306
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	06	1	9307-9504
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	8712-
367	BOOT; HD REST	8-94412-828-0	04	1	9002-
380	NUT; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5), PASSENGERSEAT MULTI USED(WX9) M8 FLANGE	8-94279-504-1	04	1	8712-9001
380	NUT; DRIVER SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M8 FLANGE	8-94279-504-1	04	1	9002-9504

92 83 82 84 79 62 87 88 79 64 80 77 84 76 78 83 86 85 86 79 88 87 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-113-6	01	1	8712-8908
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8) SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-0	01	1	8909-9001
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-212-1	01	1	9002-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (A)	1-09987-123-0	02	1	8712-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) (B)	1-75537-194-0	01	1	8712-
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-197-0	01	1	8712-
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	9-08201-035-0	02	1	8712-
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) ID=8	9-09185-008-0	02	1	8712-
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-193-0	04	1	8712-8811
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-119-0	04	1	8812-
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	9-61468-039-0	02	1	8712-
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-192-0	01	1	8712-
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-09984-096-0	02	1	8712-
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75530-016-0	02	1	8712-
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75530-014-0	02	1	8712-
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-09980-418-0	02	1	8712-8811
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75538-118-0	02	1	8812-
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75148-153-0	02	1	8712-
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) ID=10.5 OD=26	9-09160-710-0	02	1	8712-
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M10	9-09111-410-0	02	1	8712-8811
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) M10	8-94279-519-0	02	1	8812-
92	PUMP; AIR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-208-1	01	1	8712-9001

147 146 16 305 117 362 141 149 361 16 148 145 143 136 137 135 137 118 142 143 183 176 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING (A)	1-75417-046-1	01	1	8712-9001
16	ADJUSTER ASM; RECLINING (A)	1-75418-014-2	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-055-2	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-043-6	01	1	8712-9001
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-042-4	01	1	9002-
16	ADJUSTER ASM; RECLINING PASSENGER SEAT MULTI USED(WX9) (B)	1-75417-064-0	01	1	9002-
117	REST; HD	1-75658-025-0	01	1	8712-9001
117	REST; HD	1-75657-017-0	01	1	9002-9306
117	REST; HD	1-75657-023-0	01	1	9307-
118	SEAT ASM; BENCH PASSENGER SEAT MULTI USED(WX9)	1-75106-953-5	01	1	8712-9001
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	8712-
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	8712-9306
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75557-391-8	01	1	9307-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED(WX9)	1-75558-294-4	01	1	9307-
137	BOLT; STAND	1-09980-566-0	02	1	9307-
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	07	1	8712-9306
137	BOLT; STAND EXC. PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	02	1	8712-9306
137	BOLT; STAND PASSENGER SEAT MULTI USED(WX9)	1-09980-566-0	01	1	9307-
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-527-1	01	1	8712-9001
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-669-0	01	1	9002-9306
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75117-700-1	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED(WX9) (A)	1-75027-193-1	01	1	9002-9306
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75106-846-1	01	1	8712-9001
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-084-0	01	1	9002-9002
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-204-0	01	1	9003-9306
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (A)	1-75027-250-0	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) (B)	1-75027-251-0	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-082-0	01	1	9002-9002
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-203-1	01	1	9003-9306
143	COVER; TRIM,BENCH SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-656-1	01	1	9002-9306
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-489-1	01	1	8712-9001
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-490-2	01	1	8712-9001
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-594-0	01	1	9002-9002
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-675-0	01	1	9003-9306
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (A)	1-75117-710-0	01	1	9307-
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) (B)	1-75117-711-0	01	1	9307-
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-591-0	01	1	9002-9002
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-670-1	01	1	9003-9306
145	LEVER; SHAFT PASSENGER SEAT MULTI USED(WX9)	1-75418-030-0	01	1	8712-
145	LEVER; SHAFT PASSENGER SEAT MULTI USED(WX9)	1-75418-024-0	01	1	8712-
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI USED(WX9)	5-09985-015-0	02	1	8712-
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI USED(WX9) M6 CAP	1-09984-031-0	02	1	8712-
148	BOLT; LEVER PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	04	1	8712-
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED(WX9)	1-75417-051-0	01	1	8712-9001
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED(WX9)	1-75418-025-0	01	1	9002-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-558-1	01	1	9002-9202
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75117-558-1	01	1	9203-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) EXC. DELUXE CAB<W14>	1-75117-653-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-652-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14>	1-75117-657-0	01	1	9002-9202
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-657-0	01	1	9203-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-475-0	01	1	8712-9001
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) DELUXE SEAT(PQ8)	1-75117-517-0	01	1	8712-9001
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-715-1	01	1	9307-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-559-0	01	1	9002-9202
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB<W14> EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED(WX9)	1-75117-559-0	01	1	9203-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB<W14>	1-75117-647-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14>	1-75117-659-0	01	1	9002-9202
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-659-0	01	1	9203-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8) EXC. DELUXE CAB<W14>	1-75117-651-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-650-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75117-646-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75117-474-0	01	1	8712-9001
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) DELUXE SEAT(PQ8)	1-75117-503-0	01	1	8712-9001
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-714-1	01	1	9307-
183	SEAT ASM; PASSENGER CENTER DELUXE SEAT(PQ8) EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB<W14>	1-75027-137-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT(PQ8) EXC. DELUXE CAB<W14>	1-75027-138-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75027-136-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT(PQ8), PASSENGER SEAT MULTI USED(WX9)	1-75027-135-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) DELUXE SEAT(PQ8)	1-75106-893-0	01	1	8712-9001
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. DELUXE SEAT(PQ8),PASSENGER SEAT MULTI USED(WX9)	1-75107-835-0	01	1	8712-9001
305	FINISHER; HD REST EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	8-94222-211-0	01	1	8712-9001
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	04	1	8712-
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) M10X16 FLANGE	1-75198-053-0	01	1	8712-
362	CAP; HD REST PASSENGER SEAT MULTI USED(WX9)	1-75657-012-0	01	1	8712-9001
362	CAP; HD REST PASSENGER SEAT MULTI USED(WX9)	1-75658-036-1	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
