5-01 — FRAME AND OTHER PARTS
(#58388) — 60 parça
◀

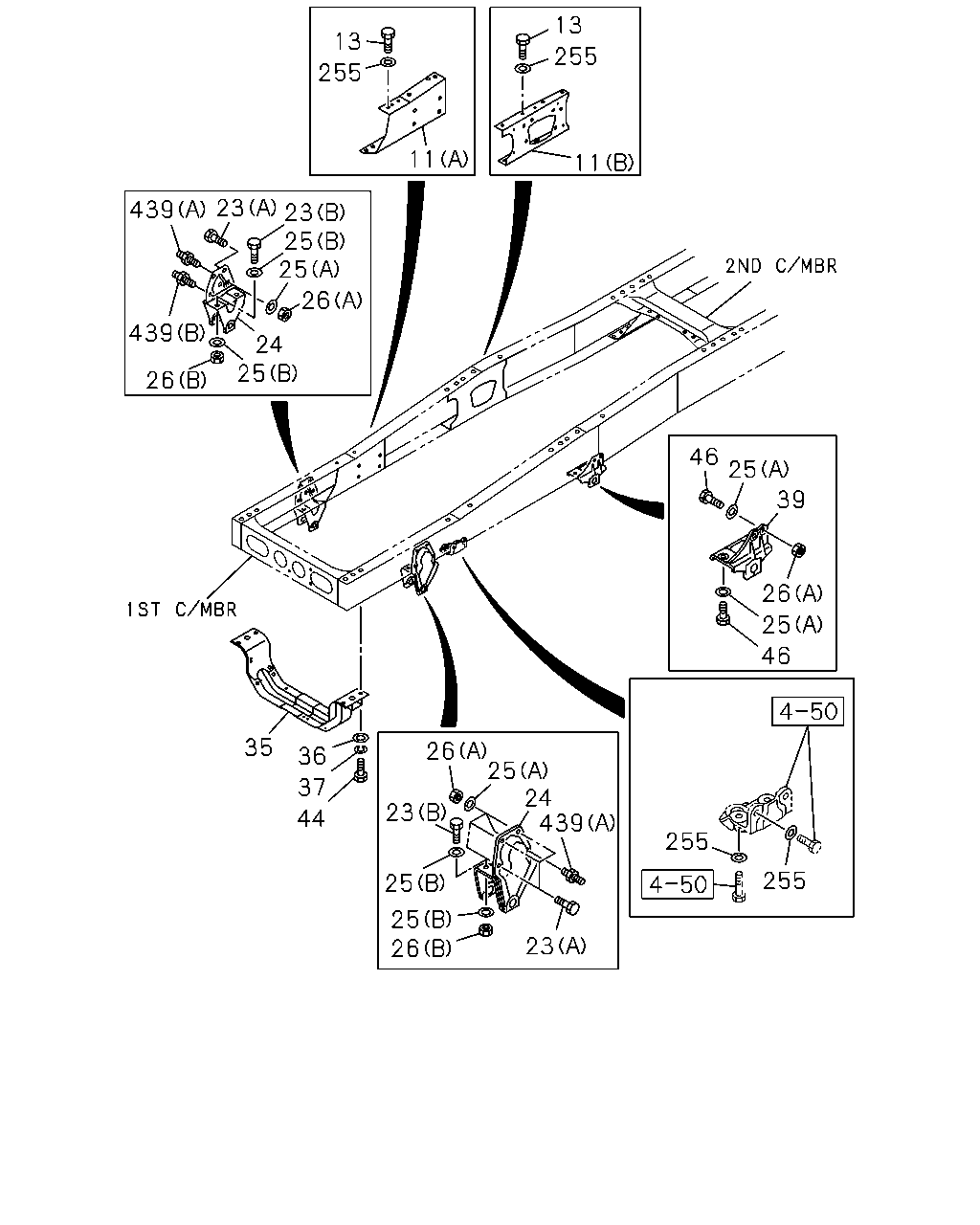

[501A] BRACKET FRONT AND UNDER MEMBER (23 parça)

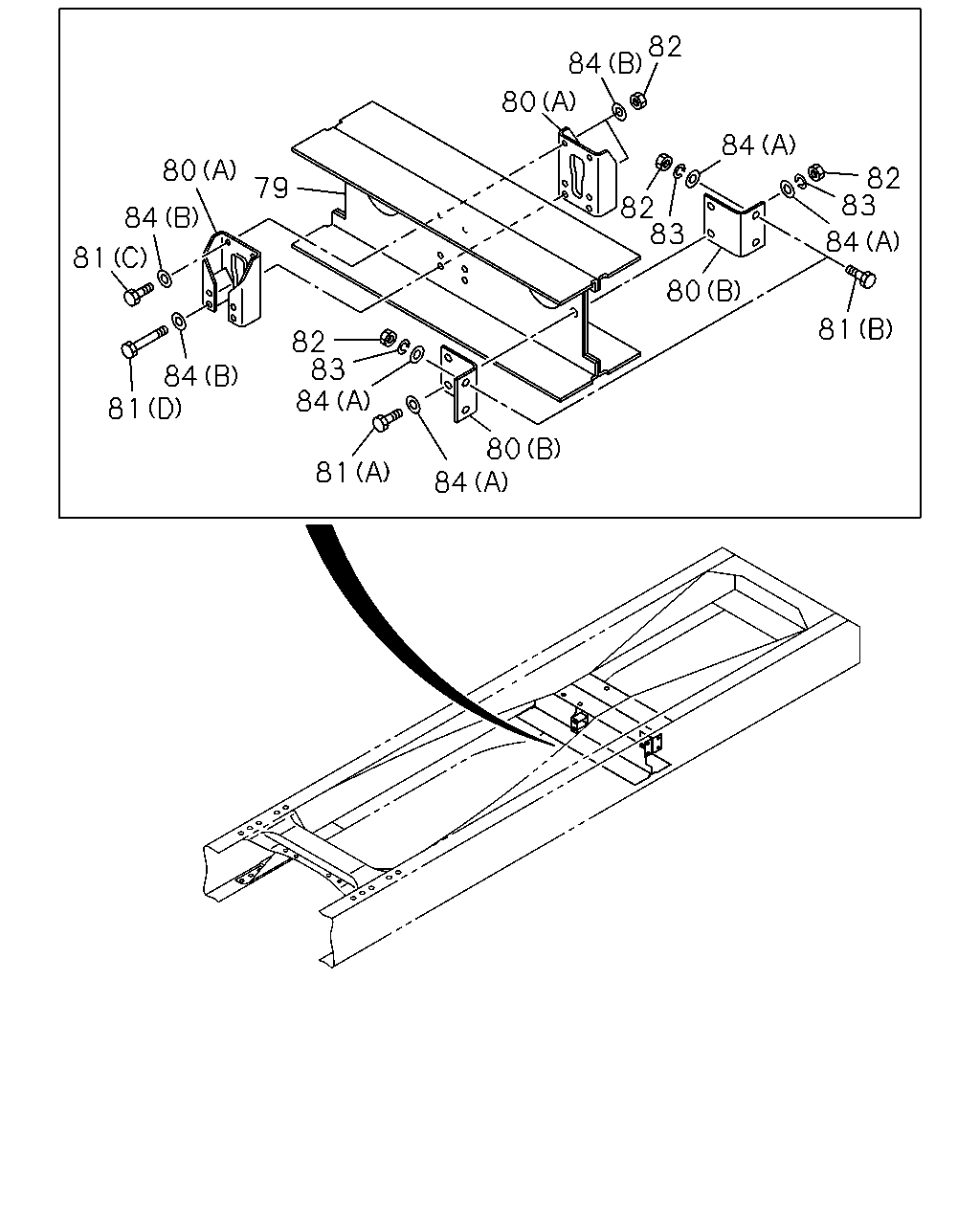

[501A] BRACKET REAR (13 parça)

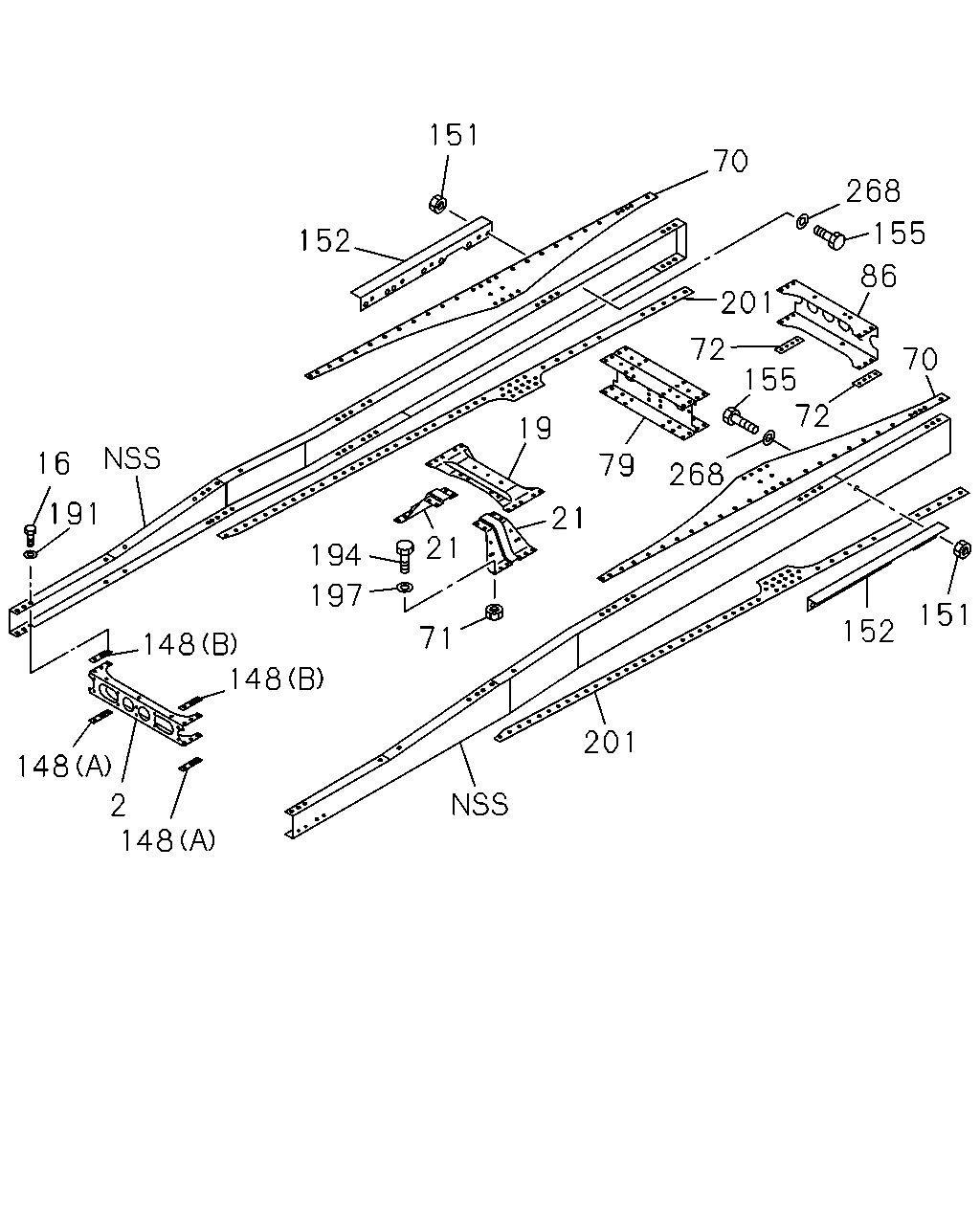

[501A] CROSS MEMBER AND OUTRIGGER (24 parça)
▶
13
255
11
13
255
11
439
23
23
25
25
26
24
25
439
26
46
25
39
26
25
46
255
255
23
439
24
25
26
23
25
25
26
44
37
36
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
1008-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
1008-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
1008-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
1008-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
1008-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
04
1
1008-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1008-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
1008-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
1008-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1008-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1008-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
1008-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1008-
35
MEMBER; UNDER
1-53174-263-2
01
1
1008-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
1008-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1008-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
1008-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
1008-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1008-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1008-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1008-
439
STUD; BRKT,SPR
(A) M12X35,M14X45 L=100
1-09029-075-0
02
1
1008-
439
STUD; BRKT,SPR
(B) M12X25,M14X45 L=81
1-09029-103-0
02
1
1008-
80
79
84
81
84
81
82
83
84
81
84
80
81
80
83
82
84
83
82
84
82
84
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
1-53181-729-6
01
1
1008-
80
BRACKET; C/MBR
(B)
1-53167-610-0
04
1
1008-
80
BRACKET; C/MBR
(A)
1-53363-031-2
02
1
1008-
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
08
1
1008-
81
BOLT; BRKT
(C) M14X50
0-20951-450-0
02
1
1008-
81
BOLT; BRKT
(A) M14X60
0-20951-460-0
04
1
1008-
81
BOLT; BRKT
(D) M14X205
1-09000-147-0
02
1
1008-
82
NUT; BRKT
M14
0-91110-514-0
04
1
1008-
82
NUT; BRKT
M14
0-91110-514-0
12
1
1008-
83
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
12
1
1008-
84
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1008-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
9-09164-514-0
16
1
1008-1104
84
WASHER; PL,BRKT
(A) ID=15 OD=26
0-91614-514-0
16
1
1105-
16
191
152
151
70
268
155
86
70
201
72
155
72
268
79
19
21
21
194
197
148
148
148
2
148
71
201
152
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
6WF1 TC-C(1B8)
1-53181-975-7
01
1
1008-
2
MEMBER; CROSS,1ST
6WG1 TC-R(75L)
8-98057-315-3
01
1
1008-
16
BOLT; 1ST C/MBR TO S/MBR
M14X40
0-20951-440-0
02
1
1008-
19
MEMBER; CROSS,2ND
1-53174-265-0
01
1
1008-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
1008-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
1008-
70
GUSSET; TRUNNION,UPR
6WG1 TC-R(75L)
8-98196-471-0
02
1
1112-
70
GUSSET; TRUNNION,UPR
8-98142-063-0
02
1
1008-1111
70
GUSSET; TRUNNION,UPR
6WF1 TC-C(1B8)
8-98142-063-0
02
1
1112-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
1008-
72
SPACER; TRUNNION
1-53168-100-0
02
1
1008-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-729-6
01
1
1008-
86
MEMBER; CROSS,RR SUSP RR
8-98047-518-0
01
1
1008-
148
SPACER; C/MBR
(B)
1-53168-400-1
02
1
1008-
148
SPACER; C/MBR
(A)
1-53168-403-1
02
1
1008-
151
NUT; OUTRIGGER
M16
0-91110-516-0
28
1
1008-
152
OUTRIGGER
1-53456-356-1
01
1
1008-
152
OUTRIGGER
1-53456-355-1
01
1
1008-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
28
1
1008-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
8-98010-627-1
02
1
1008-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
1008-
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1008-
201
GUSSET; C/MBR
8-98142-064-0
02
1
1008-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
28
1
1008-
