◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#58386) — 37 parça

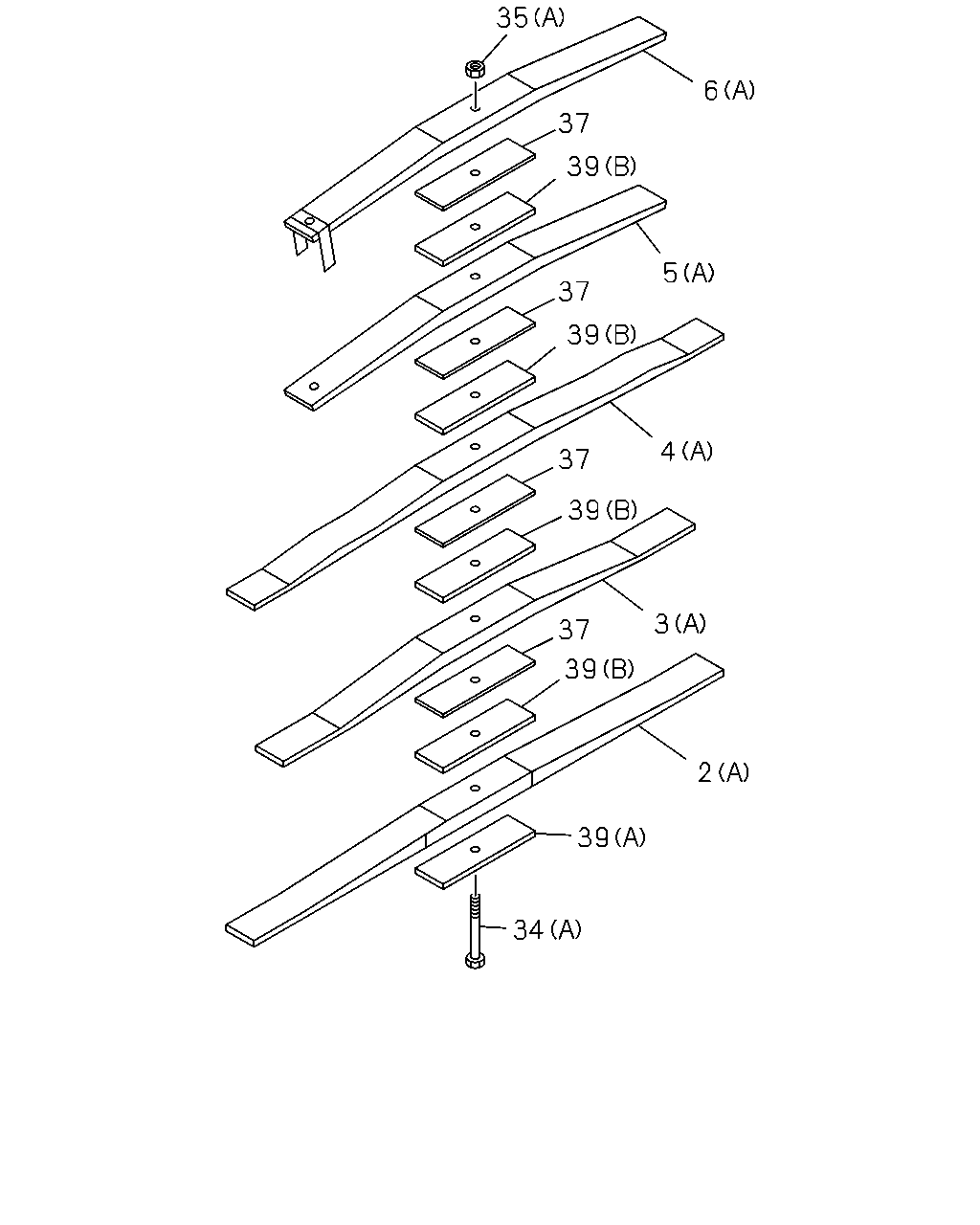

çizim 168208
35 6 37 39 5 37 39 4 37 39 3 37 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-988-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-081-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-989-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-082-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-990-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-083-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-991-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-084-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-992-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-085-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=215 ASM PART: A = 8-98138-268-0 		1-51356-369-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=215 ASM PART: B = 8-98157-786-0 		8-98148-955-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: B = 8-98157-786-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: A = 8-98138-268-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: A = 8-98138-268-0 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: A = 8-98138-268-0 		1-51377-399-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=3.2 ASM PART: A = 8-98138-268-0 		8-97615-292-0 01 1 -
çizim 168217
35 11 10 9 8 36 7 6 5 4 3 34 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-988-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-081-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-989-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-082-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-990-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-083-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-991-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-084-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: A = 8-98138-268-0 		8-98156-992-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: B = 8-98157-786-0 		8-98162-085-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 8-98157-786-0 		8-98162-086-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 8-98157-786-0 		8-98162-087-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: B = 8-98157-786-0 		8-98162-088-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: B = 8-98157-786-0 		8-98162-089-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: B = 8-98157-786-0 		8-98162-090-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=215 ASM PART: A = 8-98138-268-0 		1-51356-369-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=215 ASM PART: B = 8-98157-786-0 		8-98148-955-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: B = 8-98157-786-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: A = 8-98138-268-0 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: B = 8-98157-786-0 		1-09000-326-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
