◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#58384) — 48 parça

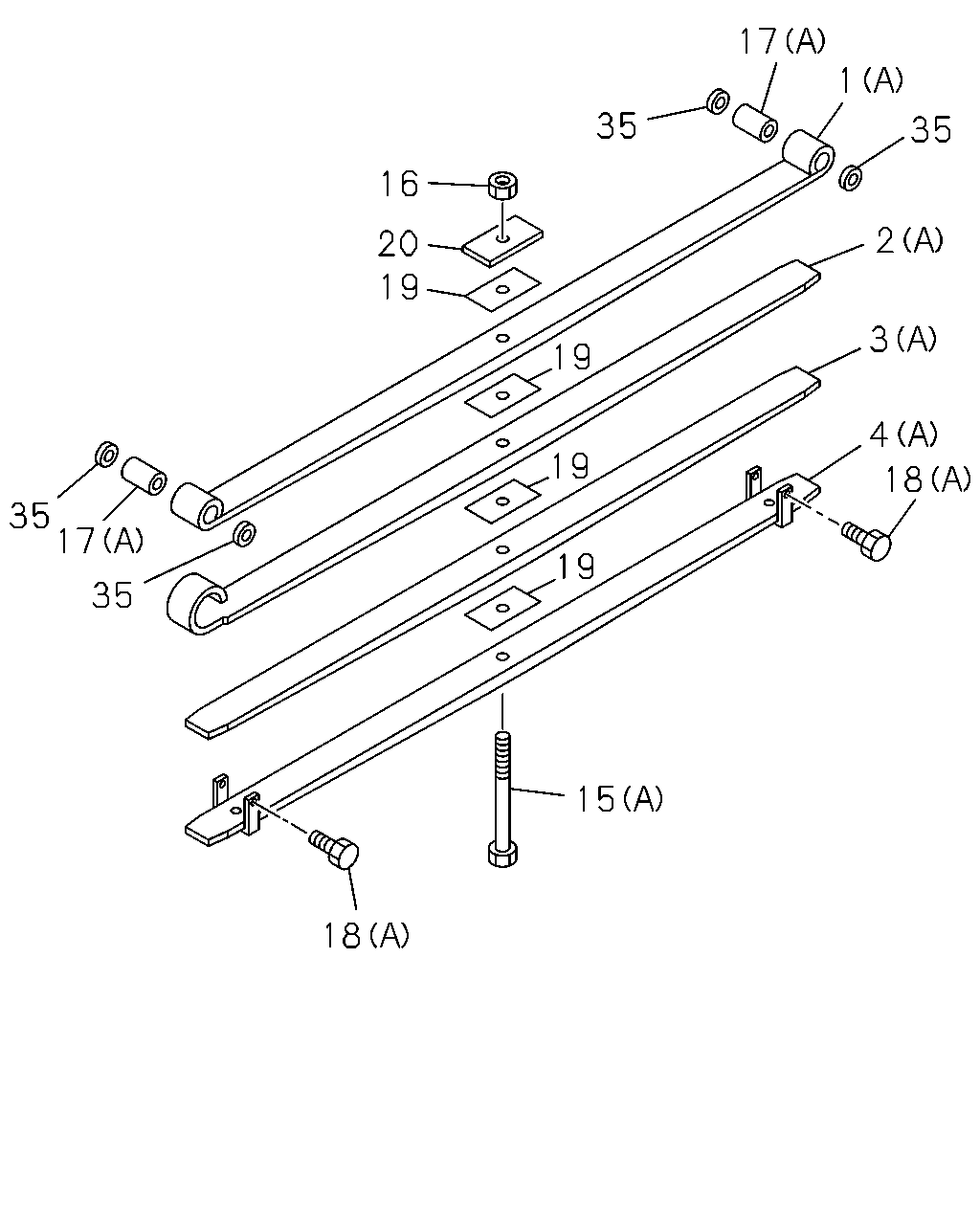

çizim 168199
17 1 35 35 16 2 20 19 3 19 4 19 18 35 17 19 35 15 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-020-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98229-520-0 		8-98232-150-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-021-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98229-520-0 		8-98232-151-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-022-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98229-520-0 		8-98232-152-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-023-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=150 ASM PART: B = 8-98162-076-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-349-0, B = 8-98162-076-0, C = 8-98229-520-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: B = 8-98162-076-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 8-98162-076-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: B = 8-98162-076-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98162-076-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
T=14 ASM PART: A = 8-97617-349-0, B = 8-98162-076-0, C = 8-98229-520-0 		1-51177-097-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51177-321-0 04 1 -

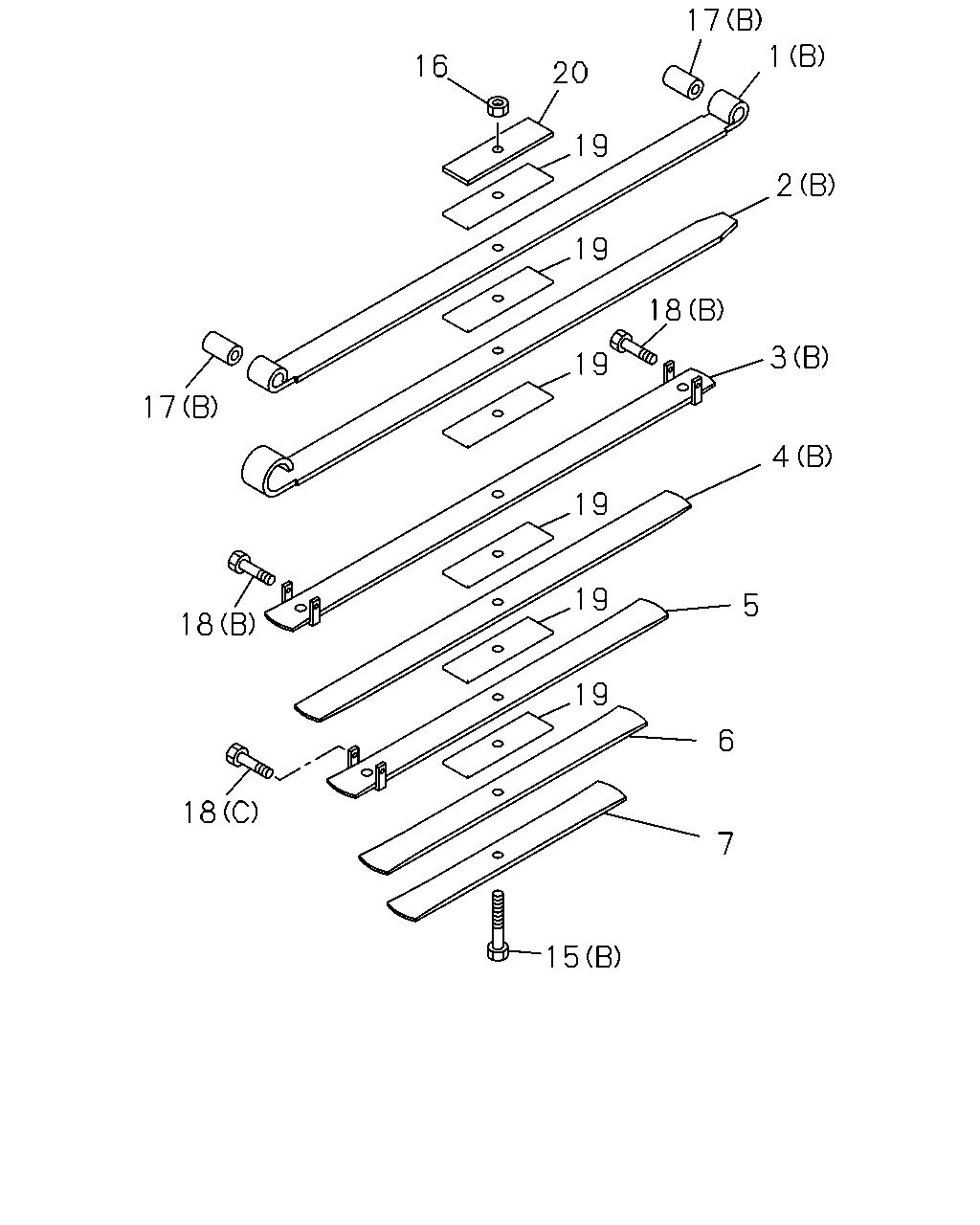

çizim 168250
17 1 16 20 19 2 19 18 3 19 17 4 19 19 5 18 19 6 18 7 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-020-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98229-520-0 		8-98232-150-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-021-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98229-520-0 		8-98232-151-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-349-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-022-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98229-520-0 		8-98232-152-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98162-076-0 		8-98165-023-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98162-076-0 		8-98165-024-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98162-076-0 		8-98165-025-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 8-98162-076-0 		8-98165-026-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=125 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51156-291-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=150 ASM PART: B = 8-98162-076-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-349-0, B = 8-98162-076-0, C = 8-98229-520-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: B = 8-98162-076-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 8-98162-076-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: B = 8-98162-076-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-349-0, C = 8-98229-520-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98162-076-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
T=14 ASM PART: A = 8-97617-349-0, B = 8-98162-076-0, C = 8-98229-520-0 		1-51177-097-0 01 1 -
