◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#5838) — 432 parça
çizim 6908
544 562 544 548 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date A B
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9603- ● ●
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9904 ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9603- ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> DELUXE CAB(W14) 		1-71107-237-2 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. DELUXE CAB(W14) 		1-71107-345-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> 		1-71107-345-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> DELUXE CAB(W14) 		1-71107-218-3 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. DELUXE CAB(W14) 		1-71107-281-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-71107-281-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> DELUXE CAB(W14) 		1-71107-249-1 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. DELUXE CAB(W14) 		1-71107-346-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71107-346-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> DELUXE CAB(W14) 		1-71107-217-2 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> 		1-71107-293-0 01 1 9905- ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-6 01 1 9603-9904 ● ●
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-6 01 1 9603-9904 ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2> 		1-71107-370-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2> 		1-71107-373-0 01 1 9905- ●
545 SEAL; FRT LID
(C) 		1-71907-154-4 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-154-4 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905- ●
545 SEAL; FRT LID
(E) 		1-71907-152-2 01 1 9603-9604 ● ●
545 SEAL; FRT LID
(E) L=2038 		1-71907-481-0 01 1 9605- ● ●
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9603-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
545 SEAL; FRT LID
(C) 		1-71907-372-1 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-372-1 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71907-572-0 01 1 9905- ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 9603- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9603- ● ●
562 BOLT; COVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603- ● ●
562 BOLT; COVER
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603-9904 ● ●
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ●

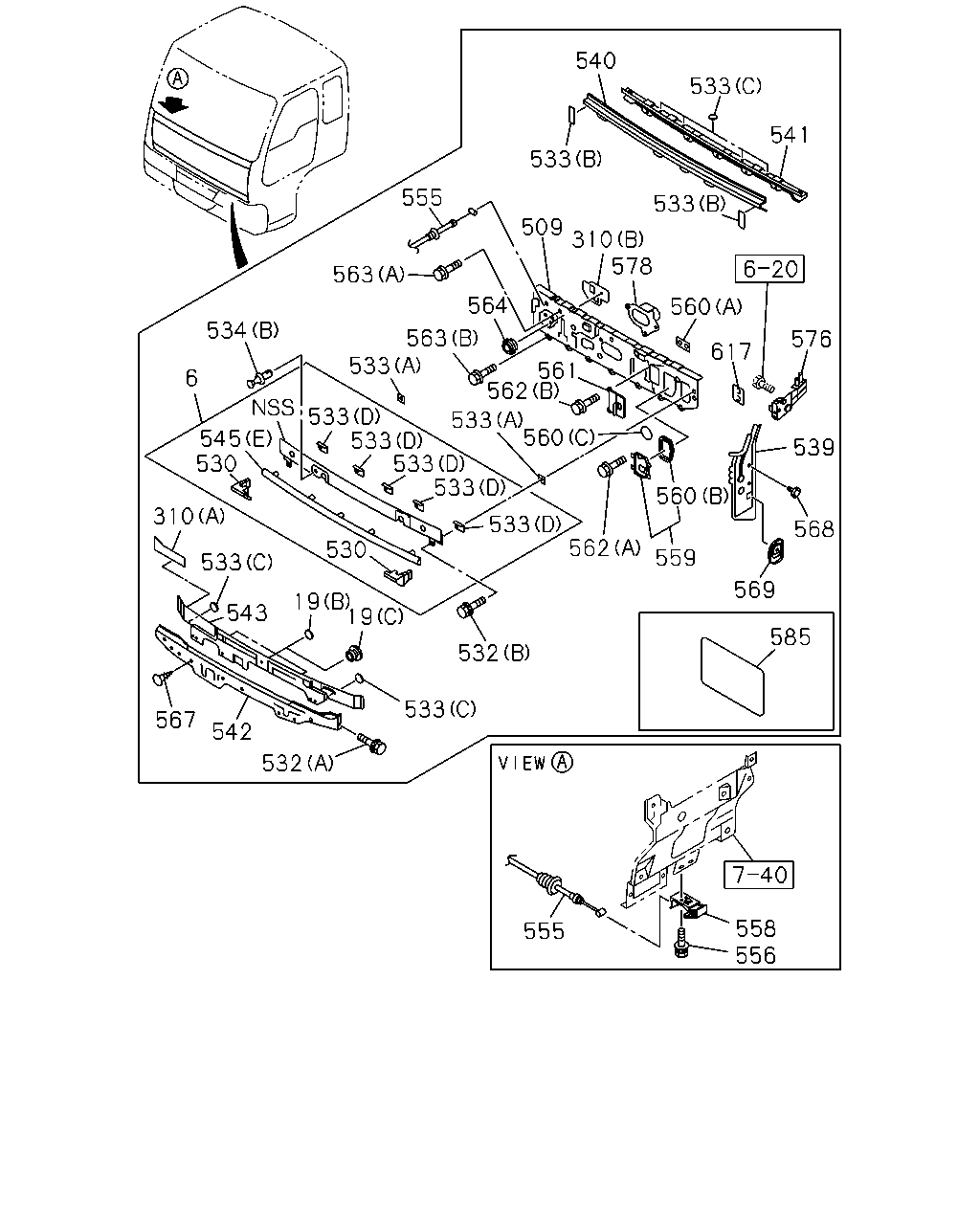

çizim 8098
540 533 541 533 555 533 509 310 578 563 564 560 534 563 533 576 617 561 562 6 533 533 533 533 533 560 545 530 539 560 310 533 562 568 530 559 533 569 19 19 543 585 532 533 567 542 532 558 556 555
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65471-970-2 01 1 9603-9604 ●
6 PANEL; FRONT 1-65472-255-2 01 1 9605-9807 ●
6 PANEL; FRONT 1-65472-549-3 01 1 9808- ●
6 PANEL; FRONT 1-65471-972-3 01 1 9603-9604 ●
6 PANEL; FRONT 1-65472-257-2 01 1 9605-9807 ●
6 PANEL; FRONT 1-65472-551-2 01 1 9808- ●
19 SEAL; FRT SIDE PANEL
(B) OD=44 		8-94279-727-0 03 1 9603-9703 ● ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		1-71907-411-0 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		1-71907-410-0 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-4 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-4 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-4 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-4 01 1 9603- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9603- ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9603- ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-492-2 01 1 9603- ●
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-478-6 01 1 9603- ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-497-1 01 1 9610-9904 ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-497-2 01 1 9905- ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5) 		1-62270-497-2 01 1 9905- ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-1 01 1 9610-9904 ●
509 PANEL; DASH
ELECTRONIC GOV RED3(KG5) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-2 01 1 9905- ●
509 PANEL; DASH
ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-496-2 01 1 9905- ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-493-0 01 1 9603-9609 ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5) 		1-62270-493-2 01 1 9610-9904 ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P> 		1-62270-493-3 01 1 9905- ●
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-1 01 1 9603-9609 ●
509 PANEL; DASH
EXC. ELECTRONIC GOV RED3(KG5),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-3 01 1 9610-9904 ●
509 PANEL; DASH
EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS<Q3P>,HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-482-4 01 1 9905- ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9605- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9605- ● ●
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9603- ● ●
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9904 ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9603- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 9905- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9603-9709 ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 12 1 9710-9806 ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9807-9908 ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9909- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 9603- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9603- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 16 1 9603-9709 ●
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 16 1 9710-9806 ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 16 1 9807-9908 ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9603-9803 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9603- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 9603- ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 9603- ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9603- ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9603- ●
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 9603- ●
540 PANEL; FRONT,OUTER 1-61470-699-2 01 1 9603- ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 9603- ●
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 9603- ●
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 9603- ●
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 9603- ●
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 9603- ●
543 CLOSING; FRT MTG RAIL 1-61470-703-3 01 1 9603- ●
545 SEAL; FRT LID
(C) 		1-71907-154-4 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-154-4 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905- ●
545 SEAL; FRT LID
(E) 		1-71907-152-2 01 1 9603-9604 ● ●
545 SEAL; FRT LID
(E) L=2038 		1-71907-481-0 01 1 9605- ● ●
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9603-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
545 SEAL; FRT LID
(C) 		1-71907-372-1 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-372-1 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71907-572-0 01 1 9905- ●
555 CABLE; FRT LID
L=2442 		1-79347-003-2 01 1 9603-9904 ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9905- ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9905- ●
555 CABLE; FRT LID
L=2542 		1-79347-004-0 01 1 9603-9904 ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542 		1-79347-004-2 01 1 9905- ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782 		1-79347-006-2 01 1 9905- ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9611 ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9612- ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 9603- ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9603- ●
559 COVER; EVAPOLATOR 1-71998-831-3 01 1 9603-9603 ●
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608 ●
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 9609- ●
559 COVER; EVAPOLATOR 1-71998-994-1 01 1 9603-9608 ●
559 COVER; EVAPOLATOR 1-71996-193-0 01 1 9609- ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9603-9606 ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9603-9606 ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9607-9806 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9603-9606 ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9603-9606 ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9607-9708 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-9907 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908- ● ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908- ● ●
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9603-9805 ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9603- ● ●
560 SEAL; COVER
(D) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-9907 ● ●
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9908- ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 9603- ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9603- ●
562 BOLT; COVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9603- ● ●
562 BOLT; COVER
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603-9904 ● ●
562 BOLT; COVER
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ●
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 16 1 9603-9707 ● ●
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 14 1 9708-9807 ● ●
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 18 1 9808- ● ●
563 BOLT; DASH PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9603-9707 ● ●
563 BOLT; DASH PANEL
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807 ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9603- ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9603-9611 ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9612-9712 ● ●
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9801-9803 ● ●
567 PLUG; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ●
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 02 1 9603-9611 ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9603- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9603- ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9603-9712 ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9801- ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9801- ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 9603- ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 9603- ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9603- ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9603- ●
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9603-0009 ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010- ● ●
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 9603- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 9806- ● ●

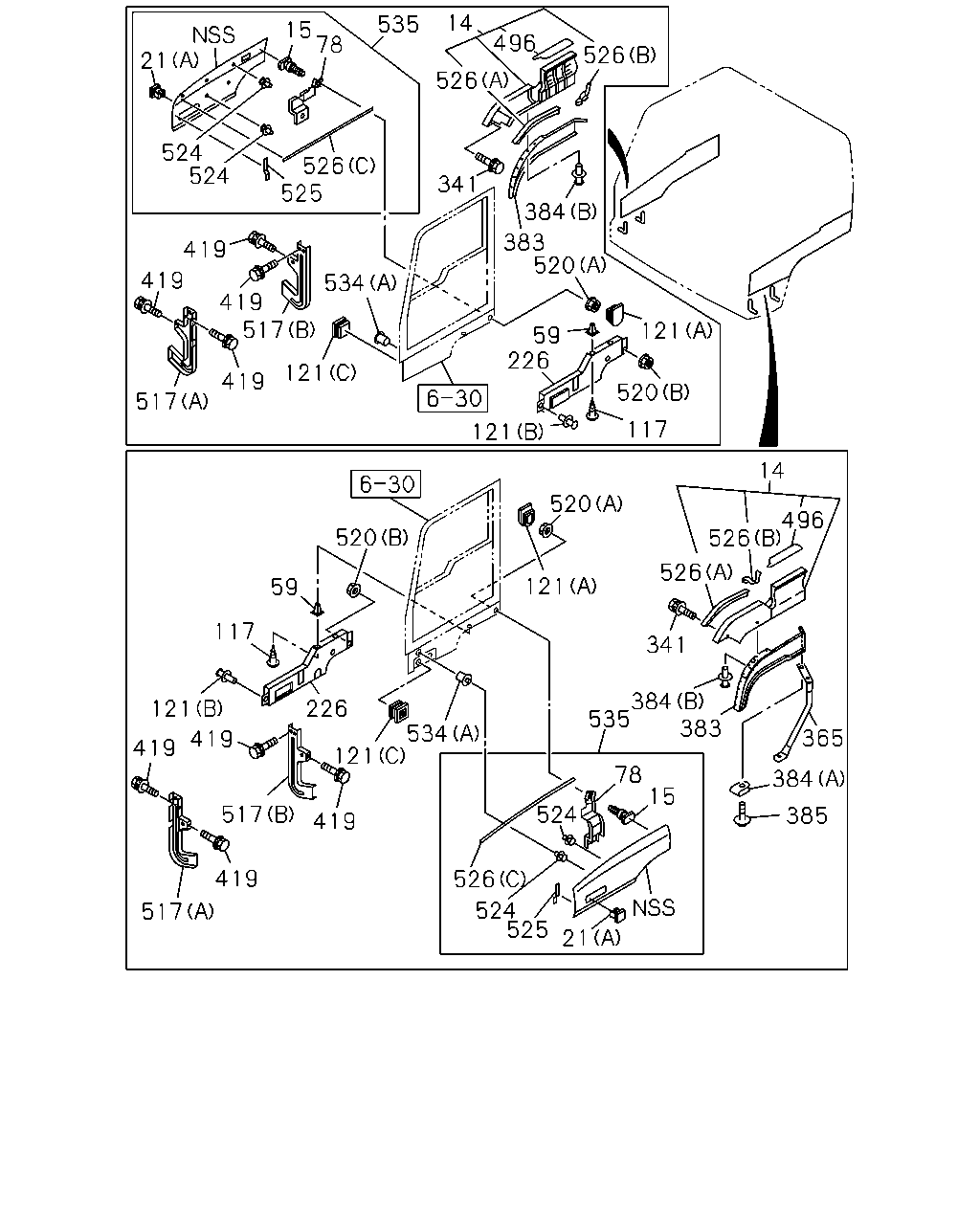

çizim 9080
14 535 15 78 496 526 21 526 524 524 526 525 341 384 383 520 419 419 534 419 517 121 59 226 121 419 520 517 117 121 14 520 496 526 520 526 121 59 117 341 384 535 383 121 226 534 121 365 419 419 78 15 384 517 524 385 419 419 526 524 525 517 21
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
CAB UP +50MM<W60> 		1-65472-467-0 01 1 9709-9904 ●
14 FENDER; FRT
CAB UP +50MM<W60> 		1-65472-466-0 01 1 9709-9904 ●
14 FENDER; FRT 1-65471-722-9 01 1 9603-9704 ● ●
14 FENDER; FRT 1-65471-721-9 01 1 9603-9704 ● ●
14 FENDER; FRT
WHITE 		1-65472-453-0 01 1 9705-9708 ● ●
14 FENDER; FRT
WHITE 		1-65472-452-0 01 1 9705-9708 ● ●
14 FENDER; FRT
WHITE 		1-65472-453-0 01 1 9905- ● ●
14 FENDER; FRT
WHITE 		1-65472-452-0 01 1 9905- ● ●
14 FENDER; FRT
EXC. CAB UP +50MM<W60> WHITE 		1-65472-453-0 01 1 9709-9904 ● ●
14 FENDER; FRT
EXC. CAB UP +50MM<W60> WHITE 		1-65472-452-0 01 1 9709-9904 ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9603- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9603- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9603- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9603- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 9603- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 9603- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9603- ● ●
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 9603- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 9603- ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9603-9603 ● ●
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9604- ● ●
226 PROTECTOR; FRT 1-71267-153-7 01 1 9603-9902 ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 9903- ● ●
226 PROTECTOR; FRT 1-71267-152-7 01 1 9603-9902 ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 9903- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9603- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 9905- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 9905- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +50MM<W60> 		1-71907-416-2 01 1 9709-9904 ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 9905- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +50MM<W60> 		1-71907-415-2 01 1 9709-9904 ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 9905- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 9603-9708 ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +50MM<W60> 		1-71907-443-2 01 1 9709-9904 ●
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 9709-9904 ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 9905- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 9603-9708 ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +50MM<W60> 		1-71907-442-2 01 1 9709-9904 ●
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 9709-9904 ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 9905- ● ●
384 CLIP; FENDER LWR
EXC. CAB UP +50MM<W60> (B) D8X13.5 		1-09987-248-1 11 1 9709-9904 ●
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 11 1 9709-9904 ●
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 11 1 9905- ● ●
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 11 1 9603-9708 ● ●
384 CLIP; FENDER LWR
CAB UP +50MM<W60> (B) D8X13.5 		1-09987-248-1 13 1 9709-9904 ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 09 1 9905- ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) ID=6 		1-09987-266-0 04 1 9905- ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> M6X25 		1-65481-736-0 04 1 9905- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603- ● ●
496 RUBBER; STEP 1-71998-862-0 01 1 9603- ● ●
496 RUBBER; STEP 1-71998-861-0 01 1 9603- ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-529-3 01 1 9603-9904 ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-529-3 01 1 9603-9904 ●
517 SUPPORT; STEP PANEL
(A) FRONG 		1-65671-767-1 01 1 9905- ●
517 SUPPORT; STEP PANEL
EXC. DUAL AIR GAUGE<UG2> (A) FRONG 		1-65671-767-1 01 1 9905- ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-531-1 01 1 9603- ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-528-3 01 1 9603-9904 ● ●
517 SUPPORT; STEP PANEL
(A) FRONT 		1-65671-766-1 01 1 9905- ● ●
517 SUPPORT; STEP PANEL
(B) REAR 		1-65671-530-1 01 1 9603- ● ●
517 SUPPORT; STEP PANEL
DUAL AIR GAUGE<UG2> (A) FRONT 		1-65671-747-4 01 1 9603- ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9603- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 9603- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9603-9803 ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9603- ● ●
526 FINISHER; FENDER
(B) 		1-71998-900-3 02 1 9603- ● ●
526 FINISHER; FENDER
(C) 		1-71268-276-1 01 1 9603- ● ●
526 FINISHER; FENDER
(A) 		1-71907-181-4 01 1 9603- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 01 1 9603- ● ●
526 FINISHER; FENDER
(A) 		1-71907-180-4 01 1 9603- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9603-9803 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9603- ● ●
535 FENDER; BLISTER 1-71267-186-1 01 1 9603- ● ●
535 FENDER; BLISTER 1-71267-185-1 01 1 9603- ● ●

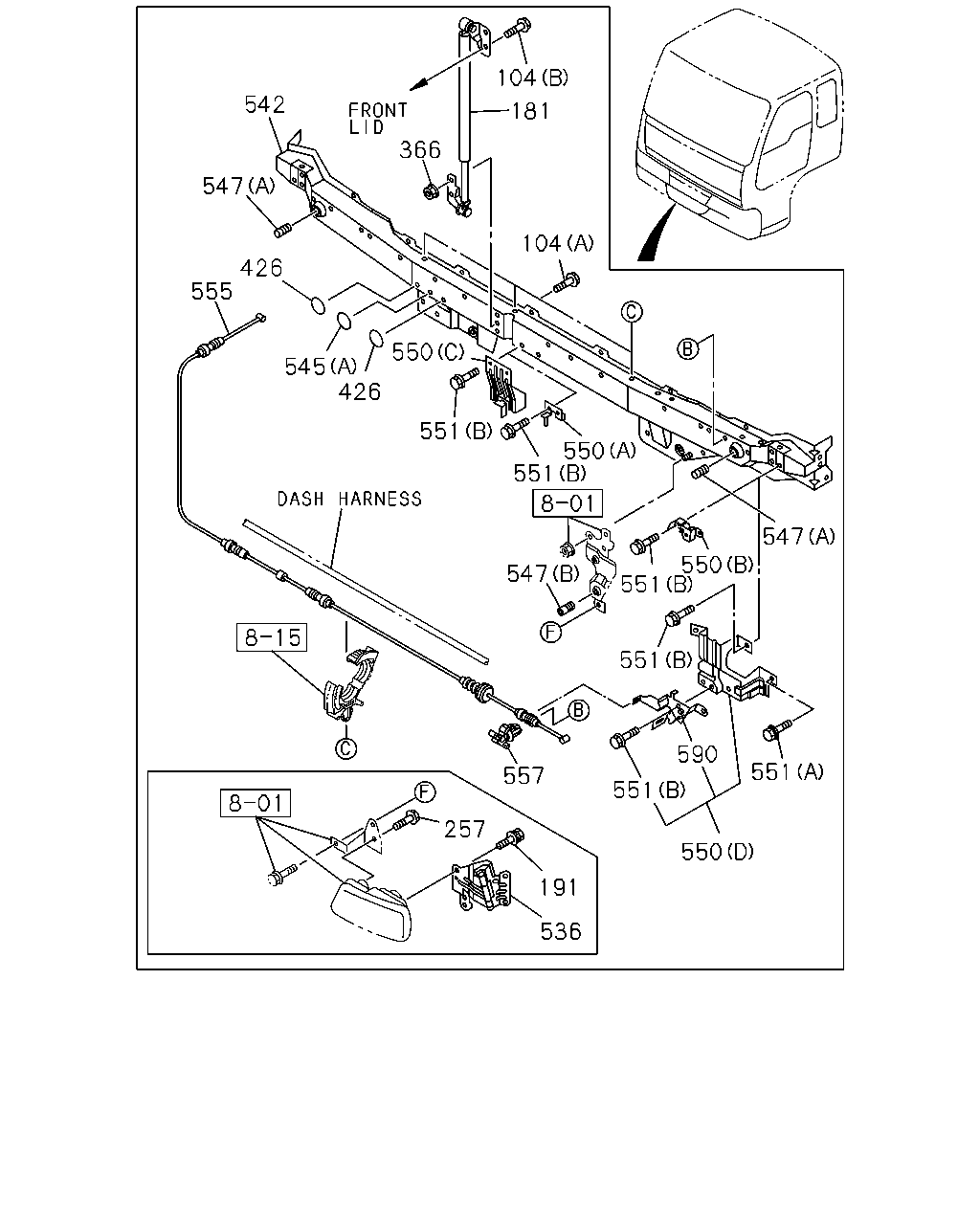

çizim 40886
104 542 181 366 547 104 426 555 550 545 426 551 550 551 547 550 551 547 551 590 551 557 551 257 550 191 536
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
(A) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9603- ● ●
104 BOLT; SUPPORT BAR
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9603-9709 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-118-0 01 1 9603-9609 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9610- ● ●
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9603- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9710- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9603-9804 ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9603-9804 ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0102 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9805-0102 ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9805-0102 ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0103- ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0103- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0103- ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 12 1 9603-9611 ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 9612- ●
426 GASKET
D=20 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9603-9806 ●
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9807- ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 9603- ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 9603- ● ●
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 9603- ●
542 RAIL; FRT MOUNTING 1-61470-701-4 01 1 9603- ●
545 SEAL; FRT LID
(C) 		1-71907-154-4 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-154-4 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905- ●
545 SEAL; FRT LID
(E) 		1-71907-152-2 01 1 9603-9604 ● ●
545 SEAL; FRT LID
(E) L=2038 		1-71907-481-0 01 1 9605- ● ●
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9603-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
545 SEAL; FRT LID
(C) 		1-71907-372-1 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-372-1 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71907-572-0 01 1 9905- ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 9603- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 9603- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79318-010-1 01 1 9603-9904 ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-010-1 01 1 9905- ●
550 LOCK ASM; FRT LID
(B) 		1-79318-009-3 01 1 9603-9904 ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-009-3 01 1 9905- ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-008-0 01 1 9905- ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-007-1 01 1 9905- ●
550 LOCK ASM; FRT LID
(A) 		1-79317-002-1 01 1 9603-9904 ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-79317-002-2 01 1 9905- ● ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) 		1-79317-006-1 01 1 9905- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79318-007-4 01 1 9603-9904 ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-007-4 01 1 9905- ●
550 LOCK ASM; FRT LID
(B) 		1-79318-006-2 01 1 9603-9904 ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-006-2 01 1 9905- ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) 		1-79317-015-0 01 1 9905- ●
550 LOCK ASM; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) 		1-79317-014-0 01 1 9905- ●
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9905-0101 ●
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0102- ● ●
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9603- ● ●
551 BOLT; LOCK
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
555 CABLE; FRT LID
L=2442 		1-79347-003-2 01 1 9603-9904 ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-4 01 1 9905- ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-2 01 1 9905- ●
555 CABLE; FRT LID
L=2542 		1-79347-004-0 01 1 9603-9904 ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542 		1-79347-004-2 01 1 9905- ●
555 CABLE; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782 		1-79347-006-2 01 1 9905- ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9603-9904 ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 02 1 9905- ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 01 1 9905- ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 05 1 9603-9904 ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 05 1 9905- ●
557 CLIP; CABLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 04 1 9905- ●
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-010-1 01 1 9905- ●
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-009-3 01 1 9905- ●
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-007-4 01 1 0102- ●
590 LOCK; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-006-2 01 1 0102- ●
çizim 43034
544 544 560 548 545 545 545 601 532 548 198 545 548
BalonParca AdiParca NoAdetTipApplied Date A B
198 NUT; PANEL
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE 		8-94197-199-0 02 1 9905- ● ●
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9603- ● ●
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9603-9904 ● ●
532 BOLT; FRT PANEL
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9603- ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> DELUXE CAB(W14) 		1-71107-237-2 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. DELUXE CAB(W14) 		1-71107-345-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> 		1-71107-345-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> DELUXE CAB(W14) 		1-71107-218-3 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. DELUXE CAB(W14) 		1-71107-281-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-71107-281-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> DELUXE CAB(W14) 		1-71107-249-1 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. DELUXE CAB(W14) 		1-71107-346-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71107-346-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> DELUXE CAB(W14) 		1-71107-217-2 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> 		1-71107-293-0 01 1 9905- ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> 		1-71107-108-6 01 1 9603-9904 ● ●
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-107-6 01 1 9603-9904 ● ●
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2> 		1-71107-370-0 01 1 9905- ●
544 LID; FRT
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2> 		1-71107-373-0 01 1 9905- ●
545 SEAL; FRT LID
(C) 		1-71907-154-4 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-154-4 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-471-0 01 1 9905- ●
545 SEAL; FRT LID
(E) 		1-71907-152-2 01 1 9603-9604 ● ●
545 SEAL; FRT LID
(E) L=2038 		1-71907-481-0 01 1 9605- ● ●
545 SEAL; FRT LID
(B) 		1-71907-153-3 01 1 9603-9904 ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71907-472-0 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63 		1-71998-963-2 01 1 9905- ● ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
545 SEAL; FRT LID
(C) 		1-71907-372-1 01 1 9603-9904 ●
545 SEAL; FRT LID
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) 		1-71907-372-1 01 1 9905- ●
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71907-572-0 01 1 9905- ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 9603- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 9603- ● ●
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9603-9606 ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9603-9606 ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 01 1 9607-9806 ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9603-9606 ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9603-9606 ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9607-9708 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-9907 ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908- ● ●
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908- ● ●
560 SEAL; COVER
(A) 		1-61281-497-0 02 1 9603-9805 ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9603- ● ●
560 SEAL; COVER
(D) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-9907 ● ●
560 SEAL; COVER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9908- ● ●
601 FINISHER; LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190 		1-71998-300-0 01 1 9905- ● ●
çizim 44985
19 299 18 22 19 16 21 16 19 19 164 18 571 571 299 43 22 22 22 24 546 546 21 571
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-899-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65472-219-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65472-217-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-899-0 01 1 9706- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-898-0 01 1 9706- ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 9706- ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9706- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65472-220-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65471-898-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65472-218-0 01 1 9603-9705 ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 9603-9705 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9603- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=44 		8-94279-727-0 03 1 9603-9703 ● ●
19 SEAL; FRT SIDE PANEL
(C) OD=45 BLACK 		1-76798-017-0 03 1 9704- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		1-71907-411-0 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		1-71907-410-0 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-4 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-4 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-4 01 1 9603- ● ●
19 SEAL; FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-4 01 1 9603- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9603- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9603- ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9603-0003 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 9603-9811 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9812-9903 ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 9904- ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 9812- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9603-9807 ● ●
43 GROMMET; LOCATION HOLE,A-POST
EXC. POWER WINDOW<A30> OD=45 BLACK 		1-76798-017-0 02 1 9808-9811 ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9808-9811 ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9812- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9603- ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 9706-9801 ●
299 COVER; FRT PANEL SIDE
EXC. KENYA EQUIPMENT(PQ2) 		1-71998-995-1 01 1 9802-9904 ●
299 COVER; FRT PANEL SIDE
SAUDI ARABIA EQUIPMENT(WH1) 		1-71998-995-1 01 1 9802-9904 ●
299 COVER; FRT PANEL SIDE
EXC. KENYA EQUIPMENT(PQ2) 		1-71998-995-1 01 1 9905-9912 ●
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-995-1 01 1 9905-9912 ●
299 COVER; FRT PANEL SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-71998-995-1 01 1 0001- ●
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-995-1 01 1 0001- ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9706-9706 ●
299 COVER; FRT PANEL SIDE
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-71998-996-1 01 1 9706-9904 ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9706-9904 ●
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-996-1 01 1 9905- ●
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9905- ●
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 9603- ● ●
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 9603- ●
571 CLIP; SEAL
(A) PINK 		1-09987-256-0 08 1 9905- ● ●
571 CLIP; SEAL
(A) NATURAL 		1-09987-257-0 08 1 9905- ● ●
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (B) 		1-09987-228-0 16 1 9603-9702 ● ●
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (B) 		1-09987-228-0 16 1 9703- ● ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-09987-228-0 15 1 9603-9702 ● ●
571 CLIP; SEAL
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-09987-228-0 14 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
