3-77 — BRAKE PIPING; AIR,REAR (#58367) — 97 parça

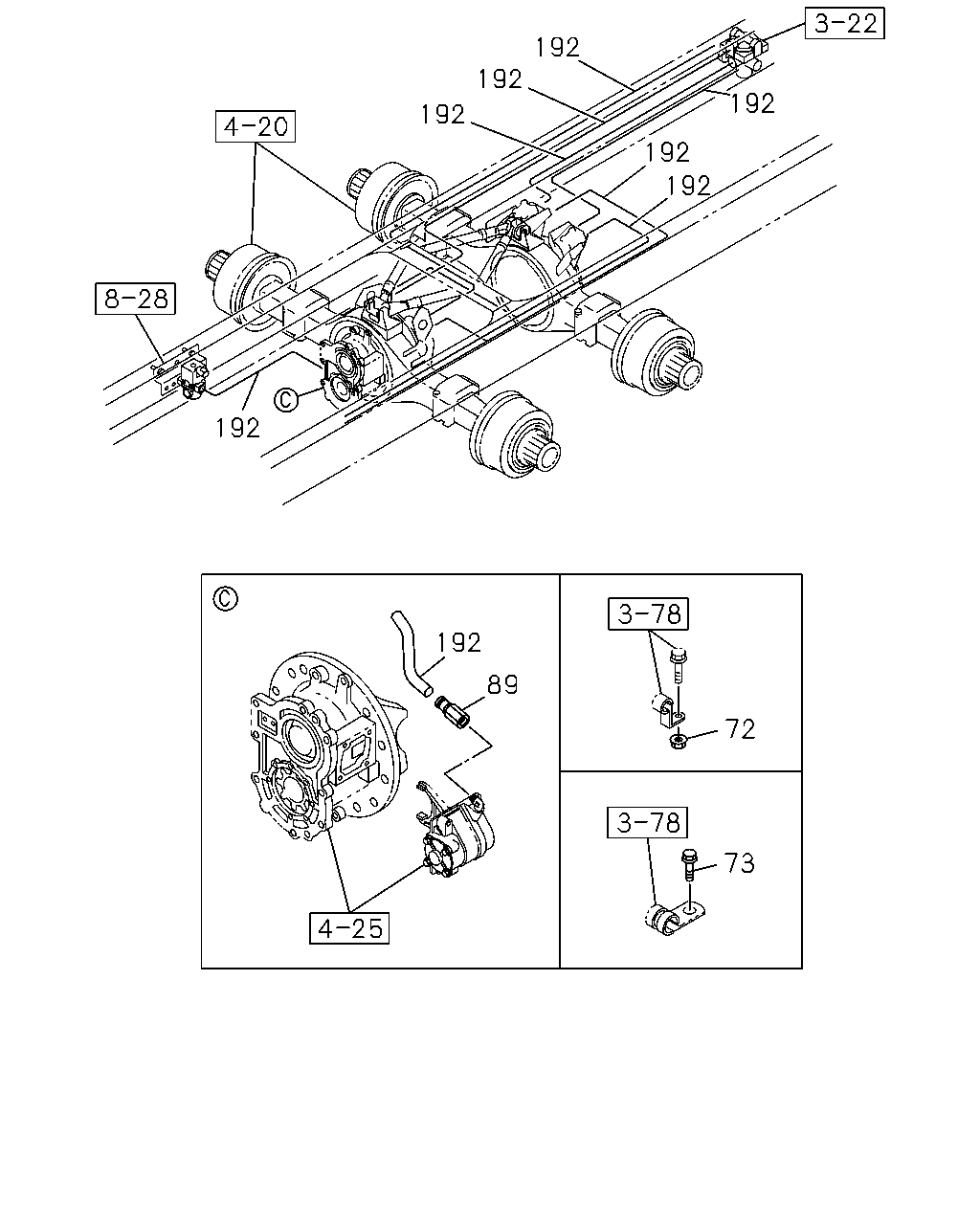

çizim 168121
192 192 192 192 192 192 192 192 89 72 73
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1008-
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-

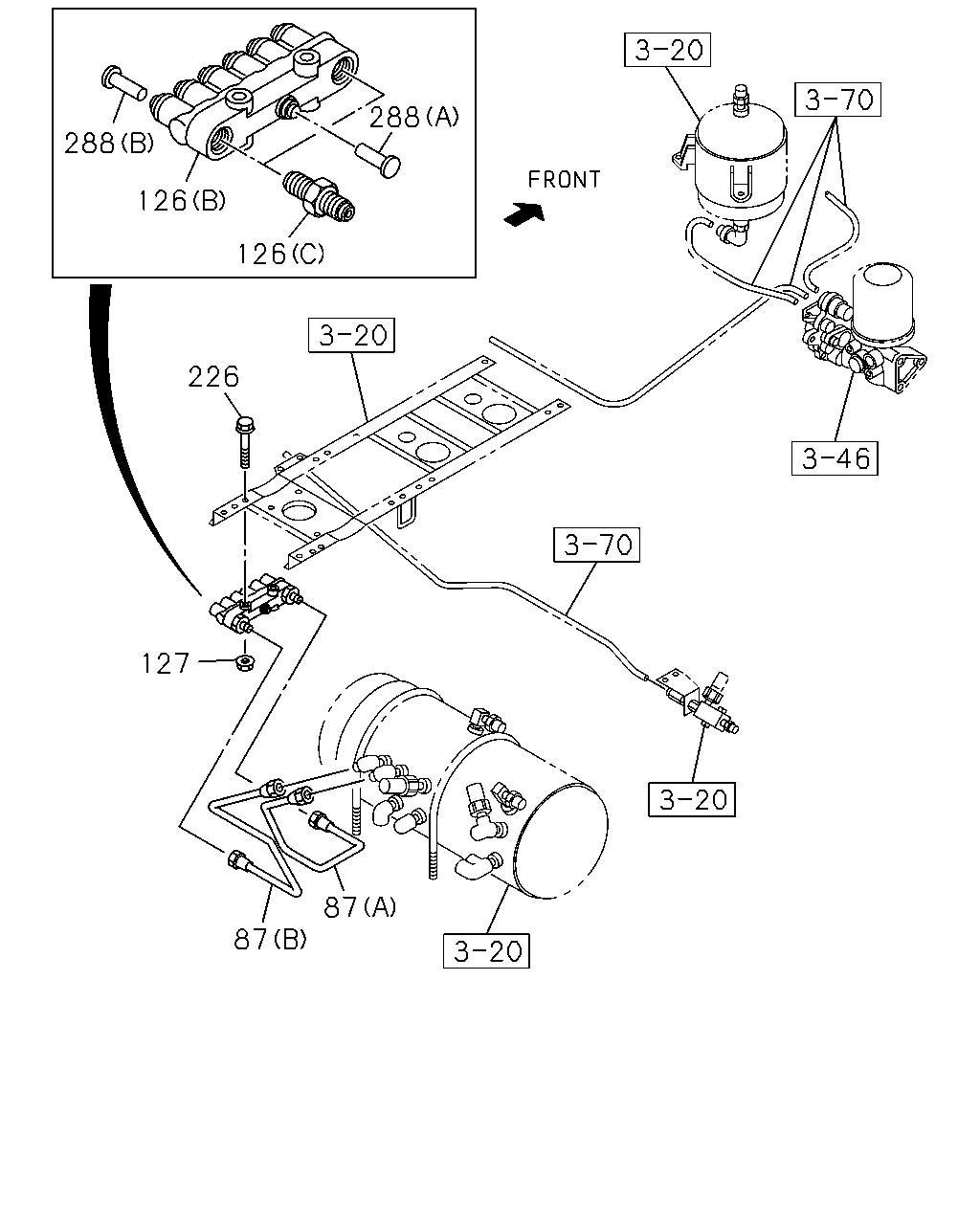

çizim 168126
288 288 126 126 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 1008-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 1008-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008-
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 03 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 05 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL(NLG) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1008-
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-

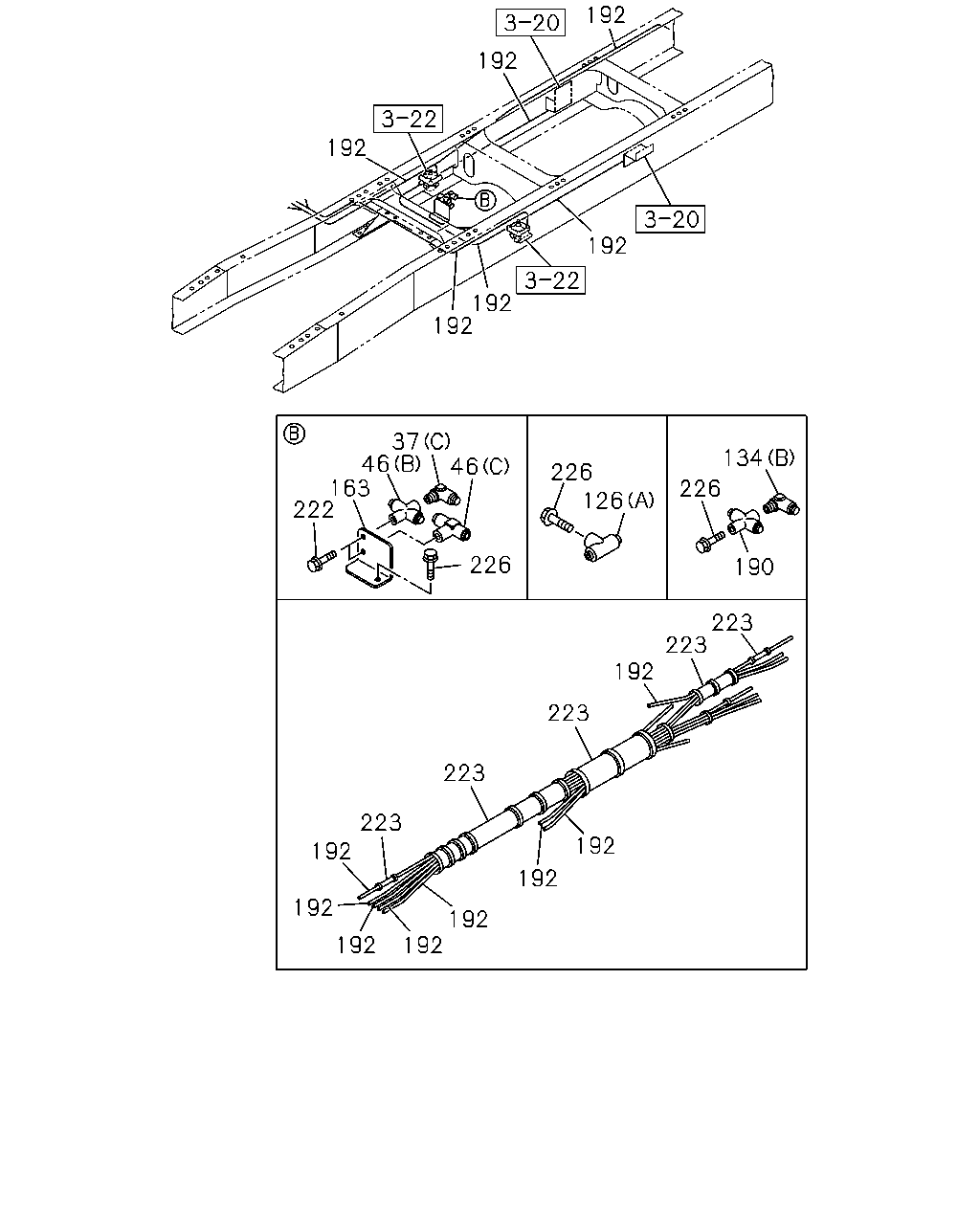

çizim 168139
192 192 192 192 192 192 37 46 46 163 222 134 226 226 126 226 190 223 223 192 223 223 223 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
37 UNION; AIR PIPE
(B) M16 & PT1/2 STRAIGHT 		1-09650-222-1 01 1 1008-
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1008-
46 NIPPLE; AIR PIPE
(A) 		1-47471-156-0 01 1 1008-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-
134 CONNECTOR
EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 1008-
190 UNION; 3 WAY
EXC. TRAILER BRAKE HAND CONTROL(NLG) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28050-810-0 02 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 05 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL(NLG) M8X16 FLANGE 		0-28050-816-0 01 1 1008-

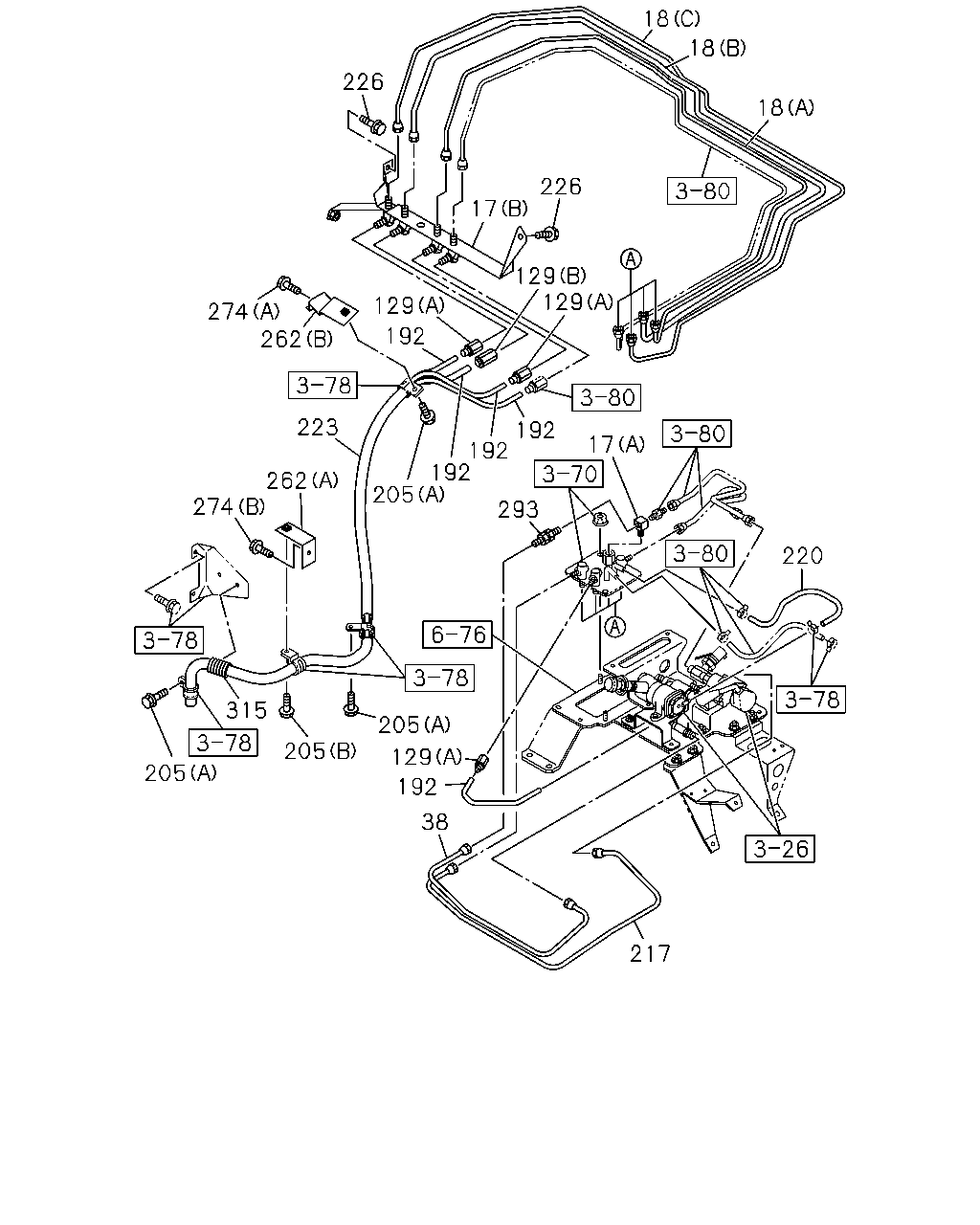

çizim 168148
18 18 226 18 226 17 129 129 129 274 262 192 223 192 192 192 205 17 262 274 293 220 315 205 205 129 205 192 38 217
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> (A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1008-
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> (B) 		1-47470-656-0 01 1 1008-
17 UNION; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1008-
17 UNION; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE> (B) 		8-98151-901-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
(C) L=2316 SERVICED BY L=2400 		1-47428-856-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
(B) L=2098 SERVICED BY L=2100 		1-47428-882-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
BRAKE REGULATION ECE<NBE> (A) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-
38 PIPE; AIR,UNION TO MAG VLV 1-49122-879-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL(NLG) (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<NBE> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1008-
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 1008-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 05 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL(NLG) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
293 VALVE; CHECK
BRAKE REGULATION ECE<NBE> 		1-48410-479-1 01 1 1008-
293 VALVE; CHECK
EXC. BRAKE REGULATION ECE<NBE> PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 1008-
315 CLIP 8-97332-148-0 01 1 1109-
çizim 168172
192 192 192 192 134 134 192 46 134 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1008-
46 NIPPLE; AIR PIPE
(A) 		1-47471-156-0 01 1 1008-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-
134 CONNECTOR
EXC. TRAILER BRAKE HAND CONTROL(NLG) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-

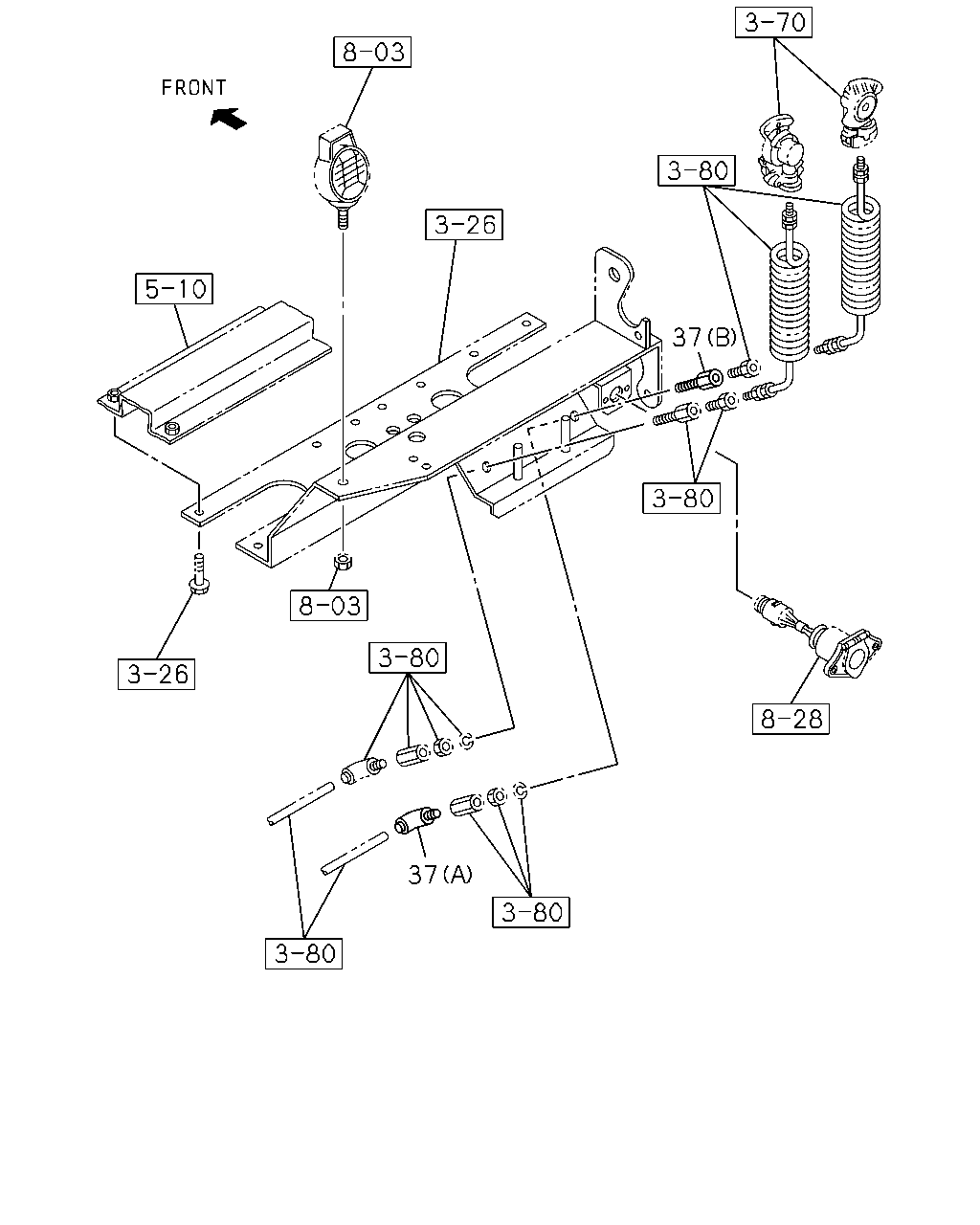

çizim 168187
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
37 UNION; AIR PIPE
(B) M16 & PT1/2 STRAIGHT 		1-09650-222-1 01 1 1008-
