◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#58361) — 44 parça

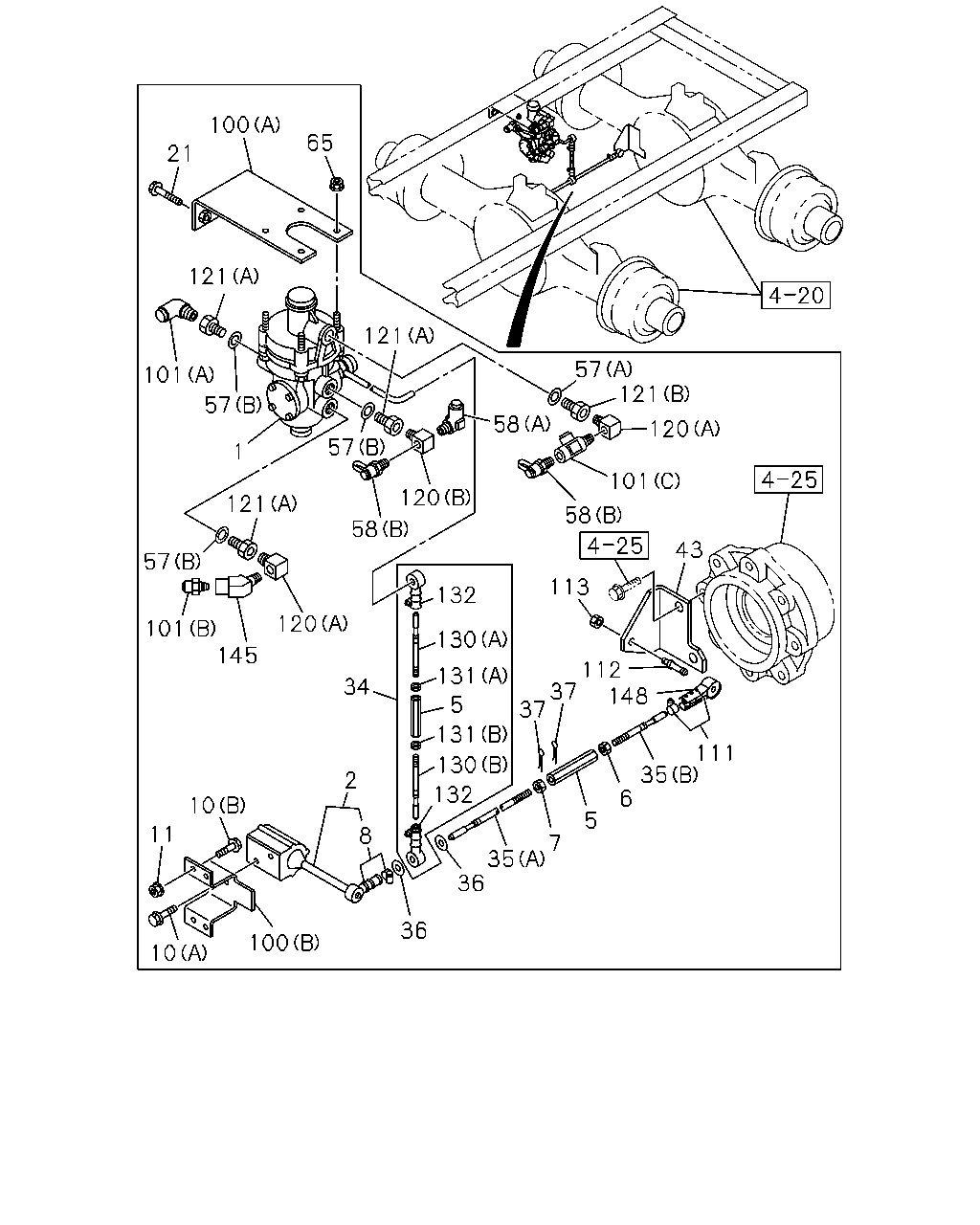

çizim 168164
100 65 21 121 121 57 121 101 57 58 120 57 1 101 120 121 58 58 43 57 113 132 120 101 145 130 112 37 148 37 131 34 5 131 111 35 6 130 2 132 10 5 11 8 7 35 36 36 100 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 8-98138-157-0 01 1 1008-
2 DAMPER
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47725-047-0 01 1 1008-
5 JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-09768-091-0 02 1 1008-
6 NUT; LK,UPR
LOAD SENSING PROPORTIONING VALVE<JR7> M8 		0-91111-508-0 01 1 1008-
7 NUT; LK,LWR
LOAD SENSING PROPORTIONING VALVE<JR7> LH THREAD 		1-09409-002-0 01 1 1008-
8 ROD END
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47723-001-0 01 1 1008-
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> (A) M8X12 FLANGE 		0-28050-812-0 02 1 1008-
10 BOLT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
11 NUT; BRKT
LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE 		0-91180-208-0 04 1 1008-
21 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1008-
34 ROD; LEVER TO ROD,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47725-046-0 01 1 1008-
35 ROD; LINK,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-09765-290-0 01 1 1008-
35 ROD; LINK,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-09765-318-0 01 1 1008-
36 WASHER; PL,ROD
LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4 OD=16 		0-91610-508-0 02 1 1008-
37 PIN; SPLIT,ROD
LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25 		0-81122-025-0 02 1 1008-
43 BRACKET; DAMPER TO AXLE
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-42129-517-0 01 1 1008-
57 GASKET; CONNECTOR
(A) ID=16.2 OD=24 		9-09571-416-0 01 1 1008-
57 GASKET; CONNECTOR
(B) ID=22.5 		9-09571-422-0 03 1 1008-
58 CONNECTOR; LSPV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
58 CONNECTOR; LSPV
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1008-
65 NUT; LSPV
M8 FLANGE 		0-91180-108-0 04 1 1008-
100 BRACKET; LSPV
(A) 		1-47471-208-0 01 1 1008-
100 BRACKET; LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-42129-511-0 01 1 1008-
101 CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
101 CONNECTOR; LSPV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1008-
101 CONNECTOR; LSPV
(C) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1008-
111 RUBBER; JOINT,LSPV
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47723-001-0 01 1 1008-
112 PIN; JOINT RUBBER
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-09744-123-0 01 1 1008-
113 NUT; JOINT RUBBER
LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE 		0-91180-108-0 01 1 1008-
120 CONNECTOR
(B) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1008-
120 CONNECTOR
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
121 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1008-
121 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1008-
130 ROD; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-09765-283-0 01 1 1008-
130 ROD; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (A) 		1-09765-290-0 01 1 1008-
131 NUT; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (A) LH THREAD 		1-09409-002-0 01 1 1008-
131 NUT; JOINT
LOAD SENSING PROPORTIONING VALVE<JR7> (B) 		1-48119-089-0 01 1 1008-
132 RUBBER ASM; CONN
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47723-001-0 02 1 1008-
145 UNION
R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 1008-
148 COVER; JOINT RUBBER
LOAD SENSING PROPORTIONING VALVE<JR7> 		1-47729-058-0 02 1 1008-

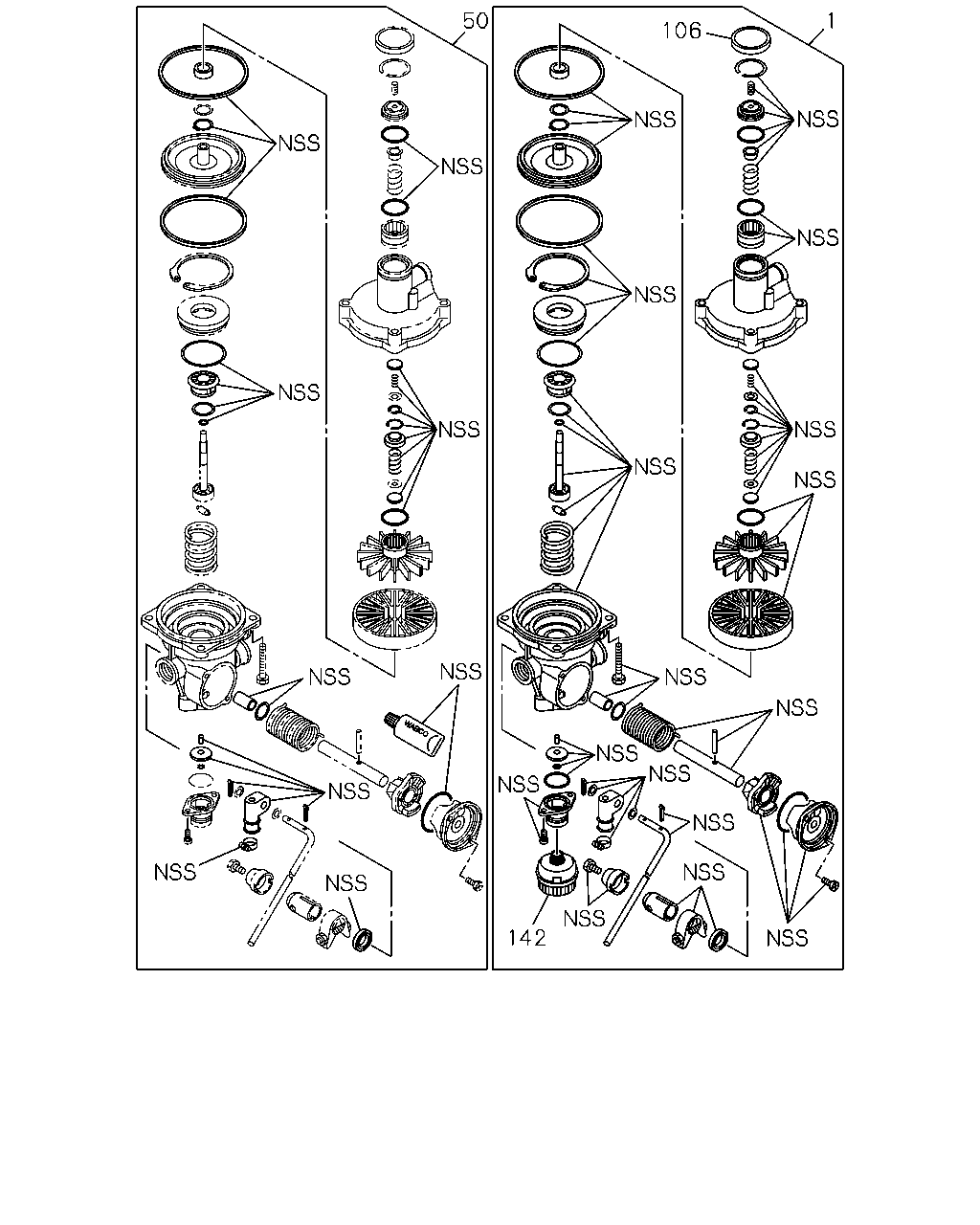

çizim 168176
50 1 106 142
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 8-98138-157-0 01 1 1008-
50 REPAIR KIT; LSPV 1-85576-393-0 01 1 1008-
106 COVER; PISTON 1-47729-001-0 01 1 1008-
142 SILENCER; VALVE 8-98163-464-0 01 1 1008-
