Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11274 - EXZ LHD EURO2/3/4 WITH 3STEPS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

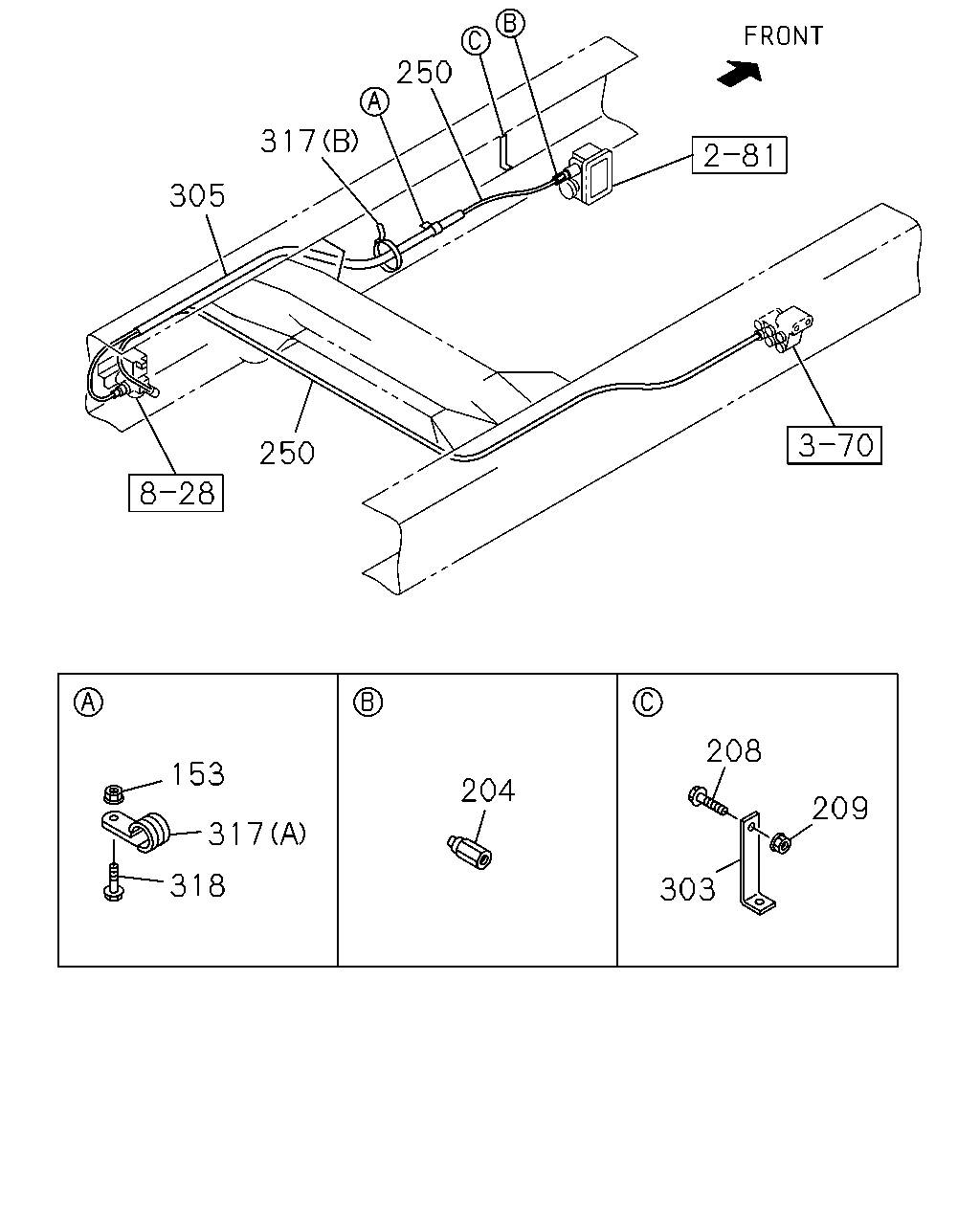

2-85 — POWER TAKE OFF CONTROL
(#58349) — 16 parça
◀
[285A] FIXING;HOSE AND BRACKET (10 parça)
[285A] LEVER AND GROMMET (6 parça)
▶
250
317
305
250
208
153
204
209
317
318
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
153
NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE
0-91180-108-0
01
1
1008-
204
CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1008-
208
BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X35 FLANGE
0-28650-835-0
01
1
1008-
209
NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE
0-91180-108-0
01
1
1008-
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
1008-
303
BRACKET; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=95
1-82699-085-0
01
1
1008-
305
TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7
1-87411-016-0
01
1
1008-
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) ID=11 L=16
0-95235-025-0
01
1
1008-
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) L=350
1-09707-183-0
01
1
1008-
318
BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE
0-28650-825-0
01
1
1008-
1
3
246
217
132
3
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4>
1-79996-244-0
01
1
1008-
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1008-
55
GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>
1-09983-068-0
01
1
1008-
132
COVER; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79997-376-0
01
1
1008-
217
WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3
9-09160-504-0
02
1
1008-
246
SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING
0-71240-408-0
02
1
1008-
