Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11274 - EXZ LHD EURO2/3/4 WITH 3STEPS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

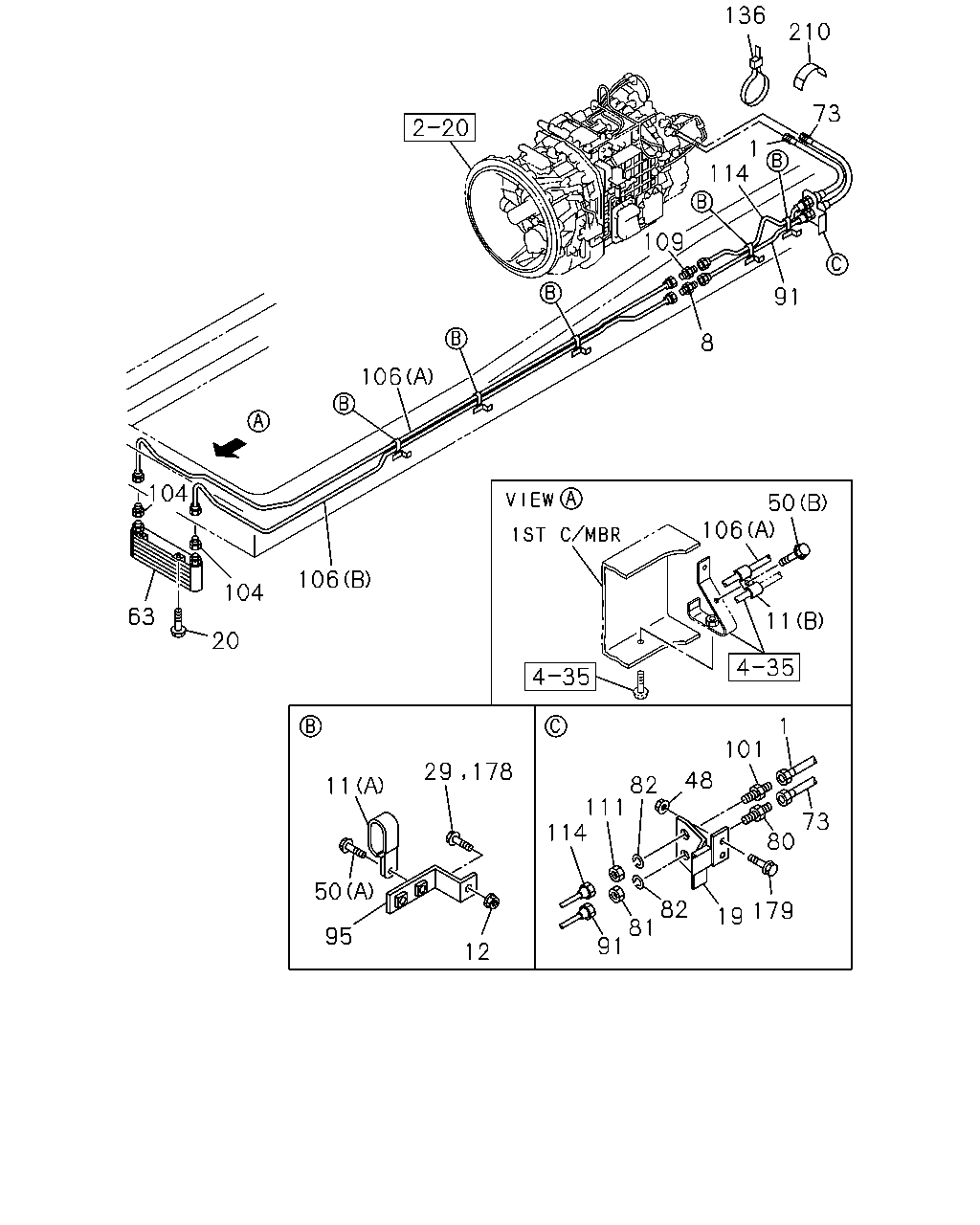

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#58347) — 31 parça
136
210
73
1
114
109
91
8
106
104
50
106
106
104
63
11
20
1
101
29
178
48
82
111
114
11
73
80
50
82
81
91
179
19
95
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=600
1-09365-232-0
01
1
1008-
8
UNION
M22 L=51
0-92123-015-0
01
1
1008-
11
CLIP; PIPE
(A) ID=16X2 L=20
0-95325-535-0
01
1
1008-
11
CLIP; PIPE
(A) ID=16X2 L=20
0-95325-535-0
04
1
1008-
11
CLIP; PIPE
(B) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
1008-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
1008-
19
BRACKET; FLEX HOSE
1-47479-561-1
01
1
1008-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
1008-
29
BOLT; FILTER TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1008-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1008-
50
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
01
1
1008-
50
BOLT; CLIP
(A) M8X25 FLANGE
0-28650-825-0
05
1
1008-
63
COOLER; OIL
1-21700-394-0
01
1
1008-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
73
HOSE; FLEX,TRANS
L=530
1-09365-248-0
01
1
1008-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1008-
81
NUT; UNION
M22
0-91111-522-0
01
1
1008-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
1008-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
1008-
95
BRACKET; CLIP
1-47479-482-0
05
1
1008-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1008-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
1008-
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=1726
8-98034-829-0
01
1
1008-
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2311
8-98034-830-0
01
1
1008-
109
UNION
M22 L=51
0-92123-015-0
01
1
1008-
111
NUT; UNION
M22
0-91111-522-0
01
1
1008-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1008-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
1008-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
01
1
1008-
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1008-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
1008-
