2-30 — GEAR SHIFTER AND QUADRANT BOX (#58341) — 192 parça

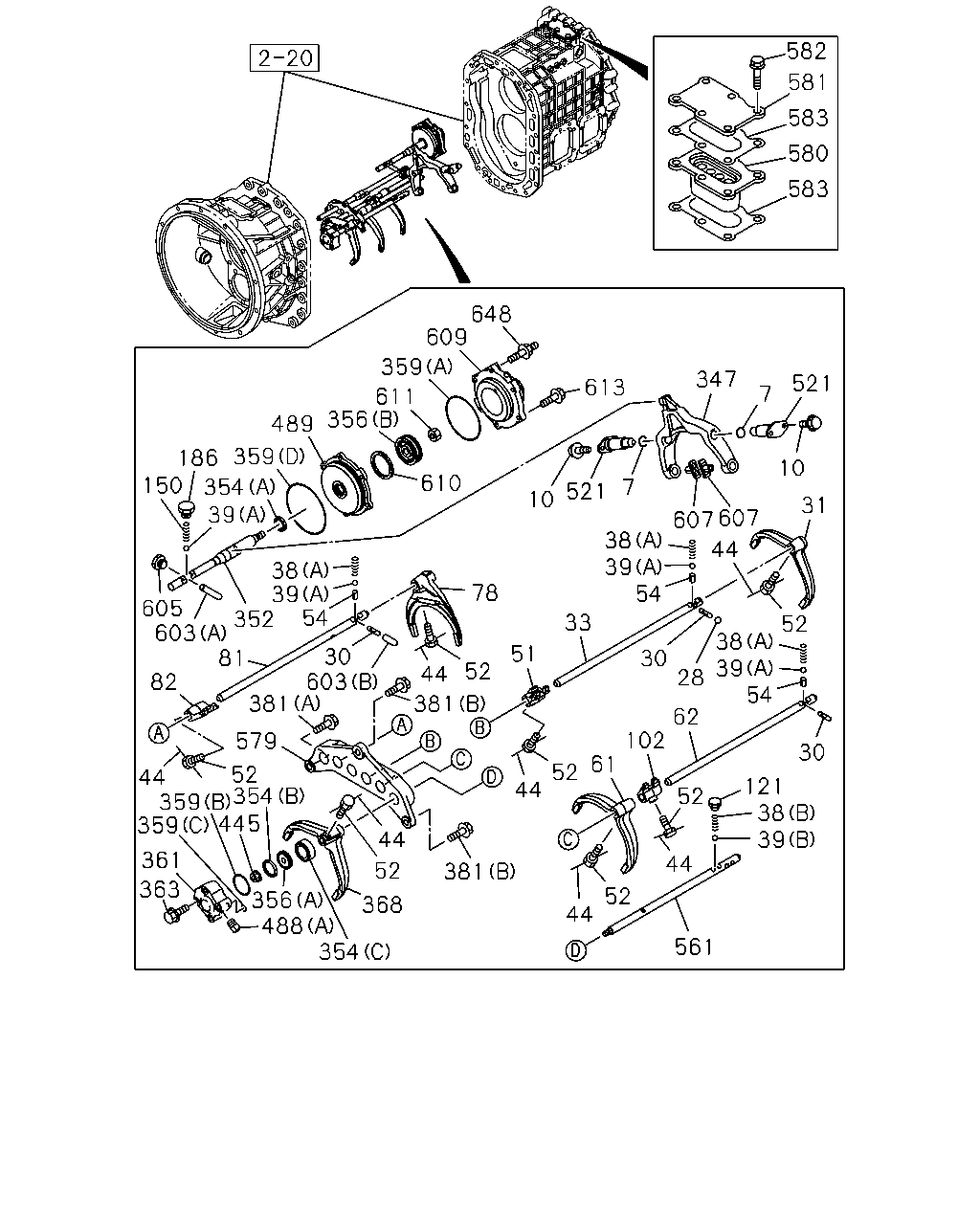

çizim 168050
582 581 583 580 583 648 609 359 347 521 613 7 611 356 489 359 186 150 10 610 354 39 7 521 10 31 38 39 54 44 38 39 81 78 605 603 33 52 38 39 54 51 30 603 381 30 52 44 28 82 381 62 102 579 30 61 52 44 52 354 359 121 38 39 44 52 44 361 44 52 381 363 488 354 52 368 44 561 607 607 352 54 359 445 356
BalonParca AdiParca NoAdetTipApplied Date
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 1008-
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 1008-
28 BALL; INTER LK 9-00097-501-0 02 1 1008-
30 PIN; INTER LK 9-33534-003-0 03 1 1008-
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 1008-
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 1008-
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1008-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1008-
38 SPRING; DETENT
(C) YELLOW 		1-09580-574-0 01 1 1008-
38 SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW 		1-09580-574-0 01 1 1008-
38 SPRING; DETENT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) BLUE 		1-09580-580-0 01 1 1008-
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1008-
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1008-
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1008-
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 1008-
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1008-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1008-
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 1008-
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 1008-
78 ARM; SHIFT,REV 1-33511-589-0 01 1 1008-
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 1008-
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 1008-
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 1008-
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1008-
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1008-
150 SPRING; DETENT BALL 1-09580-379-0 01 1 1008-
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 1008-
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 1008-
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 1008-
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 1008-
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 1008-
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 1008-
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 1008-
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 1008-
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 1008-
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 1008-
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 1008-
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 1008-
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 1008-
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1008-
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 1008-1510
368 ARM; SHIFT,SPLITTER GEAR 8-98318-482-0 01 1 1511-
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1008-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1008-
381 BOLT
(C) 		1-09044-111-0 04 1 1008-
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 1008-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1008-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1008-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1008-
489 COVER; AIR CYL 1-33569-052-0 01 1 1008-
521 SPINDLE; 6TH 1-33519-131-0 02 1 1008-
561 ROD; SHIFT 1-33531-466-0 01 1 1008-
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1008-
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1008-
581 COVER; BLOCK 1-33141-056-0 01 1 1008-
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1008-
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1008-
603 ROD; INTER LK
(B) L=49 		1-33534-005-0 01 1 1008-
603 ROD; INTER LK
(A) L=77 		1-33534-010-0 01 1 1008-
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 1008-
607 PIECE; SHIFT 1-33518-010-0 02 1 1008-
609 BODY; AIR,CYL 1-33561-018-0 01 1 1008-
610 SEAL; PISTON 1-33738-054-0 01 1 1008-
611 NUT; SHAFT 8-97324-304-0 01 1 1008-
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 03 1 1008-
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 03 1 1008-

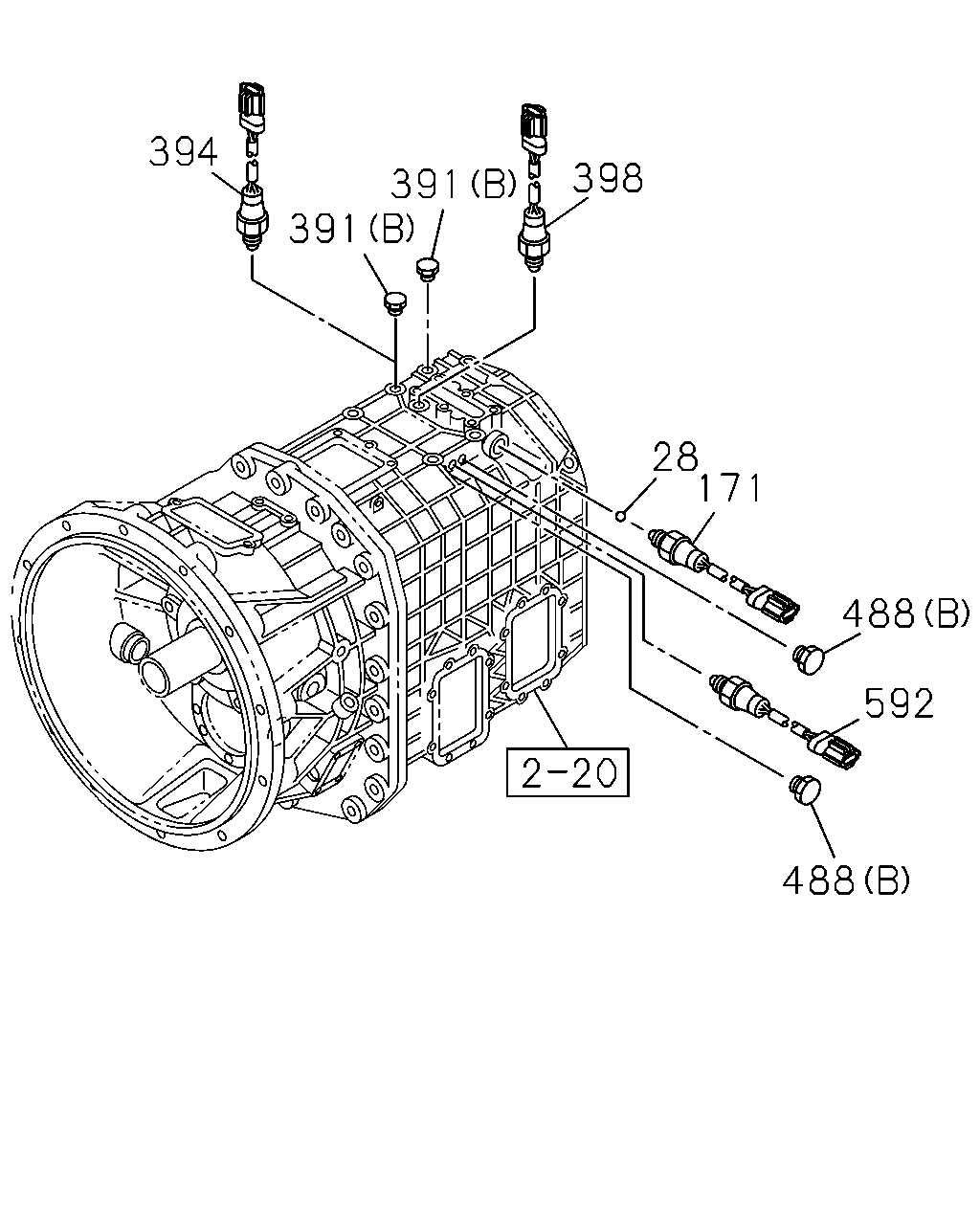

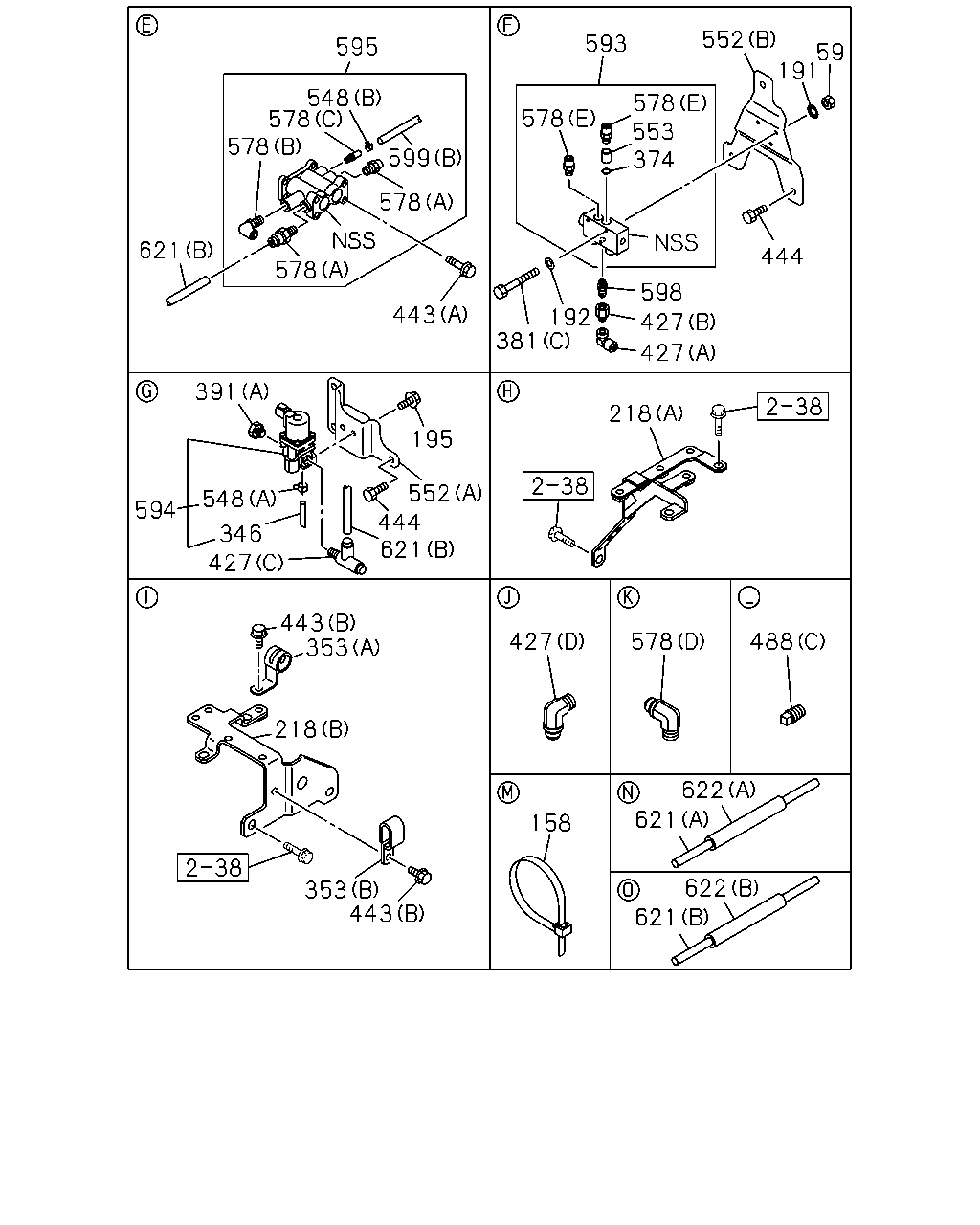

çizim 168125
394 398 391 391 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date
28 BALL; INTER LK 9-00097-501-0 02 1 1008-
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1008-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 1008-1304
391 PLUG; SW HOLE
(A) M12X9 		0-92002-412-0 01 1 1305-
391 PLUG; SW HOLE
EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 02 1 1008-
391 PLUG; SW HOLE
COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) (B) M14X9 		8-98042-944-0 02 1 1008-
391 PLUG; SW HOLE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 01 1 1008-
391 PLUG; SW HOLE
RUSSIA EQUIPMENT(B12) (B) M14X9 		8-98042-944-0 01 1 1008-
394 SWITCH; RANGE CHANGE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) 		8-98042-853-0 01 1 1008-1209
394 SWITCH; RANGE CHANGE
RUSSIA EQUIPMENT(B12) 		8-98042-853-0 01 1 1008-1209
394 SWITCH; RANGE CHANGE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) 		8-98228-482-0 01 1 1210-
394 SWITCH; RANGE CHANGE
RUSSIA EQUIPMENT(B12) 		8-98228-482-0 01 1 1210-
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1008-1209
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1008-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1008-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1008-
592 SWITCH; POSITION 8-98042-853-0 01 1 1008-1209
592 SWITCH; POSITION 8-98228-482-0 01 1 1210-
çizim 168129
595 548 578 578 621 578 578 599 391 594 548 346 427 621 444 552 195 443 353 218 353 443 621 621 158 427 578 488 218 427 381 192 427 598 444 578 593 578 553 374 552 59 191 622 443 622
BalonParca AdiParca NoAdetTipApplied Date
59 NUT 1-09440-068-0 04 1 1008-
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1008-
191 WASHER; LK 1-09503-311-0 04 1 1008-
192 WASHER; PL 1-09503-310-0 04 1 1008-
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1008-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1008-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-490-0 01 1 1008-
346 HOSE; AIR
ID=6 OD=9 L=150 		1-33739-872-0 01 1 1402-
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1008-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-09661-390-0 01 1 1008-
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1008-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1008-
381 BOLT
(C) 		1-09044-111-0 04 1 1008-
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 1008-1304
391 PLUG; SW HOLE
(A) M12X9 		0-92002-412-0 01 1 1305-
391 PLUG; SW HOLE
EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 02 1 1008-
391 PLUG; SW HOLE
COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) (B) M14X9 		8-98042-944-0 02 1 1008-
391 PLUG; SW HOLE
EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) (B) M14X9 		8-98042-944-0 01 1 1008-
391 PLUG; SW HOLE
RUSSIA EQUIPMENT(B12) (B) M14X9 		8-98042-944-0 01 1 1008-
427 CONNECTOR; NYLON TUBE
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1008-
427 CONNECTOR; NYLON TUBE
(A) DIN8 ELBOW 		1-09660-924-1 01 1 1008-
427 CONNECTOR; NYLON TUBE
(B) M12 		1-09660-931-1 01 1 1008-
427 CONNECTOR; NYLON TUBE
(C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1008-
443 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1008-
443 BOLT; CLIP
(A) M8X90 FLANGE 		0-28050-890-0 04 1 1008-
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 1008-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1008-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1008-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1008-
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 11 1 1008-1401
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 01 1 1402-
548 CLIP; HOSE
(B) 		1-33712-028-0 01 1 1008-
552 BRACKET
(A) 		1-33719-082-0 01 1 1008-
552 BRACKET
(B) 		1-33719-083-0 01 1 1008-
553 ADAPTER; AIR 1-09661-389-0 01 1 1008-
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1008-
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1008-
578 CONNECTOR
(A) 		1-33712-023-0 02 1 1008-
578 CONNECTOR
(B) 		1-33712-024-0 01 1 1008-
578 CONNECTOR
(C) 		1-33712-026-0 01 1 1008-
593 VALVE; SPLITTER 1-33712-009-0 01 1 1008-
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 1008-
595 VALVE; RANGE 1-33712-029-1 01 1 1008-
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 1008-
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1008-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1008-
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 1008-
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1008-
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 1008-
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1008-

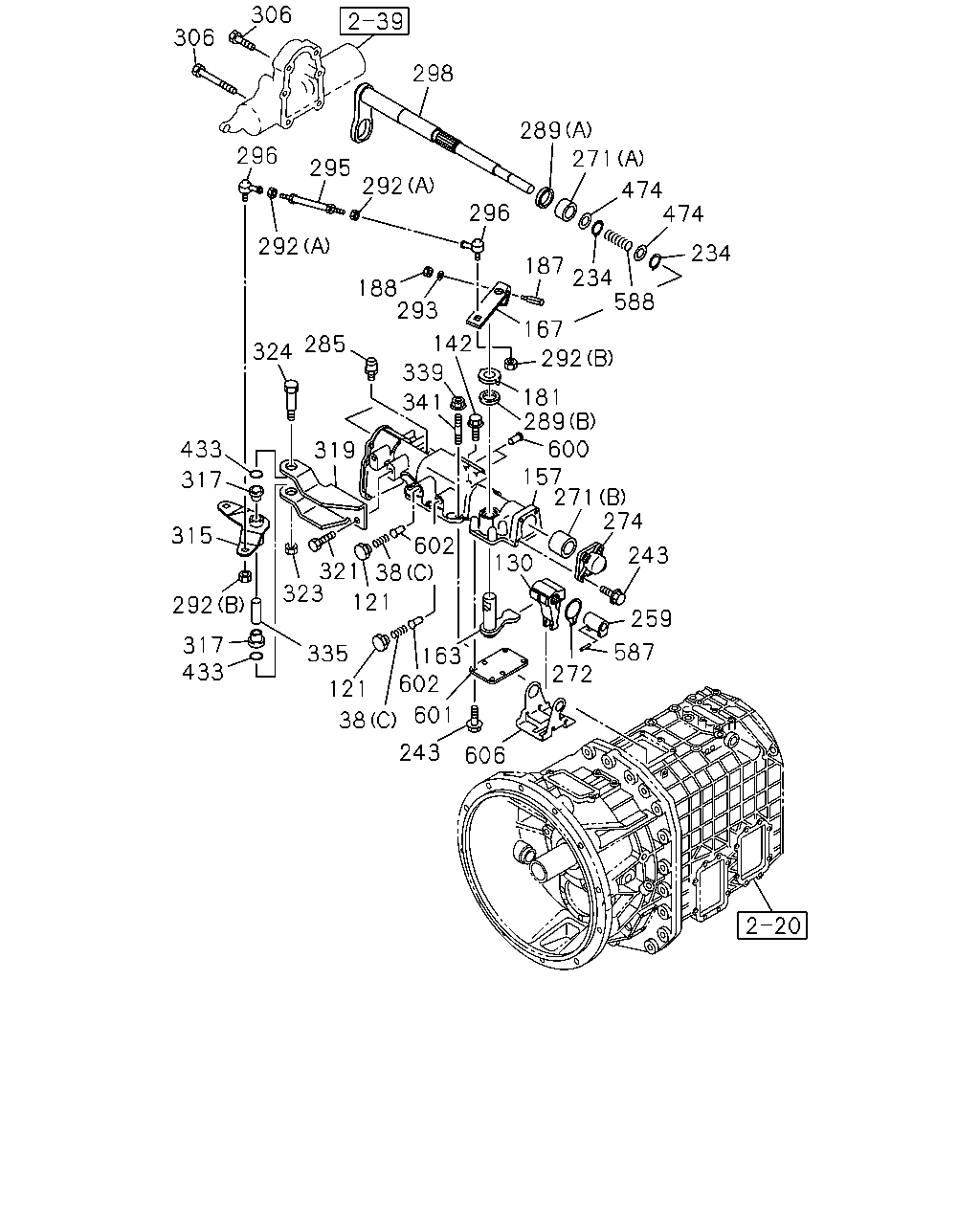

çizim 168162
306 306 298 289 296 271 295 292 474 474 296 292 234 187 234 588 188 293 142 167 285 324 292 339 181 289 600 157 271 274 341 433 319 317 602 38 130 315 243 321 323 121 292 259 317 433 163 602 587 335 272 121 601 38 243 606
BalonParca AdiParca NoAdetTipApplied Date
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1008-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1008-
38 SPRING; DETENT
(C) YELLOW 		1-09580-574-0 01 1 1008-
38 SPRING; DETENT
CHINA EQUIPMENT(YT2) (C) YELLOW 		1-09580-574-0 01 1 1008-
38 SPRING; DETENT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) BLUE 		1-09580-580-0 01 1 1008-
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1008-
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1008-
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1008-
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28751-030-0 01 1 1008-
157 BOX; QUAD,TRANS 1-33541-534-0 01 1 1008-
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 1008-
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 1008-1506
167 LEVER; SELECT,EXTERNAL 8-98232-015-0 01 1 1507-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1008-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1008-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1008-
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 1008-
243 BOLT; COVER
M8X35 FLANGE 		0-28650-835-0 10 1 1008-
259 GUIDE; SELECT,CONT BOX 1-33519-135-0 01 1 1008-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1008-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1008-
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1008-
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 1008-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1008-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1008-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1008-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1008-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1008-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1008-
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 1008-
296 ROD END 1-09760-108-0 02 1 1008-
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 1008-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1008-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1008-
315 LEVER; SELECT 1-33651-754-0 01 1 1008-
317 BUSHING; LEVER 1-09330-119-0 02 1 1008-
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1008-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1008-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1008-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 1008-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1008-
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1008-
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1008-
433 GASKET; BUSHING 1-09623-636-0 02 1 1008-
474 WASHER; SPRING STOPPER 9-09160-716-0 02 1 1008-
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 1008-
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 1008-
600 PLUNGER; VLV 1-33263-037-0 02 1 1008-
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 1008-
602 PLUNGER; DETENT 1-33263-037-0 02 1 1008-
606 INHIBITOR 1-33529-116-0 01 1 1008-

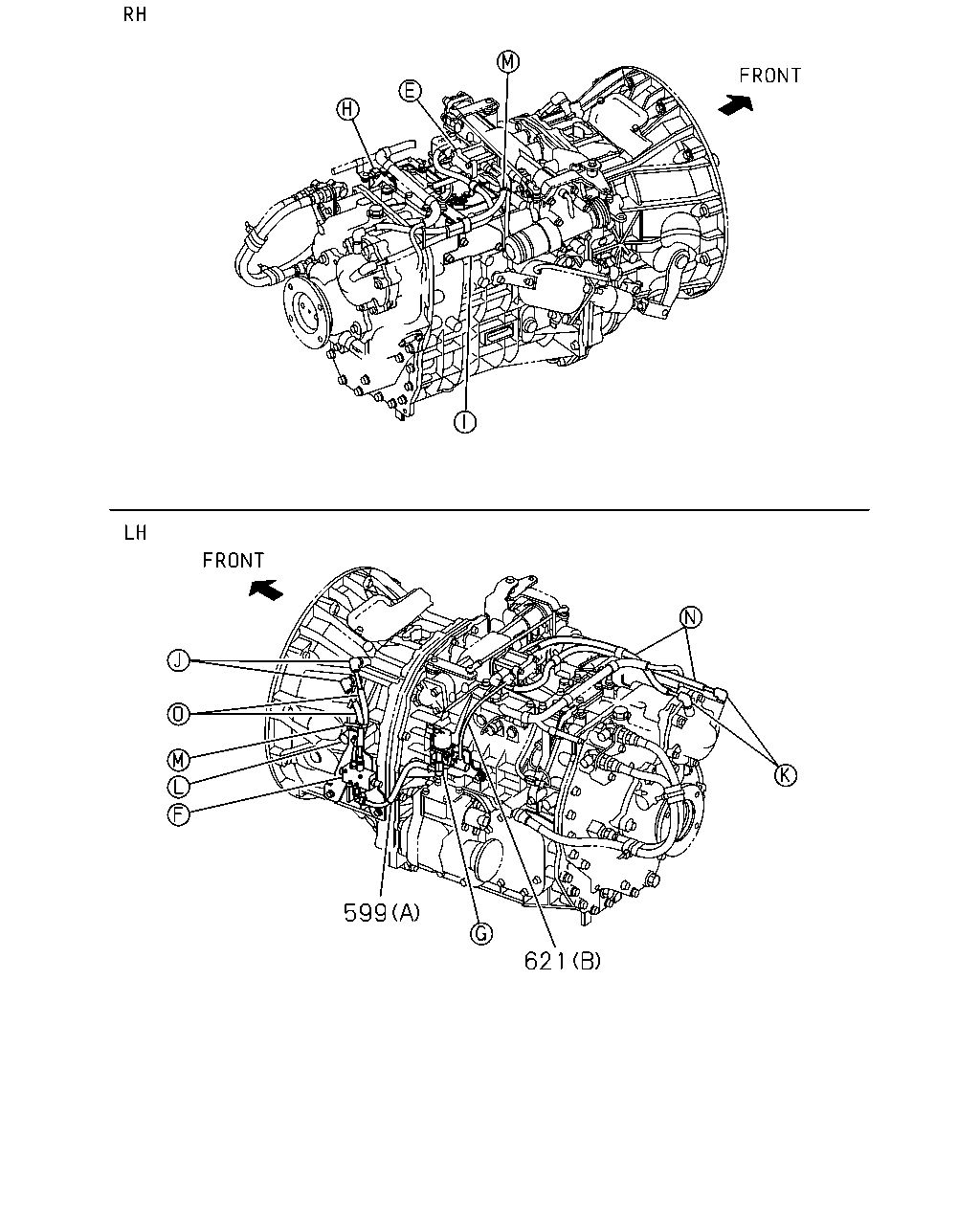

çizim 168197
599 621
BalonParca AdiParca NoAdetTipApplied Date
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1008-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1008-
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 1008-
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
