◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#5834) — 75 parça
çizim 42232
1 24 24 28 28 91 29 29 31 91 31 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609-9904 ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-218-0 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-218-0 02 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 9609-9904 ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-210-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-210-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9609-9904 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9904 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9905- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603-9907 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9908- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) M14X100 		0-20801-400-0 02 1 9908- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28081-225-0 02 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9607- ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9603-9907 ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9908- ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> ID=14.2 		9-09150-614-0 02 1 9908- ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> (B) ID=15 OD=52 		9-09164-414-0 02 1 9603-9608 ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> (B) ID=15 OD=52 		9-09164-814-0 02 1 9609- ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) ID=15 OD=30 		9-09164-614-0 02 1 9908- ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> (A) 		1-53637-007-0 02 1 9603- ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> (B) 		1-53631-444-0 01 1 9908- ● ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (A) 		1-53639-039-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-040-0 02 1 9905-9907 ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-042-0 04 1 9908- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53639-042-0 02 1 9905-0012 ●

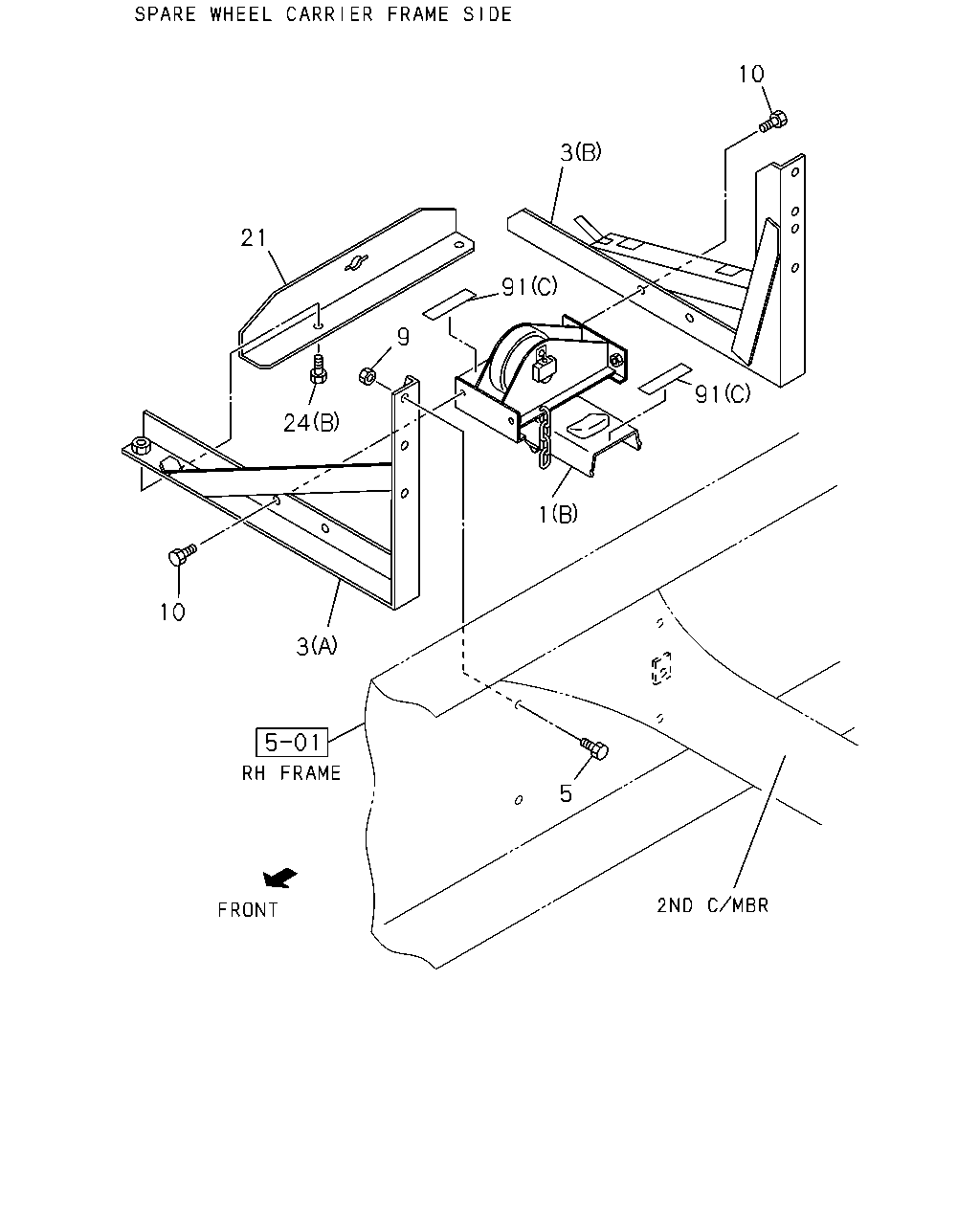

çizim 42288
10 3 21 91 9 91 24 1 10 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609-9904 ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-218-0 01 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-218-0 02 1 9603-9608 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 9609-9904 ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-210-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-210-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9609-9904 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-210-1 01 1 9609-9904 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-210-1 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) FRONT 		1-53631-388-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) REAR 		1-53631-434-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) REAR 		1-53631-389-0 01 1 9603-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) REAR 		1-53631-389-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) REAR 		1-53631-389-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) FRONT 		1-53631-393-0 01 1 9603-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) FRONT 		1-53631-393-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) FRONT 		1-53631-393-0 01 1 9905- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28081-235-0 06 1 9603-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 9607-9902 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9903-9904 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 04 1 9905-9910 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9603-9606 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 9607-9904 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 9911- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9603-9606 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9603- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603-9907 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9908- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (A) M14X100 		0-20801-400-0 02 1 9908- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28081-225-0 02 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9607- ● ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (A) 		1-53639-039-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-040-0 02 1 9905-9907 ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-042-0 04 1 9908- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53639-042-0 02 1 9905-0012 ●
