Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10726 - EXZ FUEL TANK 200L+200L/300L
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

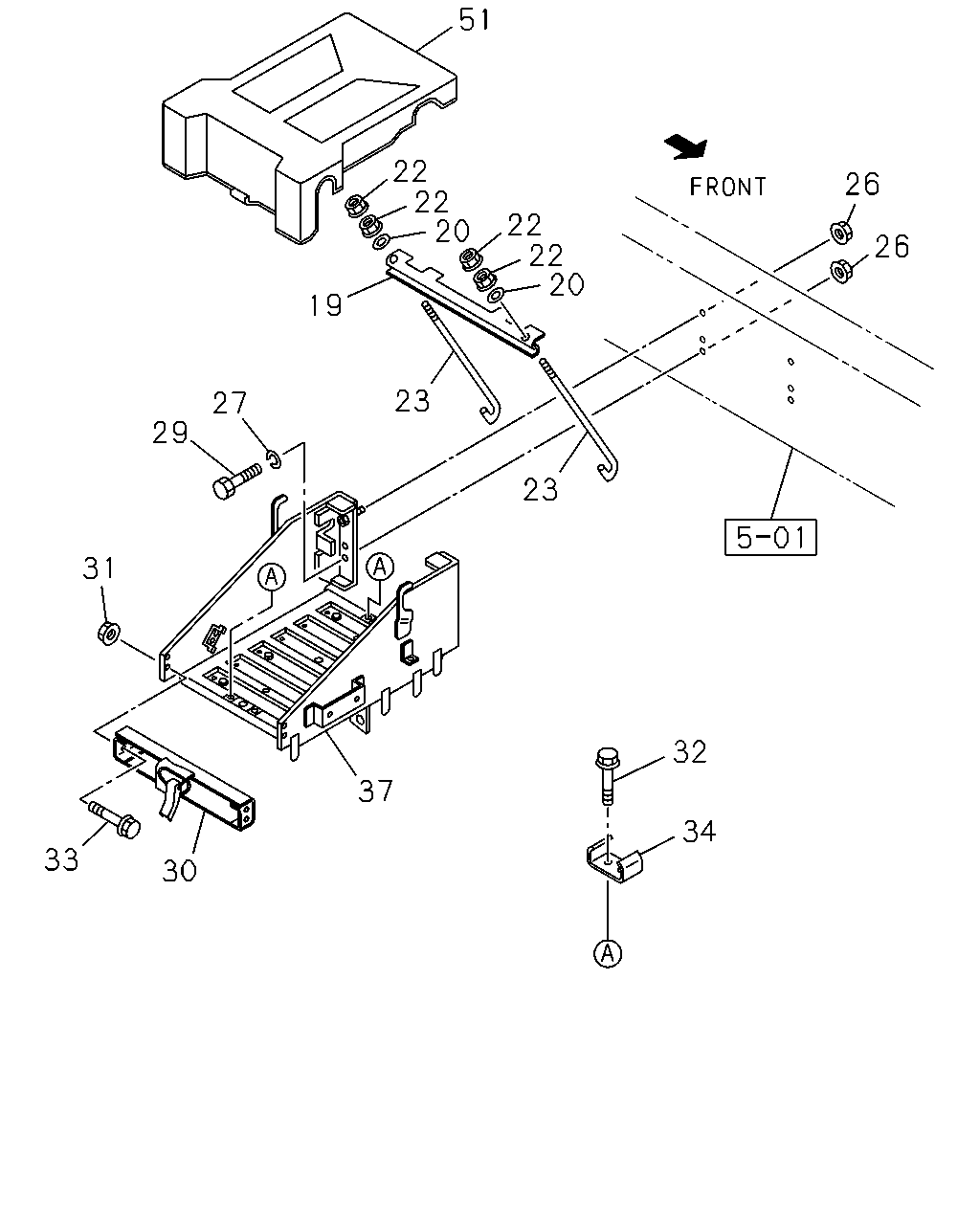

5-20 — BATTERY CARRIER
(#5833) — 21 parça
Tümü
A - EXZ5MC
B - EXZ6MC
51
22
22
20
26
22
22
20
26
19
23
27
29
23
31
32
37
34
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
STAY; BATTERY
1-53618-039-2
01
1
9603-
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
9603-
●
●
22
NUT; STAY
M8
9-09110-508-0
04
1
9603-9606
●
●
22
NUT; STAY
M8 FLANGE
0-91150-108-0
04
1
9607-9812
●
●
22
NUT; STAY
M8
9-09110-408-0
04
1
9901-
●
●
23
BOLT; STAY
L=250 L=260
1-53616-109-0
02
1
9603-9904
●
●
23
BOLT; STAY
L=250
1-53616-108-0
02
1
9905-
●
●
26
NUT; BRKT
M14
9-99110-514-0
04
1
9603-
●
●
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
9603-
●
●
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
9603-
●
●
30
PLATE; BATTERY
1-53619-086-0
01
1
9603-
●
●
31
NUT; PLATE
M8
9-09110-508-0
04
1
9603-9606
●
●
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
9607-
●
●
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
9603-9606
●
●
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X20 FLANGE
0-28680-820-0
04
1
9607-9912
●
●
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0001-
●
●
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
9603-9606
●
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28680-820-0
04
1
9607-
●
●
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
9603-
●
●
37
BRACKET; BATTERY
1-53610-130-0
01
1
9603-9904
●
●
51
COVER; BATTERY
1-53612-040-1
01
1
9603-
●
●
